14 Bolt / Dana 70 / Sterling Spring Perches

Part Number: R1018-Kit-1
Shipping Weight: 4.98 lb
$36.00
Shipping calculated at checkout.

Description

14 Bolt / Dana 70 / Sterling Spring Perches

INCLUDES:

  • 2-Perches for one axle

DIMENSIONS:

  • Axle diameter: 3 3/8 or 3 1/2"
  • Width: 2.5"

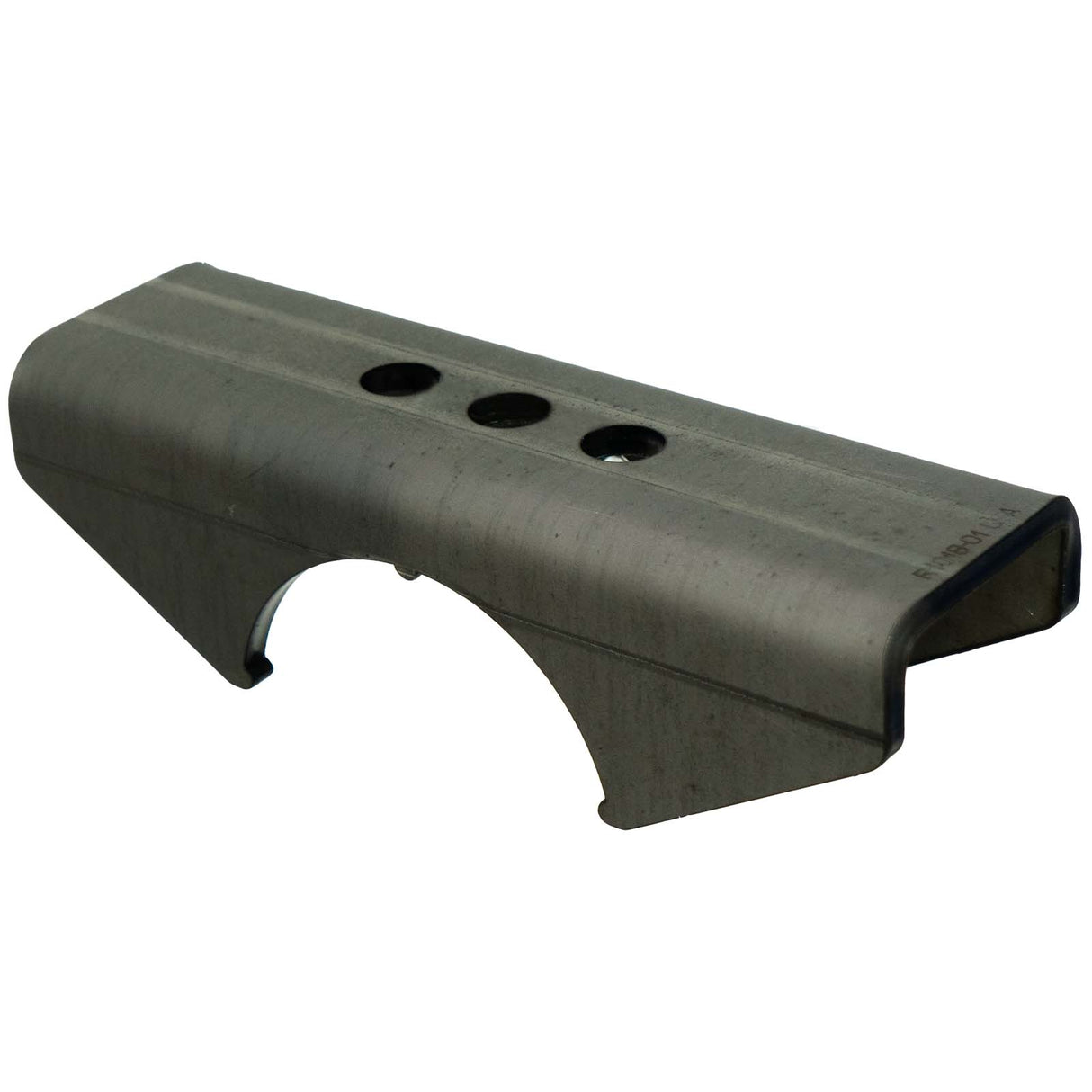

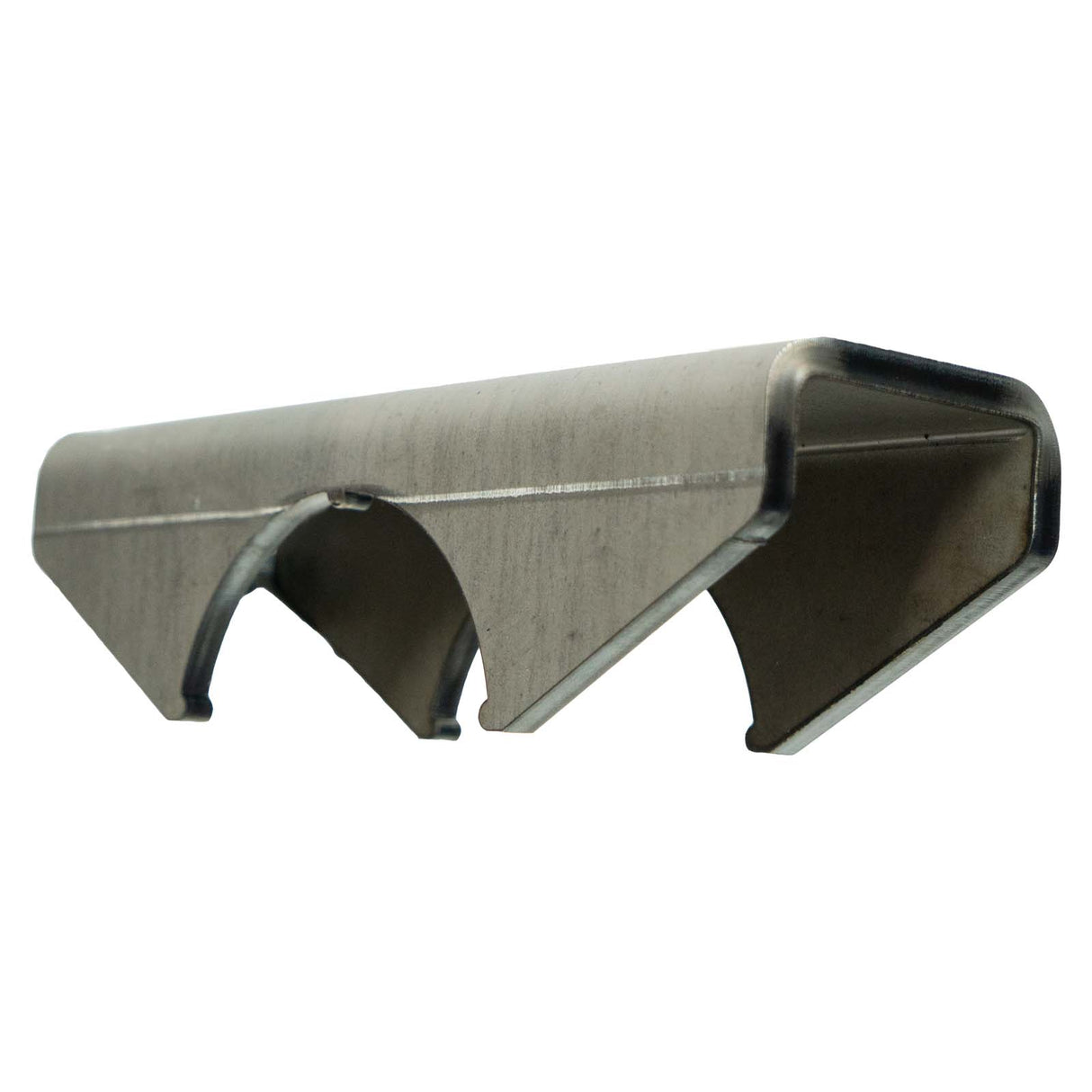

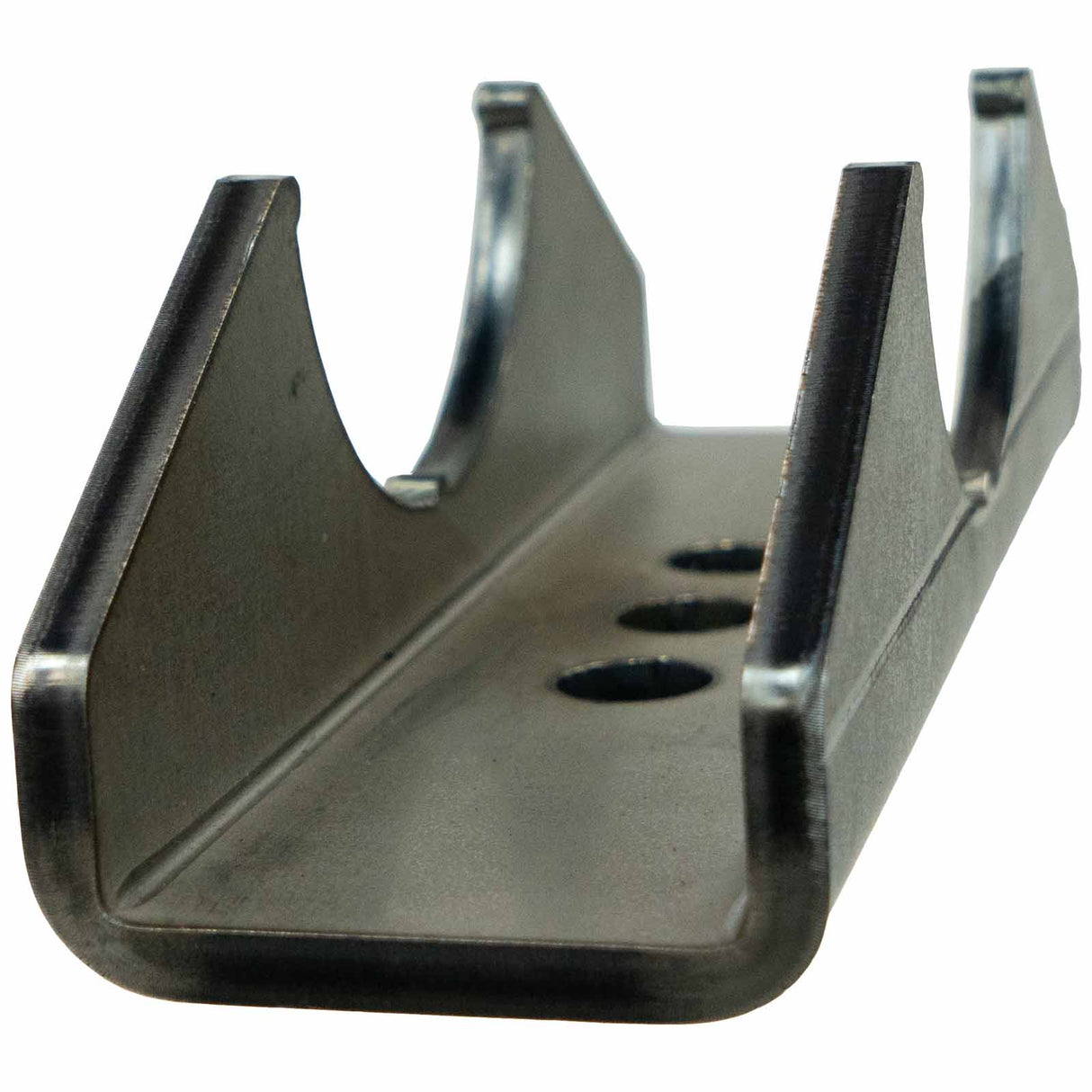

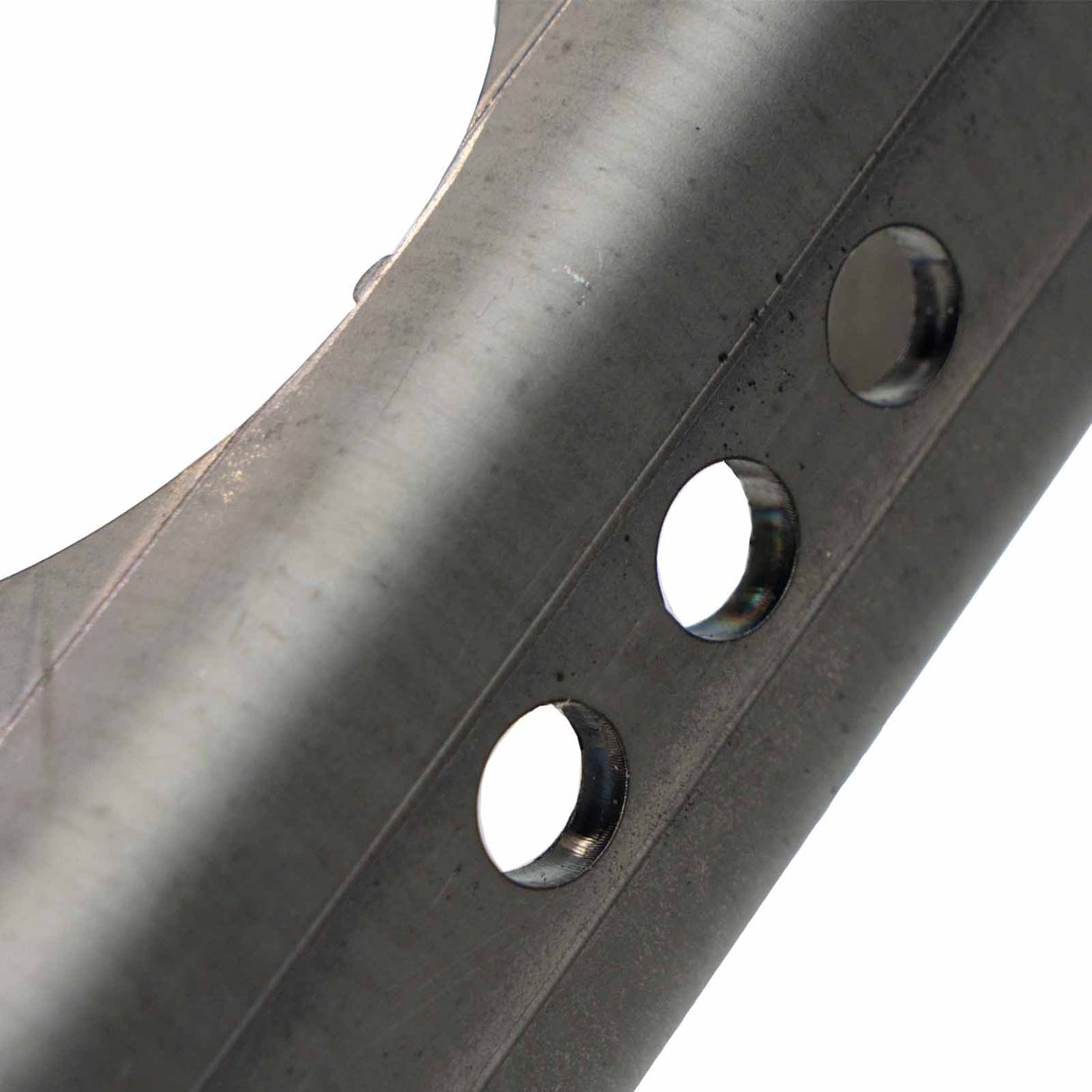

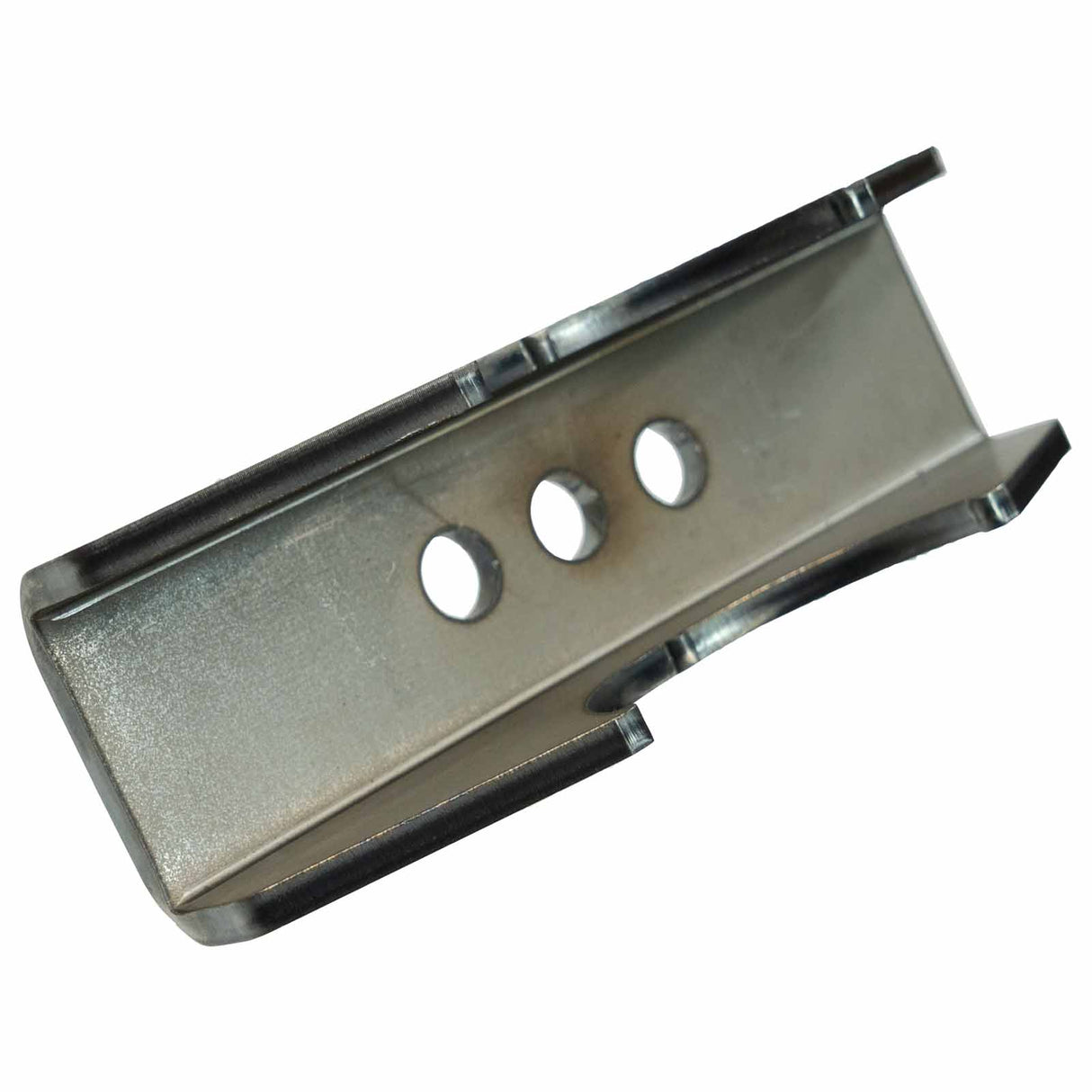

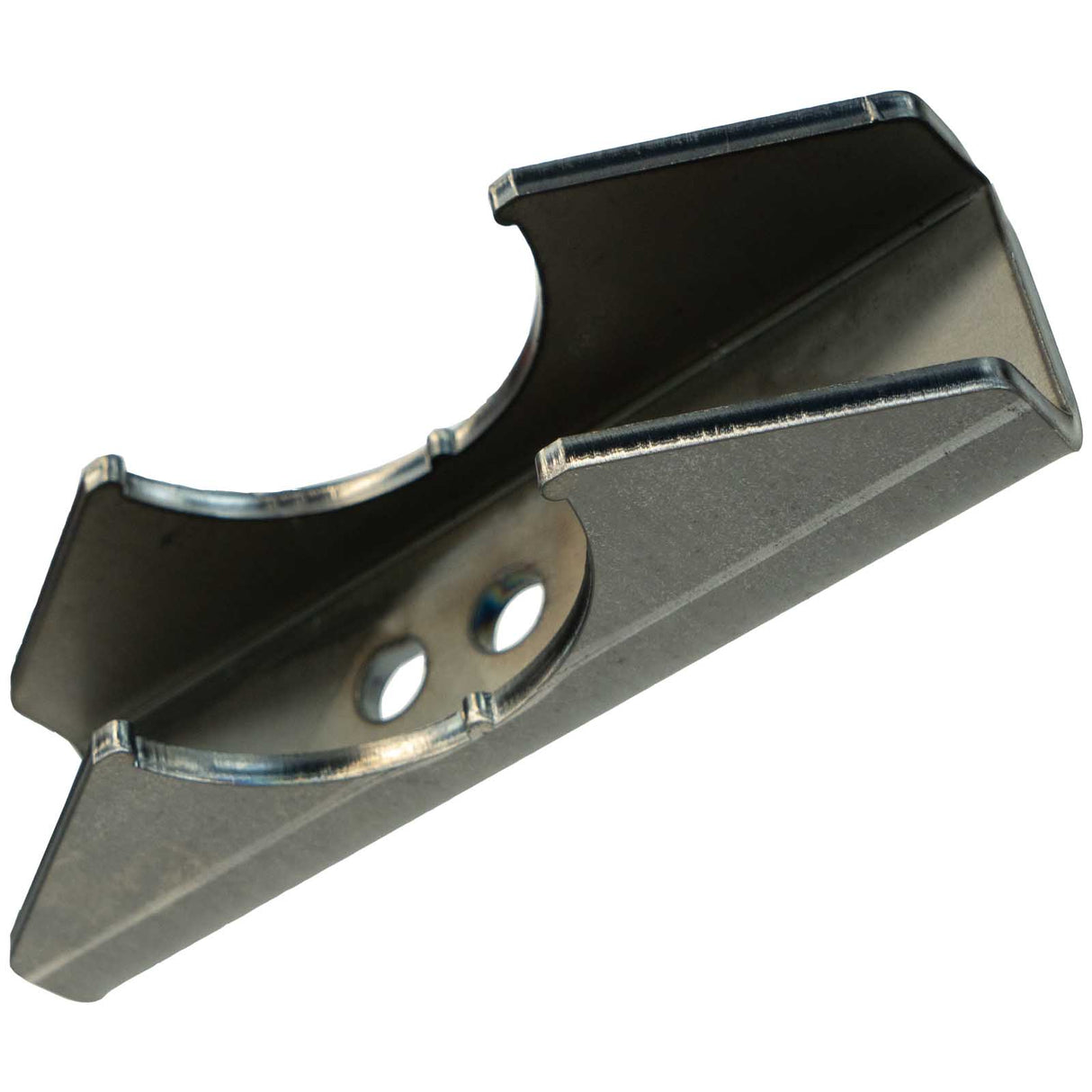

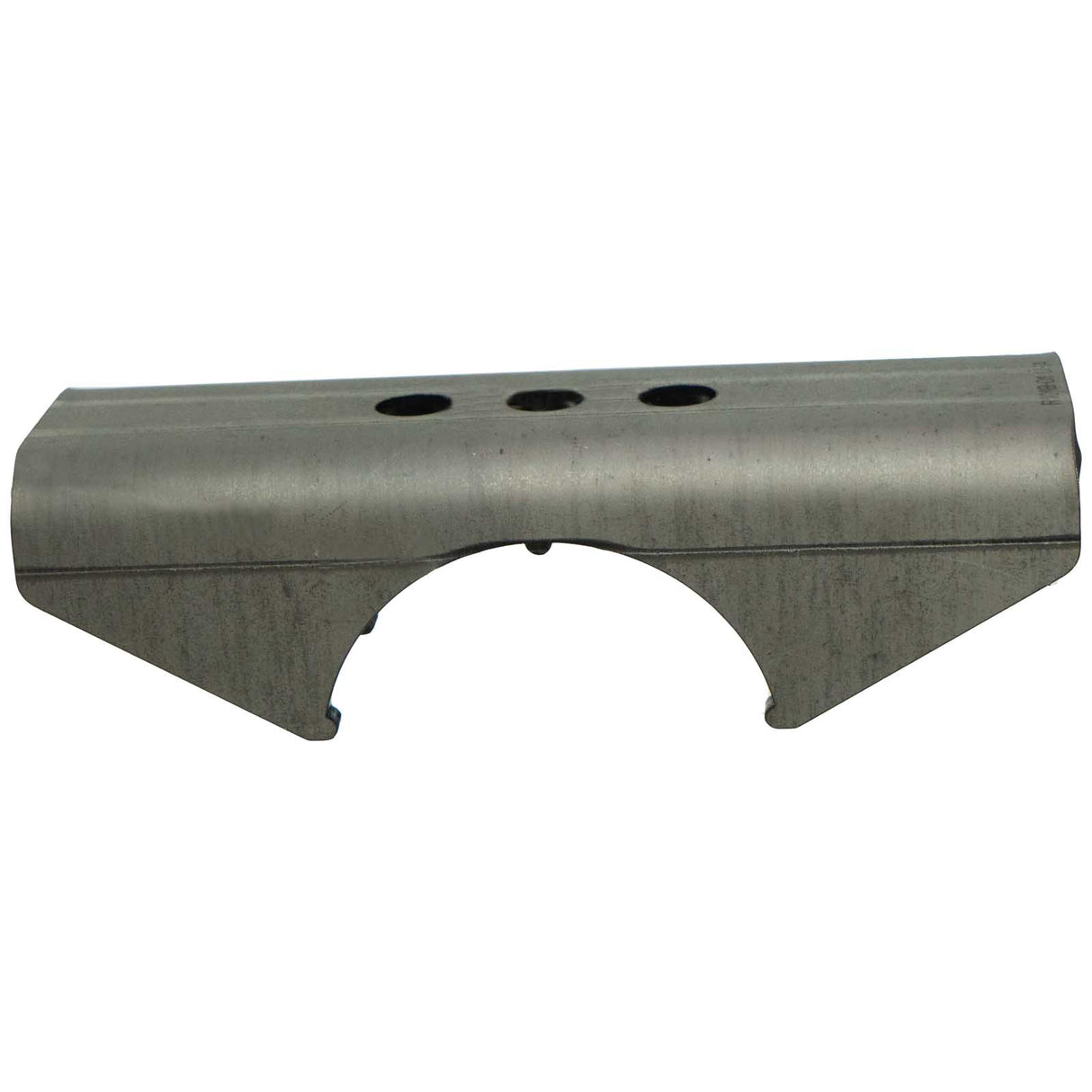

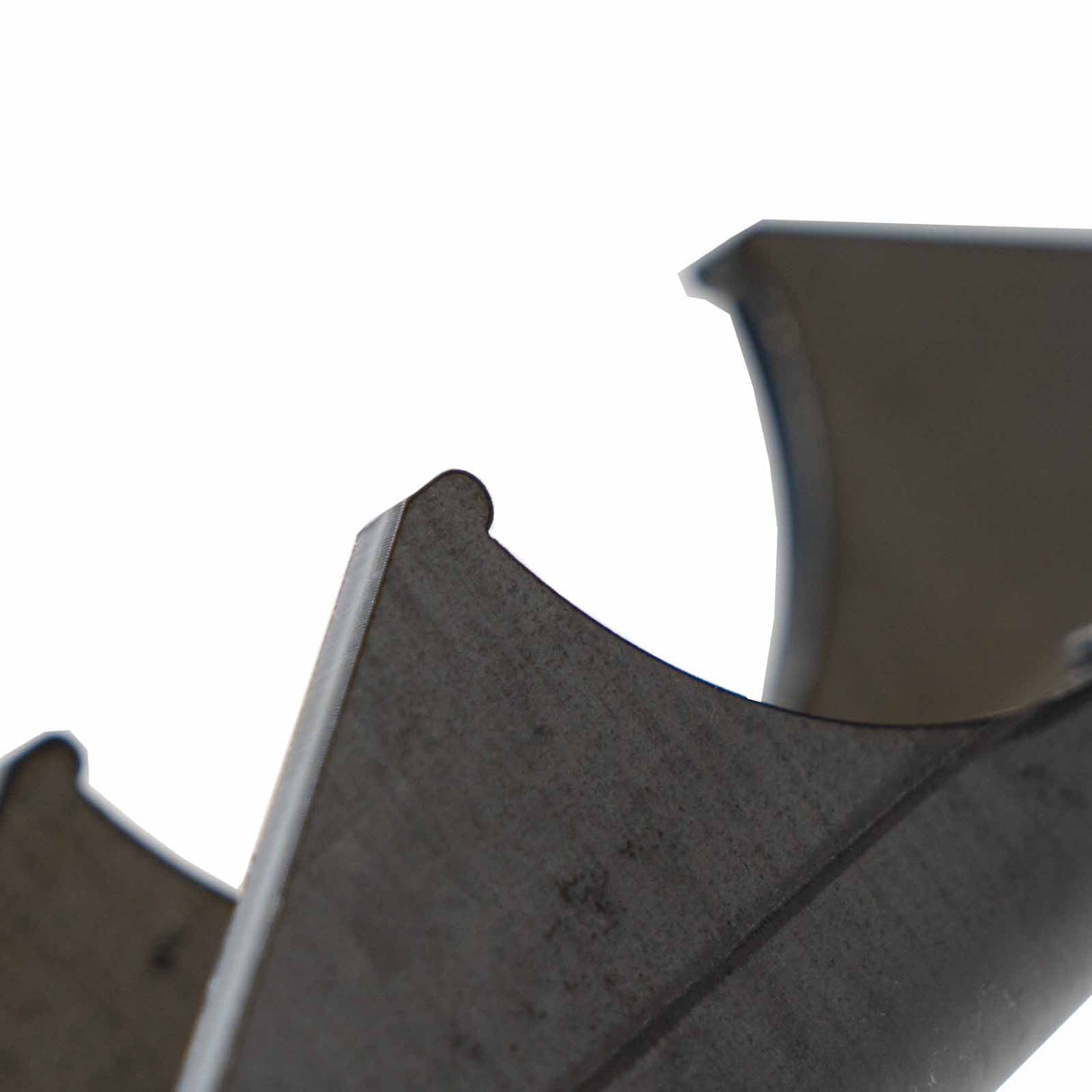

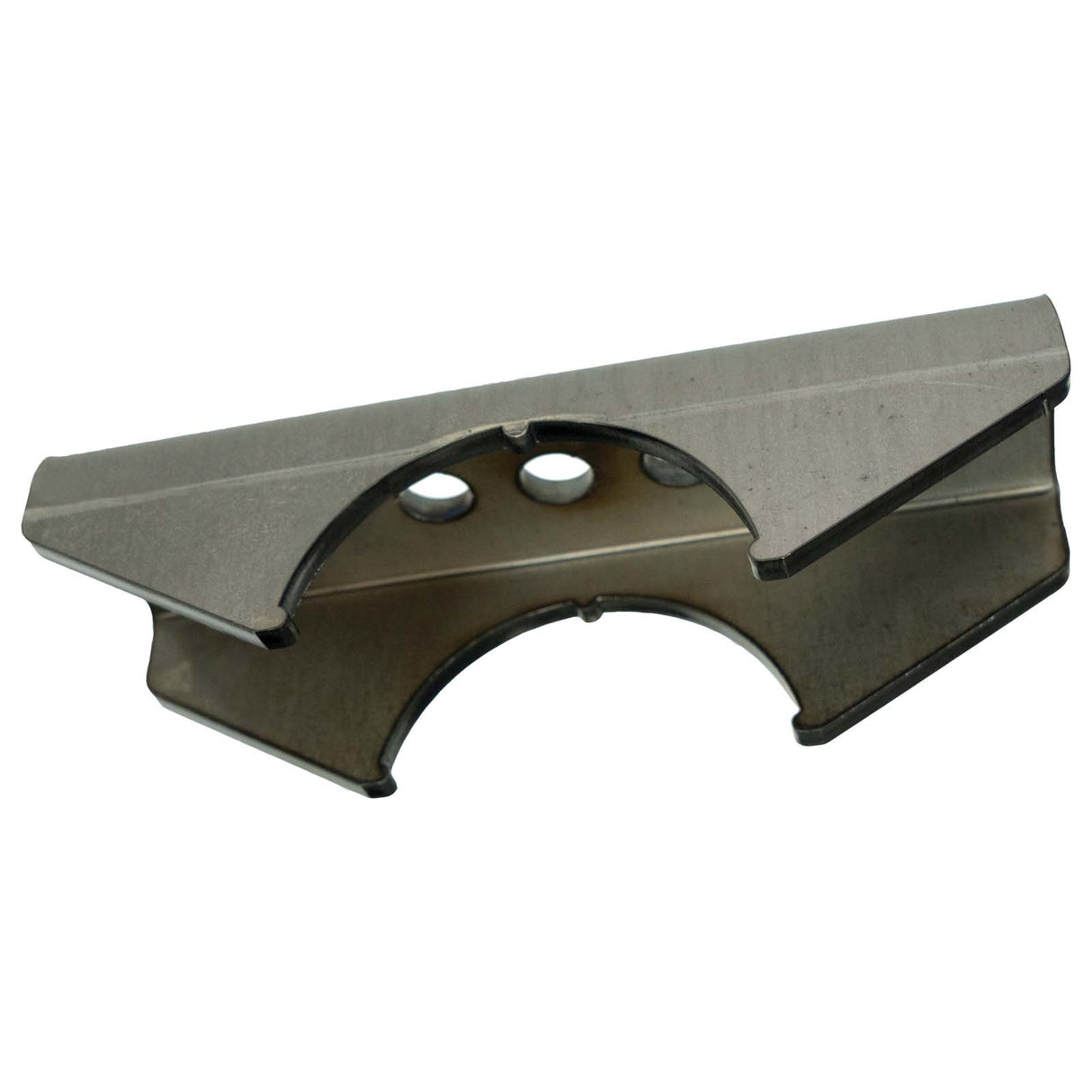

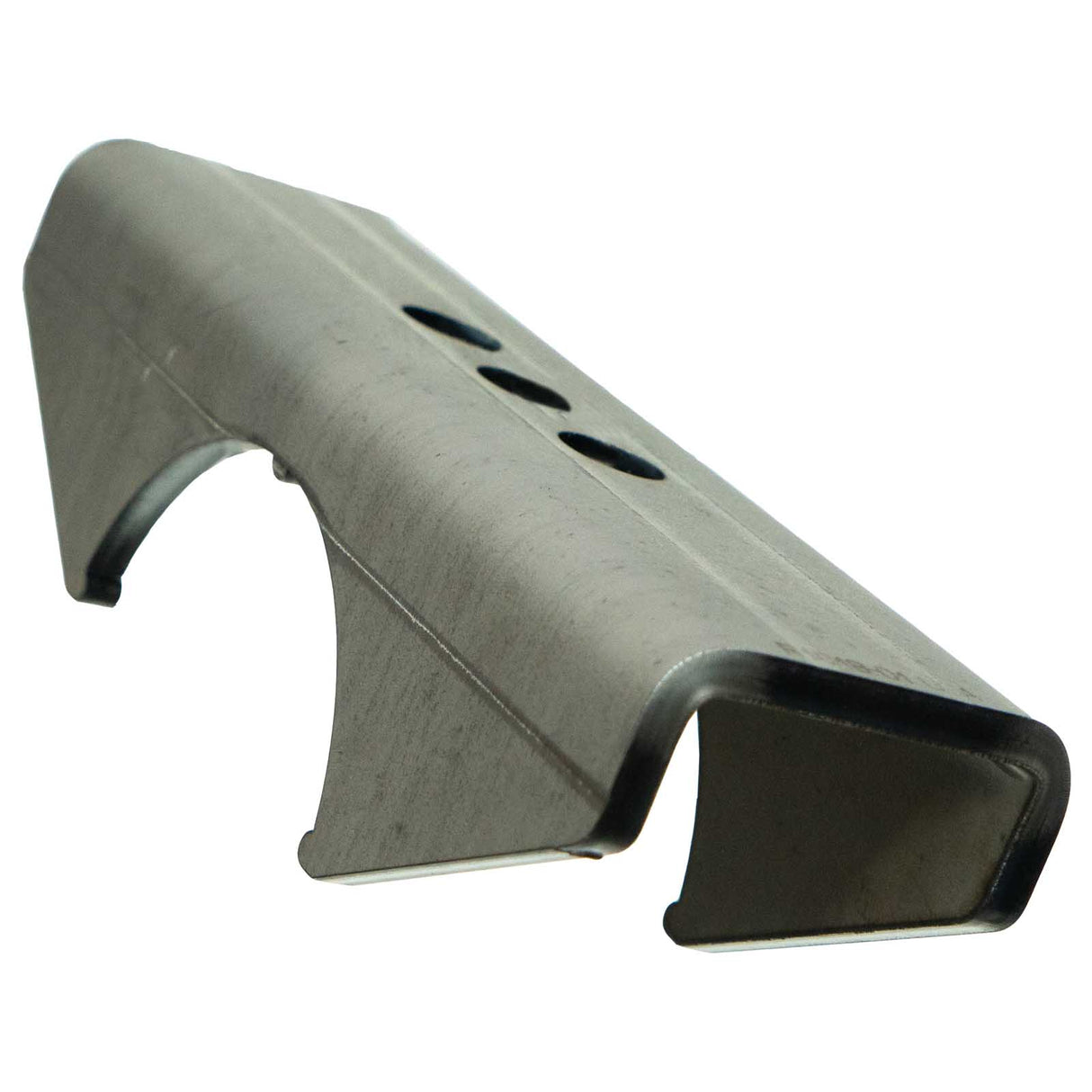

This is a new variation on one of our fairly basic items, but it isn't quite that basic. Here's what you want to know: These are .25" (1/4) HR P&O Steel Plate, CNC Laser Cut and then folded on a 290 ton CNC Brake to final size. Length is 7.75" to help control axle wrap and 2.5" wide to provide a stable platform. They have 3 spring pin mounting options so you can adjust your wheel base if you wish and are cut to fit a 3 1/2" axle tube but they have 3 - 1/16" nubs so they fit a 3 3/8" (14 Bolt) tube out of the box, grind off the 3 tiny nubs and they fit a D70 / Ford Sterling (3 1/2"), pretty simple.

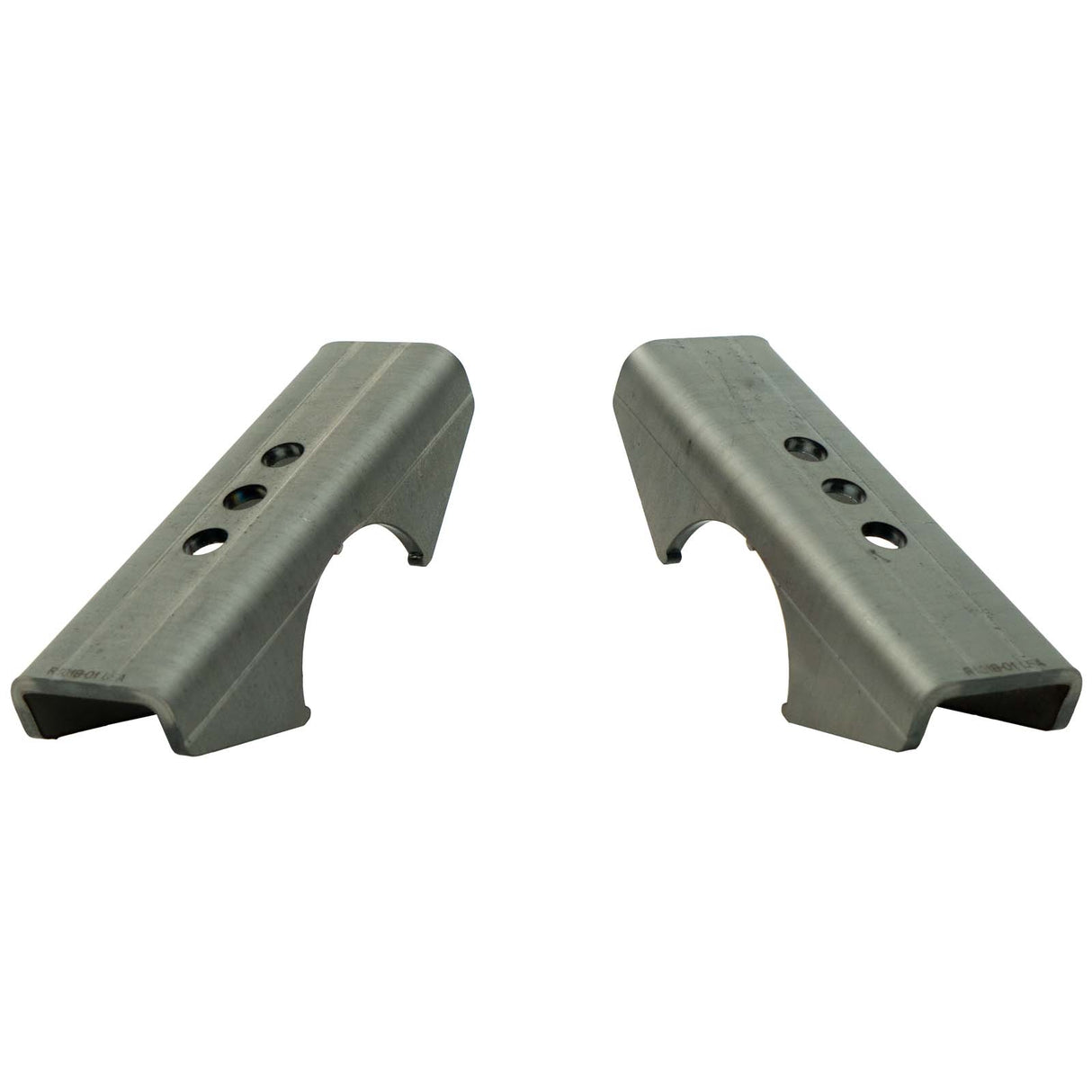

Sold in pairs.
These are for spring over applications
Prop 65 Warning Icon
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Joshua Hollenbeck
Great product. Better service!

I ordered a set of these and was not disappointed even after opening the package and noticing that one perch was defective, because I knew they would make it right! Sure enough I called em' up they verified my order number and sent me a replacement. Come to find out it was already prepped to ship within a couple hours. For these reasons I will continue to choose Ruffstuff!!

l
landon gipe
THESE WORK FOR MY MONSTER

I HAVE A 9 INCH WITH BEEFY TUBES WOULD HAVE LOVED A RUFFSTUFF HOUSING BUT THIS ONE WAS FREE FROM A BUILD A FRIEND DIDN'T FINISH SO I GOT THE HOUSING AND THESE FIT ON IT GREAT, AFTER TAKING THE NUBS OFF. AND THE CENTER PINS IN MY WAGGY LEAFS FIT IN THE PERCHES GREAT. YOU CAN NOT MAKE THESE FOR THE PRICE AND THEY ARE TOP NOTCH AS FAR AS QUALITY GOES. SO DON'T WAIT ORDER THEM NOW.

M
Marcel van de Vusse
Beefy

After grinding off the little nubs, the bracket fit my Sterling 10.25" perfectly. A+
