Dana 44 Spring Perches, 2.5" wide

Part Number: R1110-A-Kit-1

Shipping Weight: 8.0 lb

$39.60

Shipping calculated at checkout.

Dana 44 Spring Perches, 2.5" wide

Heavy-duty 1/4" steel perches for Dana 44 axles. Extra-long 8" design reduces axle wrap with three pin positions for wheelbase adjustment. Built to wheel.

Our Website is having technical Difficulties.

To place an order, please call our Sales Team directly at:

(916) 600-1945 ORDER BY PHONE

Description

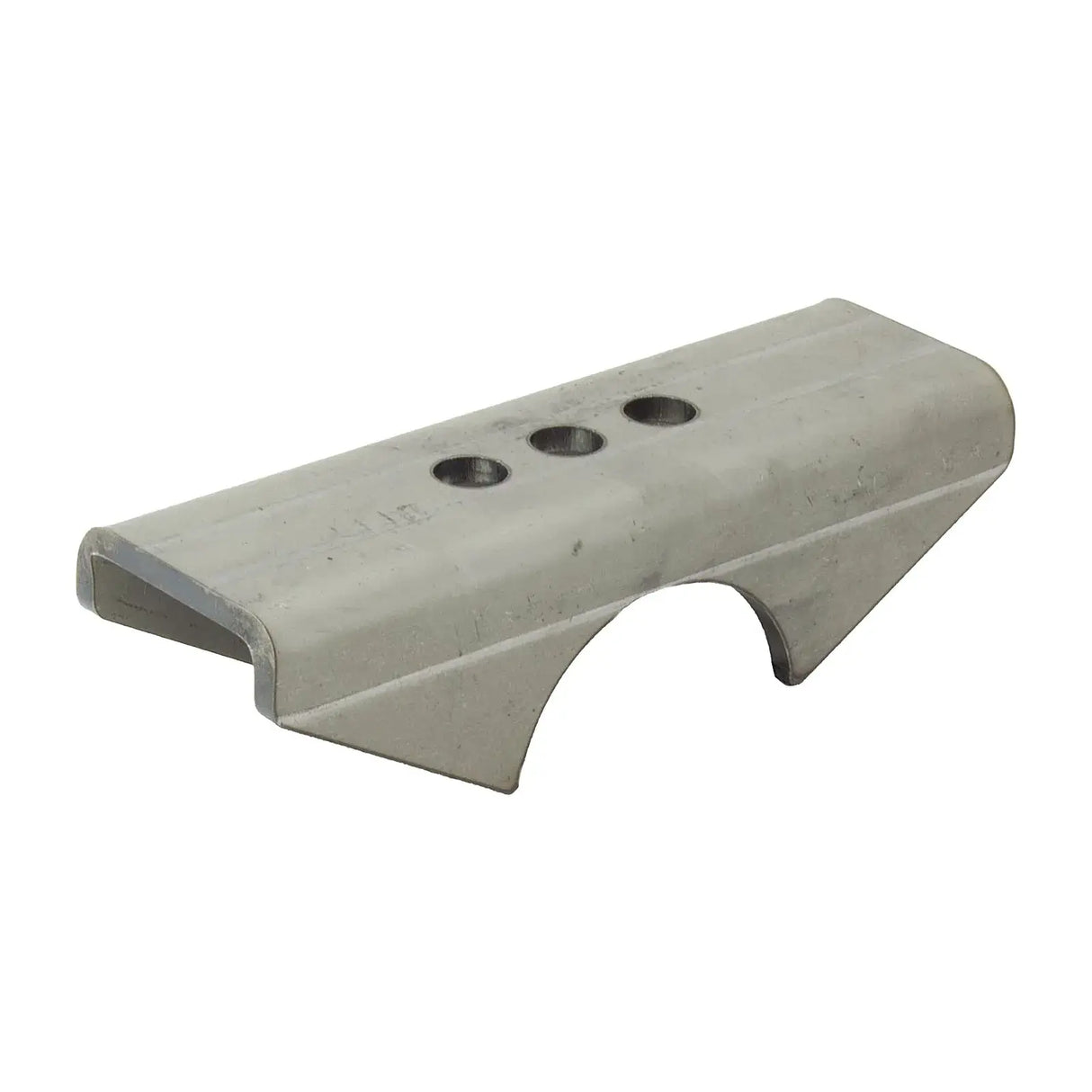

Dana 44 Spring Perches, 2.5" Wide

Weld-On Leaf Spring Perches for 2.75" Axle Tubes

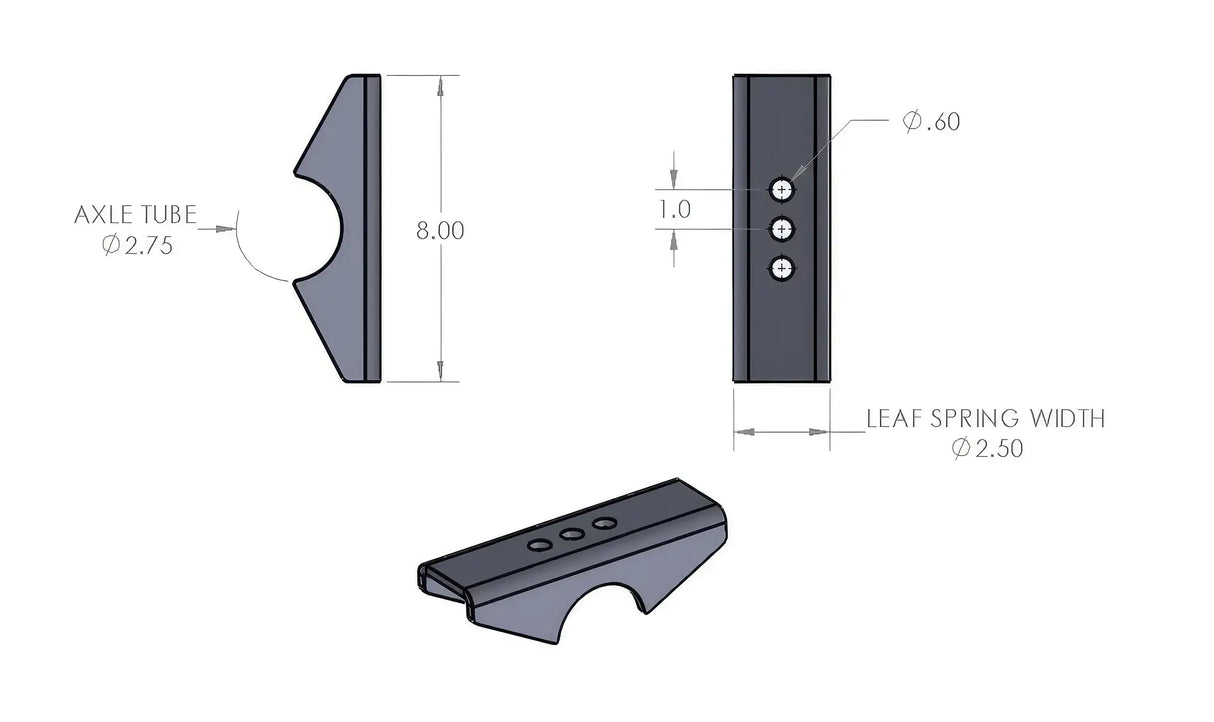

These spring perches are built for spring-over setups on Dana 44 axles with 2.75" axle tubes. Made from 1/4" HR P&O steel, CNC laser cut and brake-formed for accuracy. At 8" long, they help control axle wrap, and the 3 center pin locations allow for minor wheelbase adjustments. Easily modified with a grinder to fit axle tubes ±0.25" in diameter. Sold in pairs.

Key Features

Part Number: R1110
Fits 2.75" axle tubes (Dana 44)
2.5" wide spring platform
8.0" long to reduce axle wrap
Three spring pin mounting options
Made from 1/4" HR P&O steel
Sold in pairs

Kit Includes

(2) Spring perches – 2.5" wide, cut for 2.75" axle tube

Note: Welding required. Make sure installation is done with proper tools and technique.
