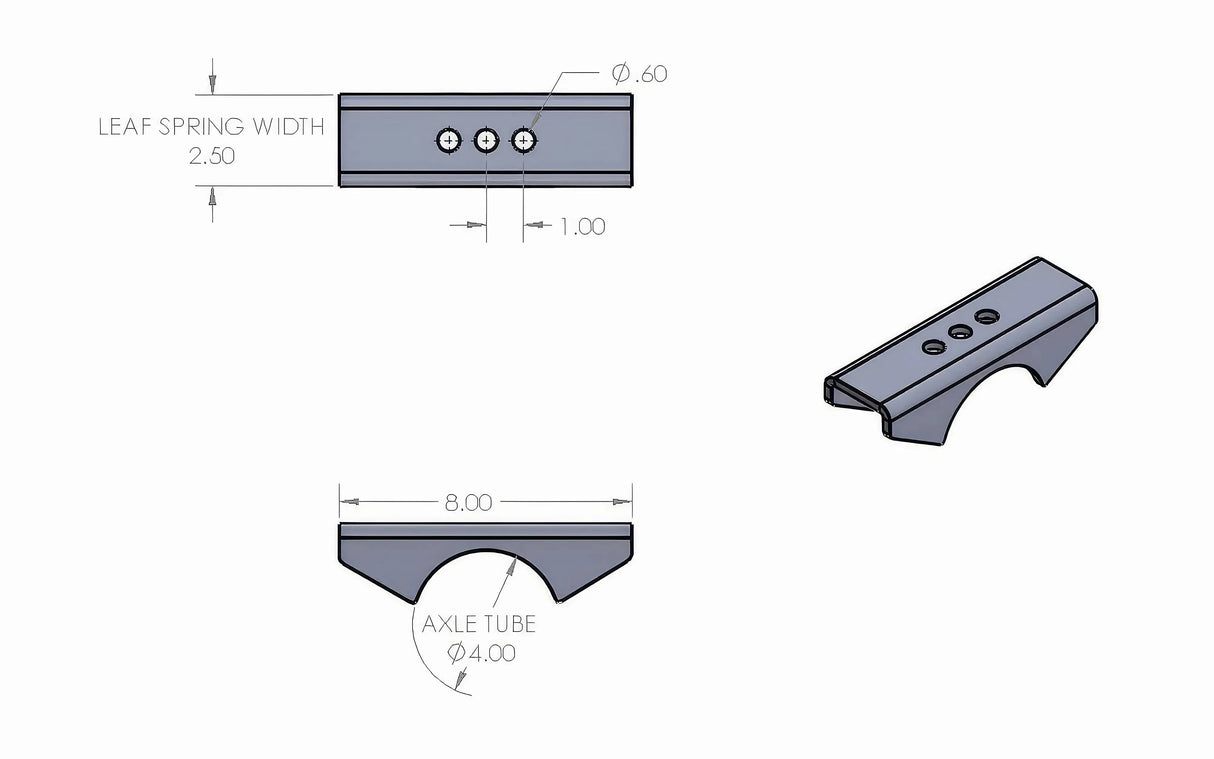

- Axle diameter: 4.0"
- Width: 2.5"

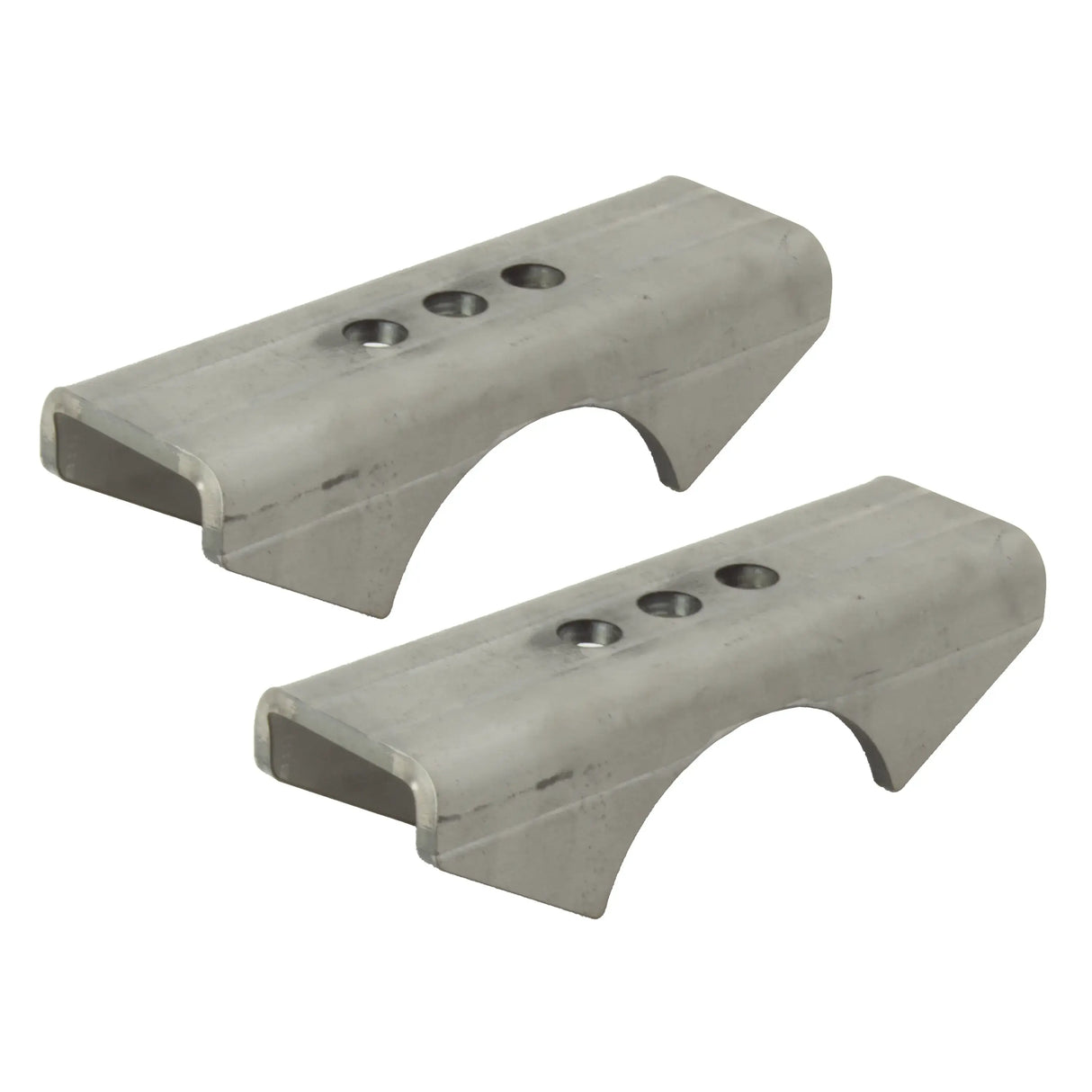

This is one of our fairly basic items, but it isn't quite that basic. Anyway, here's what you want to know. These are .25" (1/4) HR P&O Steel Plate, CNC Laser Cut and then Folded on a 290 ton CNC Brake to final size. Length is 7.75" to help control axle wrap and 2.5" wide to provide a stable platform. They have 3 spring pin mounting options so you can adjust your wheel base if you wish and are cut to fit a BIG 4.0" axle tube (D70HD or D80), they are easily adjustable .25 up or down in tube size in minutes with your grinder.
Sold in pairs.
These are for spring over applications
