SKU: R1067 7/8" x 3/4" Rod End Right Hand (14 TPI)

7/8" x 3/4" Rod End Right Hand (14 TPI)
Click image to zoom
Purchase 7/8" x 3/4" Rod End Right Hand (14 TPI)
  • 7/8" x 3/4" Rod End Right Hand (14 TPI)

  • ★★★★★ ★★★★★ 4 reviews
  • Part Number: R1067
  • Shipping Weight: 0.90 pounds

  • $25.00 $21.25 $25.00Additional 15% OFF!

  • This Product Qualifies for FREE Shipping on Orders Over $250!
  • In Stock

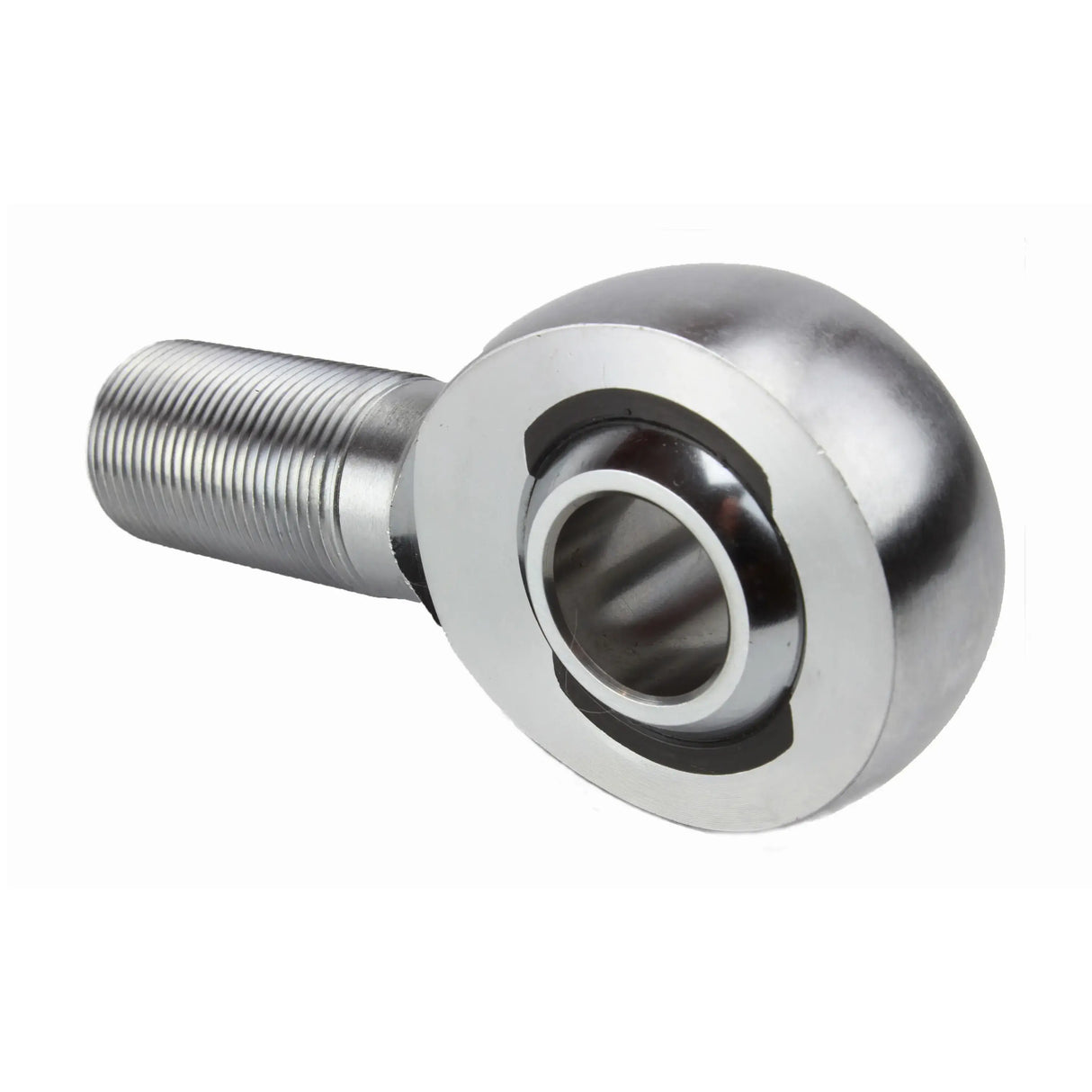

7/8" x 3/4" Rod End Right Hand (14 TPI)

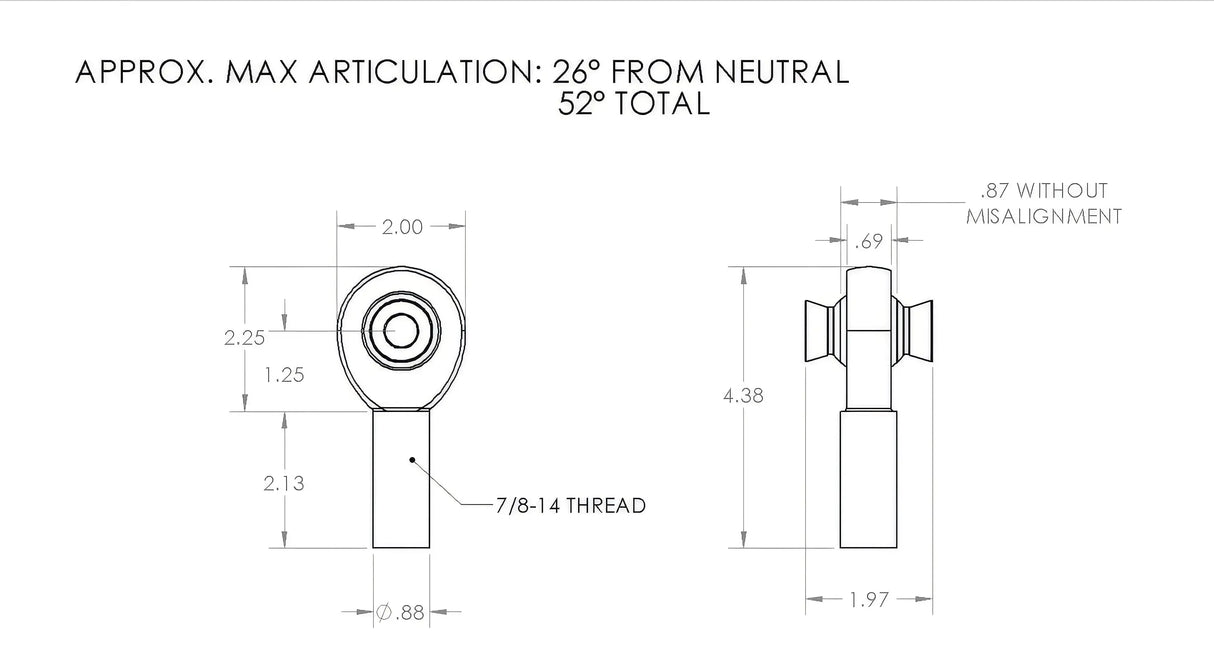

This is a 7/8" shaft with a 3/4" bore (14TPI). Sometimes smaller in the right places is better! Don't let the price confuse you, these are high quality Heat Treated Chromoly rod end, they are definately not a cheap mild steel heim.

The 4130 Chromoly housing has a hard chrome finish and the Ball is made from 51200 bearing steel and heat treated with a hard chrome finish. The race is made from injection molded Teflon impregnated Nylon.

Approximate Ultimate Radial Static Load - 55,600lbs. These are not tested to breaking point, they are tested to first deformation, that is a key point, deformation is not breaking. Some of the other companies test to destruction, I believe if they tested using the same methods the results would be very close, if not the same.

Tri Flow is the only product we recommend to service our rod ends, use of other products such as WD-40 or Blaster is never recommended and will void any warranty

Write Review
★★★★★ ★★★★★
5/5 Stars out of 4 Reviews
1
0
2
0
3
0
4
0
5
4
7/8 Heim joints
5
Matt (N.C.) | August 30th, 2022
Got these to replace some 5 year old heim joints that were getting loose and letting the wheels wobble. These tightened everything up. We will see if they last 5 years.
Verified Buyer
Cant get any better
5
Joseph Wilber (san antonio, TX, US) | January 8th, 2016
First time ordering through ruffstuff and now i wont order from anywhere else. These heims are strong as hell. Amazingly fast shipping and the customer service is second to none.
Verified Buyer
Only heims I buy
5
dan Mcpherson (meriden, CT, US) | March 1st, 2013
I have been running 7/8 heims in all of my links for the last couple years on my one ton XJ. I redid the suspension this year and added some and reused all of my old ones. They were all still tight and in great shape, even after daily driving as my winter vehicle.
Verified Buyer
Bought the rest now buy the best !!
5
Jeff Barons (Roberts Creek, British Columbia, CA) | February 1st, 2013
I have used three major brands of Rods End and all were much more expensive. Within three to five months or so they all clunked banged and squeaked. I have had Ruff Stuff rod ends in for a eight months now and still quiet. The Zinc Misalignment's were temporary out of stock so they upgraded me to stainless for free. You can't ask for better costumer service or Quality. Thanks Guys.
