Toyota 8" U Bolt Flip Kit (Rear) 86-95 Pickups/4runners

Toyota 8" U-Bolt Flip Kit (Rear)

This kit was designed for a Toyota rear axle housing tube measuring 3" O.D. which is found in the back of 86-95 4wd pickups and 4runners

• U-Bolt plates measure 3/8" thick and will fit up to a 2 1/2" wide spring.
• Heavy duty U-Bolts with 5" inches of rolled threads for extra strength.
• Comes with (8) Tallnuts and (8) Hardened U-bolt Washers.

You will receive:

• 4 - Grade 8 U-bolts are 3" wide 5/8" thick and 10" tall with hardware
• 2 - U-bolt plates for 2.5" wide springs

Note

• The original factory Toyota U-Bolt plates have a stock shock mount built in to the u-bolt plate. You will need to relocate your lower rear shock mounts.

Additional Products You May Want When Installing This Kit

1/2" x 3" Shock Bracket Bolts

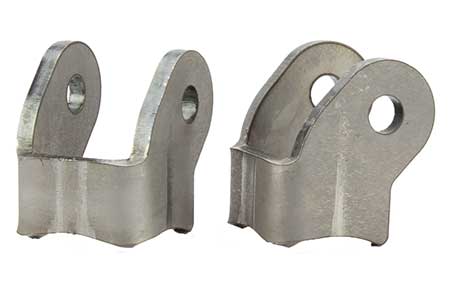

Curved Shock Brackets
