SKU: R2227 Offset Chassis Link Brackets

Offset Chassis Link Brackets
Click image to zoom
Purchase Offset Chassis Link Brackets
  • Offset Chassis Link Brackets

  • ★★★★★ ★★★★★ 3 reviews
  • Part Number: R2227
  • Shipping Weight: 12.00 pounds

  • $145.00

  • Preorder Now! Estimated 10-15 Day Lead Time.

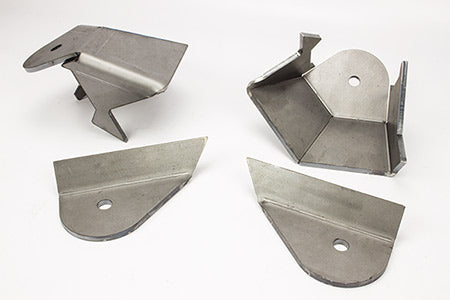

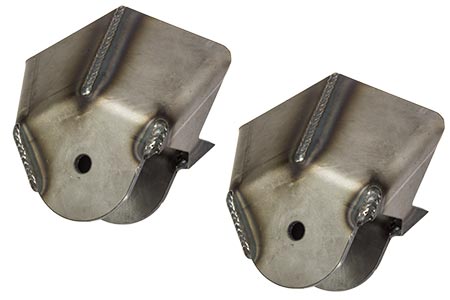

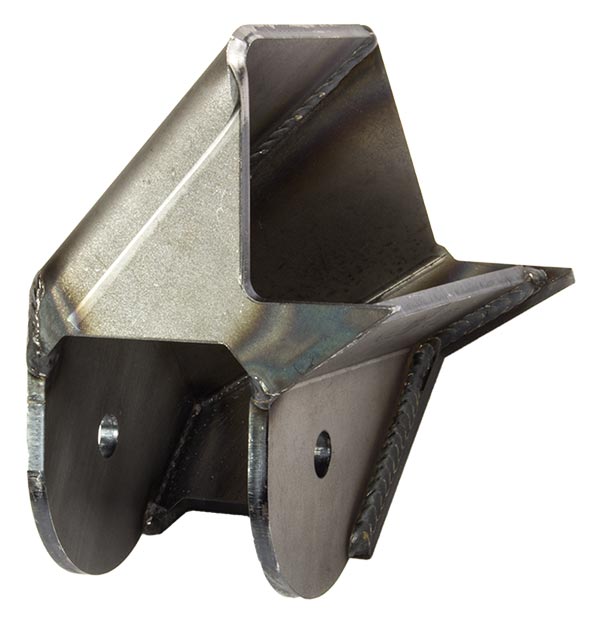

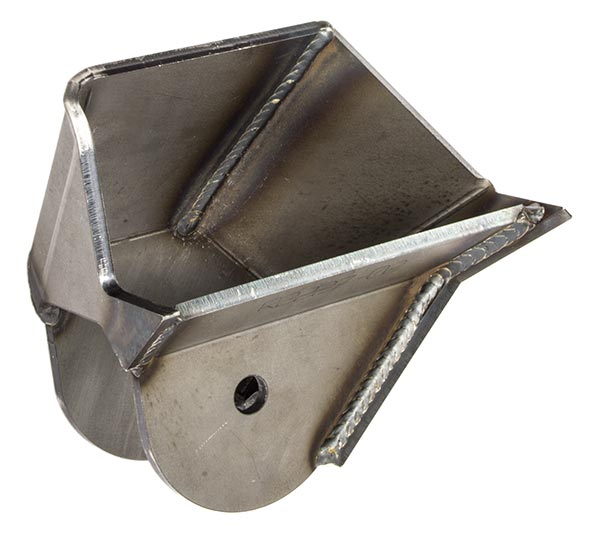

Offset Chassis Link Brackets

This is a simple idea that we should have come up with a long time ago. There are several situations where the lower link bracket on the frame side cannot be mounted directly under the frame. A perfect example would be a pair of Trailing Arms; to out board them you need to either make a platform or you need to gusset the area where the bracket hangs off frame.

We have always had our Frame Outriggers and Chassis Link Brackets but this puts them together in one piece. Both of those have their purposes but for this application a one-piece bracket simply works better. These are of course sold in pairs.

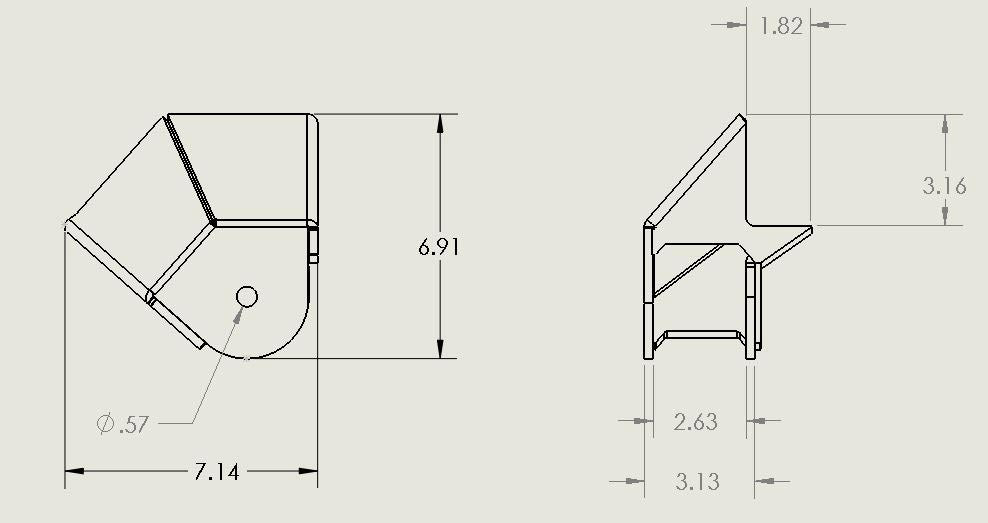

The joint mounting width has a range of 2"-3" depending on where you set the inside plate to be welded. At the 3" mounting width these brackets can also be used as outboard spring hangers for common Chevy and Toyota springs that have this same bushing width and of course the most popular mounting width of 2.625" that fits our 1.25" Heims.

Note

  • Product sold unwelded

Write Review
★★★★★ ★★★★★
5/5 Stars out of 3 Reviews
1
0
2
0
3
0
4
0
5
3
Top Round All American Yeaaa Buddy!
5
Chase Patterson (Tucson) | November 27th, 2020
These mounts are supper all American Beef! Their freakin huge! That's what she said!
Verified Buyer
Stout and clean lines
5
Herzog (Kamas, UT, US) | October 4th, 2018
These are great! Huge time saver too. They fit like a glove and welded up really nice. I used these for front lowers on a Tacoma SAS project. They are so stout that I have zero worries about them.
Verified Buyer
Offset chassis link Brackets
5
Daniel Rezic (Smithtown, NY, US) | December 4th, 2017
Another amazing product, fits the frame rails like a glove, perfect for a parallel rear link!
