SKU: R2476-A Jeep Wrangler JK, Solid 7075 Aluminum Tie Rod

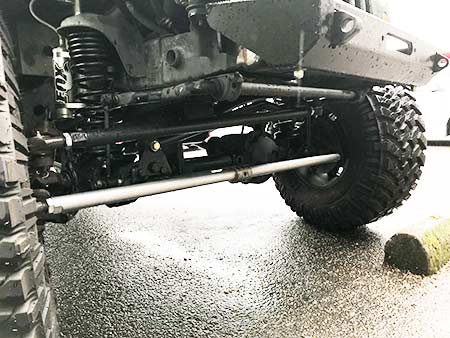

Jeep Wrangler JK, Solid 7075 Aluminum Tie Rod
Click image to zoom
Purchase Jeep Wrangler JK, Solid 7075 Aluminum Tie Rod
  • Jeep Wrangler JK, Solid 7075 Aluminum Tie Rod

  • ★★★★★ ★★★★★ 3 reviews
  • Part Number: R2476-A
  • Shipping Weight: 13.58 pounds

  • $317.95

Jeep Wrangler JK, Solid 7075 Aluminum Tie Rod

Jeep JK Specific Off Set Tie Rod!! Fits 2007-2017 Jeep JK Dana 30 and Rubicon Dana 44. Heavy Duty and a great addition for your vehicle! This kit Includes a Aluminum Tie rod with machined wrench flats, and Offset GM 1 ton TRE's (1LH & 1 RH).

The Tie Rod is made of solid 1.5" OD 7075 Aluminum Bar, pre fit and threaded for the JK Axles and our 1 ton tie rod ends. One benefit of 7075 Aluminum is the spring-back. Spring back occurs when a metal is bent and then tries to return to its original shape. With the Tie Rod on the Jeep JK so low, it's an easy target and often a challenge to avoid smashing it into rocks. Usually the outcome is a bent tie rod if made of steel. Not to say steel isn't a good choice. It takes quite a bit of force to bend steel.

This kit will work on 17" wheels with a maximum 3.75 Backspacing. May not fit 17" factory wheels. It will NOT fit your factory steering stabilizer bracket!

You may have to ream your knuckle's taper (depending on which knuckle you use) to accept the GM 1 ton TRE but the end result is more than worth the effort!

Some aftermarket and factory wheels with deep backspacing could make contact with tie rod ends. It is the owners responsibility to be aware of changes to vehicle performance and handling characteristics.

Note

  • Check Fitment Of Wheels-tires Prior To Installation.

Kit Includes

Additional Products you may want when installing this kit:

Write Review
★★★★★ ★★★★★
5.00/5 Stars out of 3 Reviews
5
3
4
0
3
0
2
0
1
0
Bomb Proof JK Tie Rod
5
John O'Day (Minden, NV) | June 7th, 2022
Anyone that owns a JK knows there is NO "true high steer" knuckles on the market to raise your tie rod out of the way due to the factory steering geometry. This Ruffstuff heavy duty aluminum tie rod can take a beating on the rocks and spring back to it's original form. This product is especially great for all those crappy braille wheelers out there that are good at destroying there steering!!! Didn't have to drill out the tie rod holes on my 2007 JK Rubicon. Very little adjustment for towing wheels inward & lots of adjustment to tow wheels outward.
Great tie rod
5
Daniel (Rapid City, SD) | October 14th, 2021
After bending my HD .250 wall steel tie rod on the Black Hills rocks I decided to upgrade to an aluminum tie rod. I should have done this the first time and not wasted my money on a steel tie rod. Great tie and now I don’t have to worry about bending it since aluminum has no metal memory and will flex right back.
Awesome product
5
Austin (Alabama) | August 28th, 2020
I have been using RuffStuff tie rods on my 2106 JKU since I put my lift and 37's on it. After bending two of the beefy tie rods, I ordered an aluminum one. I have sat this tie rod on rocks, and bashed it against ledges. It has held its shape every trip so far.
