SKU: R1252 Universal Shackle Flip Kit

Universal Shackle Flip Kit
Click image to zoom
Purchase Universal Shackle Flip Kit
  • Universal Shackle Flip Kit

  • ★★★★★ ★★★★★ 6 reviews
  • Part Number: R1252
  • Shipping Weight: 20.00 pounds

  • $208.95

  • Shackle Size:
  • Sorry, we are currently Sold Out of Universal Shackle Flip Kit. Please check back later.

Universal Shackle Flip Kit

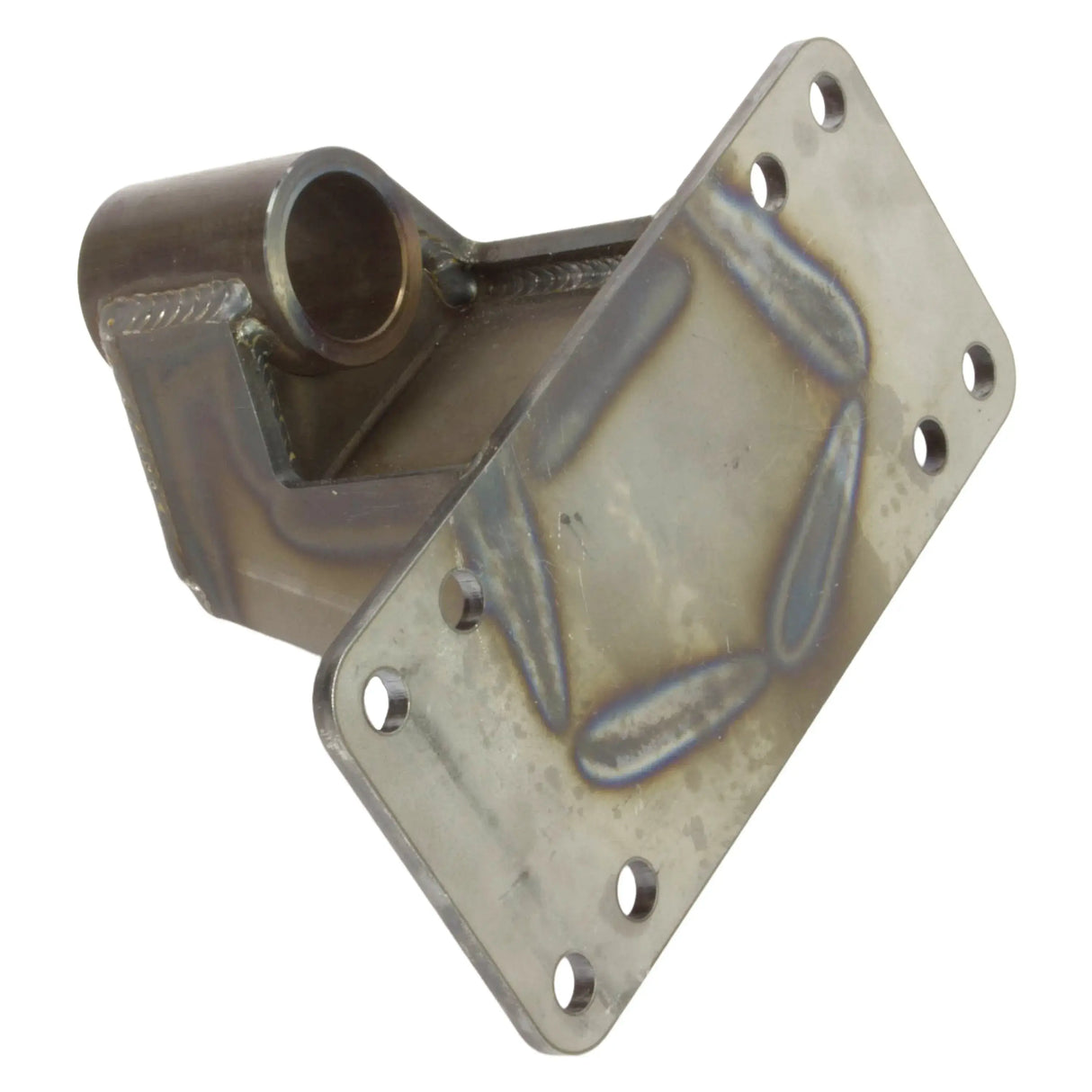

The bushing sleeve is 2" x .25 wall DOM and is attached on four sides to the 1/4" plate torsion box mounting bracket. This enclosed design eliminates the need for any additional gusseting other kits require. The Bushings themselves are 1 1/2" in the minor diameter so you can flex them hard without tearing up the bushings and the bushing shoulder is 1/4" thick for the same reason. If you intend to bolt them on, we would recommend removing the gas tank to install them. They mount through 4 holes you need to drill and after removing the gas tank (if necessary) should take no more than 45 minutes to install. To help you determine your ride height and shackle length, the center of the shackle eyelet sits about 1 1/8" below the mounting plate. You should always use a shackle length that is ideal for your chosen springs.

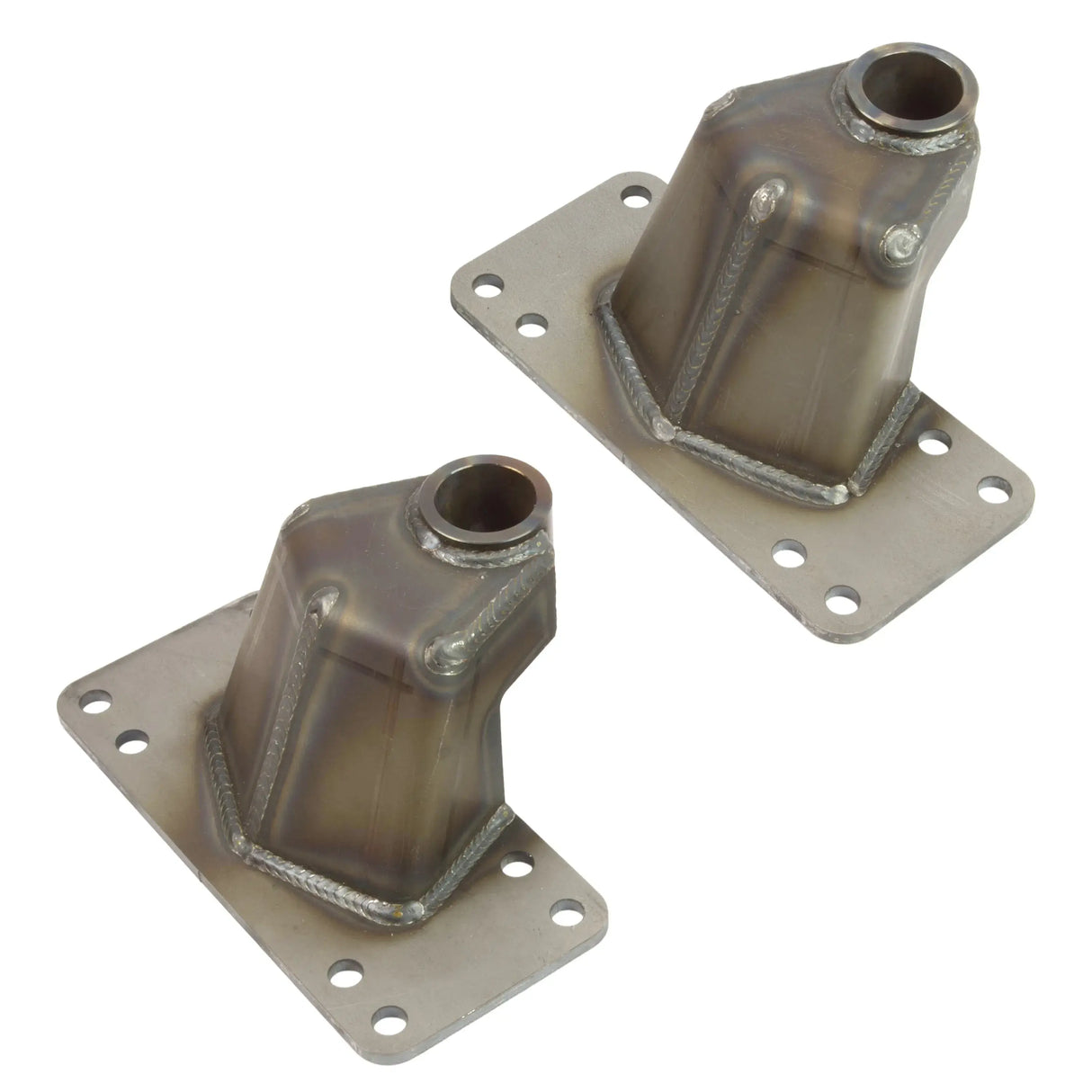

Everything in the picture is included, on the shackles we offer either a 4", 5", 6", or 7" long.

MADE TO ORDER

We need a couple of questions answered before we can make these for you.

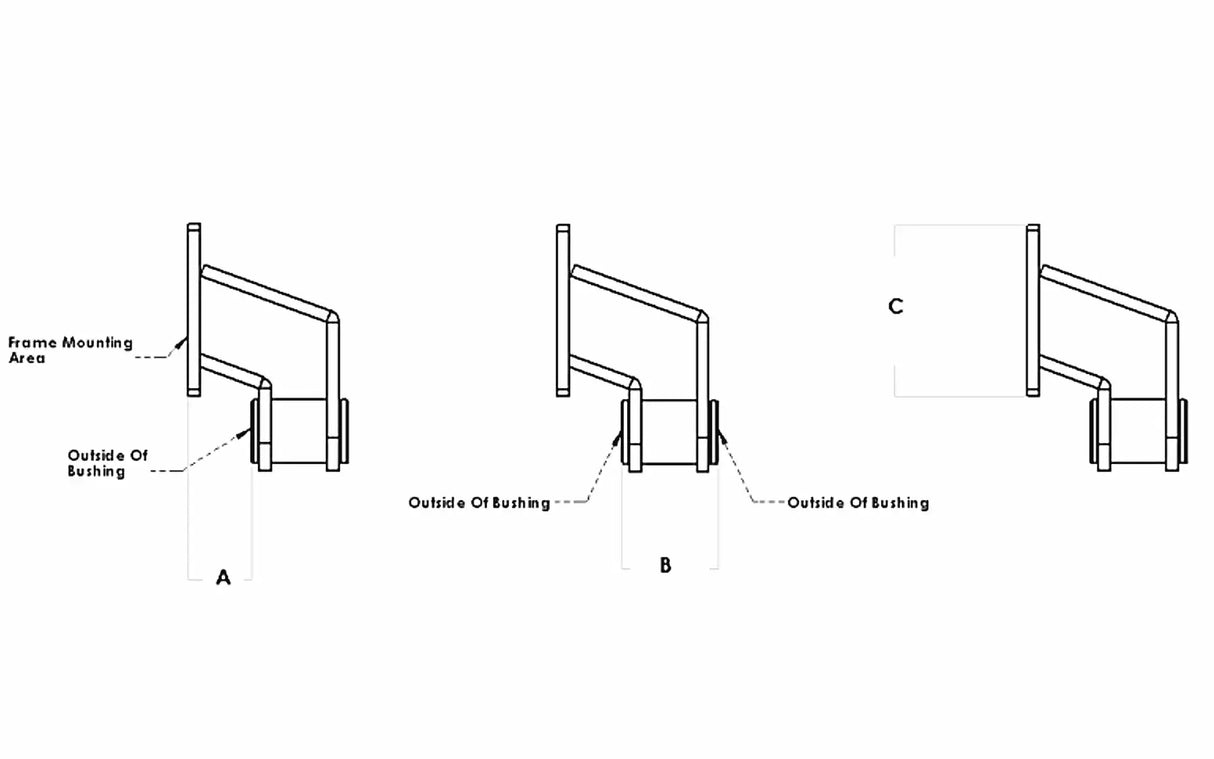

PLEASE USE PICTURE TO FIND NEEDED DIMENSIONS

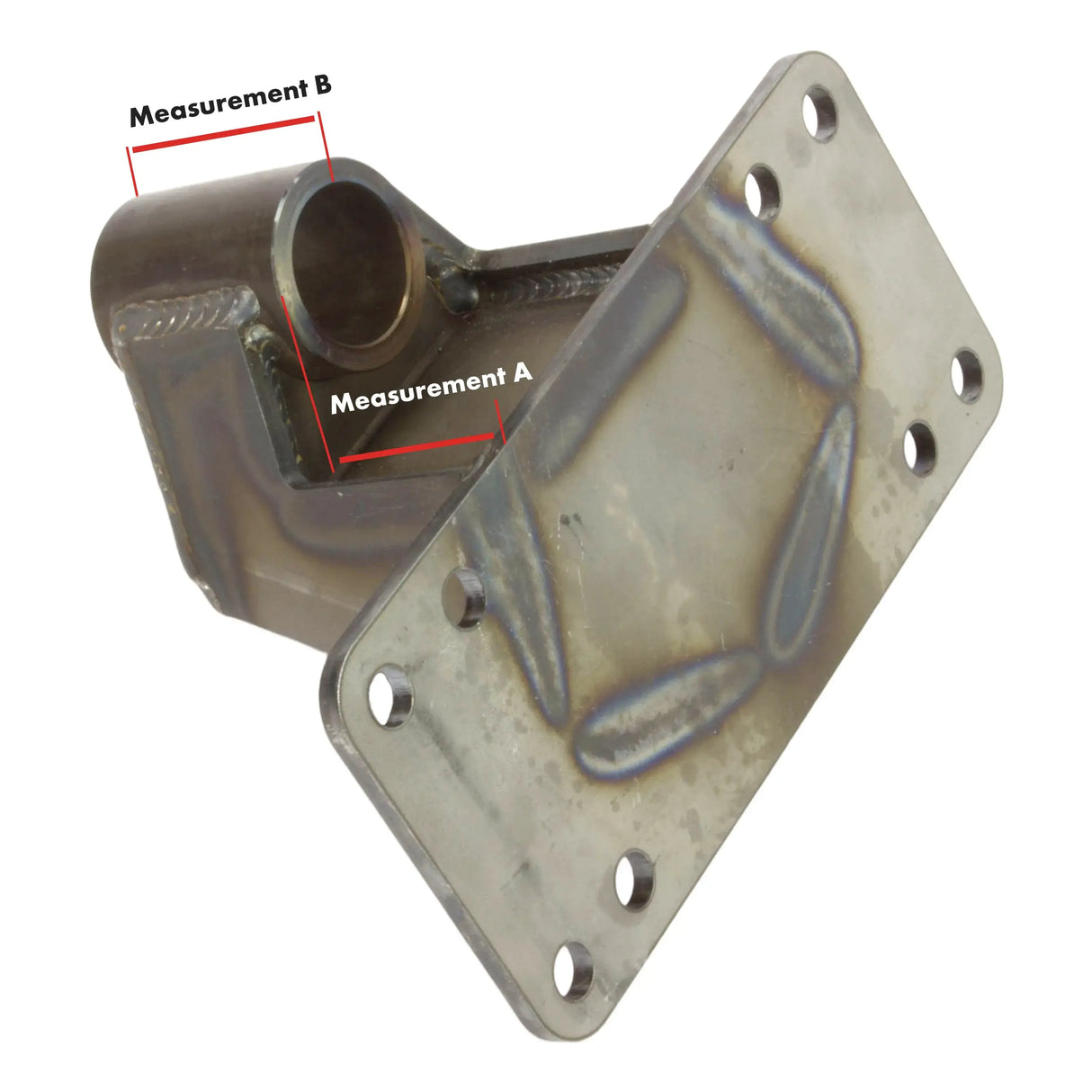

  • Measurement A: What is the distance between the frame and the inner side of the bushing in the leaf spring?"
    • Measurement A may be no greater than 3 1/2" and no less than .75"
  • Measurement B: How wide are your leaf springs at the bushing? Measurement B can be no smaller than 2.5" (for 2" wide spring) and no larger than 4"

All custom widths will be within .010" of requested size

Note

  • These hangers are made to order, all sales are final and cannot be returned or changed once submitted
  • Please allow a 4 business day turn around time for our shop to build your kit

Additional Products You May Want When Installing This Kit

Write Review
★★★★★ ★★★★★
5.00/5 Stars out of 6 Reviews
5
6
4
0
3
0
2
0
1
0
Pages 1   2
Verified Buyer
Shockingly amazing
5
GREG LEBLOND (enfield, CT, US) | September 24th, 2018
I just received this today (9/24/18) for my 05 Silverado. This couldn't have been more easy and perfect. Used one bolt hole from my existing hanger and it seriously was identical to my frame's dimensions... Couple quick drilled holes and it's in. SUPER BEEFY!!! Dimensions for build are spot on.. This is why I pick Ruffstuff over competitors. Killer product! 6+ stars if I could!
Verified Buyer
Shackle Flip Kit
5
Robert Bumgardner (Modesto, CA, US) | January 25th, 2018
Shackle flip kit - high quality, works and looks great. Did the measurements, happened to be going by the shop so I went in and Austin hooked me up, happen to have one with my exact measurements got the shackle flip, 6" shackles, Diff guard and spring bushings all quality RUFFSTUFF. Thanks
Verified Buyer
The Bee's Knees
5
Alex Arteaga (Canton, OH, US) | February 25th, 2017
Although I the parts came later than I wanted, The flip kit was exactly what what I needed. The parts are perfect and some might say overbuilt its better than underbuilt! I cleared another inch and improved my pinion angle and couldnt be more pleased. I've got a few more projects in the works and will be using nothing but Ruff Stuff products. A note worthy fact, 9/16 by 4.5 bolts are not easy to find. If you do go with the 9/16 bushing make sure and get yourself some bolts in the harware section of the site. Not even Summit had them in stock. The Best fabricating products hands down.
Verified Buyer
WOW. I am impressed!!
5
Christopher Ferrari (San Jose, CA, US) | March 26th, 2015
I planned to fabricate a set before finding this RuffStuff kit. These are beefy!! Excellent quality. Built to custom dimensions and shipped within a few days; definitely a pleased customer.
Verified Buyer
OMG Heavy Duty
5
Christopher Durben (Peyton, CO, US) | May 20th, 2014
I've bought lots of stuff from Ruff Stuff and know of their quality but dang. I'm going to have to upgrade the rest of my truck now cause it is the weak link. I love this Company would recommend to everyone.
