3/4" Rod End Right Hand (16 TPI)

3/4" Rod End Right Hand (16 TPI)

Heavy-duty RH chromoly Heim joint for steering and suspension

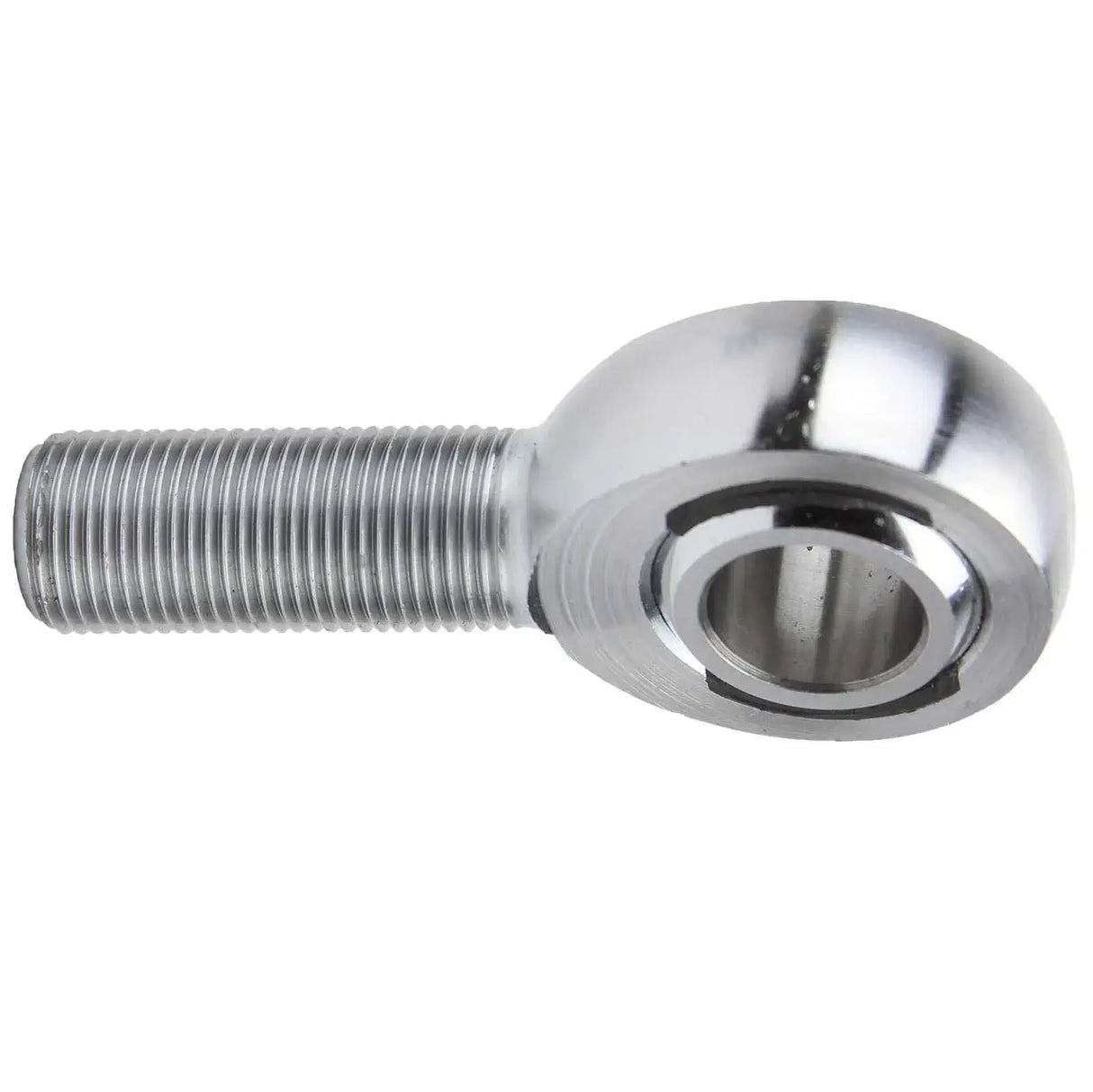

This is the 3/4" right-hand thread Heim joint built the Ruffstuff way—no corners cut. It features a 3/4" shank with a 3/4" bore and 16 threads per inch. Engineered for off-road and performance applications, it’s made from heat-treated 4130 chromoly with a 52100 bearing steel ball and a Teflon-impregnated nylon race. We designed it to match real-world use, not just lab tests. We test to first deformation, not failure, because that’s when you replace it. With a 28,000 lb radial static load rating, this rod end stands up to hard abuse without giving in.

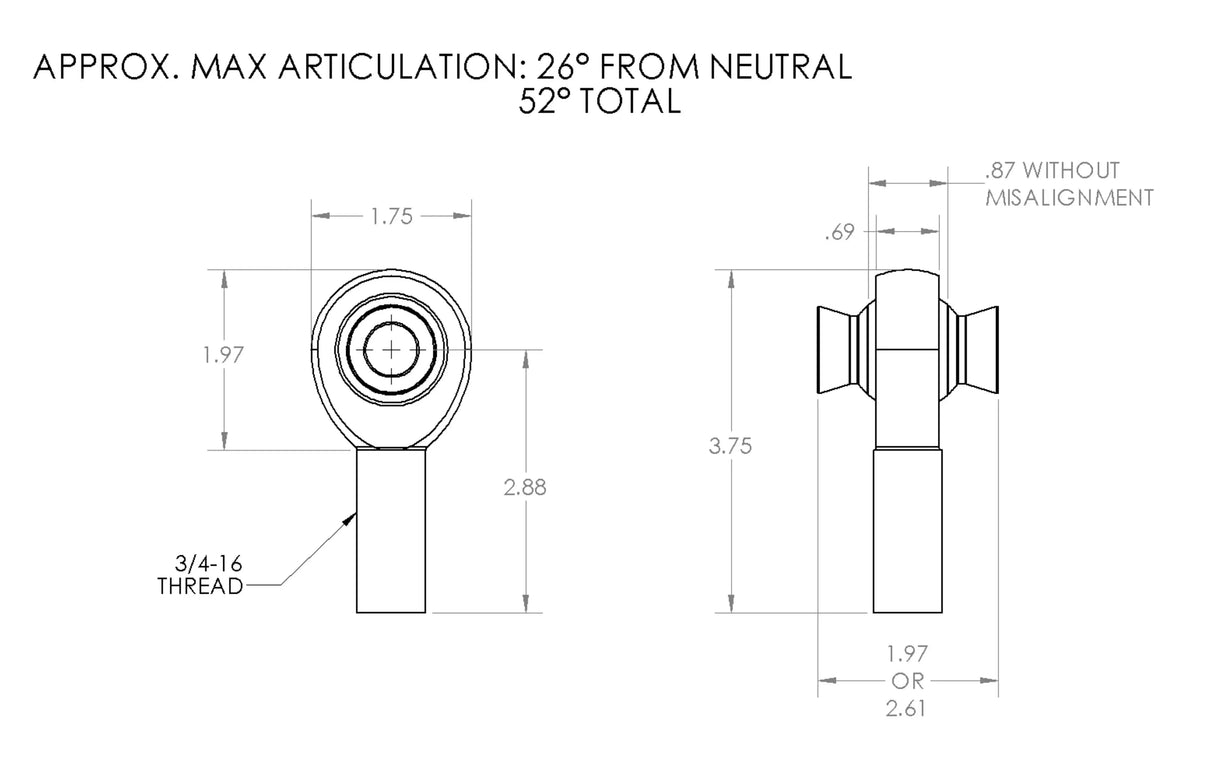

• Part Number: R1040
• Thread: 3/4"-16 TPI (Right-Hand)
• Bore: 3/4"
• Housing Material: Heat-treated 4130 chromoly
• Ball Material: 52100 bearing steel with hard chrome finish
• Race Material: Teflon-impregnated nylon
• Radial Static Load Rating: 28,000 lbs (tested to first deformation)
• Designed for off-road suspension, steering, and fabrication
• Durable and smooth performance in high-stress environments

Sold Individually

Rod End Maintenance Tip

Only use Tri-Flow to service rod ends. Petroleum-based products like WD-40 or PB Blaster will damage the liner and void the warranty.
