3/4" Rod End Left Hand (16 TPI)

3/4" Rod End Left Hand (16 TPI)

Heavy-duty LH chromoly Heim joint for steering and suspension

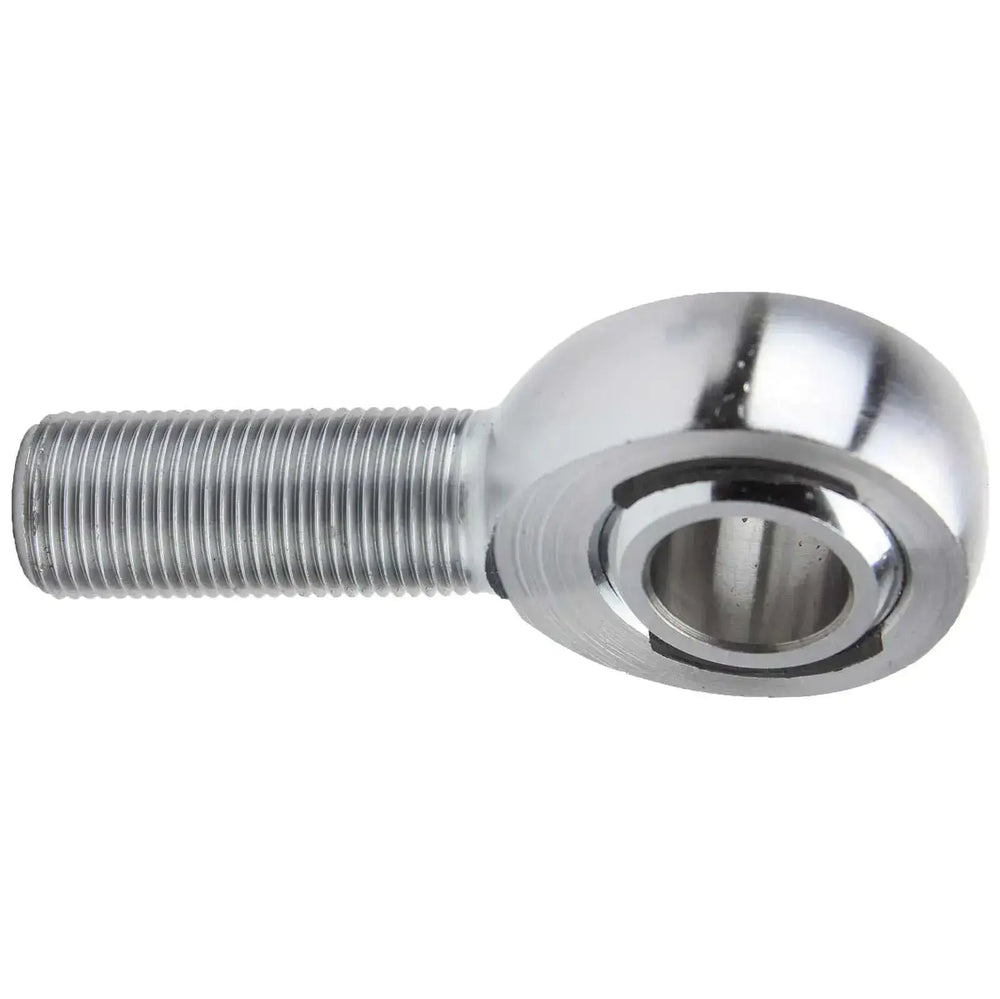

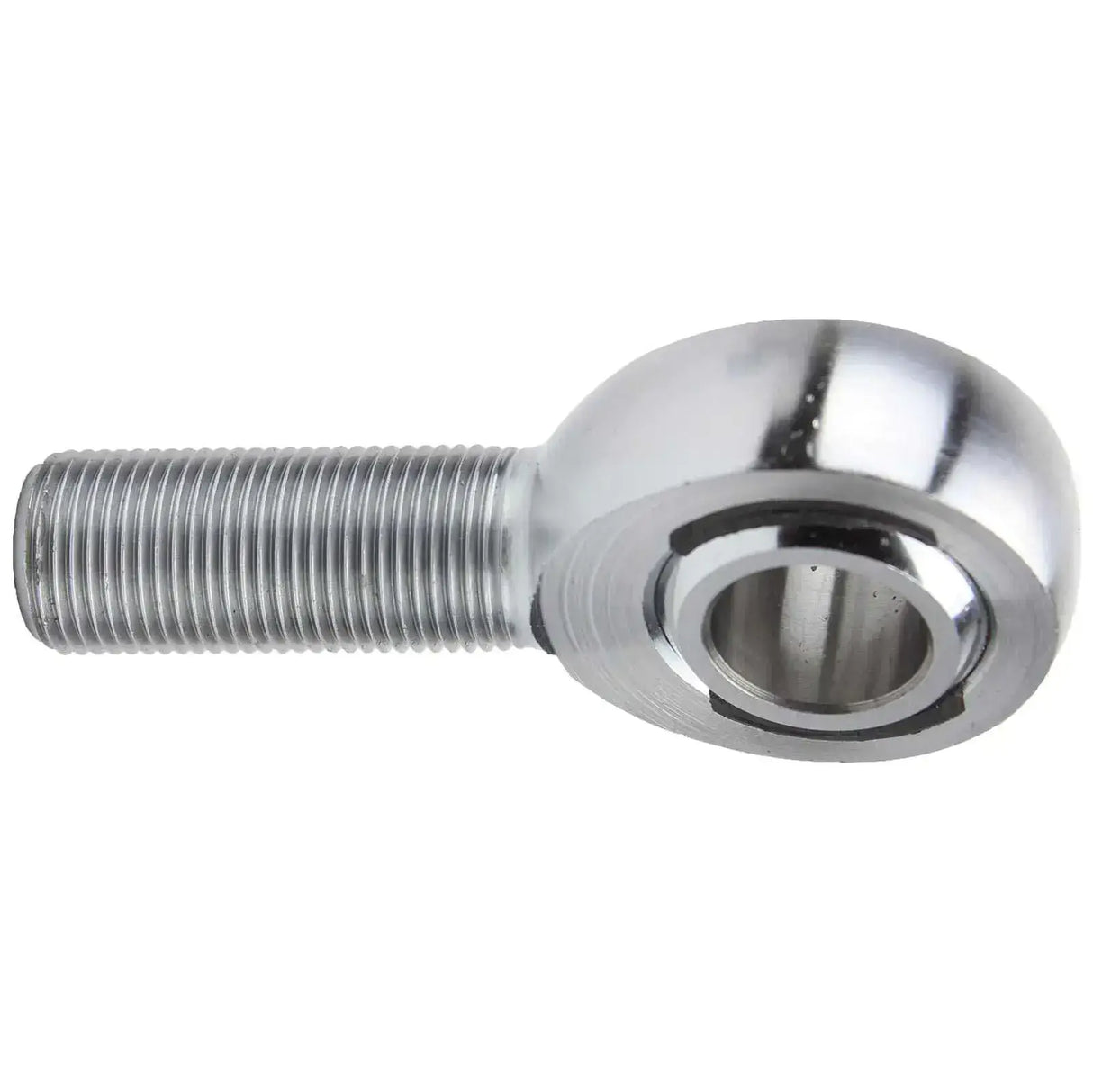

This is the 3/4" left-hand thread Heim joint we built to our standards—not just another rebranded import. It features a 3/4" shank with a 3/4" bore and 16 threads per inch. Made from heat-treated 4130 chromoly with a high-quality 52100 bearing steel ball, this rod end is designed for strength, durability, and smooth operation in real-world off-road and suspension applications. Unlike others who test heims until they explode, we test to first deformation—because that’s when it actually matters. If you're bending your heims, you’re not worrying about failure loads; you're replacing parts. At 28,000 lbs of radial static load rating, this rod end is more than ready for serious abuse on the trail or the track.

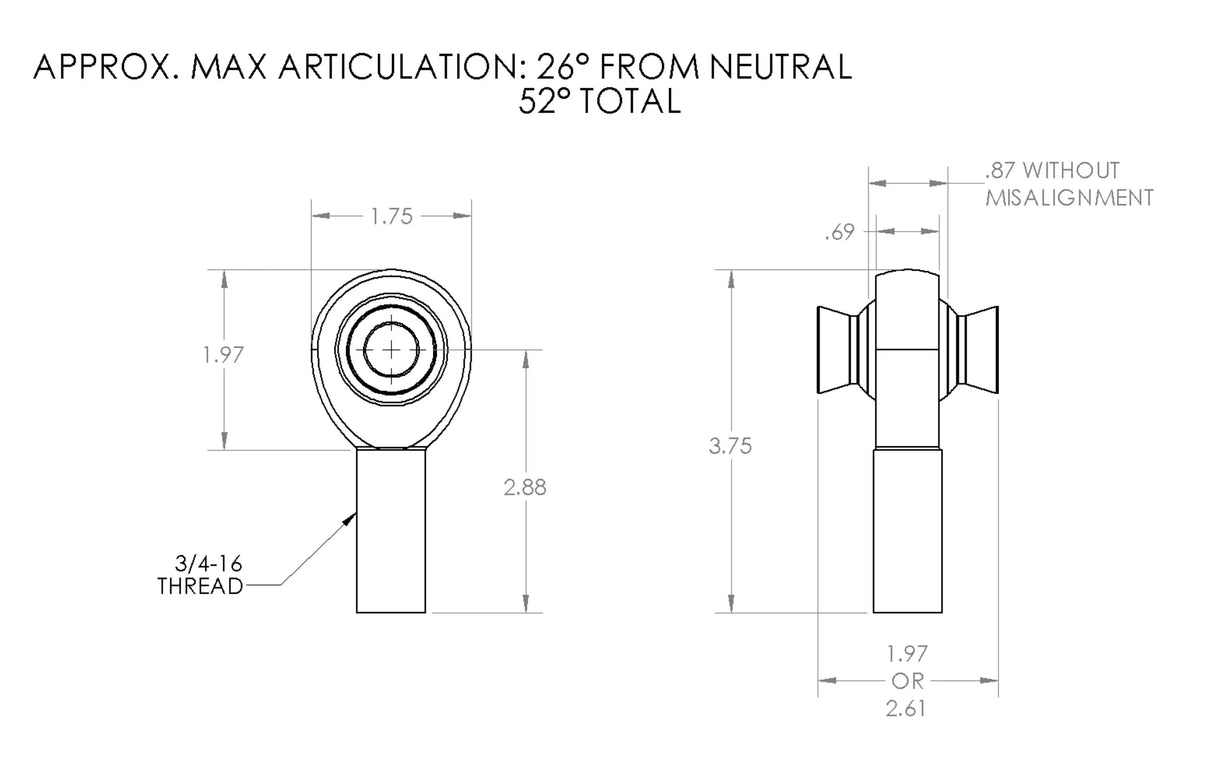

• Part Number: R1047
• Thread: 3/4"-16 TPI (Left-Hand)
• Bore: 3/4"
• Material (Housing): 4130 Heat-Treated Chromoly
• Material (Ball): 52100 Bearing Steel with Hard Chrome Finish
• Race Material: Teflon-impregnated Nylon
• Radial Static Load: 28,000 lbs (tested to deformation)
• Finish: Hard Chrome Plated
• Application: Suspension links, steering setups, chassis components
• Made for real-world abuse – tested on the trail, not just in a lab

Sold Individually

Rod End Maintenance Tip

Only use Tri-Flow to service rod ends. Petroleum-based products like WD-40 or PB Blaster will degrade the liner and void the warranty.
