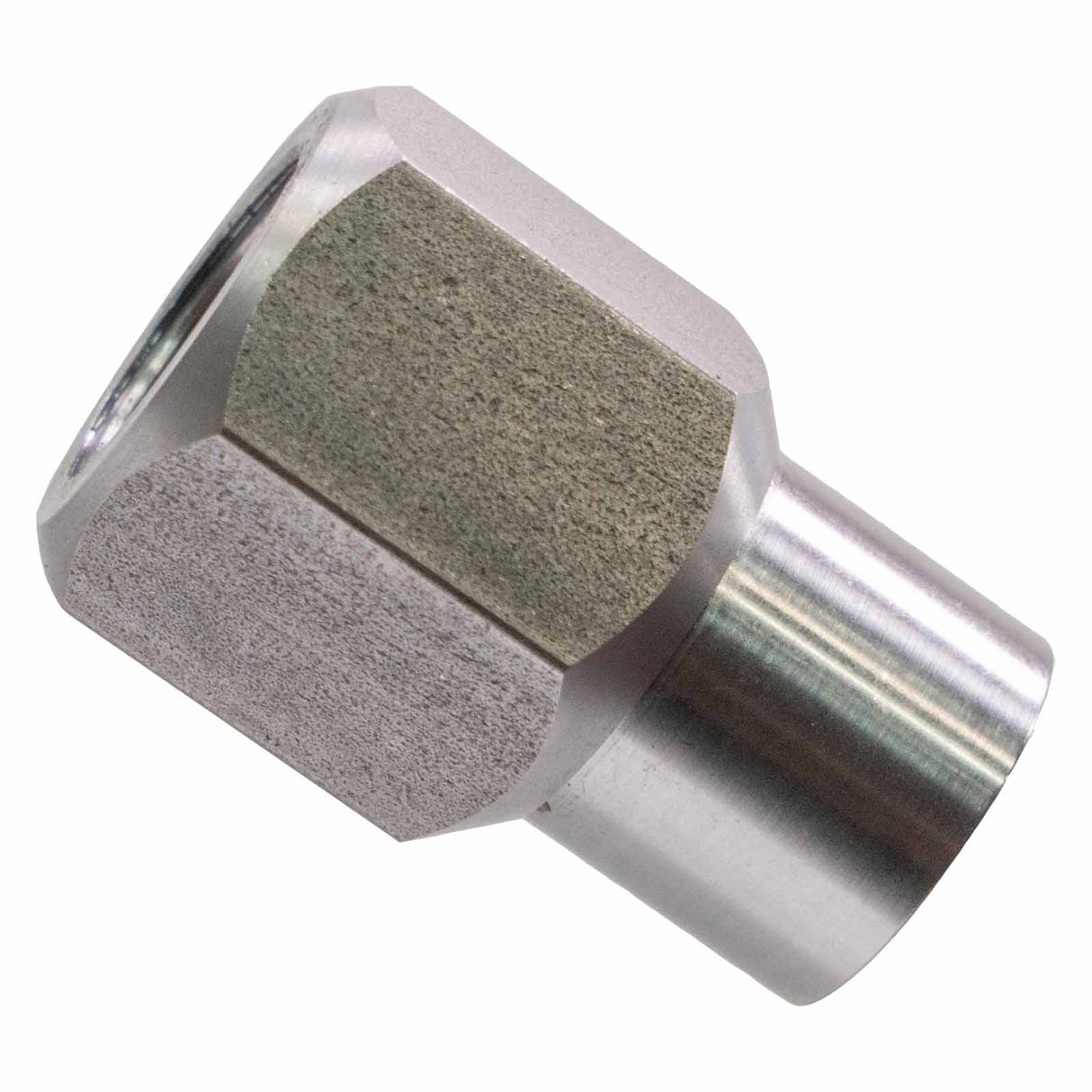

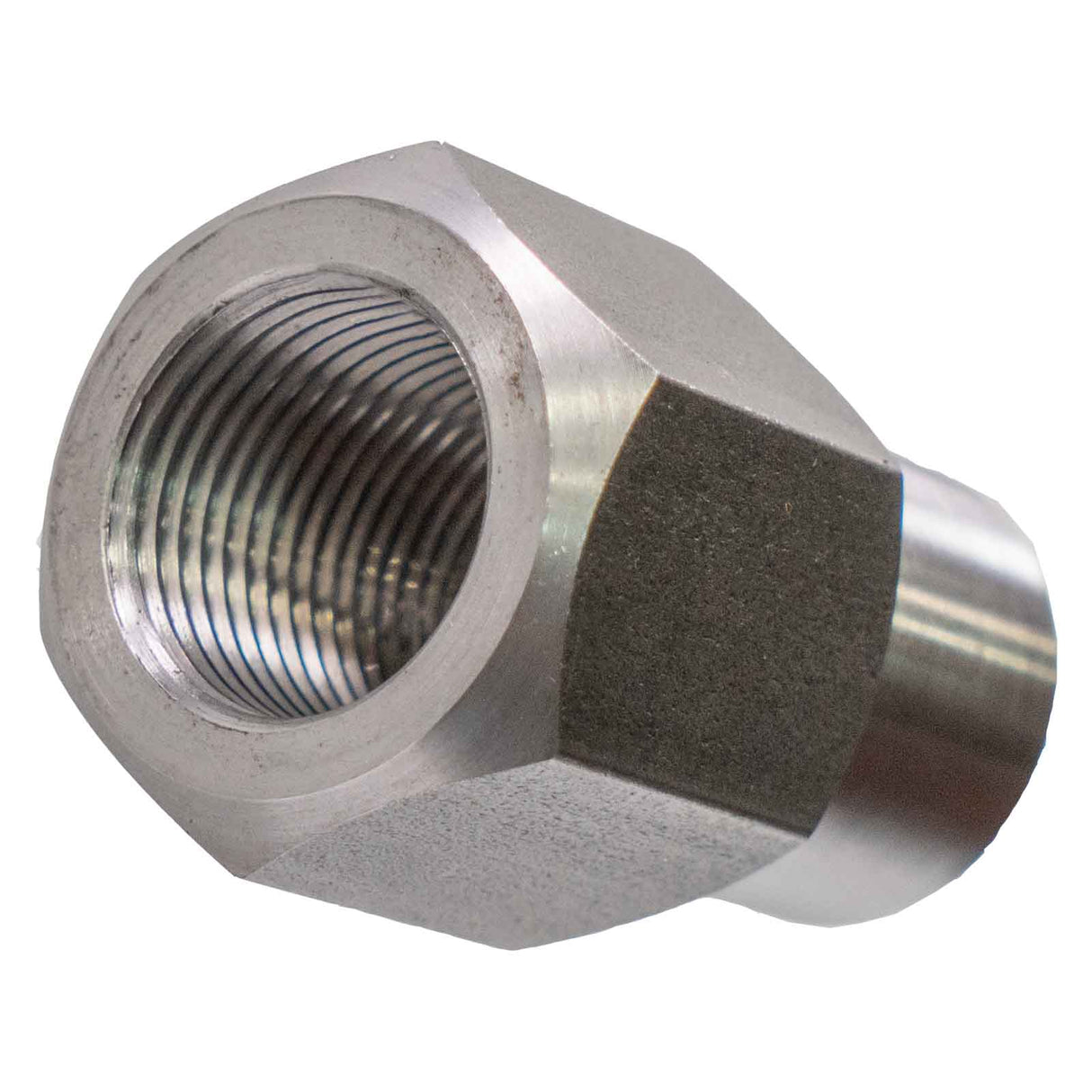

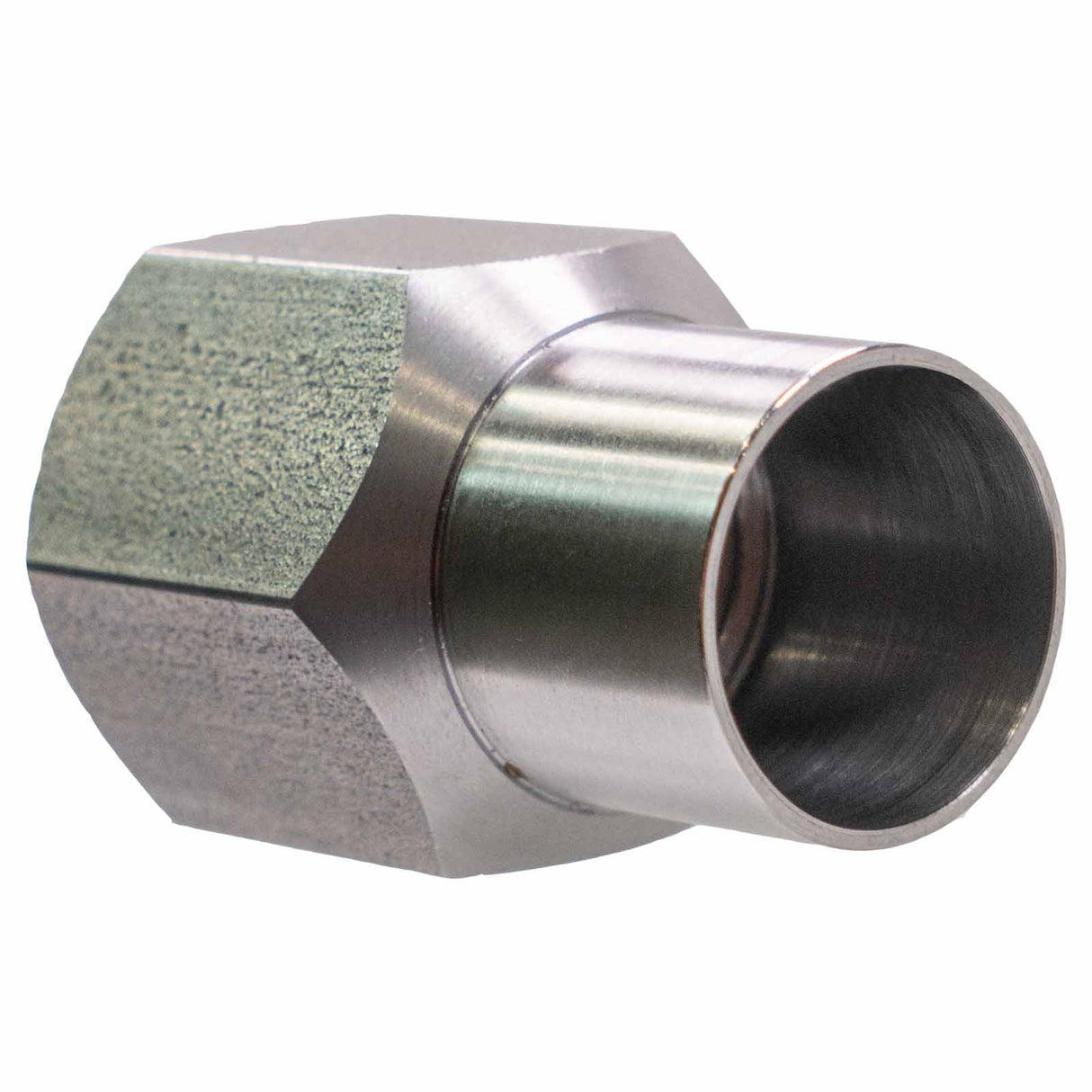

3/4"-16 Right Hand HEX Tube Adapter, 1" Tube ID

3/4"-16 Right Hand HEX Tube Adapter for 1" ID Tube

Hex head design for quick and easy link adjustments

This 3/4"-16 right-hand HEX weld-in tube adapter is made for 1" ID tubing and built for adjustability in the shop or on the trail. The hex head allows solid wrench engagement for quick tuning during steering or suspension setup. Precision-machined from weldable mild steel, it offers a strong, reliable connection point for your rod ends in any custom fabrication project.

• Part Number: R1430
• Thread Size: 3/4"-16
• Thread Direction: Right Hand
• Tube Fitment: 1" ID tubing
• Hex head design for easy wrench adjustments
• Material: Weldable mild steel
• Made in the USA

Tips to Help Prevent Any Seized or Warped Threads

• Correctly adjust welder settings and start your puddle on the tube (too much heat will warp the threads).
• Do not weld the tube adapter with the rod end threaded inside.
• Wait until fully cooled before threading rod ends into adapters.

Sold Individually
