4 Link Heim and Tube Kit

4 Link Heim and Tube Kit

Heavy-duty link kit with Chromoly heims and DOM tubing.

The 4 Link Heim and Tube Kit gives you everything needed to build or replace a complete 4-link suspension system. This kit includes four pre-cut DOM tubes and eight 1.25" heat-treated Chromoly heims with jam nuts, ready to assemble into upper and lower links. Perfect for custom builds or replacing worn components, this kit delivers the strength and adjustability required for serious off-road use.

Each heim joint is heat-treated for maximum durability and features a 1.25" bore with 5/8"-18 threads. The DOM tubing is thick-wall construction for strength without excessive weight. All components are designed to work together for easy assembly and precise suspension geometry adjustment.

Key Features

• Part Number: R2319
• Universal fitment for custom 4-link builds
• 1.25" heat-treated Chromoly heim joints with 5/8"-18 threads
• Thick-wall DOM tubing construction
• Pre-cut tubes ready for assembly
• Adjustable length for precise suspension tuning

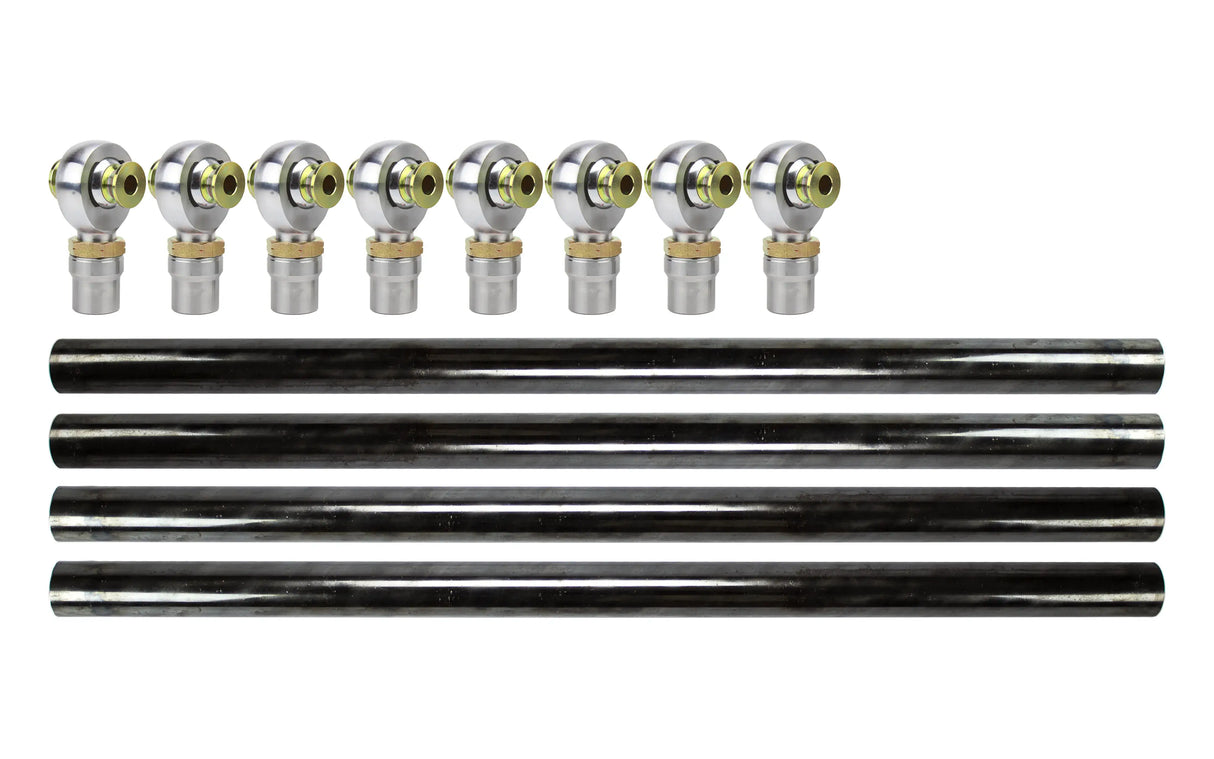

What's Included

• Four DOM tubes (pre-cut for upper and lower links)
• Eight 1.25" Chromoly heim joints
• Eight jam nuts (5/8"-18)

Notes

• Brackets sold separately - allows custom mounting to your specific frame and axle
• Welding required to attach heims to tubing
