5/8 Rod End Left Hand (18 TPI)

Part Number: R1648
Shipping Weight: 3.0 lb
$22.00
Shipping calculated at checkout.

Description

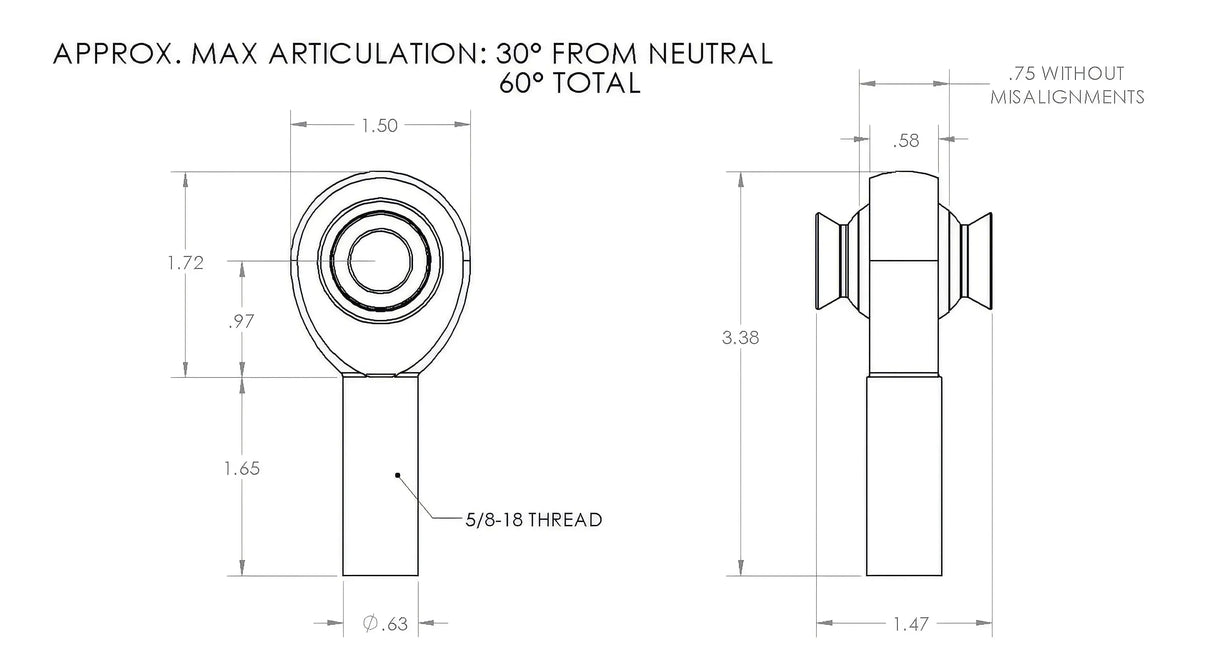

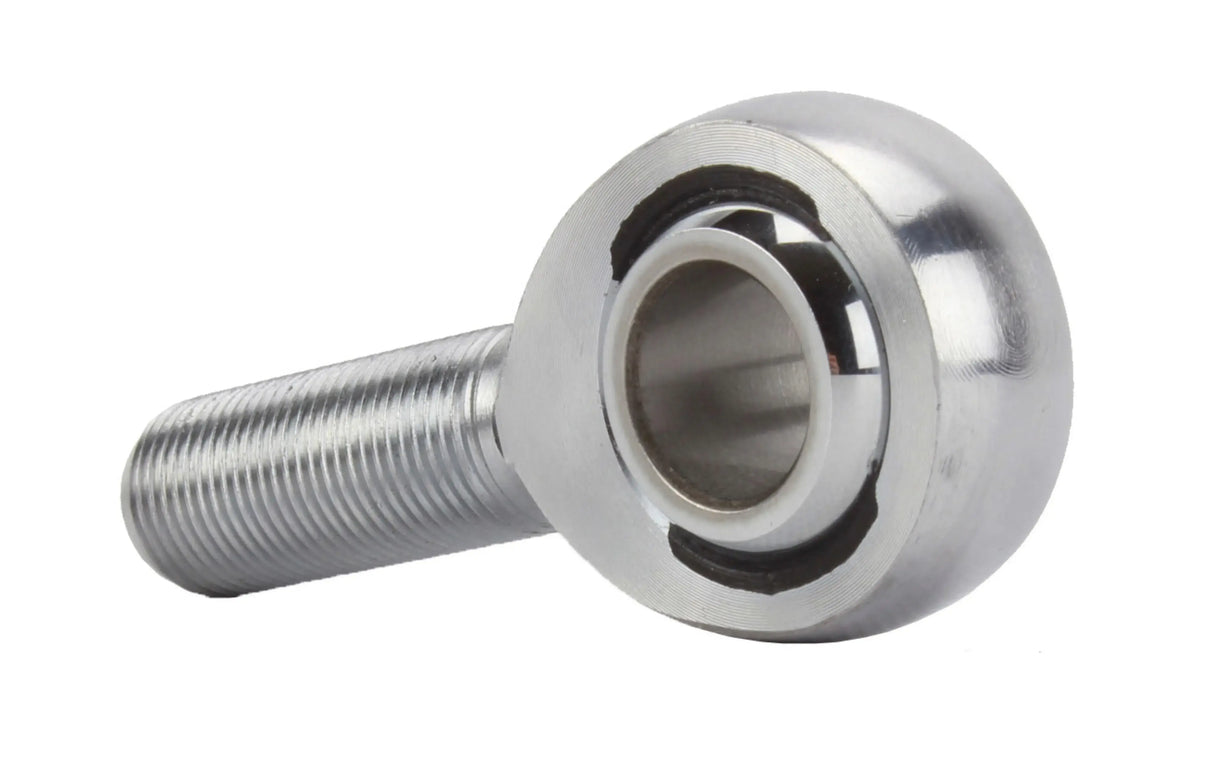

5/8" Rod End - Left Hand (18 TPI)

Heat-treated chromoly strength with real-world load ratings

This 5/8" x 5/8" left-hand thread rod end is built the way we wanted heim joints to be—tough, affordable, and reliable. Featuring a heat-treated 4130 chromoly housing, 52100 bearing steel ball with a hard chrome finish, and a Teflon-impregnated nylon race, it delivers smooth movement and long service life in demanding off-road or fabrication setups. Rated at 18,000 lbs ultimate radial static load (measured at deformation, not catastrophic failure), it’s a no-nonsense choice for steering, suspension, or custom link projects.

  • Part Number: R1648
  • 5/8"-18 Left Hand Thread
  • 5/8" Bore
  • 4130 Heat-Treated Chromoly Housing
  • 52100 Bearing Steel Ball with Hard Chrome Finish
  • Teflon-impregnated Nylon Race
  • Ultimate Radial Static Load: 18,000 lbs
  • American Made Quality

Rod End Maintenance Tip

Only use Tri-Flow to lubricate rod ends. Using WD-40, PB Blaster, or similar products will break down the Teflon and void the warranty.

Sold Individually

Prop 65 Warning Icon
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
K
Kenny B
Heims

Ruffstuff heim joints are the best there is. Lay them side by side to other manufacturers and you can easily see the quality. I've been using them for at least 5yrs, and haven't seen or had any slop or abnormal play. There the only heims that I feel comfortable doing 90mph down the hwy
