7/8" x 3/4" Rod End Right Hand (14 TPI)

Part Number: R1067
Shipping Weight: 0.9 lb
$31.45 $37.00
Shipping calculated at checkout.

7/8" x 3/4" Rod End Right Hand (14 TPI)

Description

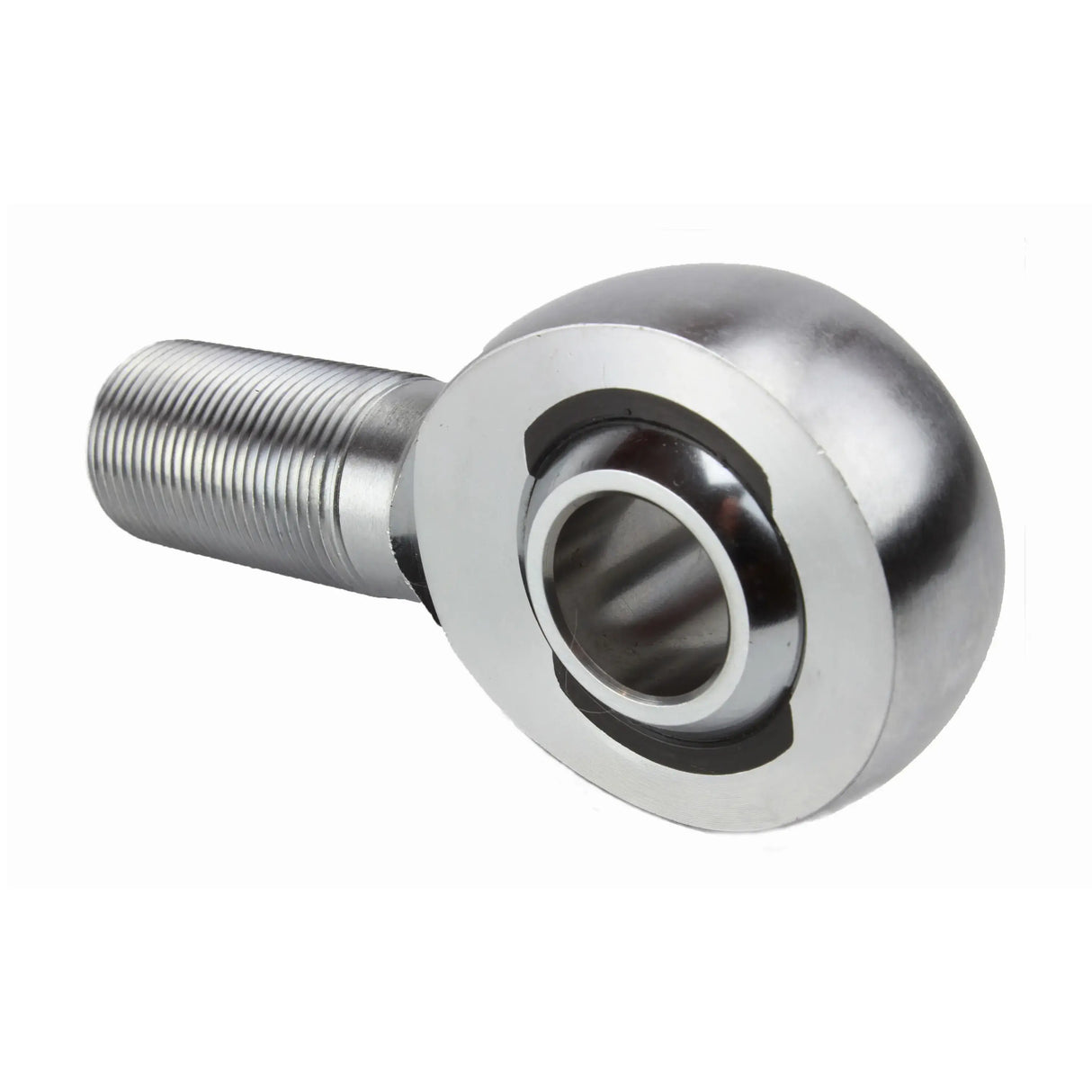

7/8" x 3/4" Rod End Right Hand (14 TPI)

Durable Chromoly Heim Joint for High-Load Applications

This is a 7/8" shaft with a 3/4" bore (14 TPI). Sometimes smaller in the right places is better! These high-quality heat-treated Chromoly rod ends are far from cheap mild steel heims—they’re built for strength and reliability. The 4130 Chromoly housing has a hard chrome finish, while the ball is made from 51200 bearing steel, heat-treated, and finished in hard chrome. The race is injection-molded Teflon-impregnated nylon for smooth performance and durability.

With an approximate ultimate radial static load of 55,600 lbs, these are tested to first deformation rather than destruction, giving you a more accurate measure of real-world performance.

  • Part Number: R1067
  • Thread: 14 TPI, Right Hand
  • Shaft Diameter: 7/8"
  • Bore Size: 3/4"
  • Material: 4130 Chromoly Housing
  • Ball: 51200 Bearing Steel
  • Race: Teflon-impregnated Nylon
  • Ultimate Radial Static Load: 55,600 lbs

Maintenance Tip: Tri Flow is the only product we recommend to service our rod ends. Using WD-40, Blaster, or other petroleum-based products can damage the Teflon and will void the warranty.

Prop 65 Warning Icon
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Matt
7/8 Heim joints

Got these to replace some 5 year old heim joints that were getting loose and letting the wheels wobble. These tightened everything up. We will see if they last 5 years.

J
Joseph Wilber
Cant get any better

First time ordering through ruffstuff and now i wont order from anywhere else. These heims are strong as hell. Amazingly fast shipping and the customer service is second to none.

d
dan Mcpherson
Only heims I buy

I have been running 7/8 heims in all of my links for the last couple years on my one ton XJ. I redid the suspension this year and added some and reused all of my old ones. They were all still tight and in great shape, even after daily driving as my winter vehicle.

J
Jeff Barons
Bought the rest now buy the best !!

I have used three major brands of Rods End and all were much more expensive. Within three to five months or so they all clunked banged and squeaked. I have had Ruff Stuff rod ends in for a eight months now and still quiet. The Zinc Misalignment's were temporary out of stock so they upgraded me to stainless for free. You can't ask for better costumer service or Quality.

Thanks Guys.
