7/8" X 3/4" Rod End Kit

Part Number: R1574-Kit-12
Shipping Weight: 1.35 lb
$68.00 $80.00
Shipping calculated at checkout.
Thread Direction
Tube Adapter Tube ID
3/4" Misalignment for Half Set

Description

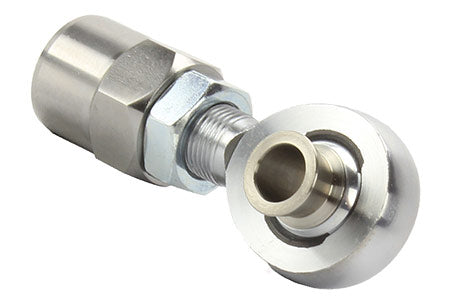

7/8" X 3/4" Rod End Kit

Complete Heim Joint Solution for 2" ID Brackets

This kit provides everything you need for a strong, precise, and easy-to-install 7/8" x 3/4" rod end setup. Perfect for steering, suspension, and link applications, it includes a high-quality chromoly heim joint, tube adapter, jam nut, and your choice of misalignment spacers to fit your exact build. Designed for serious off-road use, with options to match different tube IDs, thread directions, and mounting widths.

Key Features
  • Part Number: R1574
  • 7/8" x 3/4" bore heat-treated chromoly heim joint
  • Includes tube adapter for 1" or 1.5" ID tubing
  • Includes jam nut and choice of misalignment spacers
  • Designed for 2" ID bracket mounting (wide options available)
  • Made in the USA
What's Included
  • 1 – 7/8" x 3/4" Bore Heat-Treated Chromoly Heim
  • 1 – 7/8" Tube Adapter (1" or 1.5" Tube ID)
  • 1 – 7/8" Jam Nut
  • 2 – Misalignment Spacers (Standard 2" ID or Wide 2 5/8" options)
Thread Direction
  • Left Hand Thread
  • Right Hand Thread
Tube Adapter Tube ID
  • 1.5" ID Hex Tube Adapter
  • 1" ID Hex Tube Adapter
3/4" Misalignment for Half Set
  • 3/4"-5/8" Stainless Steel Safety
  • 3/4"-1/2" Stainless Steel
  • 3/4"-5/8" Stainless Steel
  • 3/4" to 9/16" Stainless Steel
  • 3/4"-5/8" Stainless Steel Wide (2 5/8" mounting width)
  • 3/4" Stainless Spacer (Standard 2" mounting width)
  • 3/4"-9/16" Wide Stainless Steel
  • 3/4" to 5/8" Narrow Stainless

Start your selection

Maintenance Tip: Tri-Flow is the only lubricant recommended for our rod ends. Using WD-40, PB Blaster, or similar products can cause damage and void the warranty.

Welding Tip: Correctly adjust welder settings and start your puddle on the tube to avoid overheating threads. Do not weld the tube adapter with the rod end threaded inside. Allow parts to fully cool before assembly.

Prop 65 Warning Icon
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 20 reviews
100%
(20)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Mike Liffengren
Always happy

Great product. Great price. Always ships fast. My number one go to site for my crawler build!

D
David
DIY heim steering Gen 1/ Gen 2 Raptor

7/8 rod end kit worked perfect for my DIY steering kit for my 2012 Gen 1. Took a bit of research for the tapered spindle pin (sold by RPG OFFROAD) but once I put it all together it works flawlessly. Thanks again.

R
RB
They work

Bought a previously lifted TJ that had a budget brand lift on it. Lower control arms left much to be desired and had blown out, rock hard poly bushings. They also weren't long enough for the amount of lift. So... measured the ID of the arms by drilling a hole in one, ordered these rod ends, cut one end off of the old arms, and converted them to adjustable flex arms for about 40% the cost of just buying new arms. *And* now I can push the axles back where they need to be. And the jack-stand flex (axle swap still in progress) is easily 2X what it was before. I'm having to tweak bump stops instead of the suspension binding up and being my limiting factor.

The parts themselves seem well made. Machining is clean, fitment is excellent. All parts slip together with no interference, but no play either. I'm a mechanical engineer and I know it's hard to get suppliers to hold tolerances like that and still deliver at such a reasonable price. So, Props to RuffStuff.

Shipping was a bit long. I think it was 8(?) days from order to my door, but they literally warned me on checkout that ship times were delayed, so... I can't really complain about it.

S
Seth sartore
Jeep Beef

These rod ends are super beefy. I have ordered many of these kits for my project and have never had any fail. Great quality!

M
Michael Luccio
very stout rod end

Ordered these for my 97 xj 4 link and these are definitely going to hold up. Very high quality product. I live in Ohio and it only took 5 days ground shipping to get here from California.

I will definitely be ordering more for future projects.
