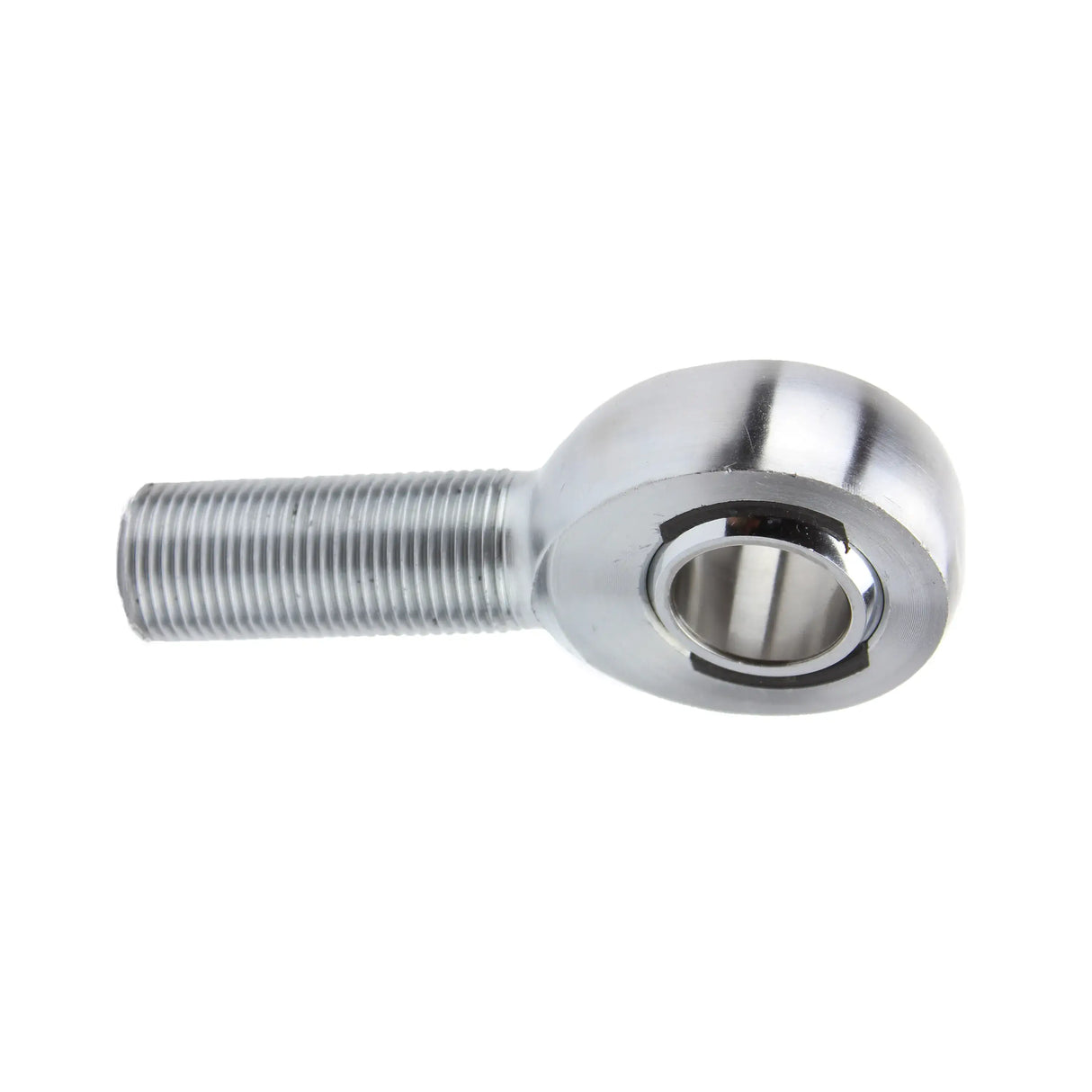

7/8" X 7/8" Rod End Left Hand (14 TPI)

7/8" X 7/8" Rod End Left Hand (14 TPI)

High-Strength Chromoly Heim Joint for Steering Applications

This 7/8" shaft with a 7/8" bore (14 TPI) is built from high-quality heat-treated Chromoly for serious strength and reliability. While it’s compact, it’s no lightweight—perfect for steering applications where precision and durability matter. We recommend using these for steering, not for suspension links.

• Part Number: R1298
• 4130 Chromoly housing with hard chrome finish
• 51200 bearing steel ball, heat treated and hard chrome finished
• Teflon-impregnated nylon race for smooth operation
• Approximate ultimate radial static load: 45,000 lbs
• Ideal for steering systems in off-road and custom builds

Maintenance Tip: Use Tri Flow only to lubricate our rod ends. Products like WD-40 or Blaster can damage the Teflon liner and void your warranty.
