Panhard Kit / TrackBar

Part Number: R1353-Kit-7

Shipping Weight: 12.2 lb

$157.08 ~~$184.80~~

Shipping calculated at checkout.

Include DOM tubing and plastic end caps?

No DOM Tubing Include DOM Tubing

Axle Panhard Option

Axle Centered Panhard Axle Offset Panhard

Frame Panhard Option

Frame Inside Panhard Frame Outside Panhard

Product variants

Panhard Kit / TrackBar - No DOM Tubing / Axle Centered Panhard / Frame Inside Panhard

Description

Panhard / Track Bar Kit

Complete kit for centering axles and correcting geometry after a lift—built for adjustability and strength.

Lifting your rig without adjusting the panhard bar means your axle shifts to the driver side—simple fact of suspension geometry. This kit gives you everything you need to correct that shift and dial in proper alignment. It includes both frame- and axle-side brackets, 1.5" x .25" wall DOM tubing, heat-treated heims, weld-in hex bungs, high-misalignment spacers, and all necessary hardware. Whether you're running stock-width or full-width axles, the bracket options let you tailor the setup to your build.

Choose between centered or offset axle brackets depending on clearance and geometry needs. The hex bungs make on-rig adjustment easy with a wrench, and the heavy-duty components are built for long-term use. Whether it’s your daily, a trail rig, or a full-on crawler, this kit helps you get your front end back where it belongs.

Key Features

Part Number: R1353
Centers axle and corrects geometry after suspension lift
Frame brackets work with stock or full-width axles
Includes both centered and offset axle brackets
Built for strength, adjustability, and long-term use

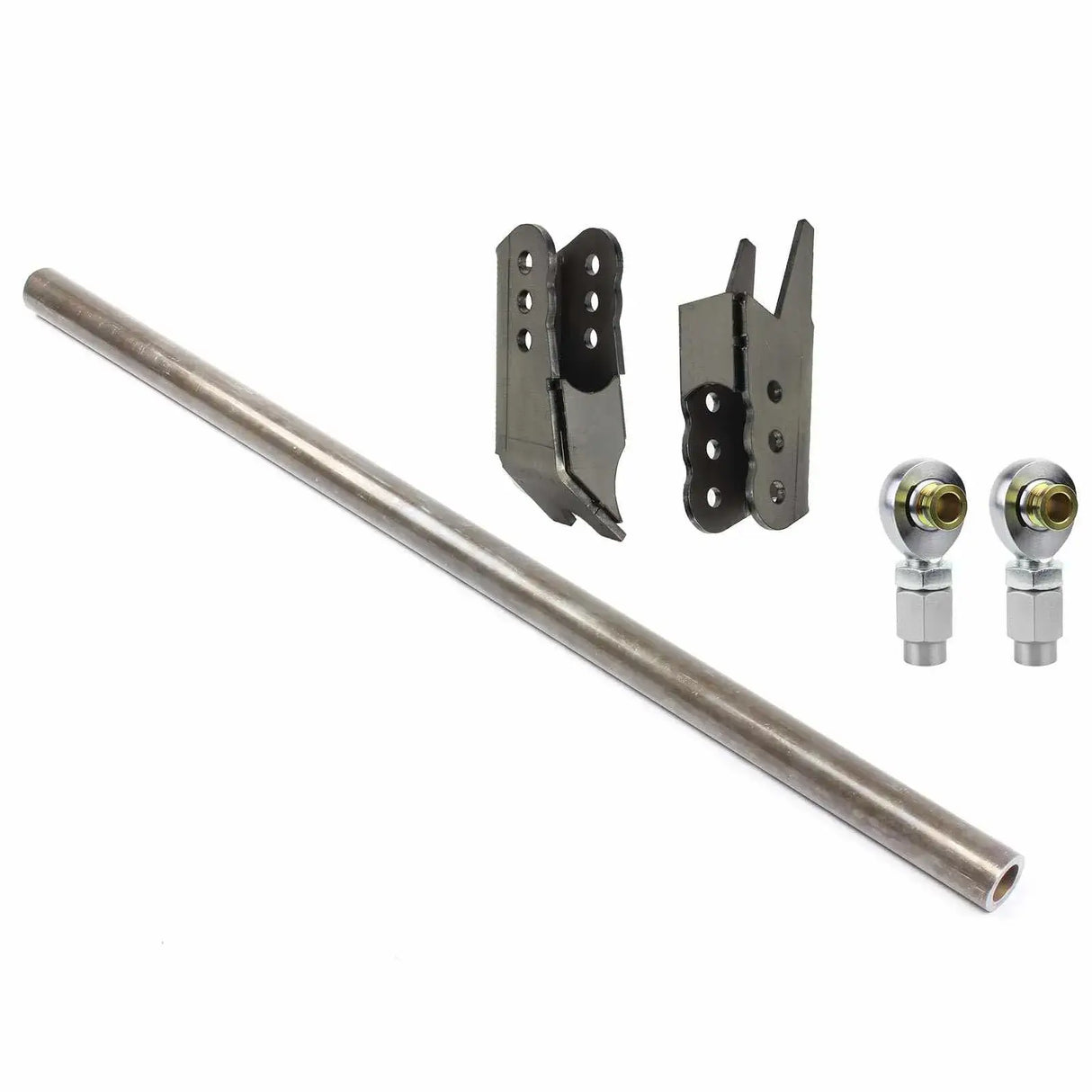

What's Included

43" of 1.5" O.D. x .25" wall DOM tubing
(1) Frame-side bracket
(1) Centered axle bracket
(1) Offset axle bracket
(2) 7/8" heat-treated heims
(4) High-misalignment spacers (9/16" bore)
(2) Hex weld-in bungs for 7/8" heims
(2) Grade 8 bolts with lock nuts

Start your selection

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Early Bronco Wheeler

Installed this Panhard/Trackbar on the Bronco, as the final piece to my suspension build, once installed we had to flex out the vehicle, This Panhard/Trackbar did the trick, Pipe was long enough to get it as far as I wanted it. Plasma cut the outriggers to shove the mount into it and weld it all up. RuffStuff as really great product!

Can't beat the value

Building a crawler on a budget and didn't have to skimp on quality with these parts. Cheaper than any Panhard/trackbar kit on the market even if you go á la carte. Brackets are beefy and were easily modifiable for my application. On top of all that they arrived super quick. Thanks for the great service and products, Ruff Stuff!

Home Fabricator

Installed this kit on a friend's lifted Suburban with cross-over steering and it's flawless. The kit is universal and comes complete with most everything needed to work in almost any situation. Since every install is unique, we extended the axle bracket to clear the spring perch on the Dana 60 but the rest of it fit perfect and burned in easily. For the top bracket, we only modded it by cutting the lower hole off since it wasn't needed for our application. The kit pieces are high quality, fit great and plenty of material is provided. The lifted Sub now drives and tracks better than new.

Great quality!

I have had a couple setups similar to this, but I have to say this kit by far is the strongest, not to mention very fairly priced. Thanks guys for a bombproof setup!!

Stout

It's heavy duty. I'm impressed. Put it on a 69 jeep commando project, it's probably the sturdiest part of the whole suspension, ha. If I ever need another custom track bar this is the one I'll get.
