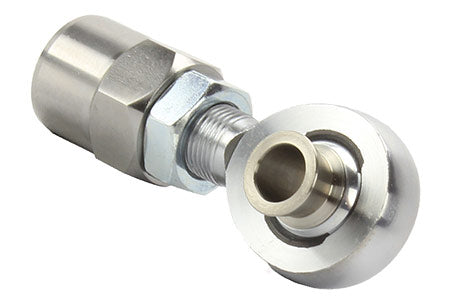

7/8" X 3/4" Rod End Kit

Part Number: R1574-Kit-12
Shipping Weight: 1.35 lb
$51.00 $60.00
Shipping calculated at checkout.
Thread Direction
Tube Adapter Tube ID
3/4" Misalignment for Half Set

7/8" X 3/4" Rod End Kit - Left Hand Thread / 1.5" ID Hex Tube Adapter / 3/4"-5/8" Stainless Steel Safety

Description

7/8" X 3/4" Rod End Kit

Complete Heim Joint Solution for 2" ID Brackets

This kit provides everything you need for a strong, precise, and easy-to-install 7/8" x 3/4" rod end setup. Perfect for steering, suspension, and link applications, it includes a high-quality chromoly heim joint, tube adapter, jam nut, and your choice of misalignment spacers to fit your exact build. Designed for serious off-road use, with options to match different tube IDs, thread directions, and mounting widths.

Key Features
  • Part Number: R1574
  • 7/8" x 3/4" bore heat-treated chromoly heim joint
  • Includes tube adapter for 1" or 1.5" ID tubing
  • Includes jam nut and choice of misalignment spacers
  • Designed for 2" ID bracket mounting (wide options available)
  • Made in the USA
What's Included
  • 1 – 7/8" x 3/4" Bore Heat-Treated Chromoly Heim
  • 1 – 7/8" Tube Adapter (1" or 1.5" Tube ID)
  • 1 – 7/8" Jam Nut
  • 2 – Misalignment Spacers (Standard 2" ID or Wide 2 5/8" options)
Thread Direction
  • Left Hand Thread
  • Right Hand Thread
Tube Adapter Tube ID
  • 1.5" ID Hex Tube Adapter
  • 1" ID Hex Tube Adapter
3/4" Misalignment for Half Set
  • 3/4"-5/8" Stainless Steel Safety
  • 3/4"-1/2" Stainless Steel
  • 3/4"-5/8" Stainless Steel
  • 3/4" to 9/16" Stainless Steel
  • 3/4"-5/8" Stainless Steel Wide (2 5/8" mounting width)
  • 3/4" Stainless Spacer (Standard 2" mounting width)
  • 3/4"-9/16" Wide Stainless Steel
  • 3/4" to 5/8" Narrow Stainless

Start your selection

Maintenance Tip: Tri-Flow is the only lubricant recommended for our rod ends. Using WD-40, PB Blaster, or similar products can cause damage and void the warranty.

Welding Tip: Correctly adjust welder settings and start your puddle on the tube to avoid overheating threads. Do not weld the tube adapter with the rod end threaded inside. Allow parts to fully cool before assembly.
