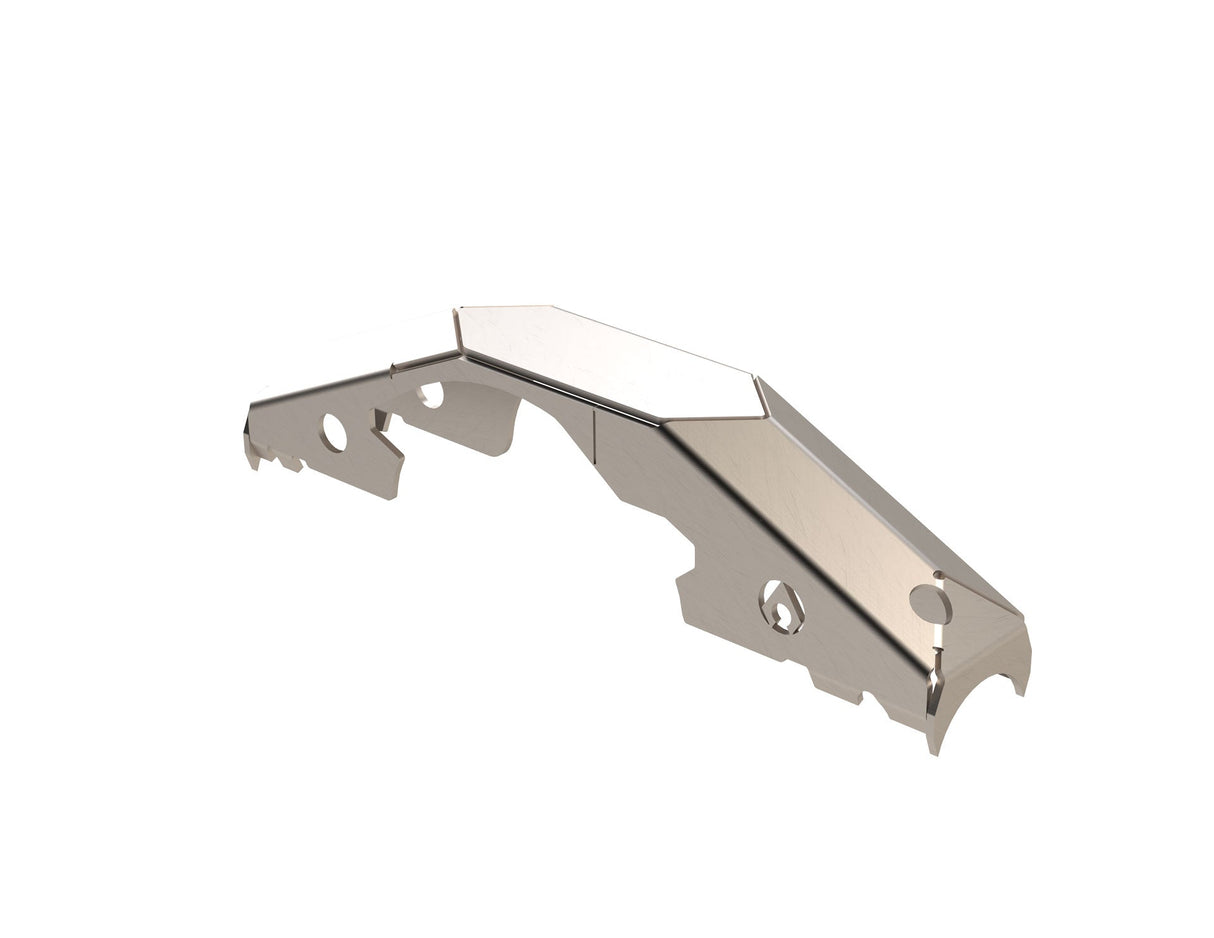

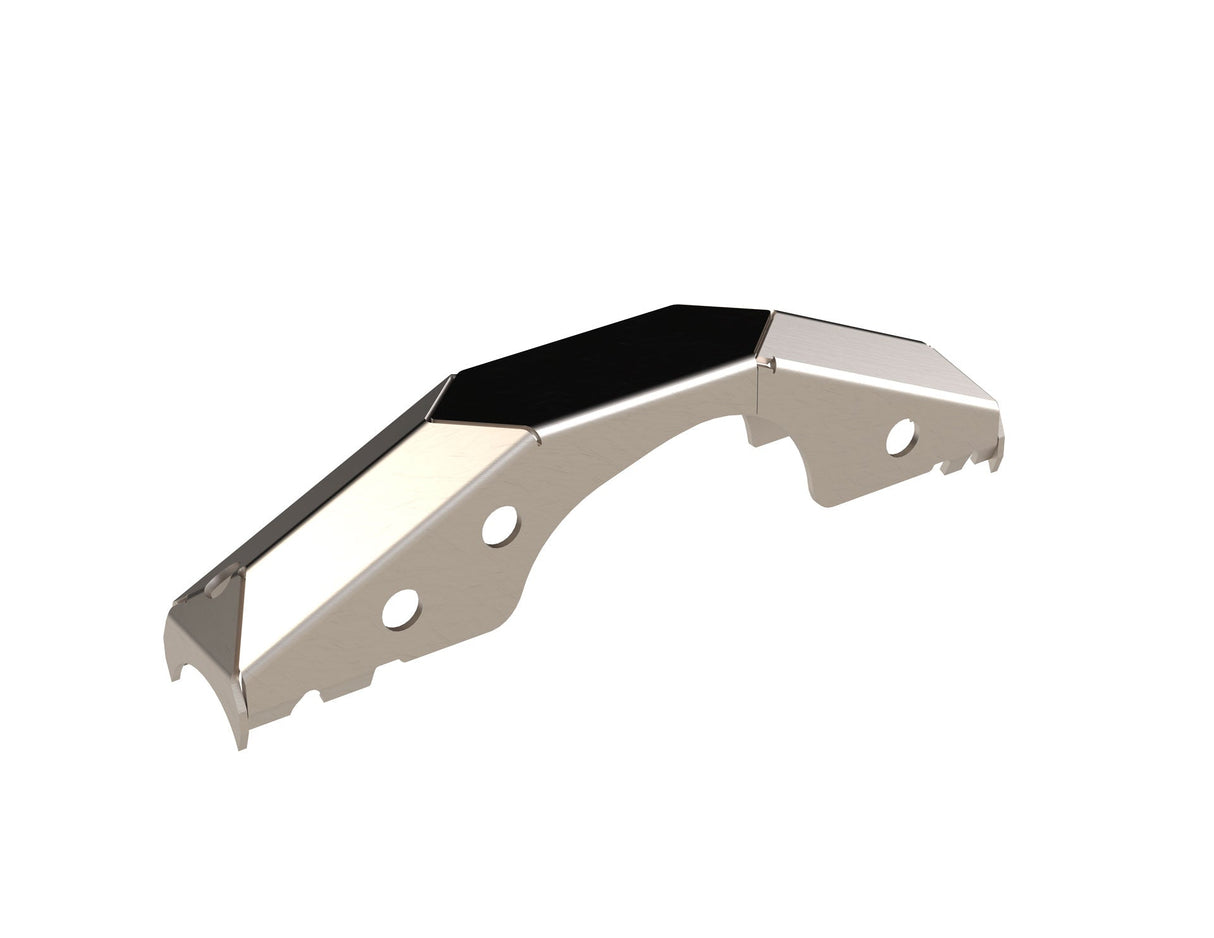

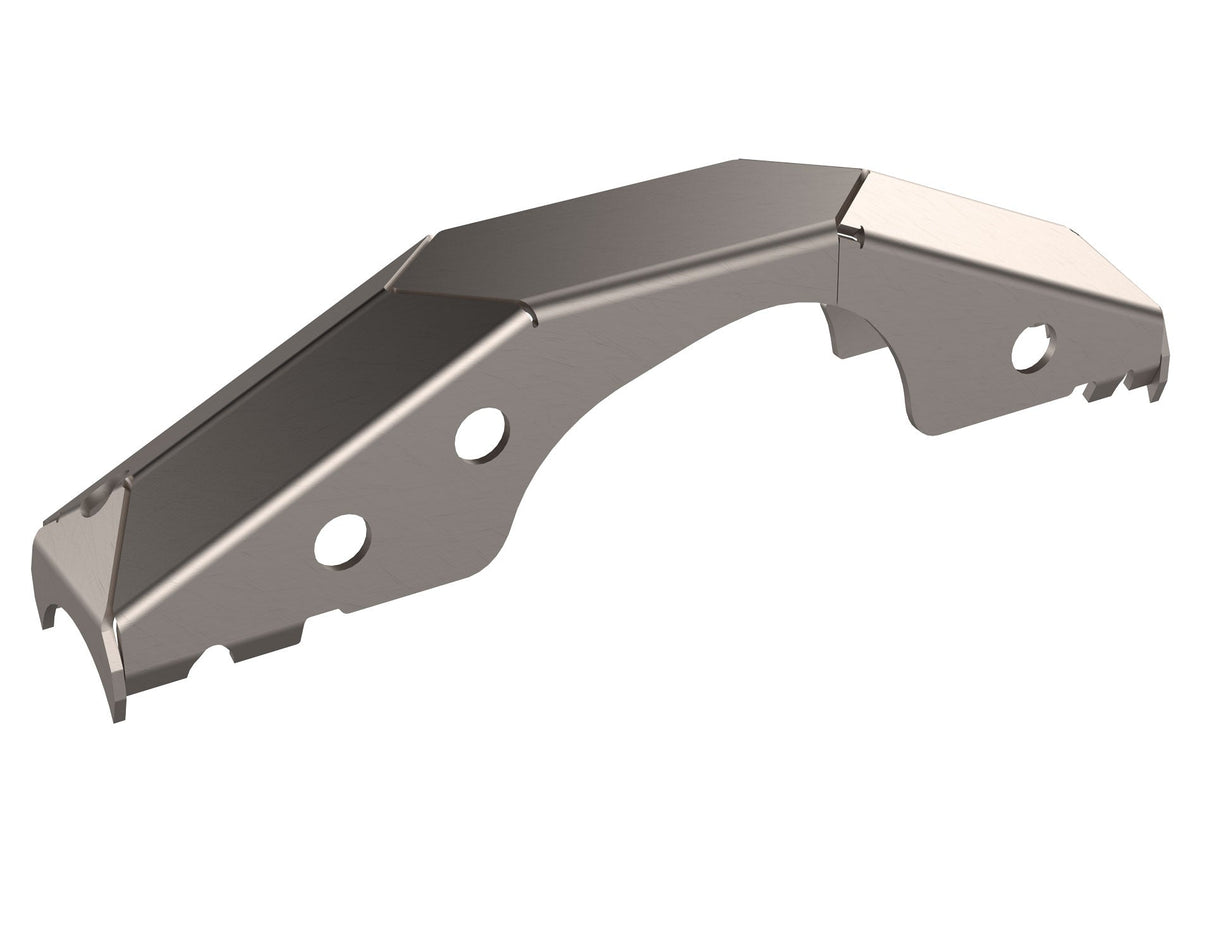

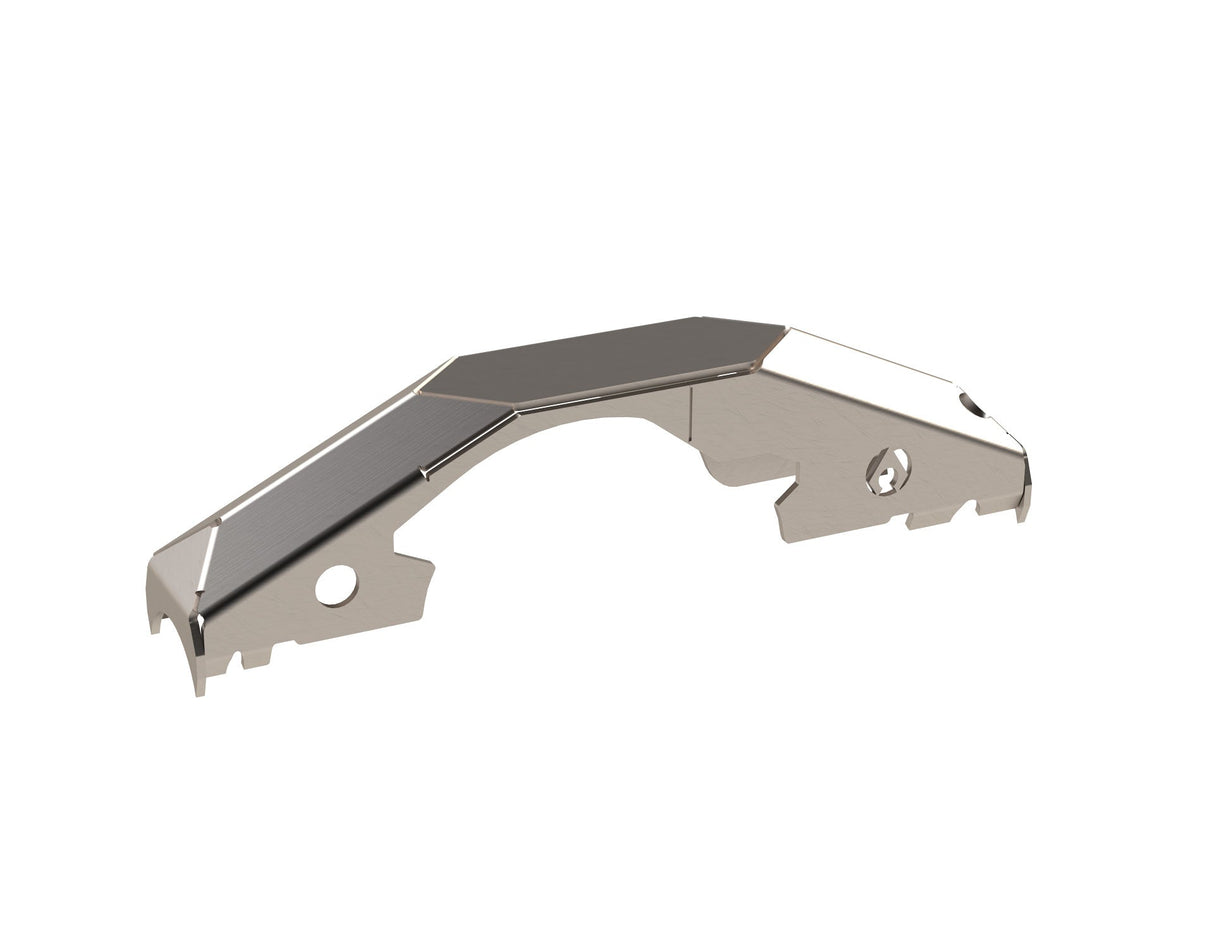

UD80 APEX REAR AXLE TRUSS

UD80 APEX Rear Axle Truss

The ultimate Dana 80 bracketless crate rear axle upgrade from Artec Industries—engineered for maximum strength, reduced weight, and unparalleled performance in your Wrangler.

The UD80 APEX Rear Truss represents the next generation of PATENTED axle trusses, delivering cost savings, enhanced strength, weight reduction, ease of installation, precise fitment, and comprehensive axle protection. Its unique peaked design increases rigidity and reduces weight while eliminating the need for long weld seams—ideal for APEX 1-ton swap kits. The truss enhances rigidity and facilitates upper link mounting over the differential, making it perfect for leaf spring to link suspension conversions.

This innovative truss features a patented APEX peaked top that provides greater rigidity compared to flat top designs, while the 1/4" mild steel CNC laser-cut construction weighs only 17 lbs. The CNC precision bent design ensures easy drop-in fitment and is ready for welding. With 70% less welding required, you'll reduce warping, speed up turnaround, and lower costs. The bent long seams eliminate time-consuming welding, while dimpled holes reduce weight and increase rigidity. Its low-profile design provides optimal link joint mounting geometry, and the two-piece design enables smaller packaging and reduced shipping costs. The streamlined low profile results in a stronger, sleeker axle with minimized component interference.

Key Features

• Part Number: TR698
• Fitment: Dana 80 rear axles, ideal for Jeep Wrangler APEX 1-ton swap kits
• Material: 1/4" mild steel, CNC laser cut
• Weight: Only 17 lbs
• PATENTED APEX peaked top design for superior rigidity
• CNC precision bent for easy drop-in fitment
• 70% less welding required compared to traditional trusses
• Dimpled holes for weight reduction and increased strength
• Low-profile design for optimal upper link mounting geometry
• Two-piece construction for easier packaging and installation
• Versatile fit: suitable for leaf springs or link suspension mounts
• American Made

What's Included

• 1x UD80 APEX Rear Axle Truss (two-piece design)

Fitment Checklist

• Compatible with Dana 80 rear axles
• 3D models from Dana Corp/SPICER and OEM vehicles guarantee perfect fit and clearance
• Designed specifically for APEX 1-ton swap applications
• Works with both leaf spring and link suspension configurations

Tools Required & Install Time

• MIG or TIG welder
• Angle grinder for surface prep
• Clamps or fixturing for alignment
• Install time: 2-4 hours depending on experience level

Install Tips

• Clean and prep axle housing thoroughly before welding
• Use proper fixturing to maintain alignment during welding
• Weld in stages to minimize heat buildup and warping
• The bent long seams significantly reduce welding time—focus on end caps and mounting points
• Low-profile design allows for easy upper link mounting—plan your suspension geometry accordingly

Need help with your build? Our team is here to answer questions and provide technical support. Reach out anytime!
