Anti-Wrap Arms / Traction Bar Plates (Pair)
Part Number:
R1082-Kit-1
Shipping Weight: 14.0 lb
$30.60
$36.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Anti-Wrap Arms / Traction Bar Plates (Pair)
Couldn't load pickup availability
Description
Description

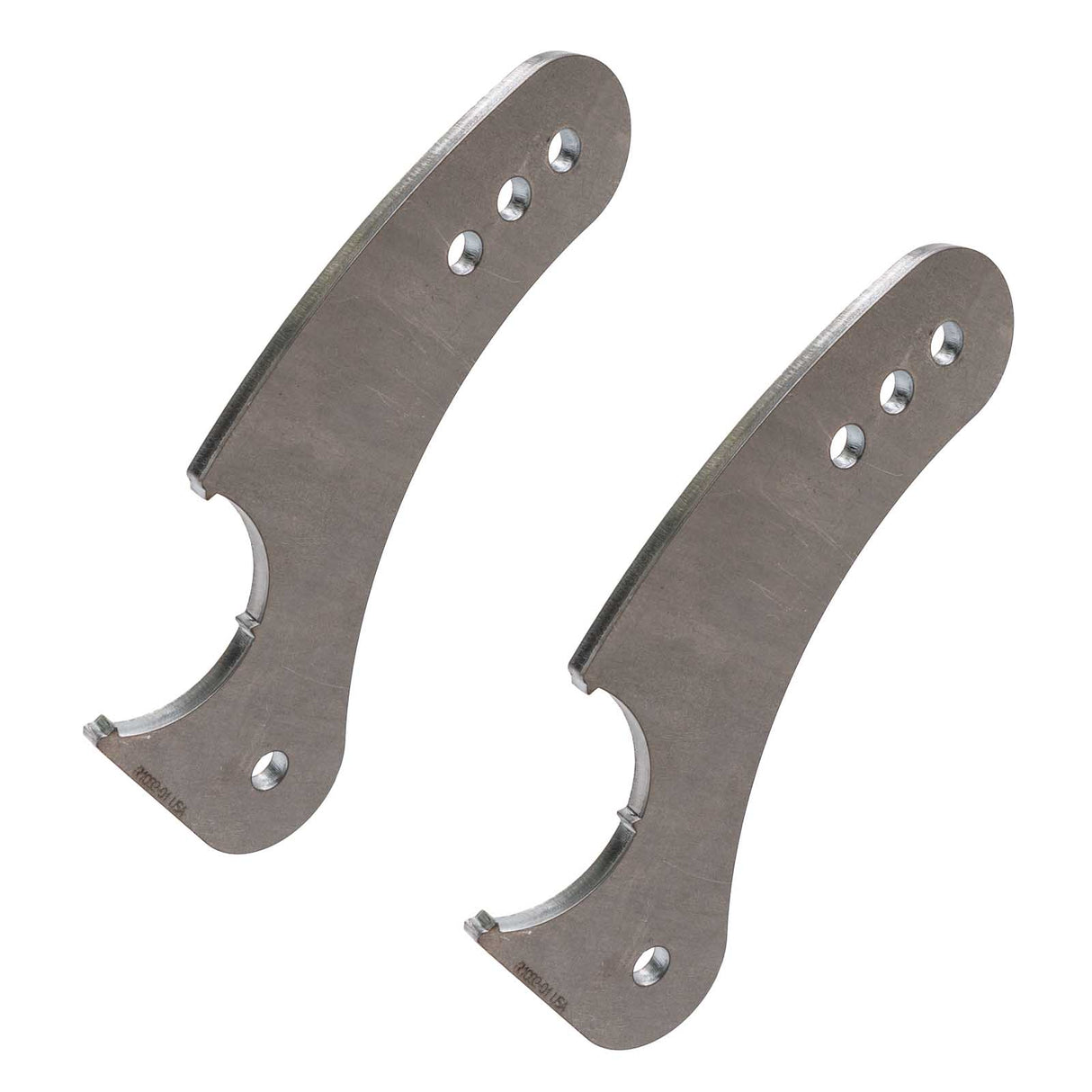

Anti-Wrap Arm Plates
Heavy-Duty Mounting Solution for Axle-Based Suspension Links

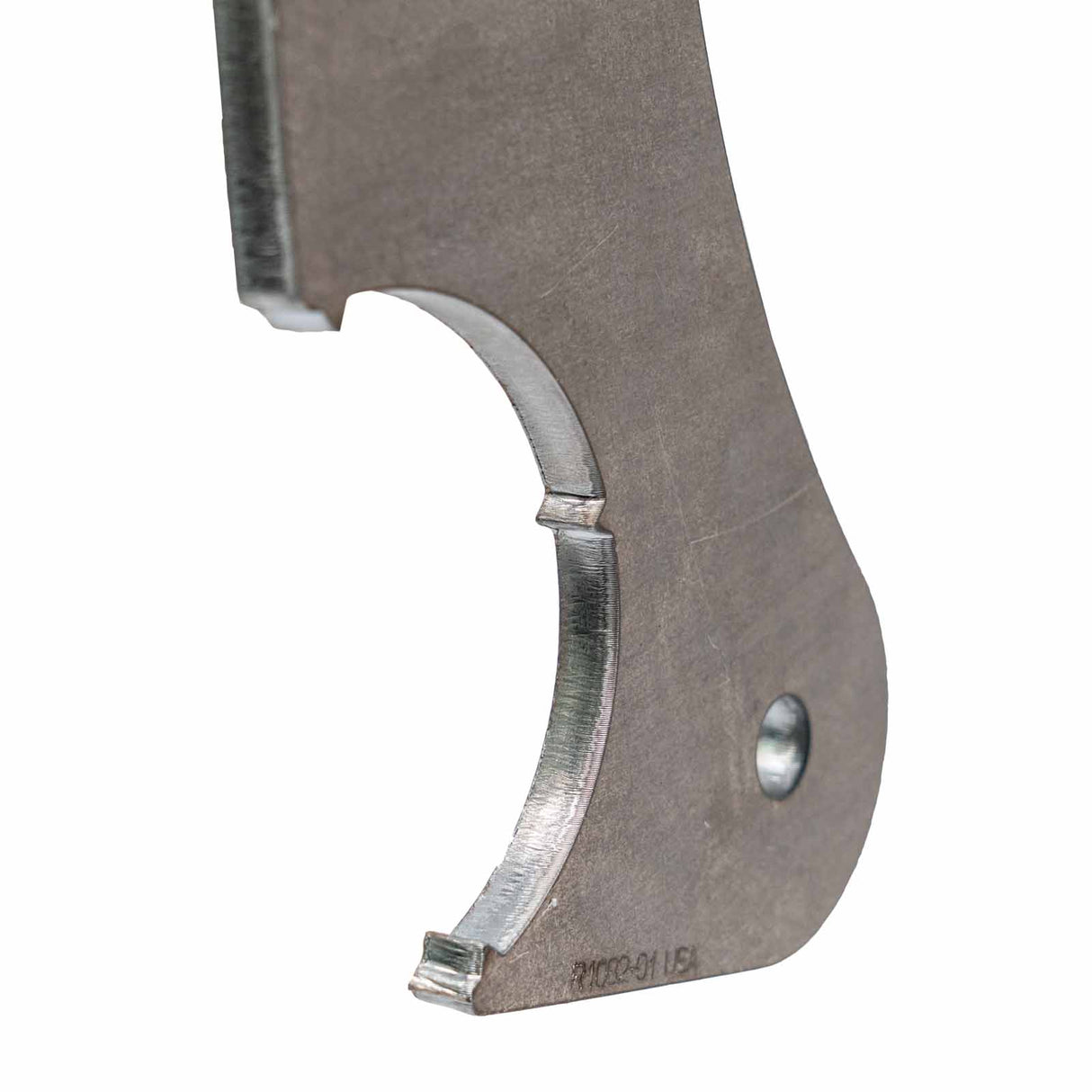

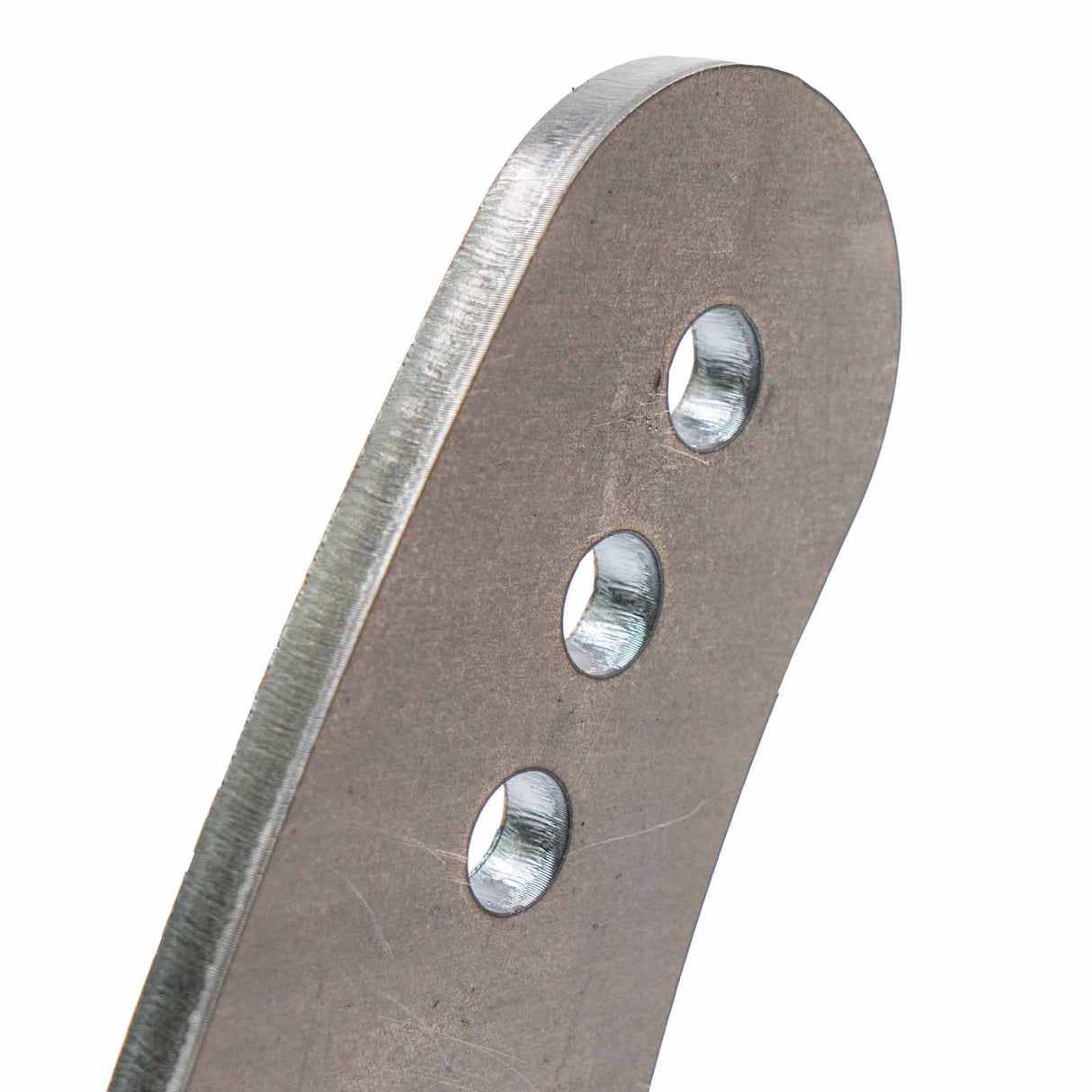

These main plates are designed to weld directly to the axle tube, creating a strong and adjustable mounting point for the upper and lower arms of anti-wrap bars, radius arms, or traction bar setups. Built from 3/8" thick plate steel, they feature three 9/16" bolt holes spaced at 6", 7", and 8" from the axle centerline, allowing you to fine-tune geometry for optimal performance. Pre-cut for 3" axle tubes but can be easily modified for larger diameters with minor grinding.
Key Features
- Part Number: R1082
- Material: 3/8" plate steel
- Bolt hole size: 9/16"
- Mounting positions: 6", 7", 8" from axle centerline
- Fits: 3" axle tube (modifiable to larger sizes)
- Sold in pairs
