Antiwrap/Traction Bar Axle End Kit
Part Number:
R1083-Kit-1
Shipping Weight: 19.0 lb
$85.80
Unit price
/
Unavailable
Shipping calculated at checkout.
Antiwrap/Traction Bar Axle End Kit
Our Website is having technical Difficulties.
To place an order, please call our Sales Team directly at:
(916) 600-1945
ORDER BY PHONE
Antiwrap/Traction Bar Axle End Kit
$85.80
Unit price
/
Unavailable
Description
Description

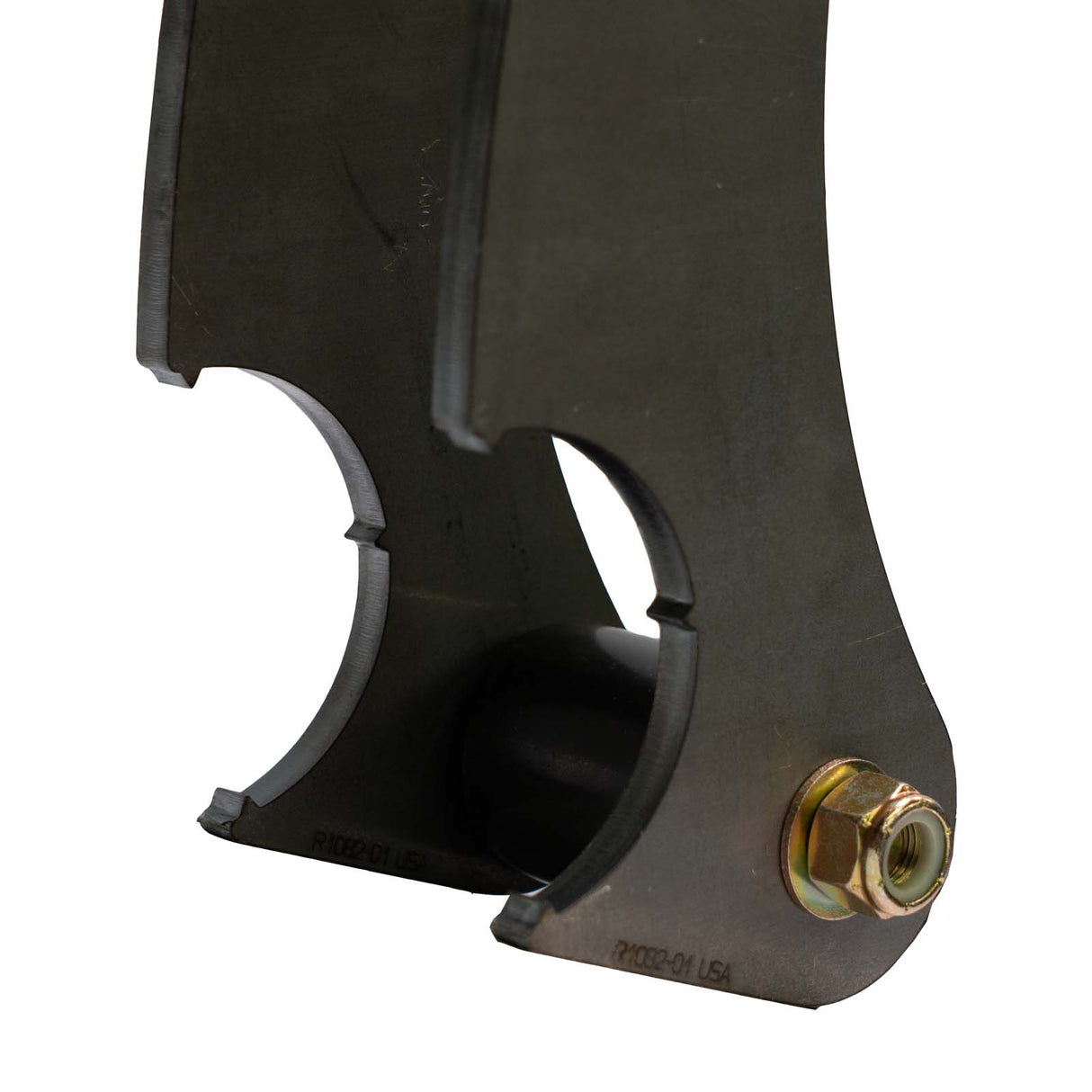

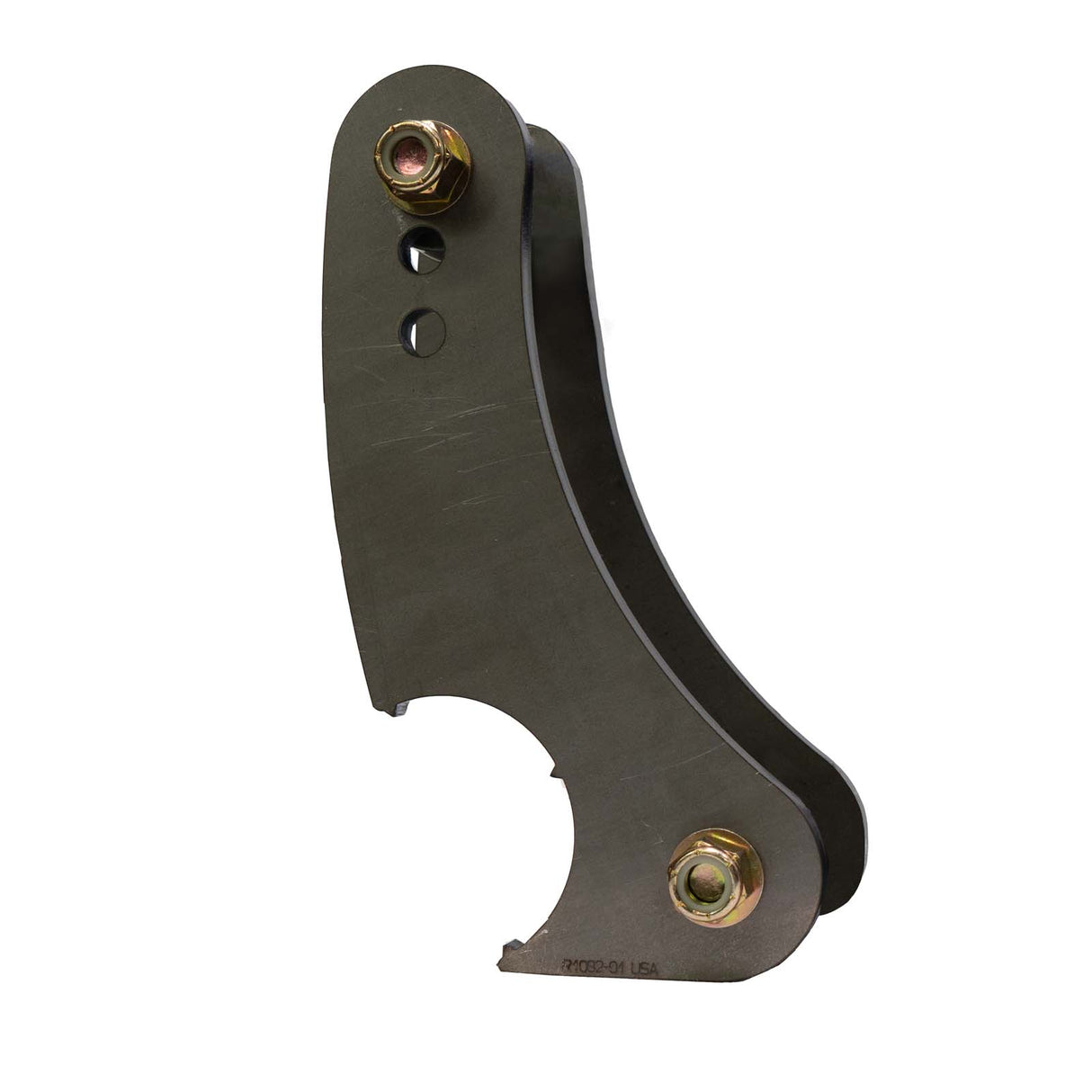

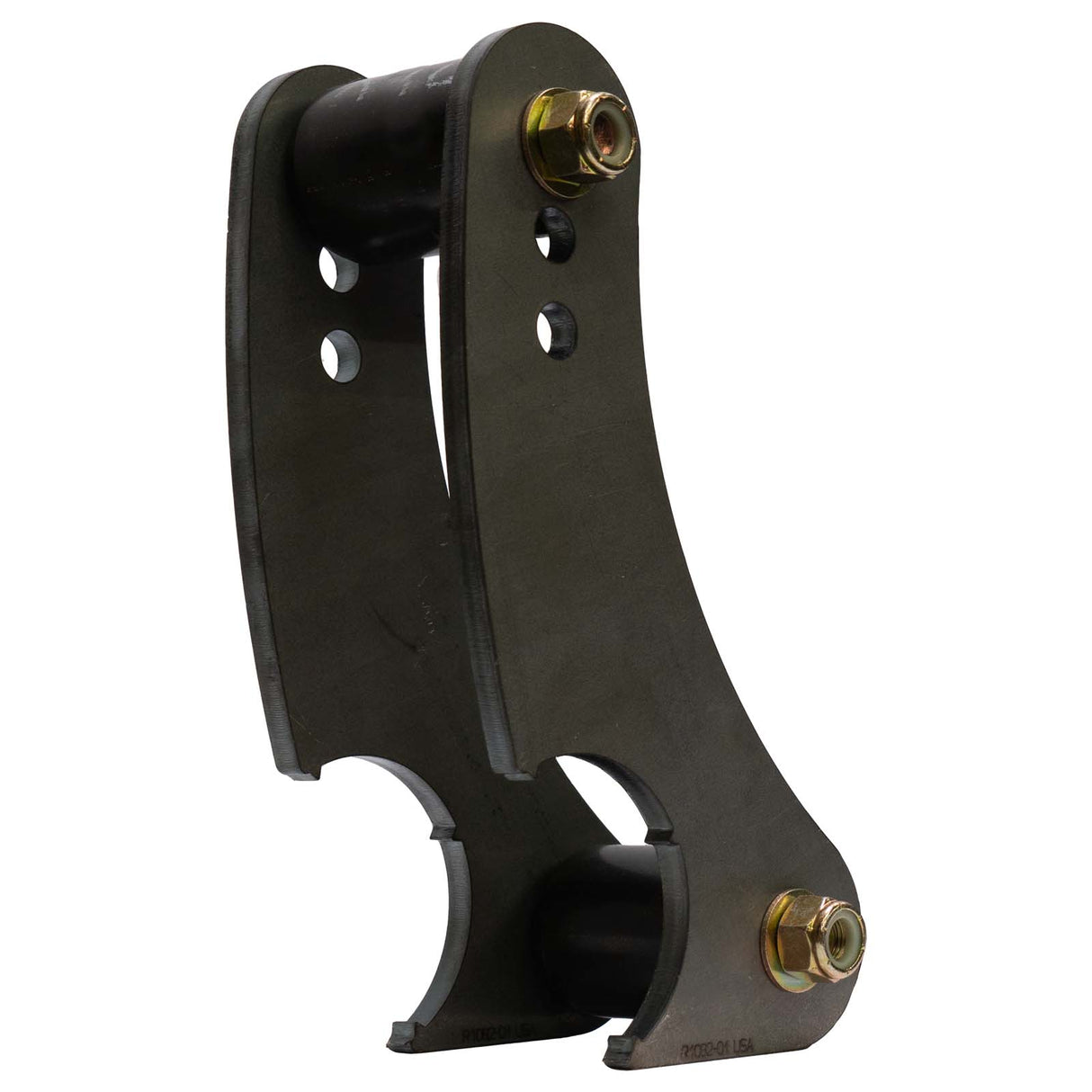

Antiwrap / Traction Bar Axle End Kit
Heavy-duty axle mount kit for traction and antiwrap bars
This axle end kit is built for serious off-road traction bar setups. Featuring two 3/8" thick A36 steel plates with 9/16" bolt holes spaced 8" apart, these plates are radiused to fit a 3" axle tube for maximum weld contact and strength. Includes DOM bushed sleeves for a 2 5/8" mounting width, making it ready for high-load applications in custom suspension builds.
Key Features
- Part Number: R1083
- 3/8" thick A36 steel plates for maximum strength
- Radiused to fit a 3" axle tube
- 9/16" bolt holes spaced 8" apart
- Ideal for traction bar and antiwrap setups
What's Included in This Kit

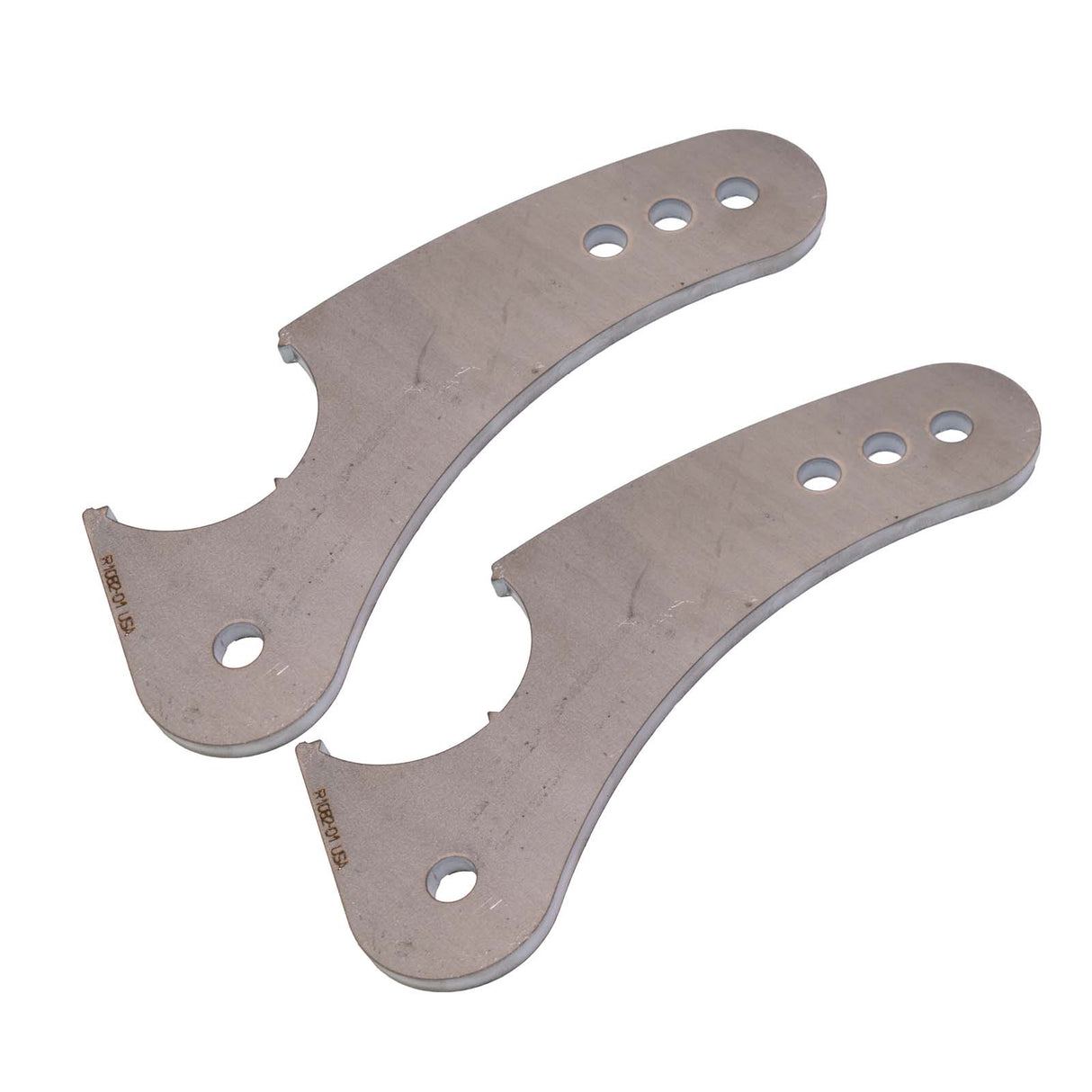

- (2) Main plates for a 3" axle tube, 3/8" thick A36 steel

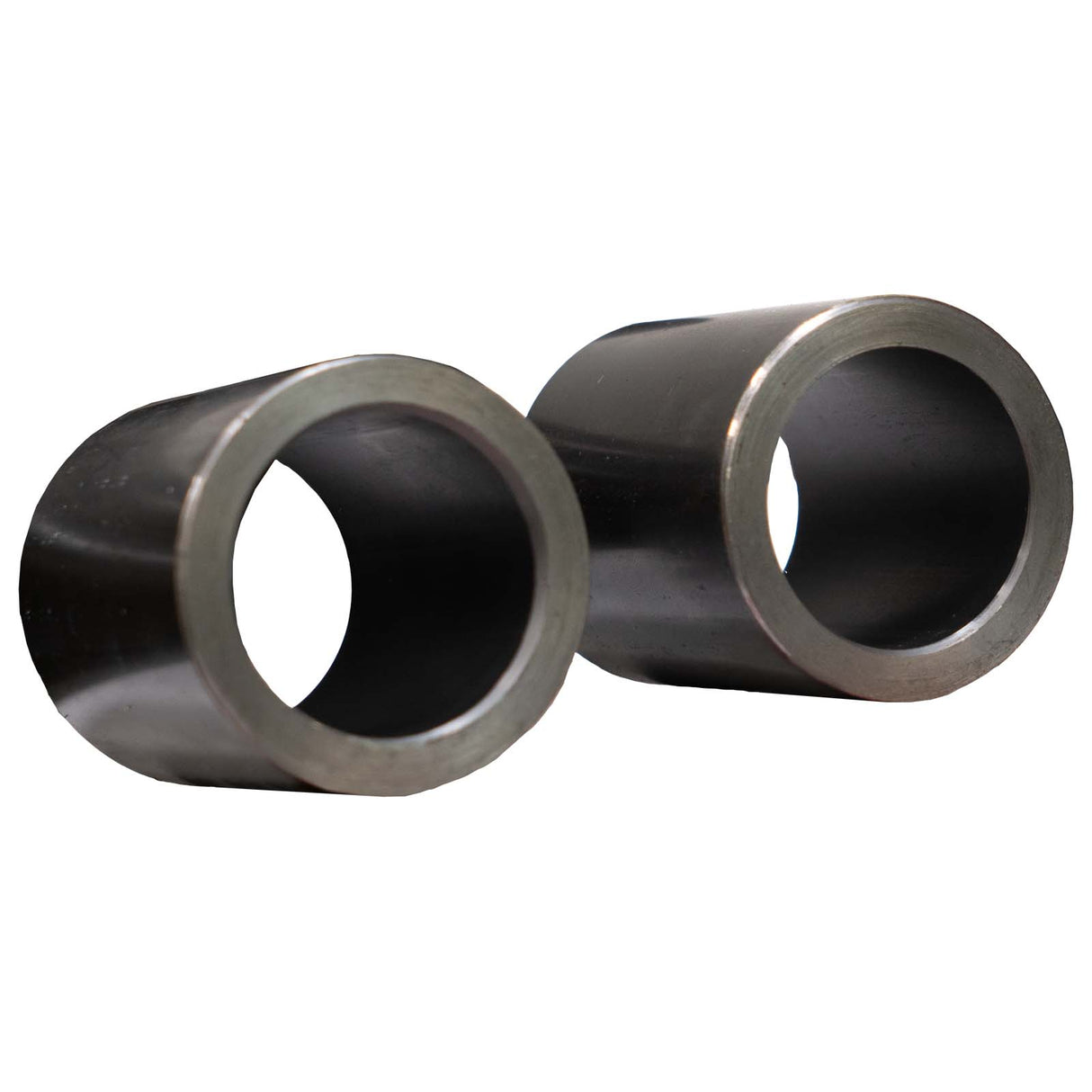

- (2) Bushed DOM sleeves (2 5/8" wide)
