Antiwrap/Traction Bar Kit

Part Number: R1349-Kit-1
Shipping Weight: 35.0 lb
$290.70 $342.00
Shipping calculated at checkout.
Shackle Options
Lower Tube Options
Upper Tube Options

Antiwrap/Traction Bar Kit - Baby Shackle / 3' of 2"x.25" DOM / 3' of 1.5"x.25" DOM

Description

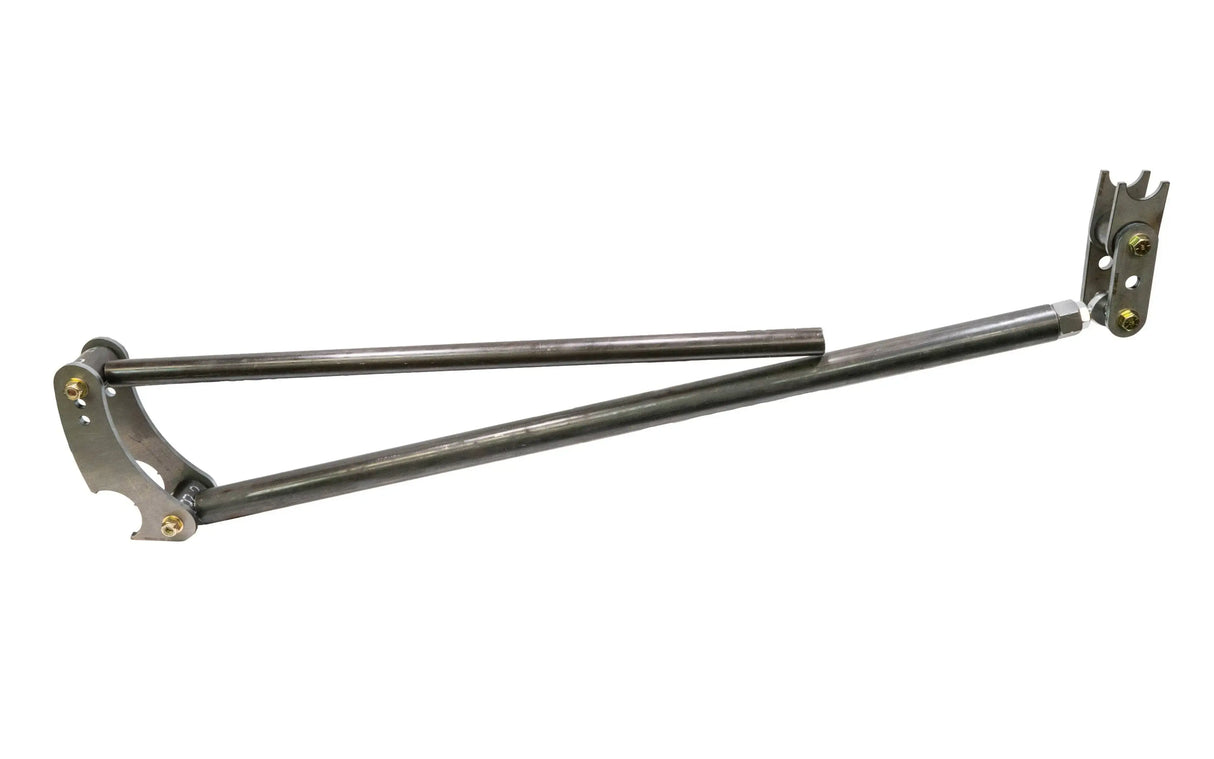

Antiwrap / Traction Bar Complete Kit

Ultimate heavy-duty antiwrap and traction bar solution

This kit is built to handle extreme off-road abuse, with beefy 3/8" thick main plates and .250" wall tubing throughout. Designed for strength and durability, it includes everything you need for a complete traction bar system. Frame mounting tabs are radiused for 1.75" diameter tube, and all components come unwelded for maximum flexibility in custom fabrication. Multiple tube length and shackle length options make this kit adaptable to your build.

Key Features

  • Part Number: R1349
  • 3/8" thick main plates for maximum durability
  • .250" wall DOM tubing for unmatched strength
  • Radiused frame tabs for 1.75" diameter tube
  • DIY kit – comes unwelded for custom fabrication

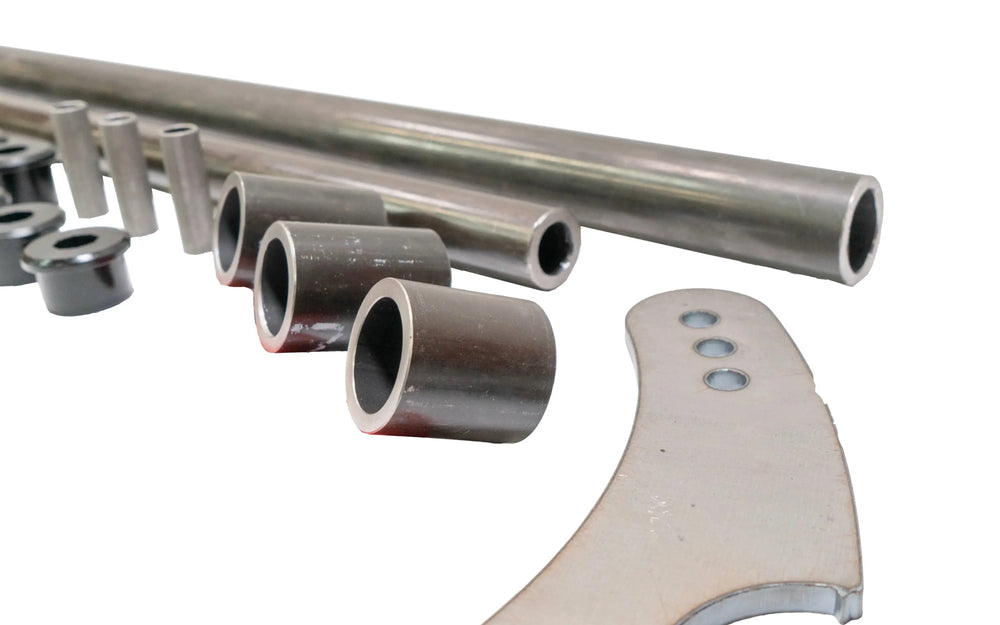

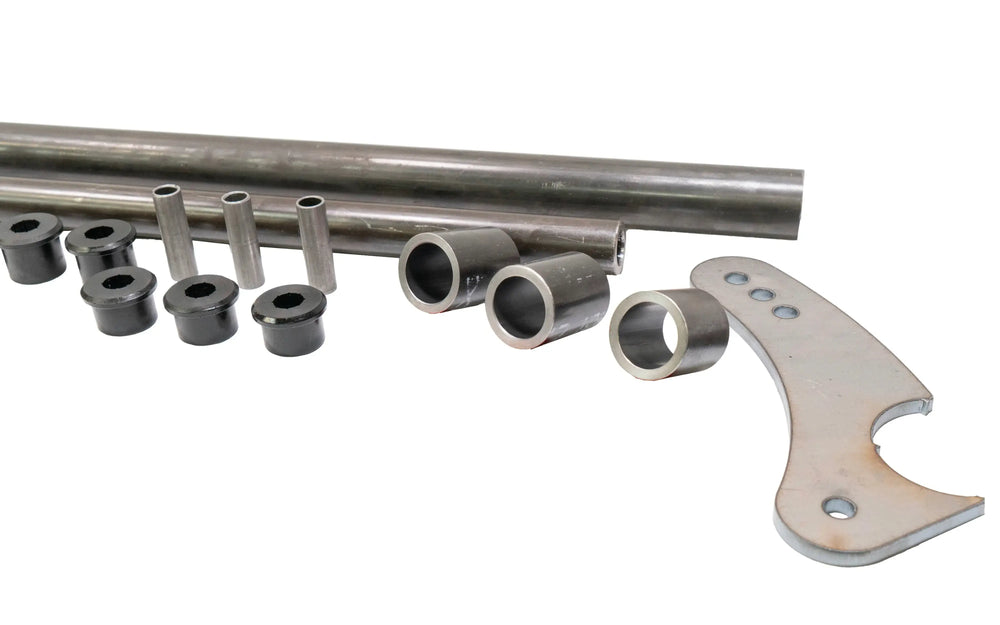

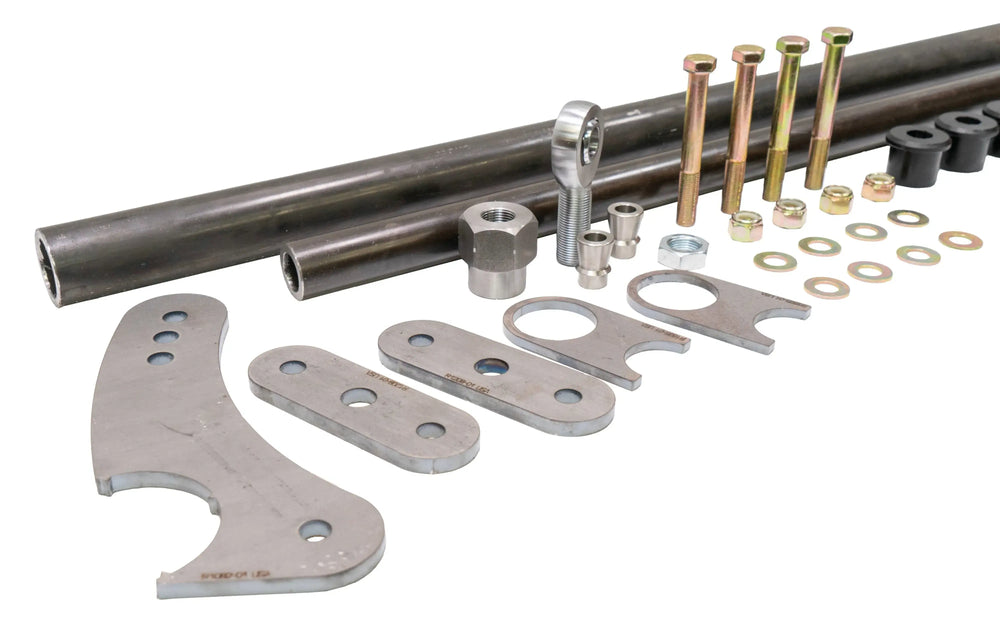

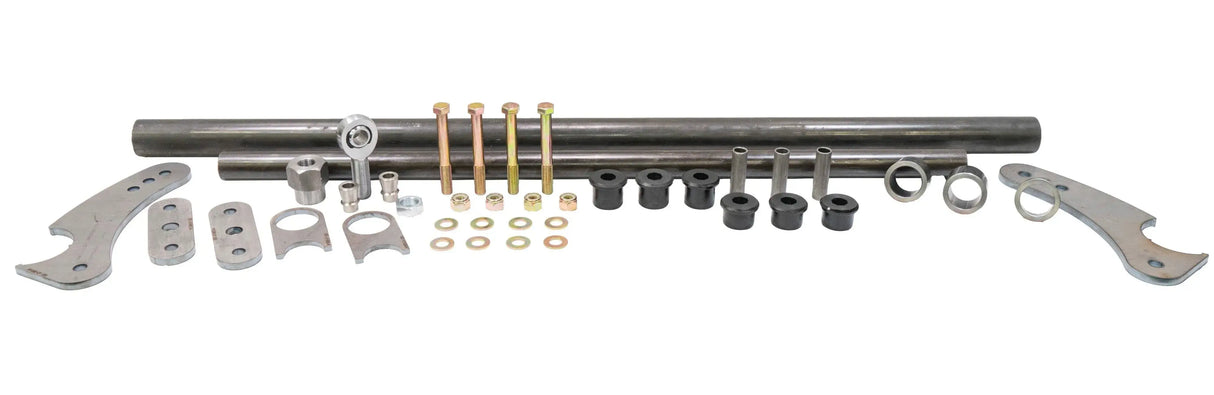

What's Included in This Kit

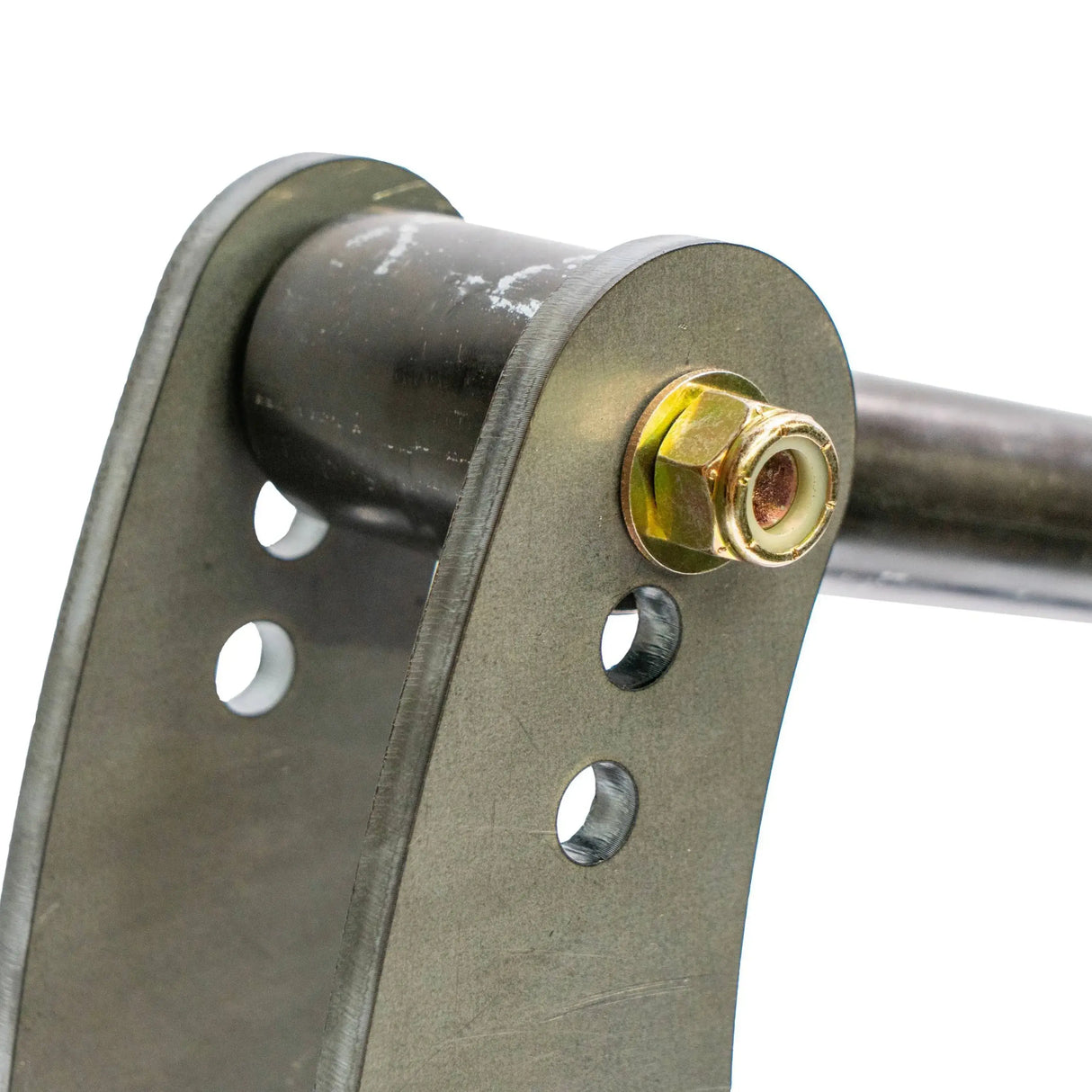

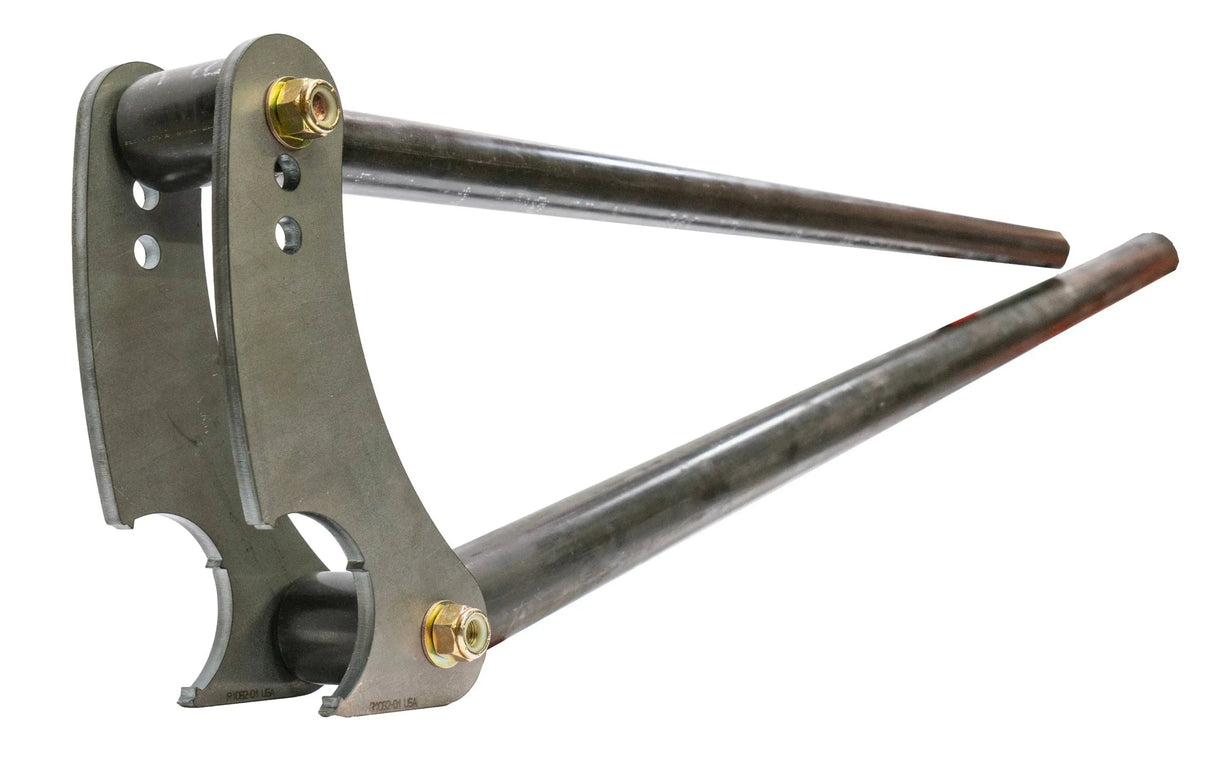

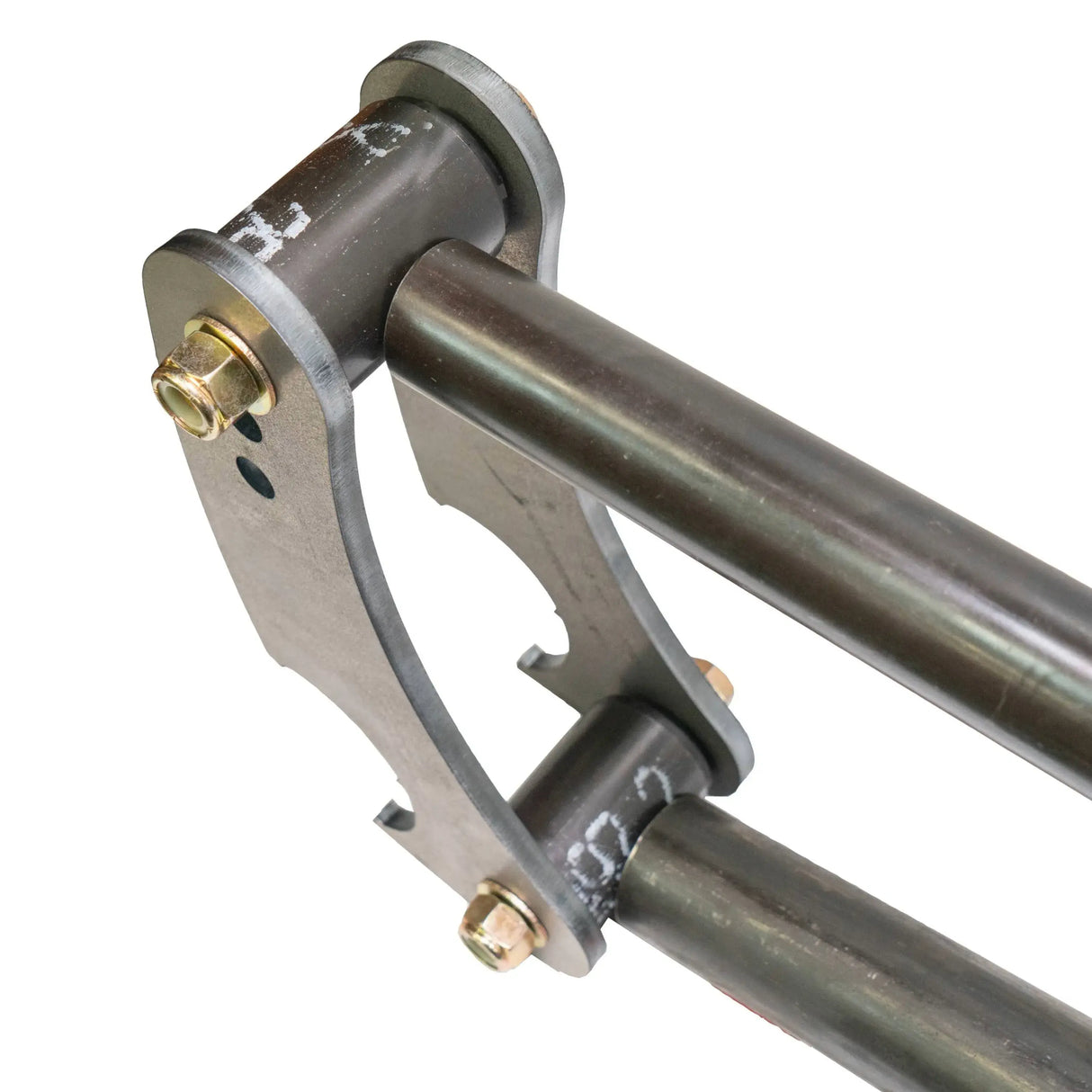

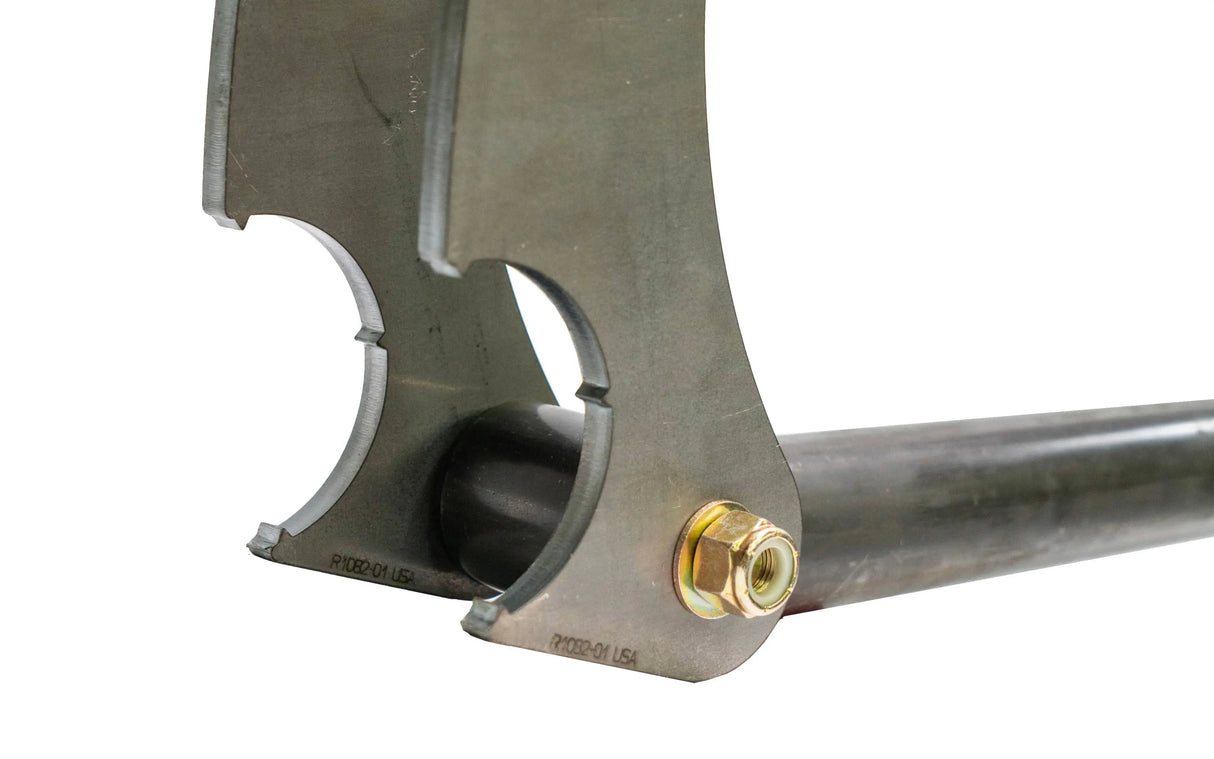

  • (2) Main plates for a 3" axle tube
  • (3) Bushed DOM sleeves (2 5/8" wide)

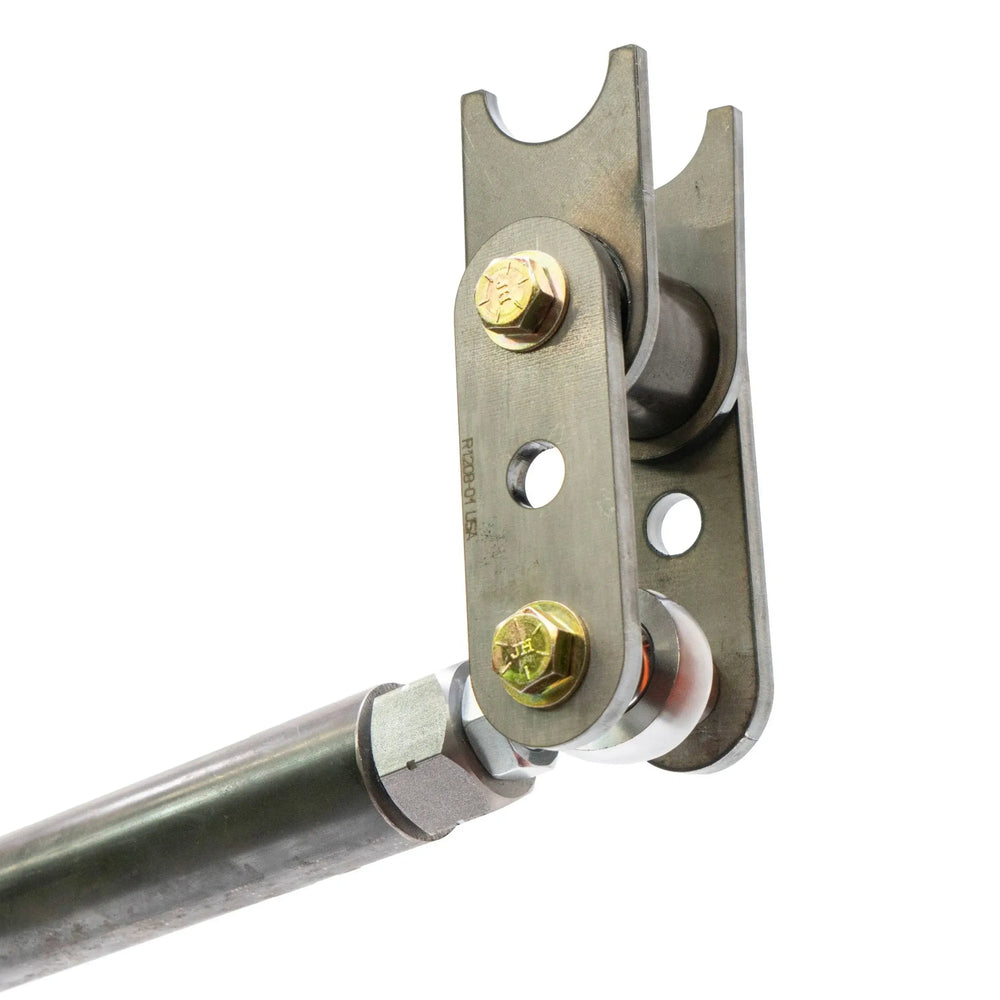

  • (2) 1/4" thick brackets for mounting bushing to chassis

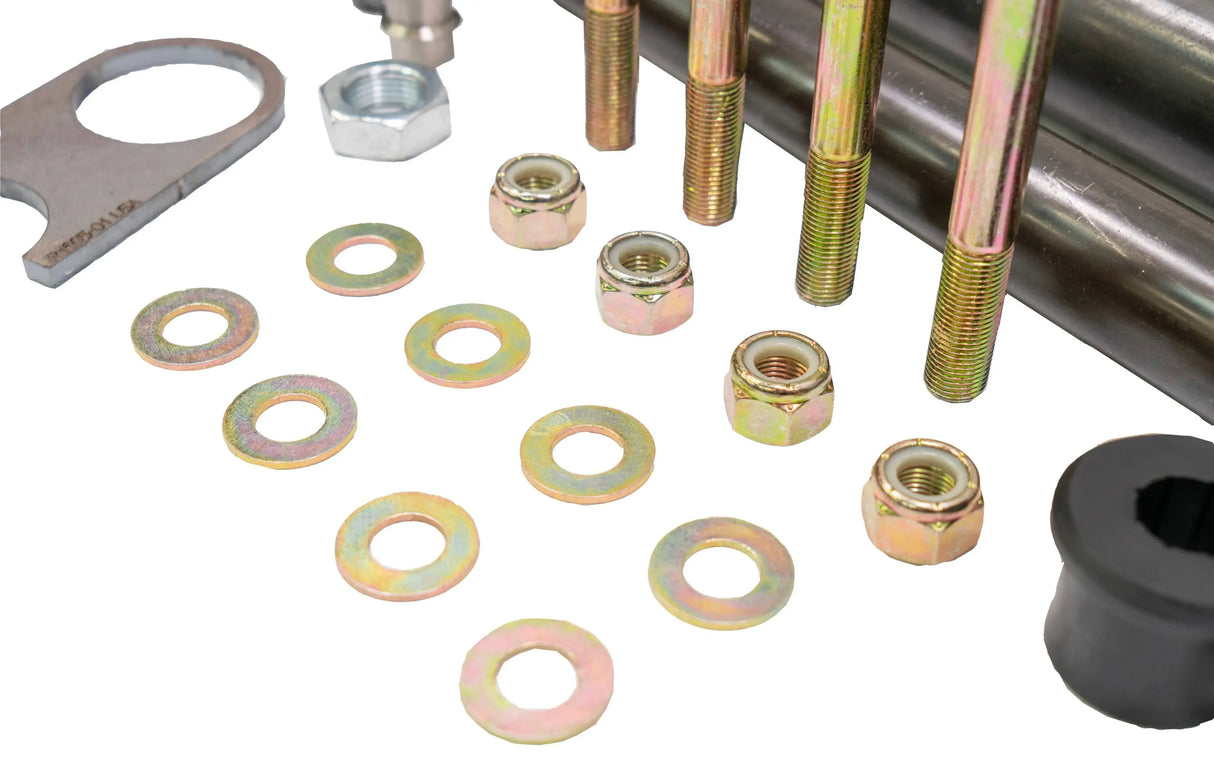

  • (4) 4.5" x 9/16" bolts

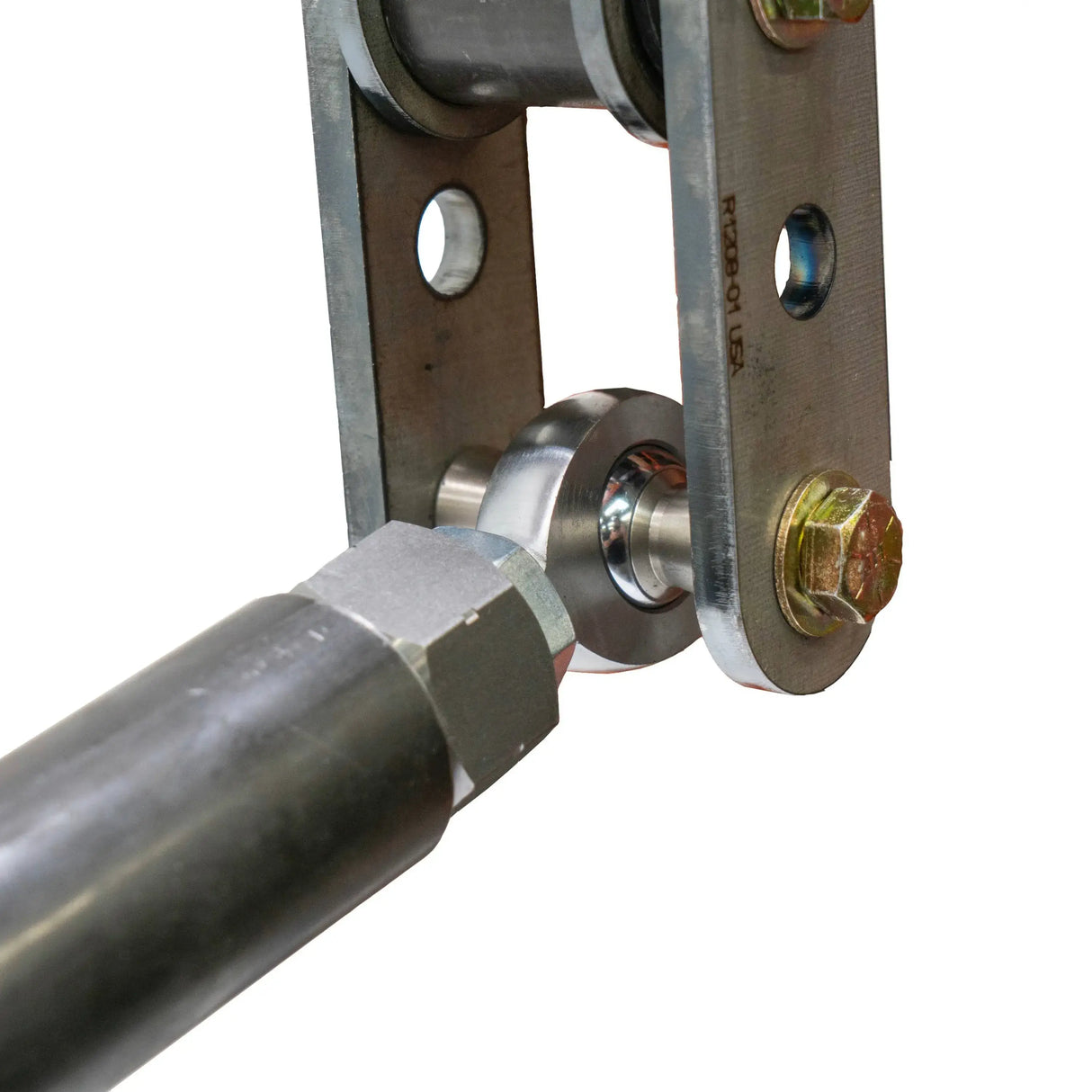

  • (2) Baby or 4" shackles

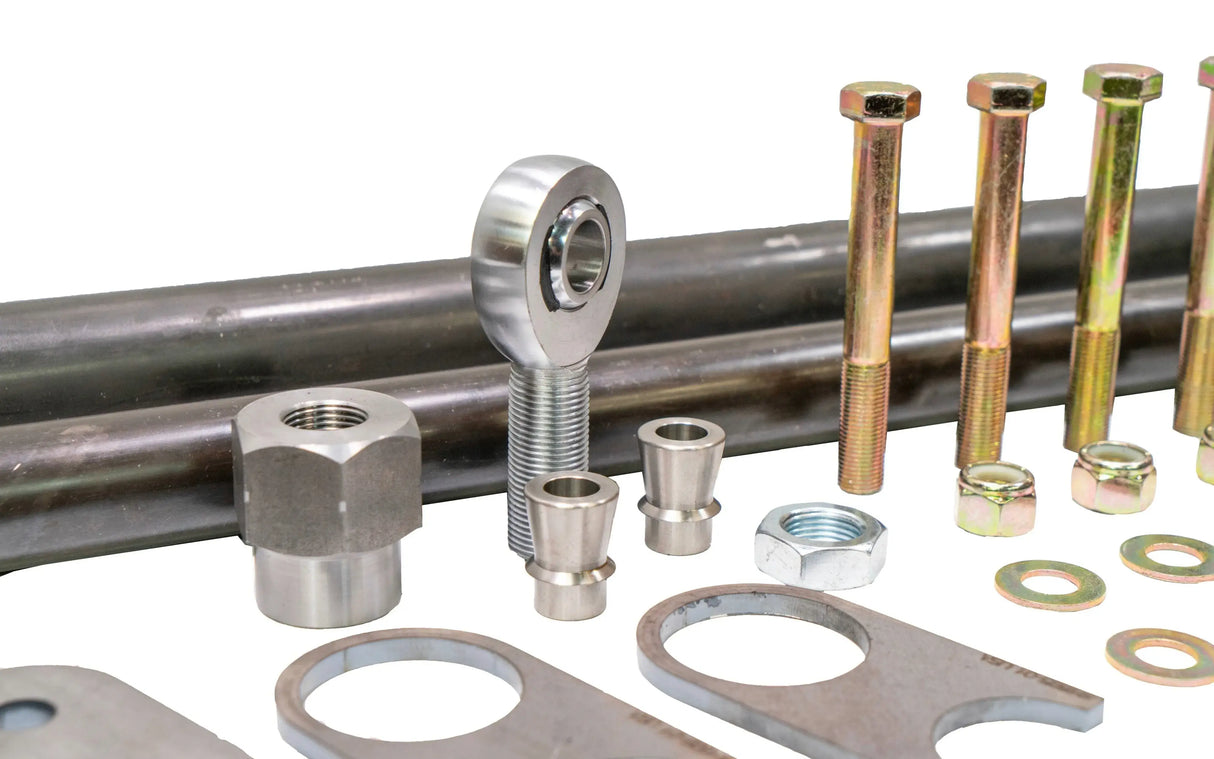

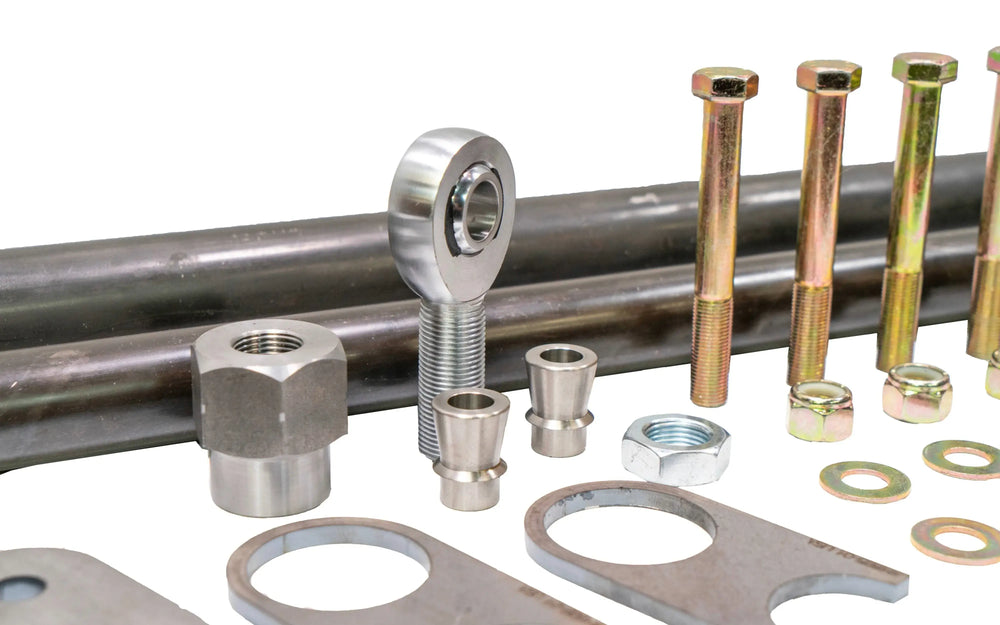

  • (1) 7/8" x 3/4" rod end
  • (1) 7/8" jam nut
  • (1) 7/8" tube adapter for 1.5" tube ID
  • (2) 3/4"-9/16" misalignment spacers (2 5/8" wide)
  • (1) 3' x 2" x .25" wall DOM tube (lower)
  • (1) 3' x 1.5" x .25" wall DOM tube (upper)
Kit Variations
Shackle Options
  • Baby Shackle
  • 4" Shackle
Lower Tube Options
  • 3' of 2" x .25" DOM
  • 4' of 2" x .25" DOM
  • 5' of 2" x .25" DOM
  • No Tubing
Upper Tube Options
  • 3' of 1.5" x .25" DOM
  • 4' of 1.5" x .25" DOM
  • No Tubing
Prop 65 Warning Icon
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 14 reviews
100%
(14)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
E
Eli Steber
Anti-wrap kit

Everything came that was in the kit, and it all looks like it will hold up to a lot of abuse.

C
Carson Cleveland
Great kit!

I had very little welding/fabrication experience, but with a harbor freight 240 volt welder, an angle grinder, and a sawzall, I was able to piece this kit together and I am very pleased with how it performs! Very beefy, and looks awesome. Would look better if my welds were a little prettier, but that has nothing to do with the kit. Wouldn't exactly recommend taking on this task without the proper tools and knowledge, but as I have found out, it is still possible without those.

d
dale roberts
FRKN...5 STAARSS!

Shipping and ordering perfect..its all about beefyness...all the products I ever get are supreme heavy duty!!great fitting..l would recommend these guys n gals over n over!!;)"MYBJEEP IS TUFF ..CUZ ITS FUOL OF RUFFSTUFF!!

M
Matthew Stepic
Umm, we're gonna need a bigger welder

This along with the spring perches, u bolts and plates make my mighty Dana 60's pale in comparison. I'm starting to feel bad for the UPS guy.

M
McGuire Johnson
Awesome Kit!

Just installed this traction bar kit on my SOA FJ60. Came with everything that I needed to get the job done other than the crossmember. Very happy with this product and everything else that I have gotten from RuffStuff!
