DIY Rock Sliders 93"

Part Number: R2253-D-Kit-1
Shipping Weight: 113.0 lb
$436.05 $513.00
Shipping calculated at checkout.

DIY Rock Sliders 93"

Description

DIY Rock Sliders 93"

Complete DIY Rock Slider Kit with Tubing – 93" Length

This 93" DIY rock slider kit is made for full-size rigs or long wheelbase vehicles that need serious side protection. Built from 1.75" x .120 wall DOM tubing, it includes all the components to build strong, trail-ready sliders without requiring a tube bender.

Outer and inner tubes are spaced 5.25" apart using 16" frame legs. The kit features capped ends cut at a 45° angle, along with frame plates and gussets for extra support. All parts come unwelded and are pre-cut to cover both driver and passenger sides.

Key Features

  • Part Number: R2253-D
  • Includes tubing to build 93" rock sliders
  • Made from 1.75" x .120 wall DOM tubing
  • 3/16" end caps and gussets for durability
  • Frame legs space rails 5.25" apart
  • Fits long wheelbase or full-size vehicle applications
  • Includes all components for both sides of the vehicle
  • Kit comes unwelded

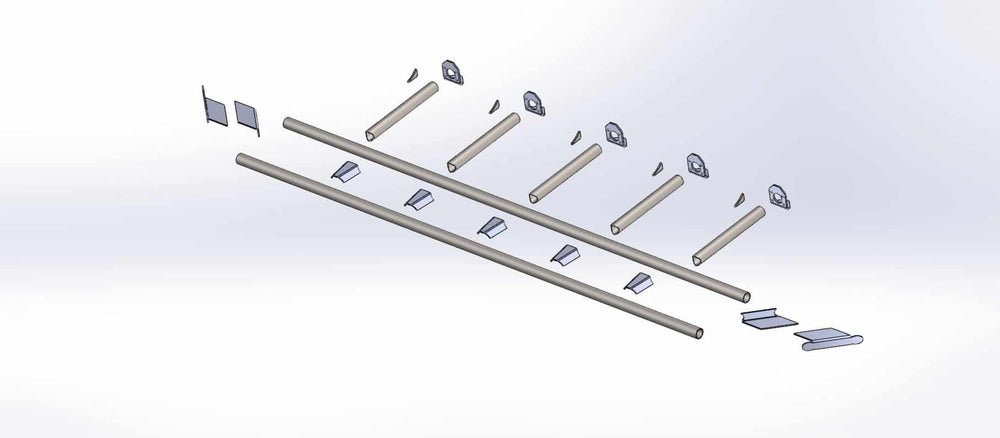

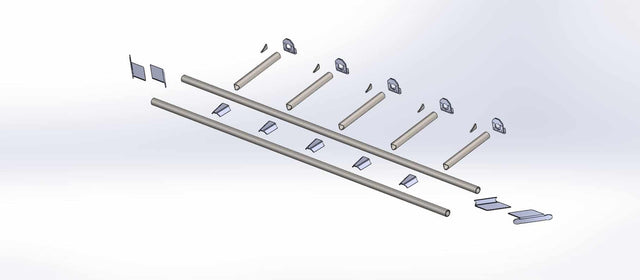

Kit Includes

  • (4) 3/16" Slider End Cap Brackets
  • (10) 3/16" Slider Inner Gussets
  • (10) 1/4" Slider Frame Plates
  • (10) 1/4" Slider Frame Plate Gussets
  • (10) 16" Long 1.75" x .120" Wall DOM Slider Frame Tubes
  • (2) 93" Long 1.75" x .120" Wall DOM Main Tubes
  • (2) 83" Long 1.75" x .120" Wall DOM Main Tubes
Prop 65 Warning Icon
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
N
Nate Jacobs
Great product

Well thought out product for the individual with no tube bender. Ruff stuff always has something to fulfill your needs.

M
Mike
Great DIY project

This is a great option that can save you a lot of money over paying for a fully fabricated and installed set of sliders. It's also very nice that the frame tubes are notched for you. These are strong, quality parts, and I'm very happy with the end result.

I put these on a 2003 Supercrew and had to get creative with the frame tubes because of how the frame turns in toward the front, and turns up towards the back. But, this is a DIY project and that's part of the process. Take the time to understand how the parts fit together.

There's only one thing I'd change and it's probably nitpicking. The main tubes aren't cut at a 45 degree angle presumably to allow you to trim them first, if necessary. It would be nice if a paper template was included for the 45 degree angle. That'd be very helpful to those that can only cut with an angle grinder, which takes some practice on a tube.

C
Clayton Haley
Great product for Square suburban

Easy to assemble well thought out.
