14 Bolt Disc Brake Conversion Kit (SRW)

Part Number: R1877-Kit-1

Shipping Weight: 77.0 lb

$528.00

Shipping calculated at checkout.

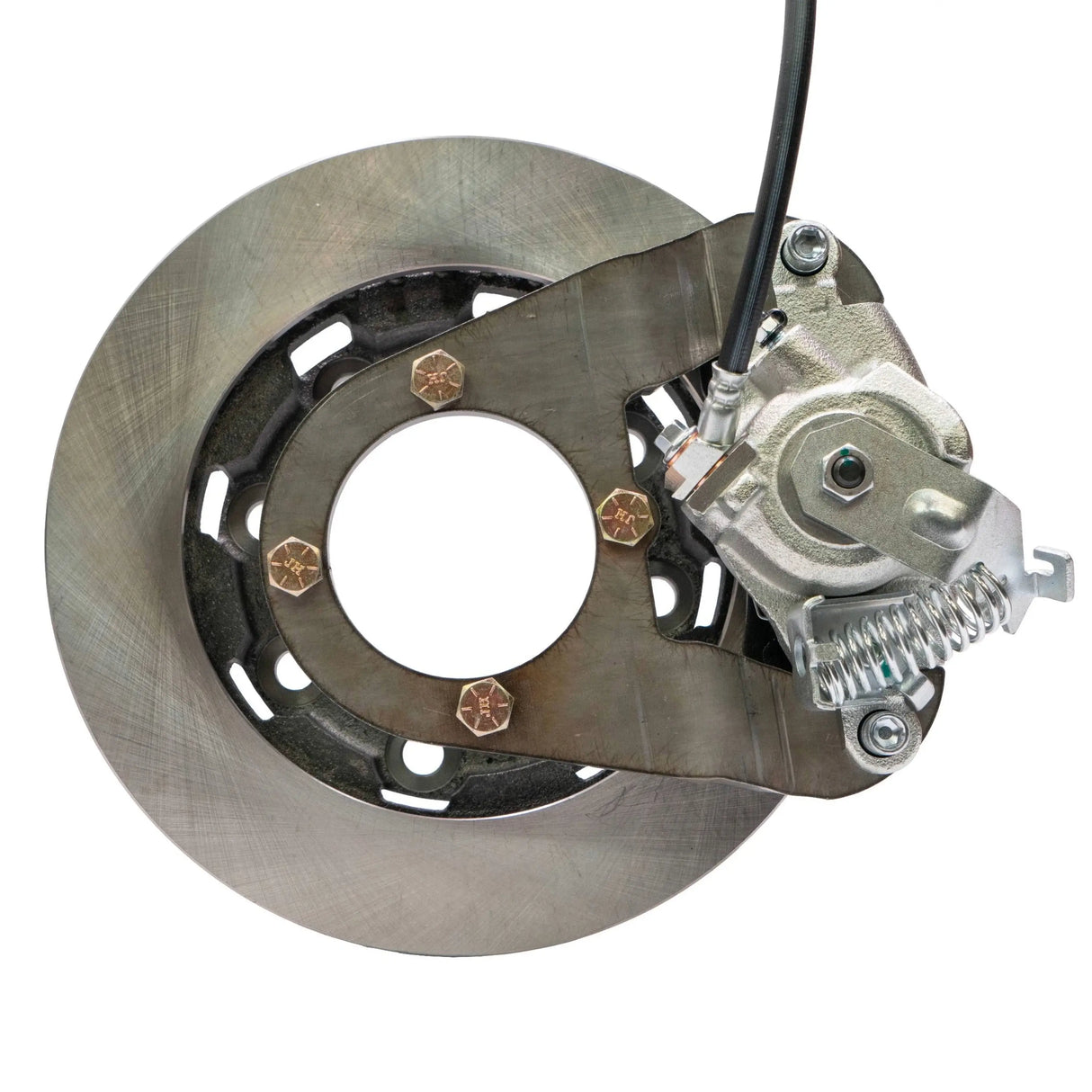

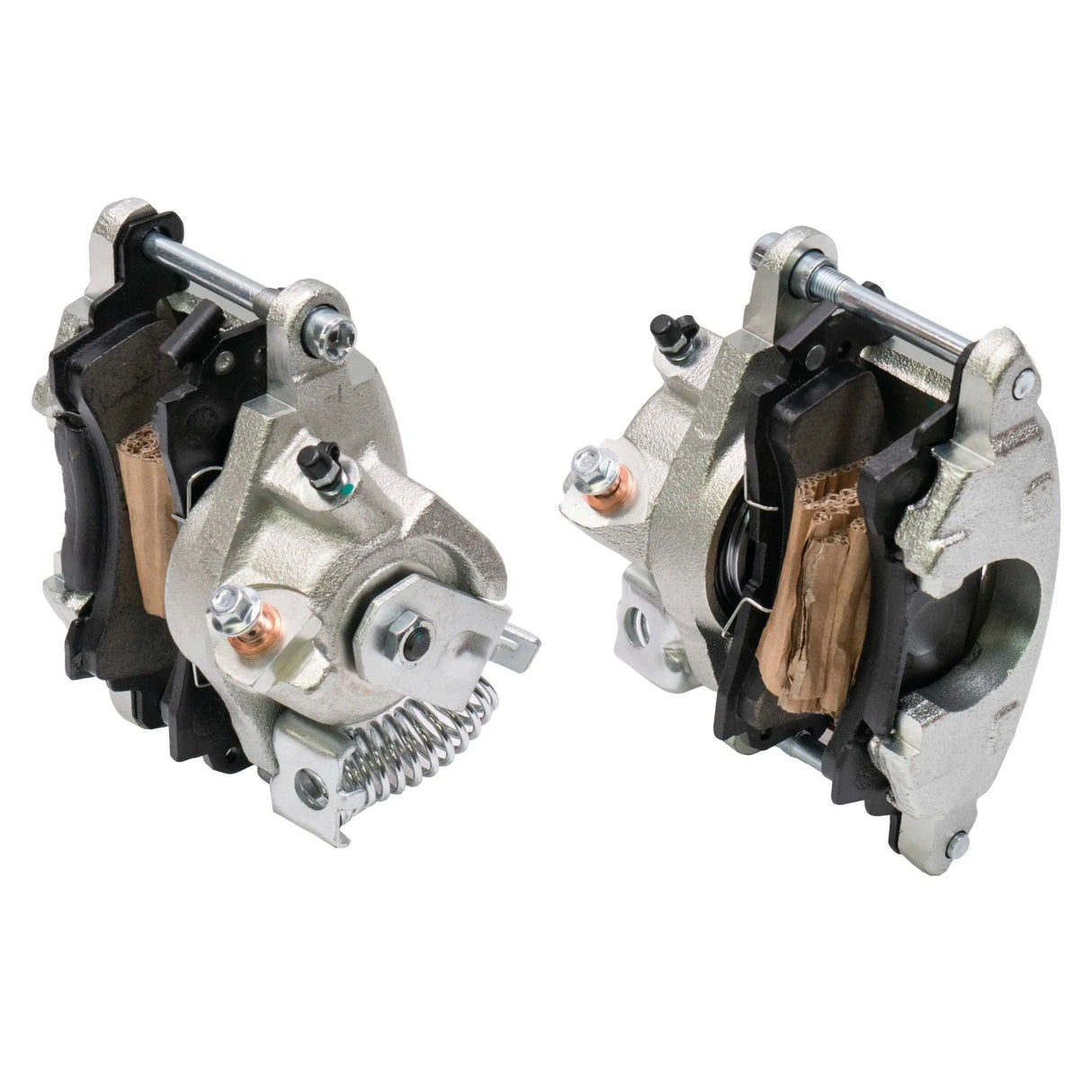

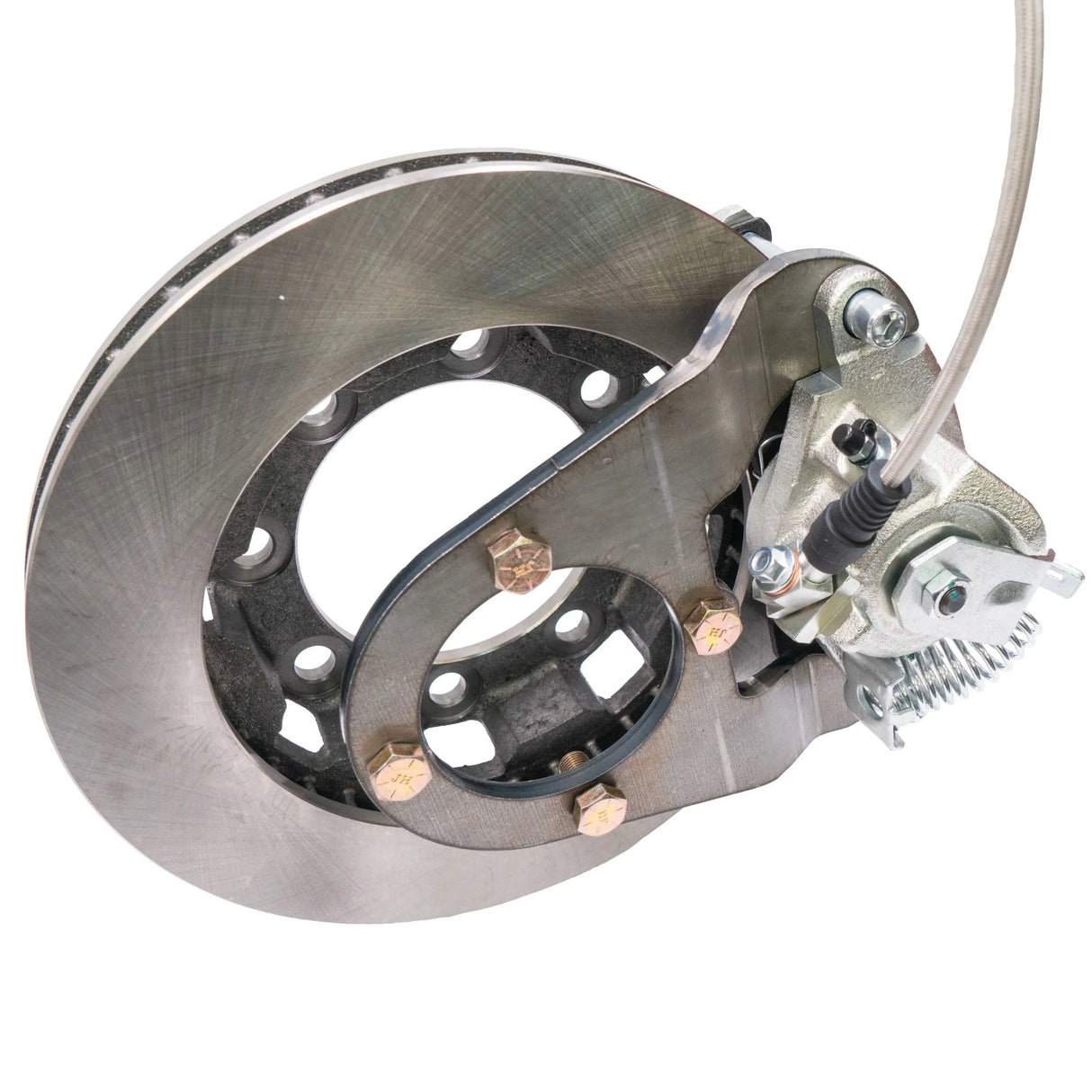

Upgrade to Parking Brake Calipers?

Yes No

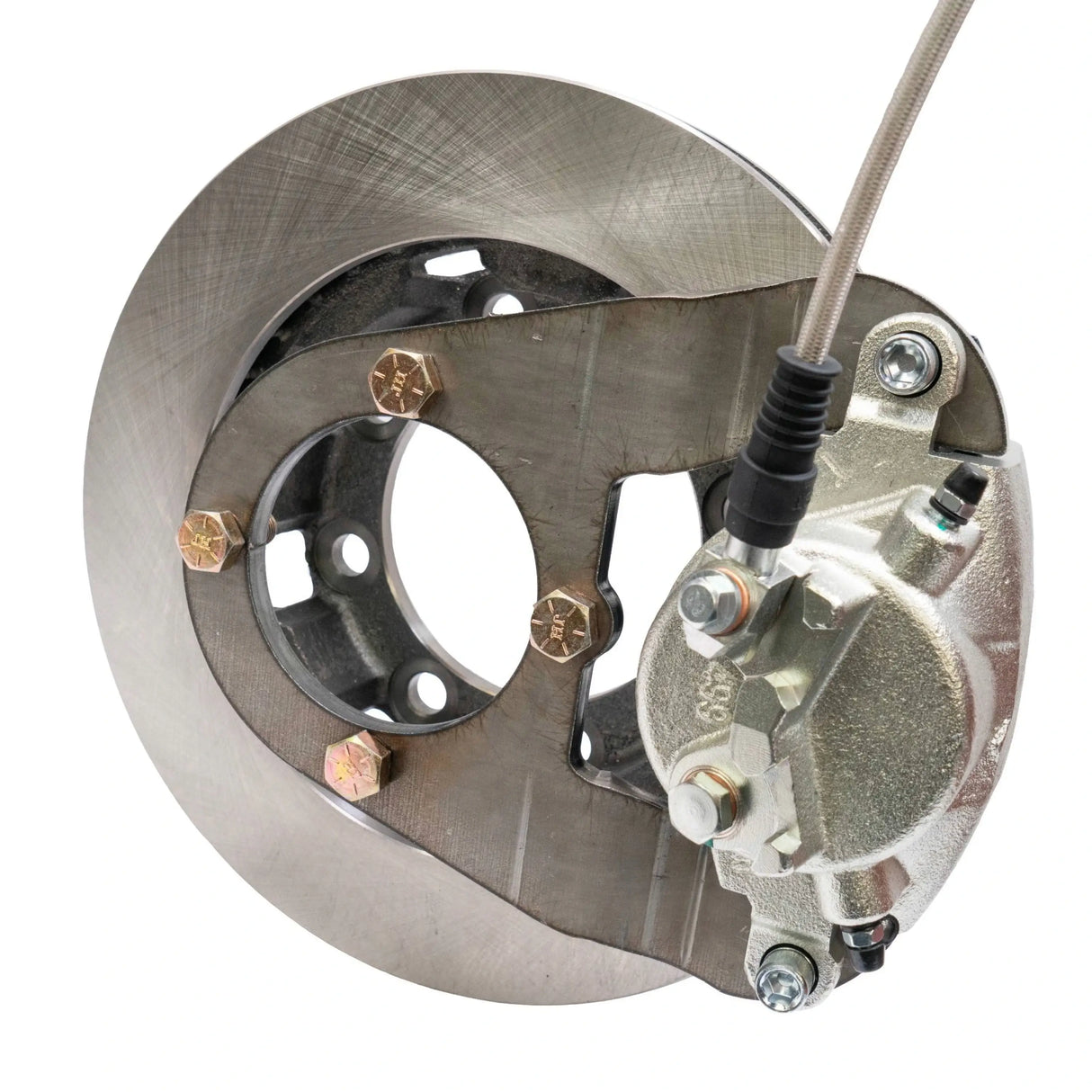

Upgrade to Steel Braided Brake Hose?

Yes No

Product variants

14 Bolt Disc Brake Conversion Kit (SRW) - No / Yes

Ditch the heavy drums for this 14 Bolt disc conversion. Better stopping power, lighter weight, and easy install for 1973–1987 Chevy SRW axles. Made in USA.

Description

14 Bolt Disc Brake Conversion Kit (SRW)

Replace heavy drum brakes with a lighter, stronger, and more responsive disc brake setup.

This kit converts full float 14 Bolt single rear wheel (SRW) axles found in GM/Chevy 3/4- and 1-ton trucks (1973–1987) from drum to disc brakes. It includes brackets, rotors, calipers, pads, hoses, and hardware for a complete install. The setup eliminates the weight and complexity of drums, improves stopping power, and is often cheaper than a drum rebuild. It is designed for axles where the drum mounts behind the hub (non-slip-over). To confirm fitment, the measurement from the 4-bolt caliper bracket flange to the hub face should be ~4-11/16".

The kit requires 15" steel wheels with max 4" backspacing, or larger aluminum wheels. It will not work with dually hubs or semi-float axles. Studs must drop freely into the rotors (do not press fit), and at least 5/8" of lug nut engagement is required. A manual proportioning valve is recommended to balance front/rear braking, and any residual valve in the system should be removed to prevent dragging. Re-bleed the system after installation.

Key Features

R1877
Fits full float 14 Bolt SRW axles (1973–1987 only)
Replaces drums with lighter, stronger disc brakes
Rotor mounts behind hub (not for slip-over drums)
Requires 15" steel wheels (≤4" backspacing) or larger aluminum wheels
Not for dually hubs or semi-float axles
Made in the USA

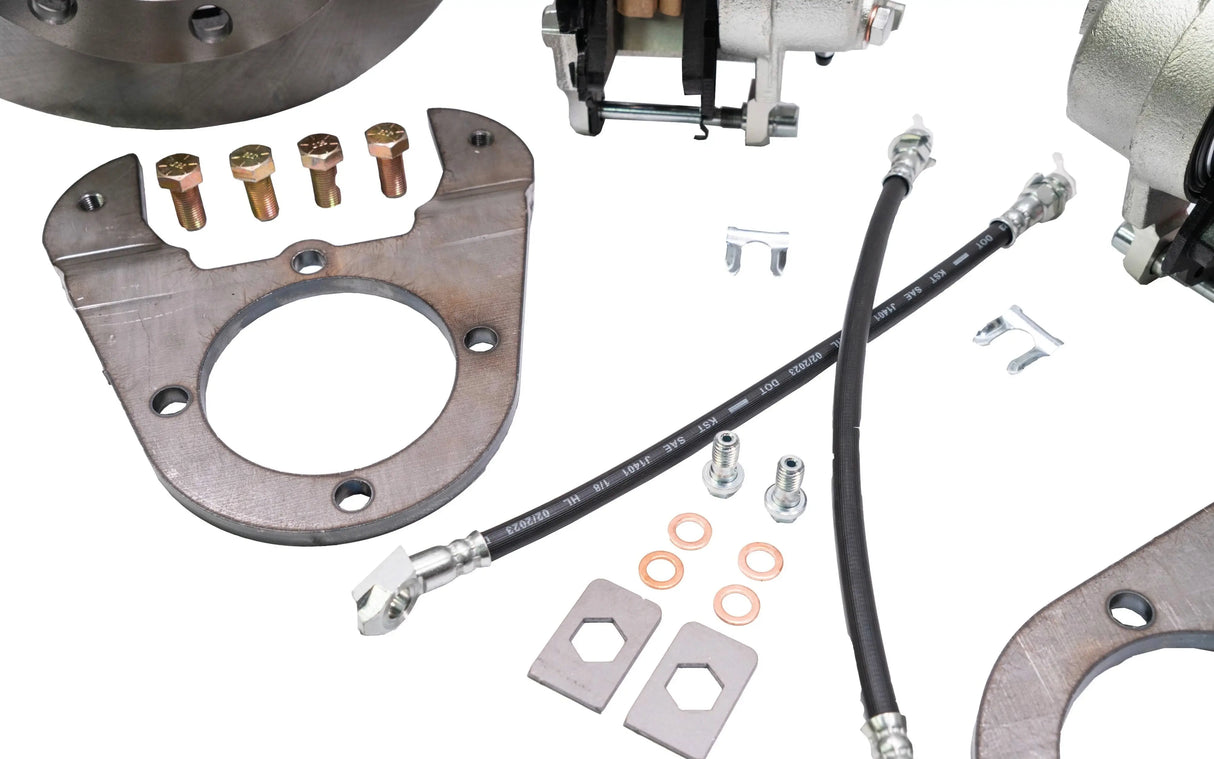

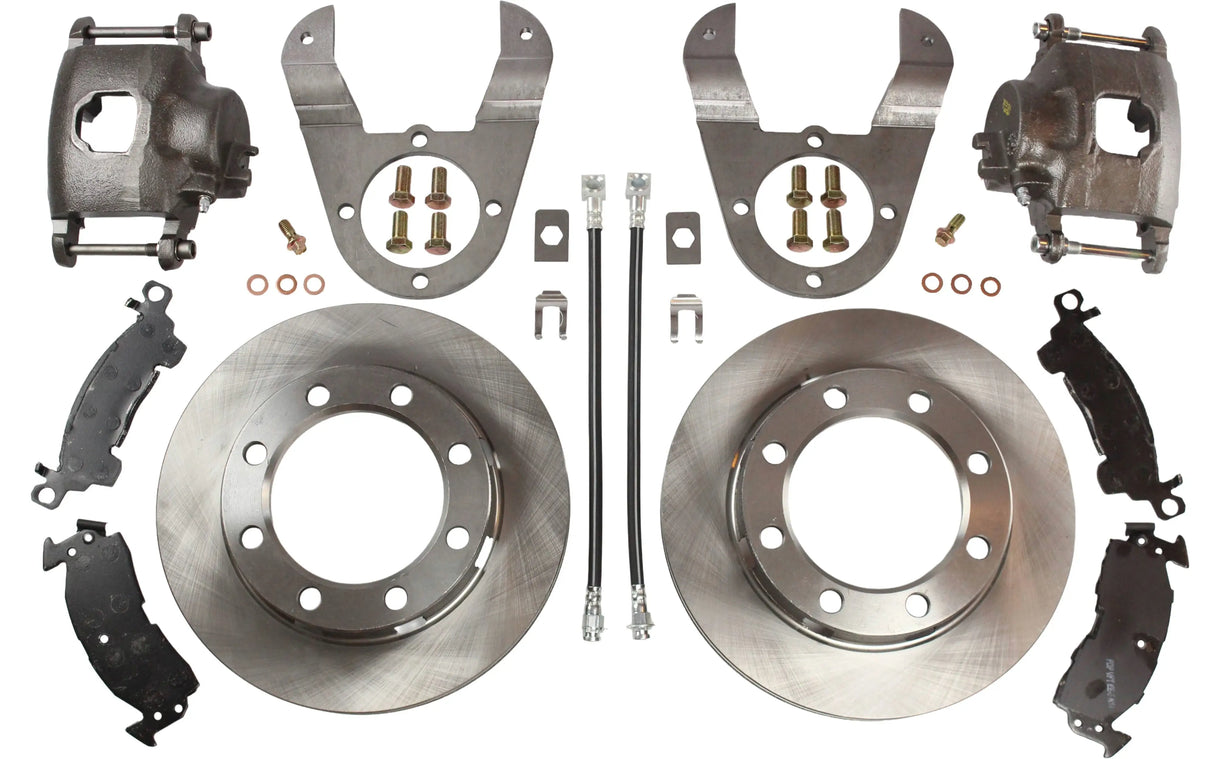

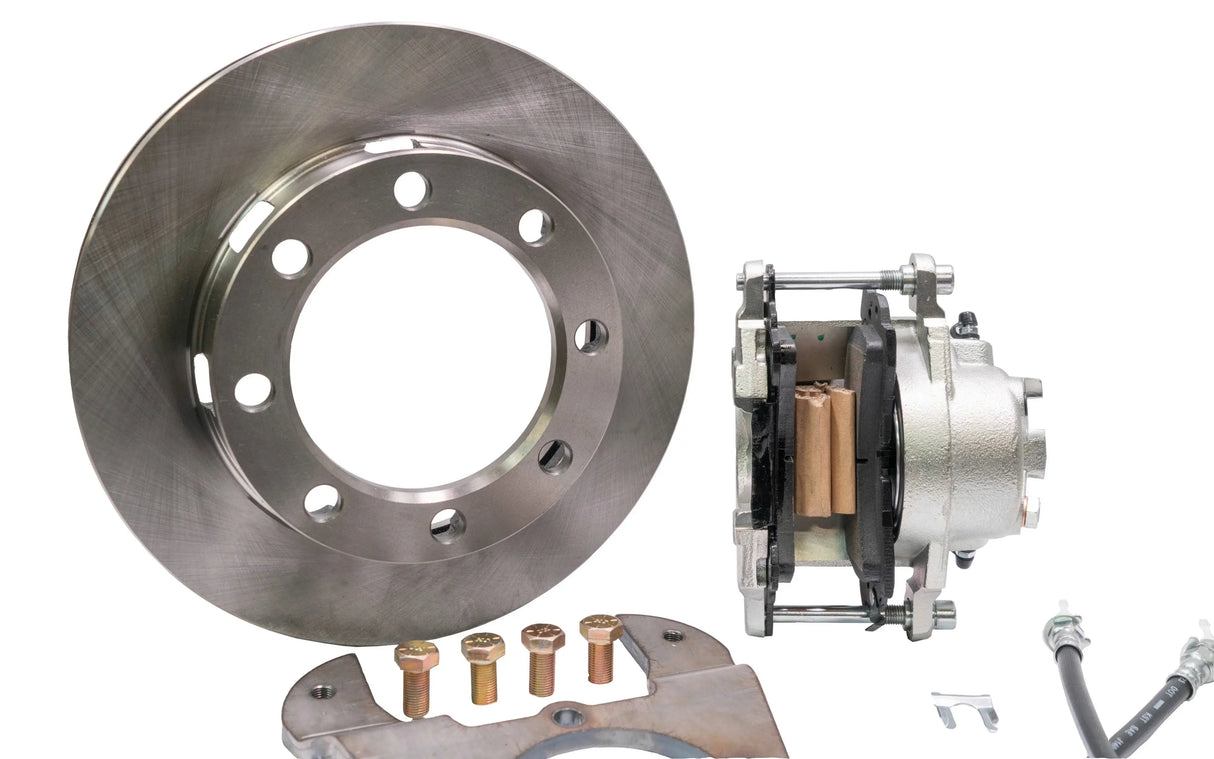

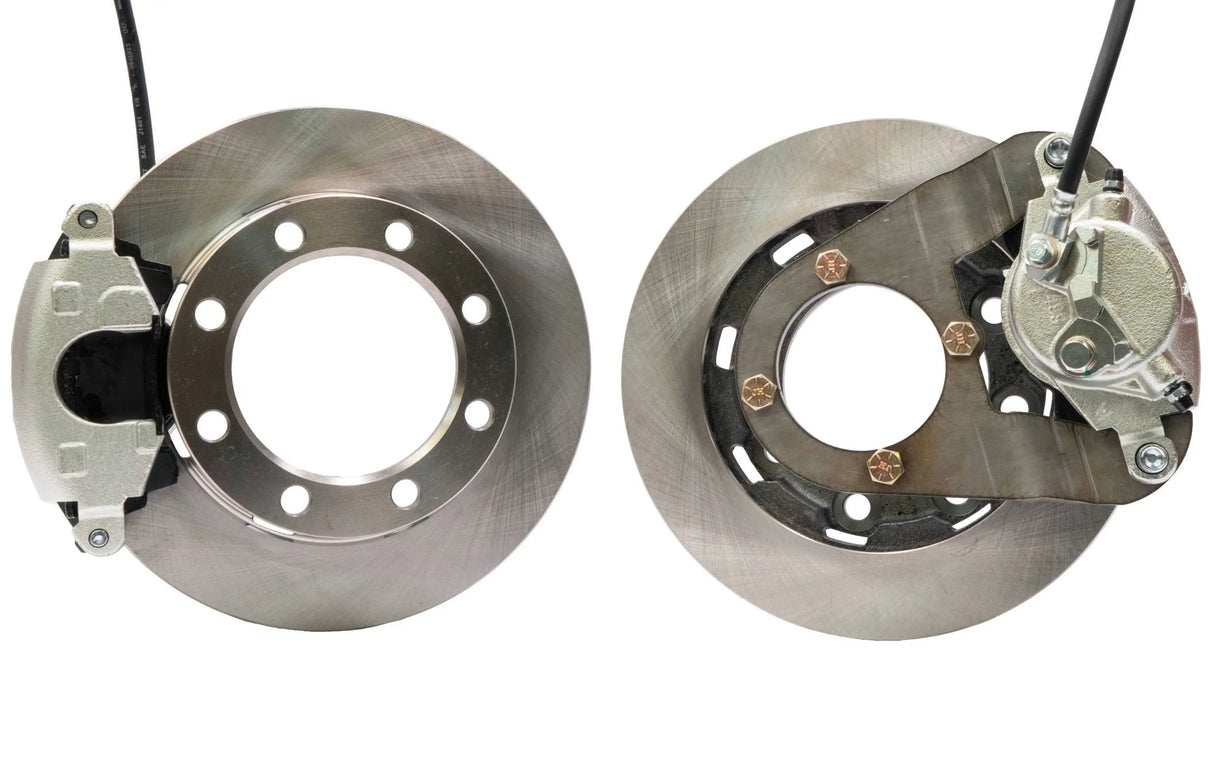

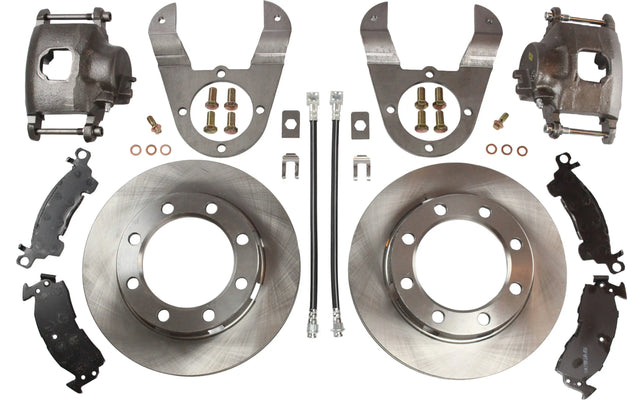

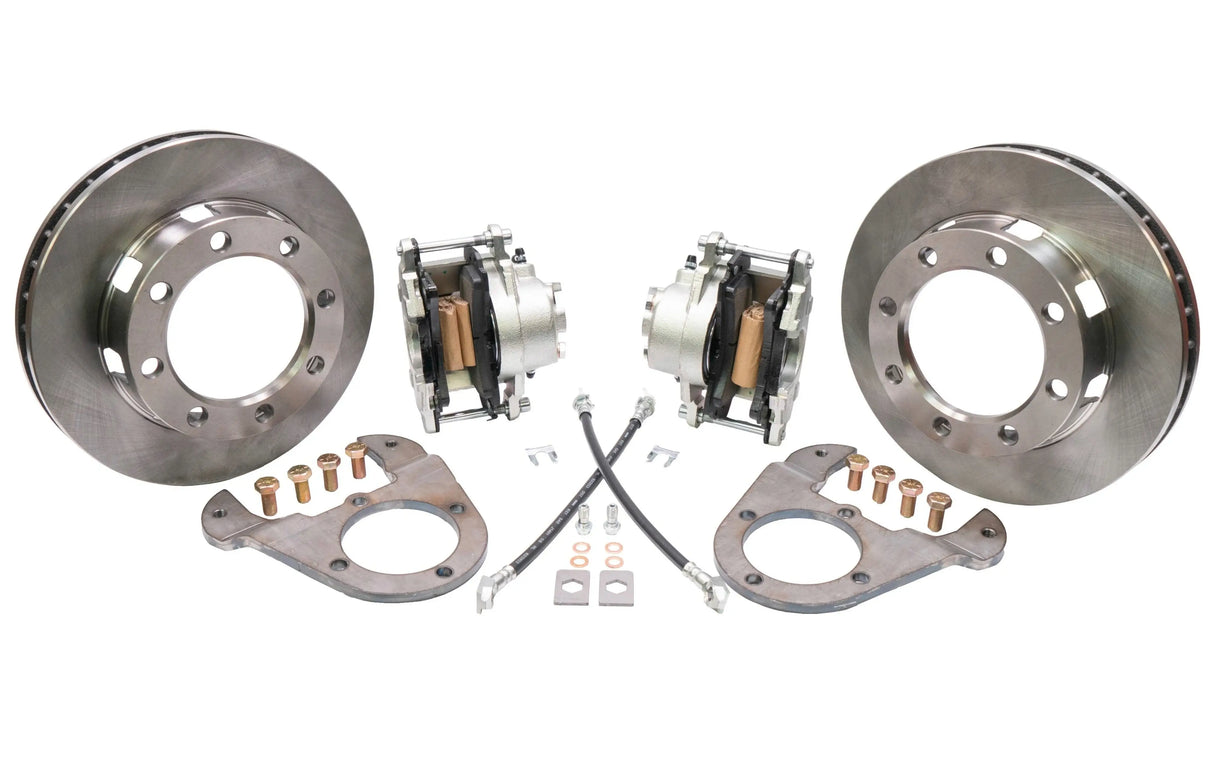

Kit Includes

2 disc brake brackets with grade 8 bolts

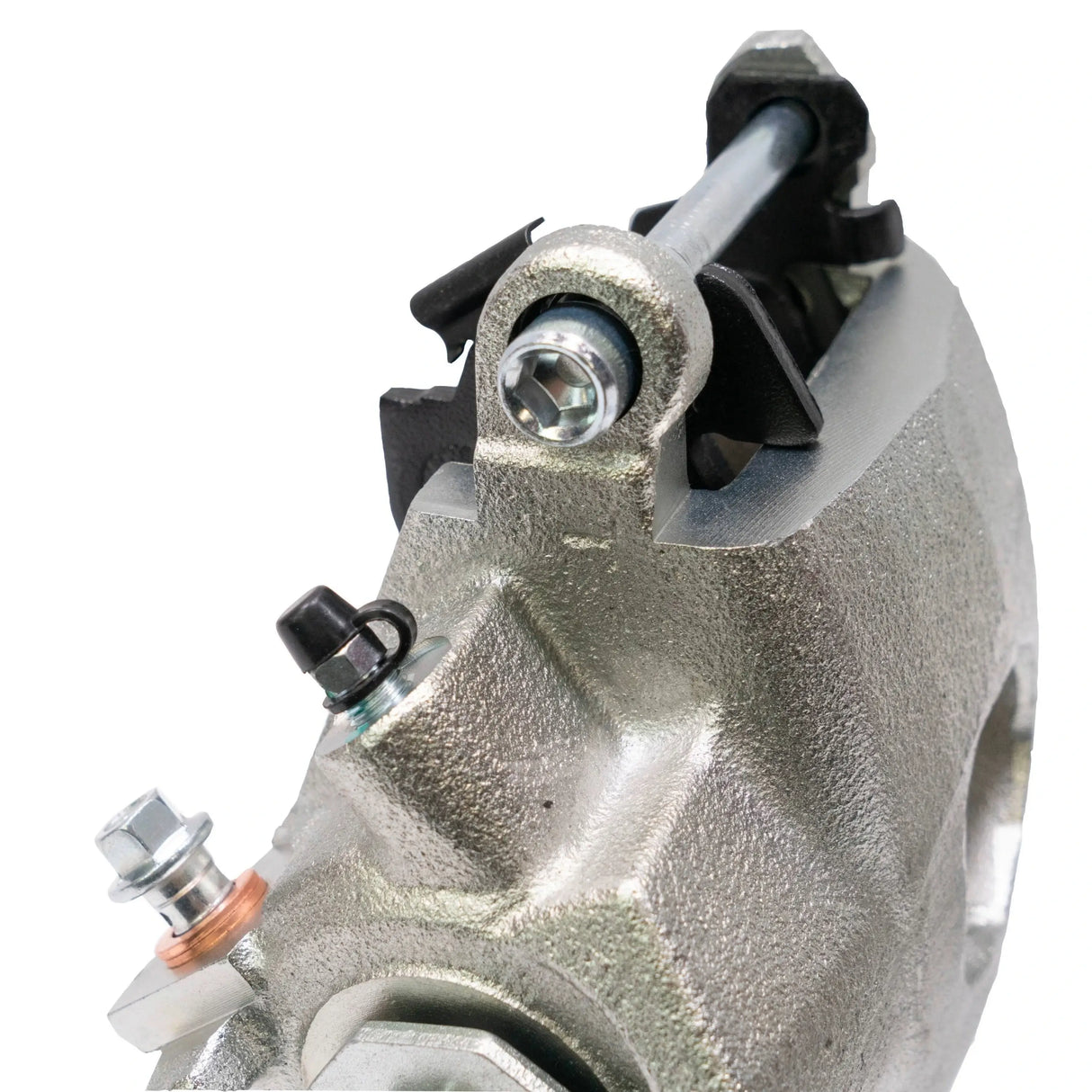

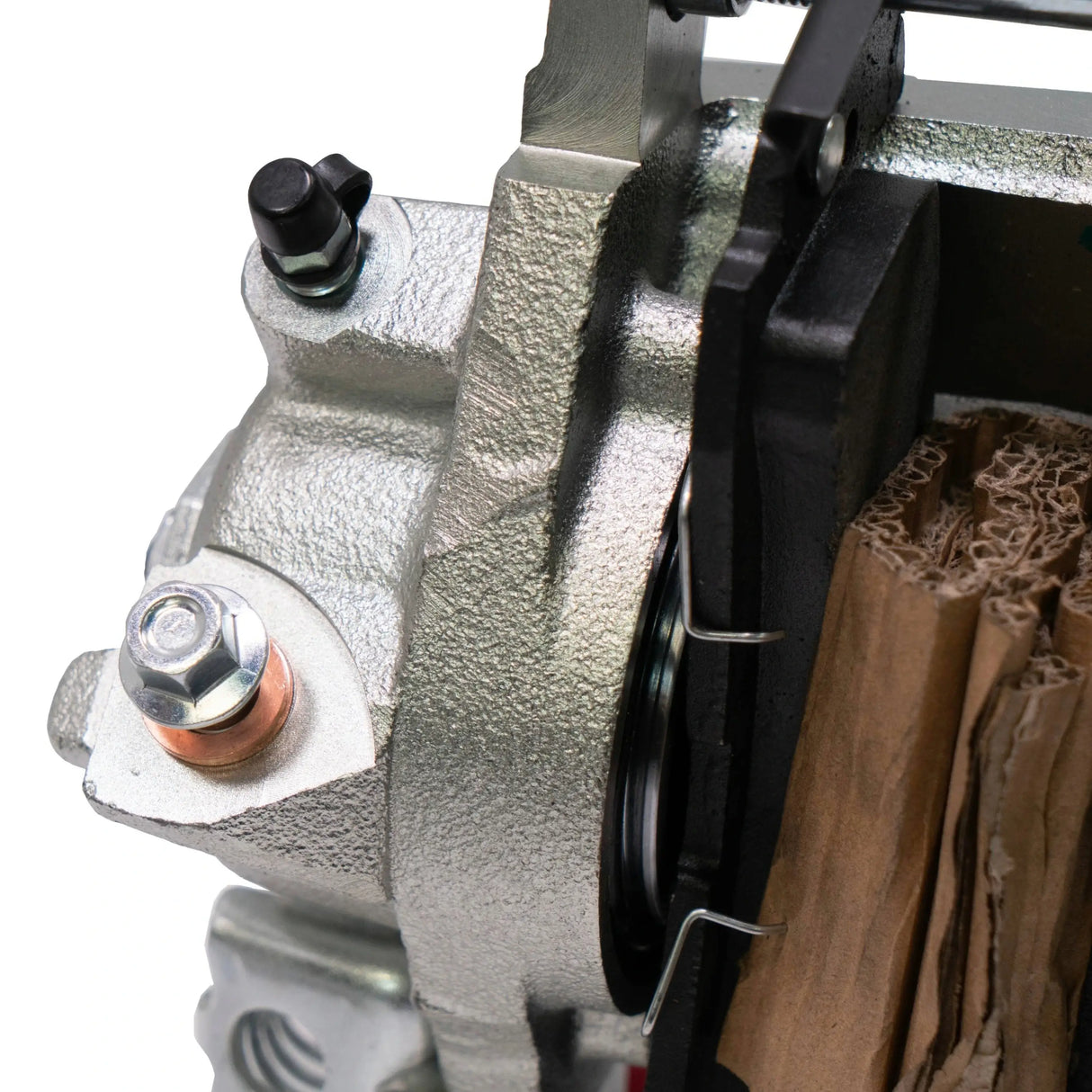

2 standard brake calipers (10mm banjo bolts)
2 hydraulic hoses with banjo fittings (3/8"-24 inverted flare)
2 weld-on brake line tabs
2 brake line clips
4 new brake pads
2 new rotors

Note

Studs must drop freely into rotors (do not press fit). Oversized studs may require drilling. Ensure at least 5/8" lug nut engagement. Re-bleed brakes after installation. Remove any residual valve to avoid rear brake drag. A manual proportioning valve is recommended to adjust bias. Will not fit dually hubs or semi-float axles.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

14 Bolt disc brake kit

This is the second 14 Bolt disc brake kit I have purchased from Ruff Stuff, and they work great! This time its for my '85 K5 M1009 on one-tons. Definitely the easy way to go, as its a complete kit, and I didn't want to rebuild the drums.

Appreciate it Dan! That kit saves a ton of time in the shop. Glad to hear it’s working great on both rigs.

Haven't opened the boxes yet but I'm sure

Haven't opened the boxes yet but I'm sure everything's intact and ready to go thank you

14 Bolt SRW conversion kit

I ordered this kit with the e-brake calipers. Shipping was a little delayed, but overall not bad considering the weight of the package. All parts were in good condition. The only thing I had to do was smoot out the axle shaft hole on the mounting brackets. The weld was protruding enough the bracket wouldn't mount flush where it bolts to the axle. Otherwise, everything was great. I would definitely buy this kit again.

FF 14 bolt disc brakes

Awesome quality product that arrived quickly and was packaged with care. All the parts bolted right up with ease using the supplied hardware. Better price point than other companies I was look at and definitely better quality. The best part of the whole kit... it came with STICKERS!!!! Who doesn't love stickers, especially when they can help advertise for an amazing company like RuffStuff! Definitely going to order more parts in the future!

Great product fit and shipping was very quick

I want to thank Ruffstuff for the disc brake conversion kit everything was a perfect fit and very easy to put on, the shipping time was great came in as soon as a day and a half, and the price was also much cheaper than other companies I was going to order from.
