Dodge Dana 70 Disc Brake Conversion Kit 81-93

Part Number: R2443-Kit-1
Shipping Weight: 78.0 lb
$480.00
Shipping calculated at checkout.

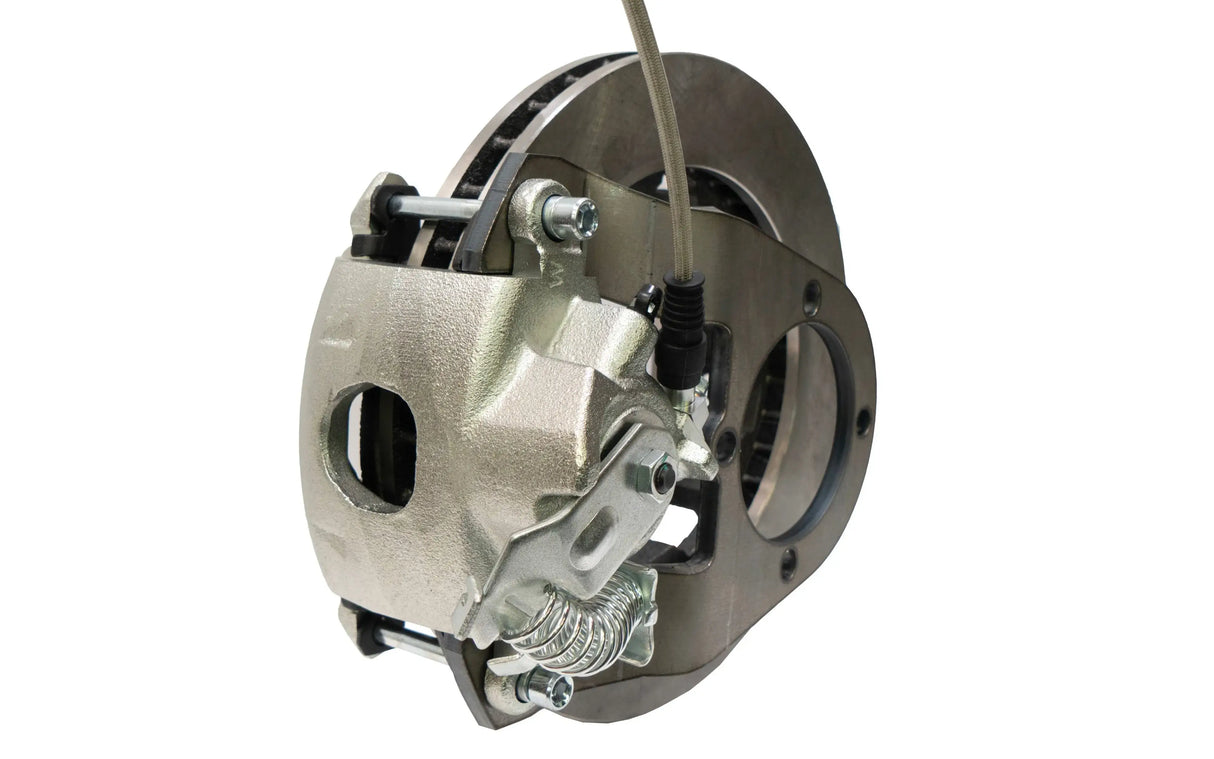

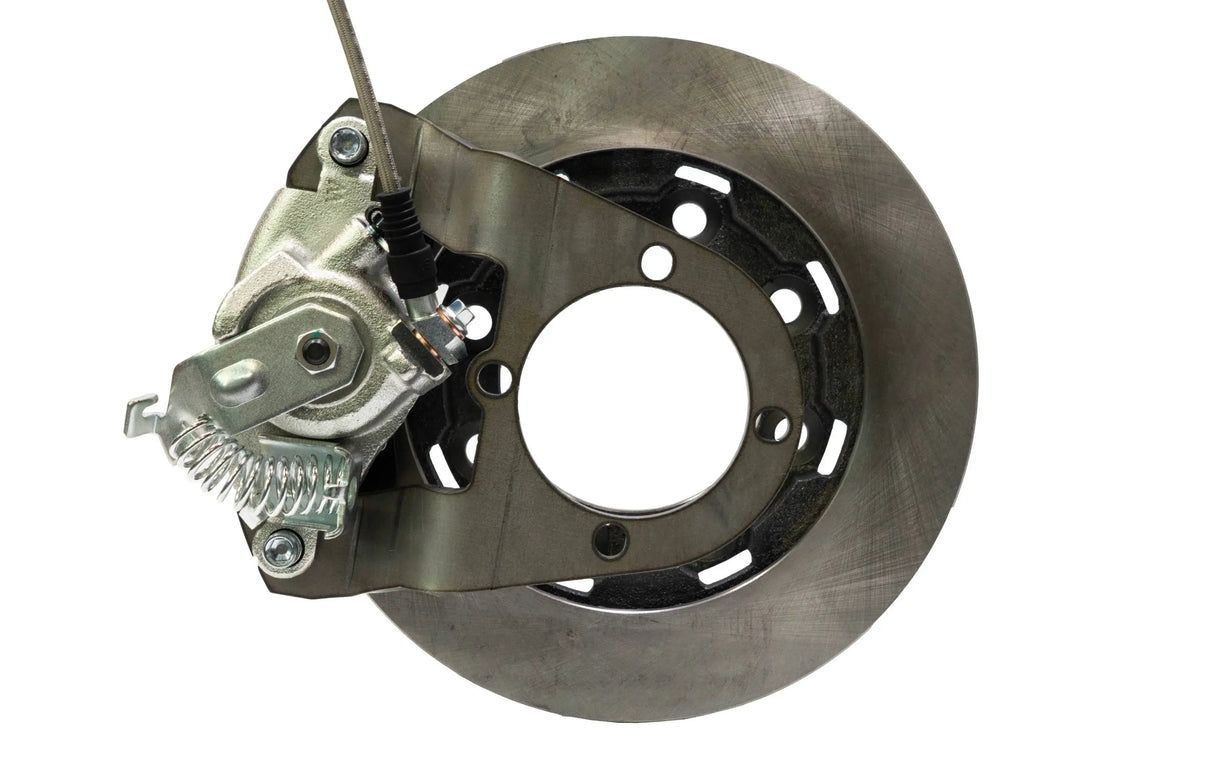

Upgrade to Parking Brake Calipers?
Upgrade to Steel Braided Brake Hose?

Dodge Dana 70 Disc Brake Conversion Kit 81-93 - No / Yes

Description

Dodge Dana 70 Disc Brake Conversion Kit

Complete Disc Brake Swap for Dodge Dana 70 SRW Axles

This disc brake conversion kit is built to eliminate the heavy and hard-to-service drum brakes found on 1981–1993 Dodge Dana 70 single rear wheel (SRW) axles. It includes everything needed to complete the swap and delivers better stopping performance, easier maintenance, and significant weight reduction—perfect for off-road applications.

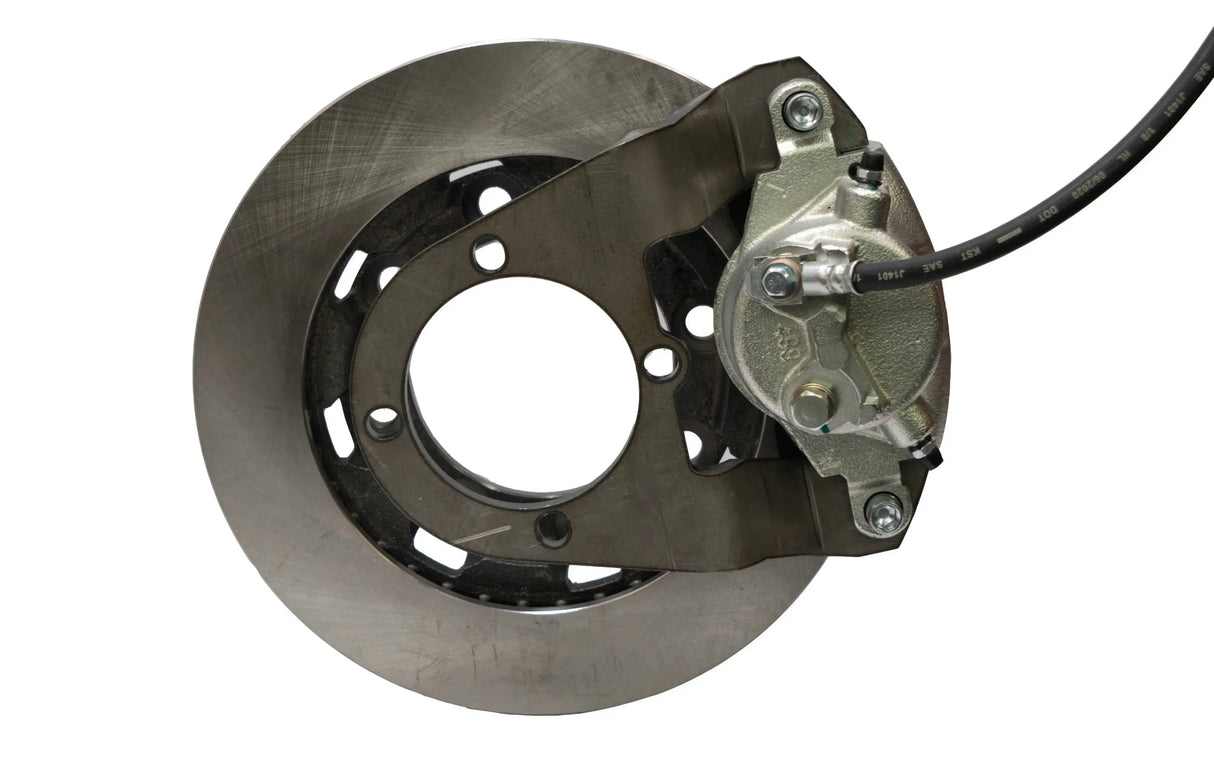

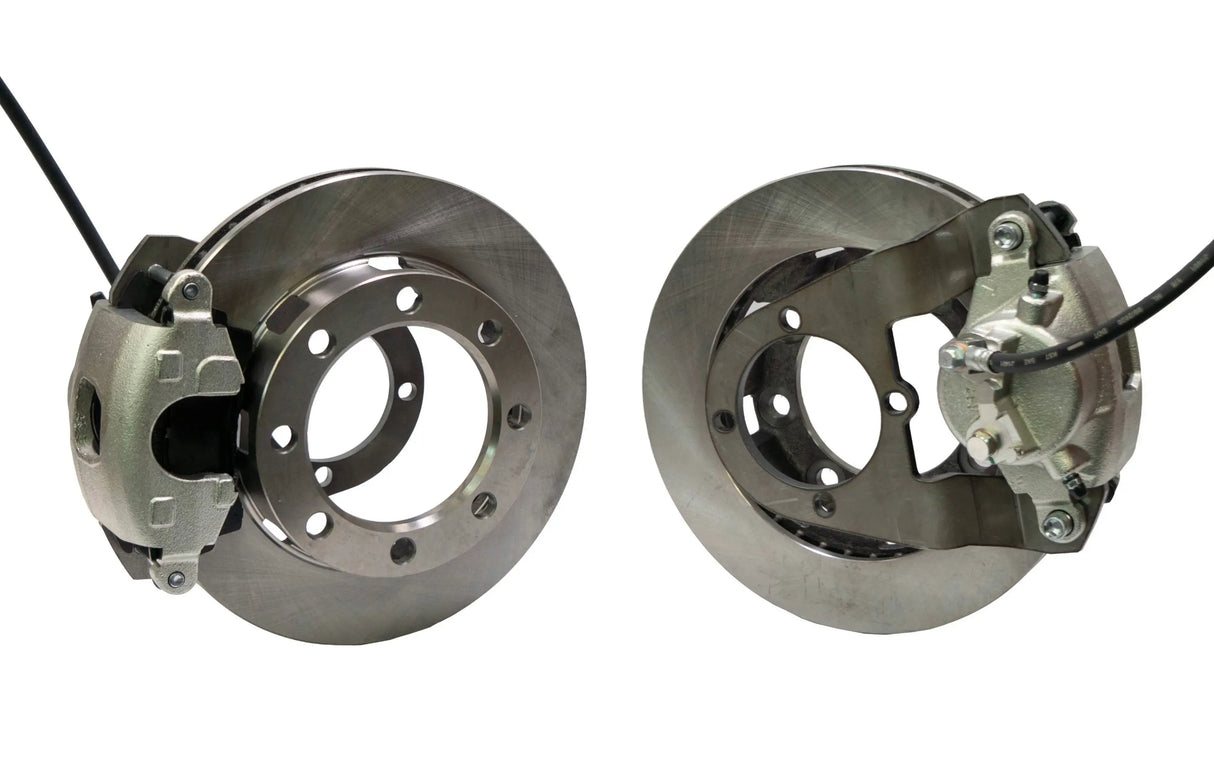

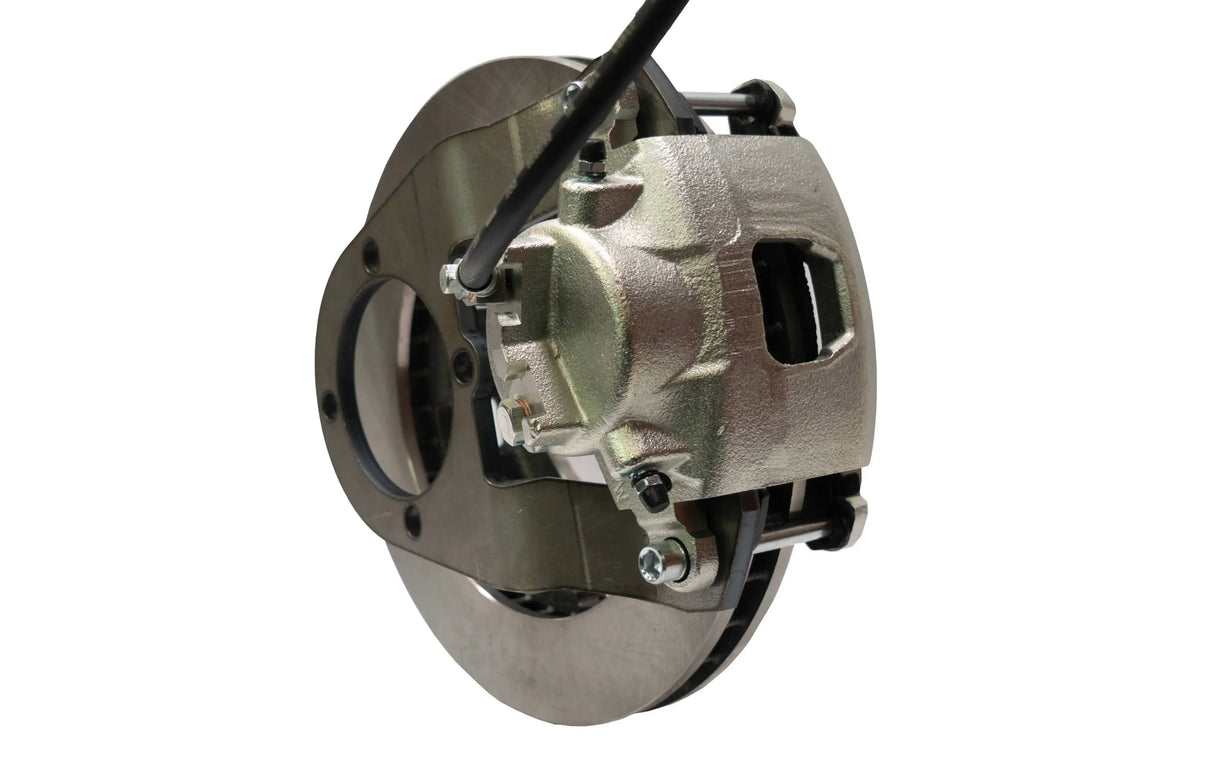

The kit uses weld-on brackets and mounts the rotor behind the hub. It fits standard 15" steel wheels with a maximum 4" backspacing. All components ship ready to install, including rotors, calipers, pads, and lines. Not compatible with dually axles or bolt-on drum assemblies.

Key Features

  • Part Number: R2443
  • Fits 1981–1993 Dodge Dana 70 SRW axles
  • Eliminates drum brakes for easier maintenance and improved stopping

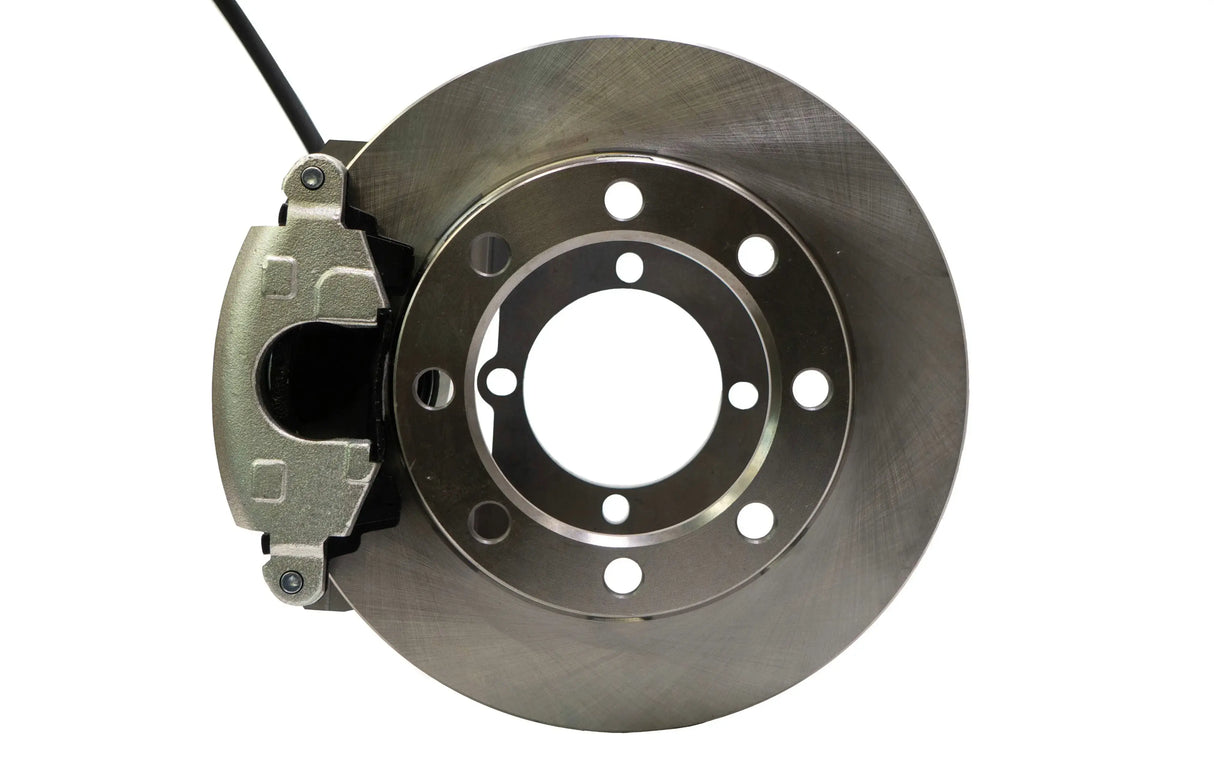

  • Rotor installs behind the hub
  • Works with standard 15" steel wheels (max 4" backspacing)
  • Includes calipers, rotors, pads, hoses, brackets, and hardware
  • Not for Ford, Chevy, or dually axles

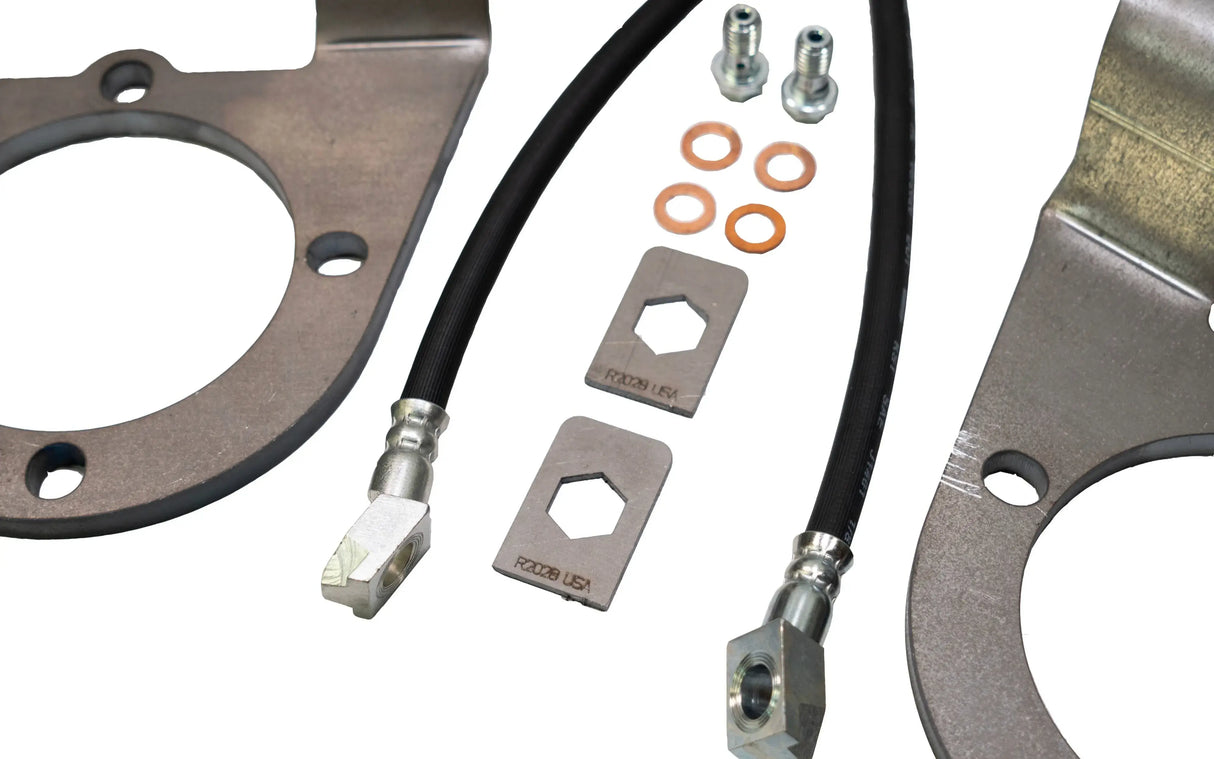

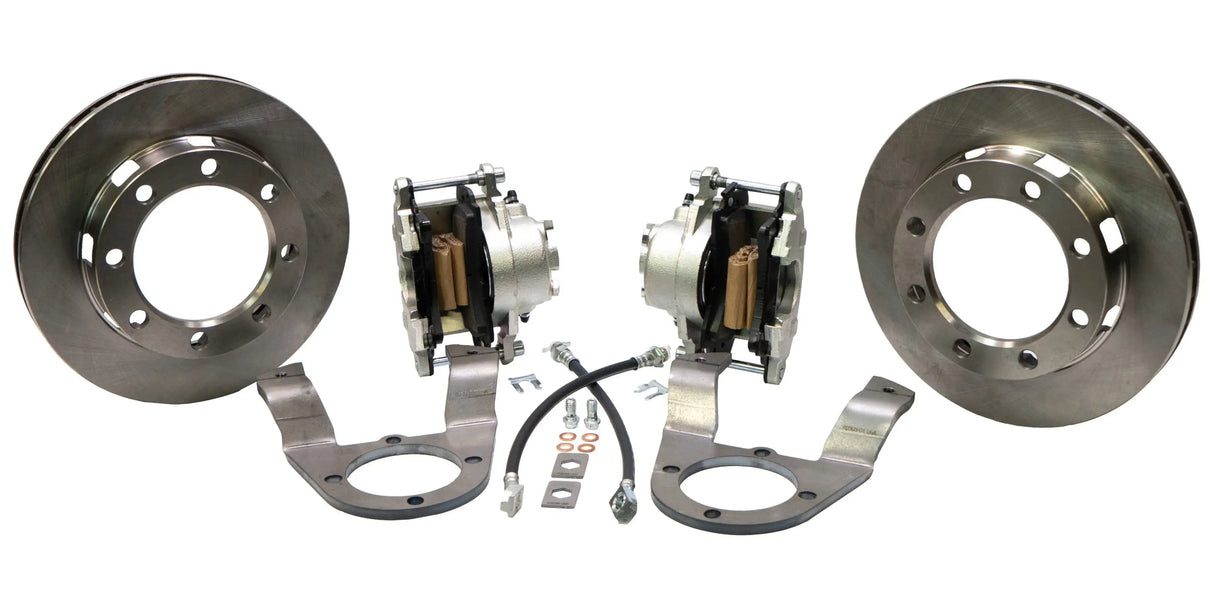

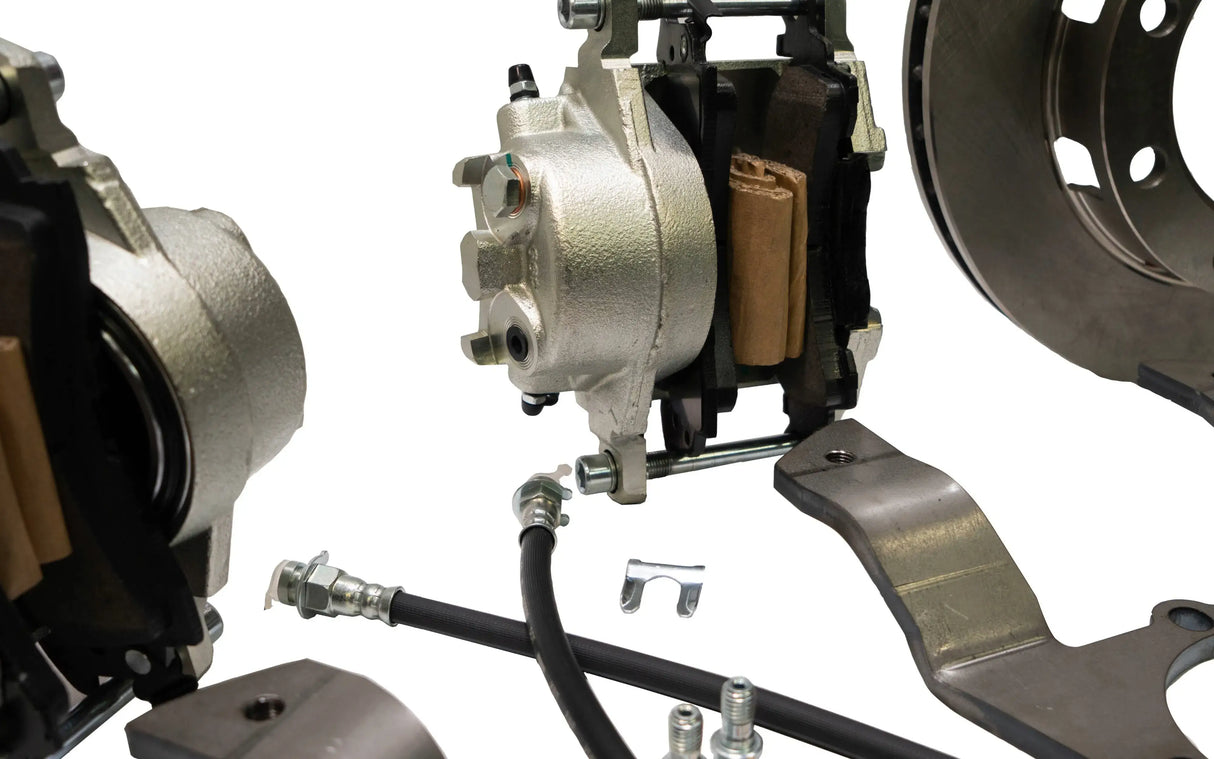

Complete Kit Includes

  • (1) Pair Dodge Dana 70 SRW Disc Brake Brackets
  • (2) Weld-On Brake Line Tabs
  • (2) Brake Line Clips

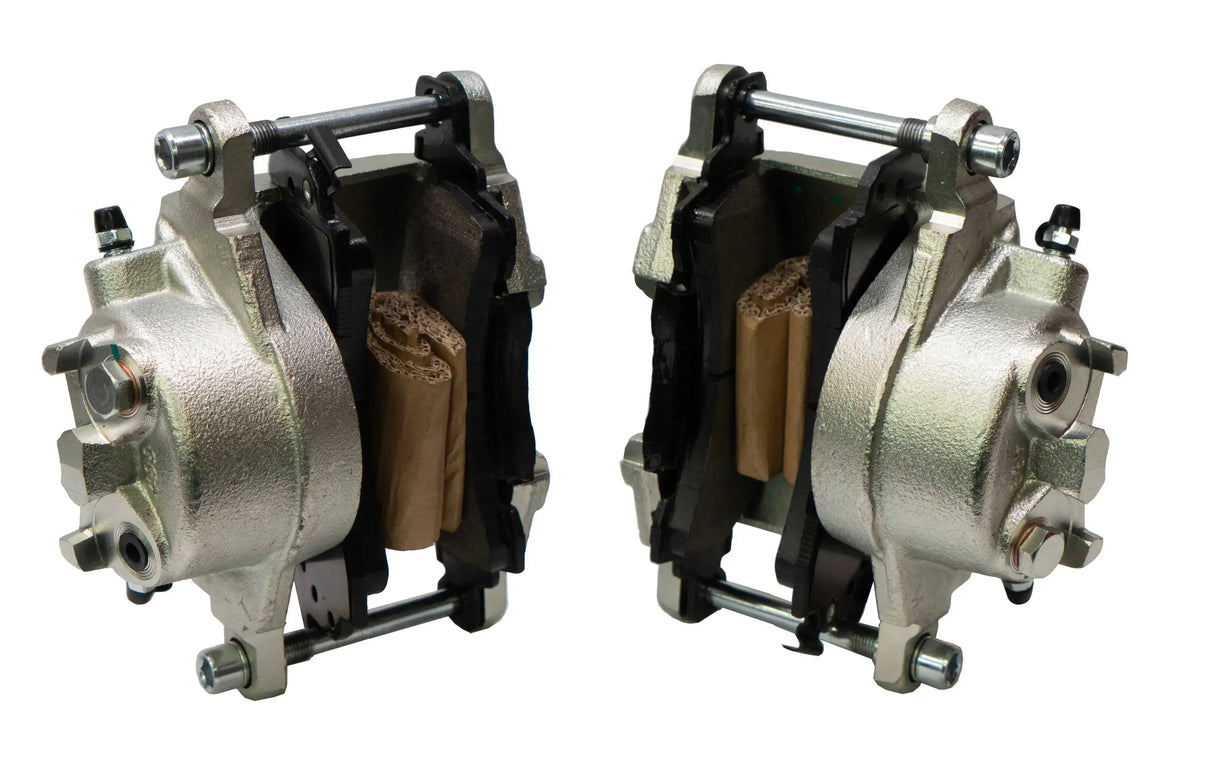

  • (2) Brake Calipers
  • (2) Hydraulic Hoses with Banjo Bolt Fittings (10mm standard or 7/16" for El Dorado calipers)
  • (4) New Brake Pads

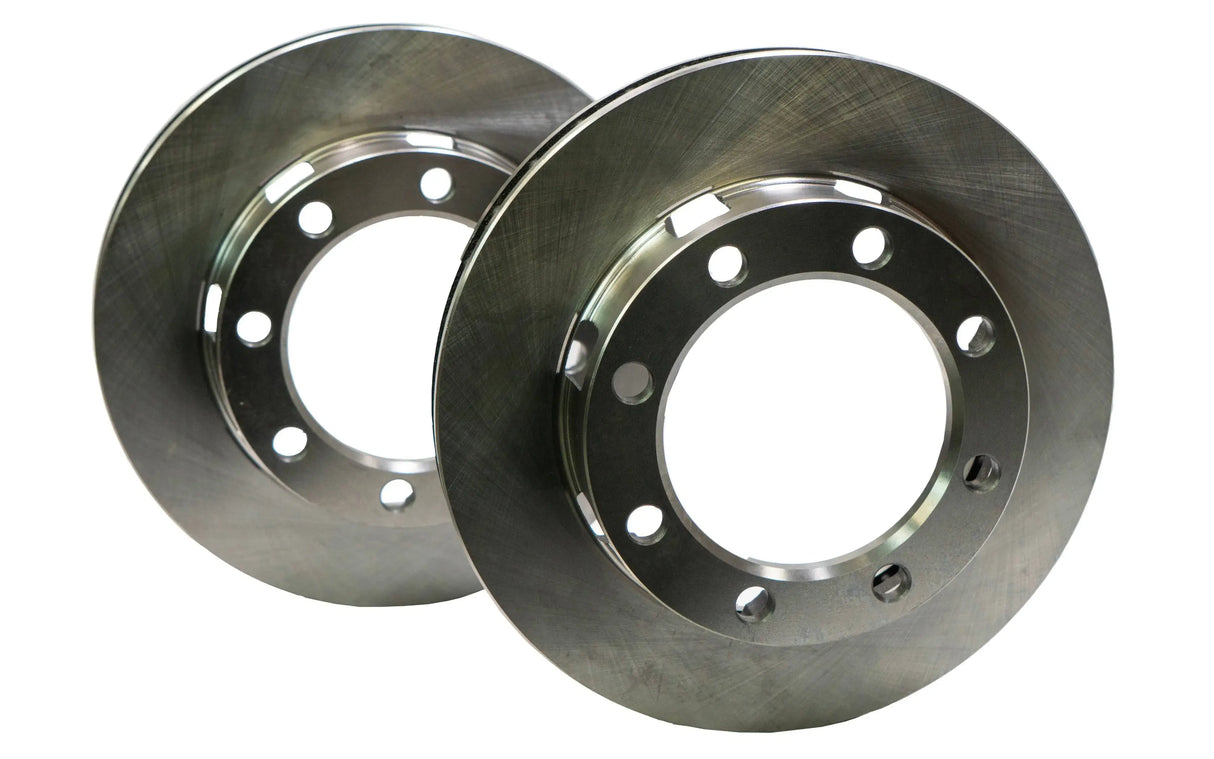

  • (2) New Rotors

Important Notes

  • Check stud fit: studs must drop freely into the rotor—do not press them in
  • Longer studs may be needed (e.g., Dorman 610-215, 610-283.1, or 610-363)
  • Kit only works if your original drum installs behind the hub (not slip-on style)
  • Ensure a minimum of 5/8" lug nut thread engagement after wheel installation
  • Re-bleed brakes after installing the kit
  • If needed, upgrade to a larger 82–85 B350 master cylinder (NAPA M2134)
  • An adjustable proportioning valve is recommended for brake bias tuning
  • Remove any residual valves to avoid rear brake drag or lockup
  • This kit is only for Dodge Dana 70 SRW axles—will not fit Ford, Chevy, or dually applications
  • Check your axle flange-to-hub measurement (must be ~5.68") for proper fitment
Available Kit Options
  • Upgrade to Parking Brake Calipers: Yes / No
  • Upgrade to Steel Braided Brake Hose: Yes / No
Prop 65 Warning Icon
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
T
Tony
Disc brake conversion

If this kid is made for the Dana 70, then why won't it fit 94 through 02 dodge 2500?

I
Isaac
Good quality as always

Thick metal and quality calipers, very well put together kit. Makes for a very easy install. Fast shipping. Ruff stuff has the best customer service there is.

r
ryan vincent bahris
takes a day!

Well built kit, everything bolts up and works with the stock proportioning valve which is contrary to what I've read online. Bye bye heavy drums and shoes. My only issue is that I cannot get the ebrake to fully grab the disc when engaged. The springs are compressed which is weird... Overall impressed.
