4" Shackle 1/4" Offset

Part Number: R1048
Shipping Weight: 1.15 lb
$13.00
Shipping calculated at checkout.

Description

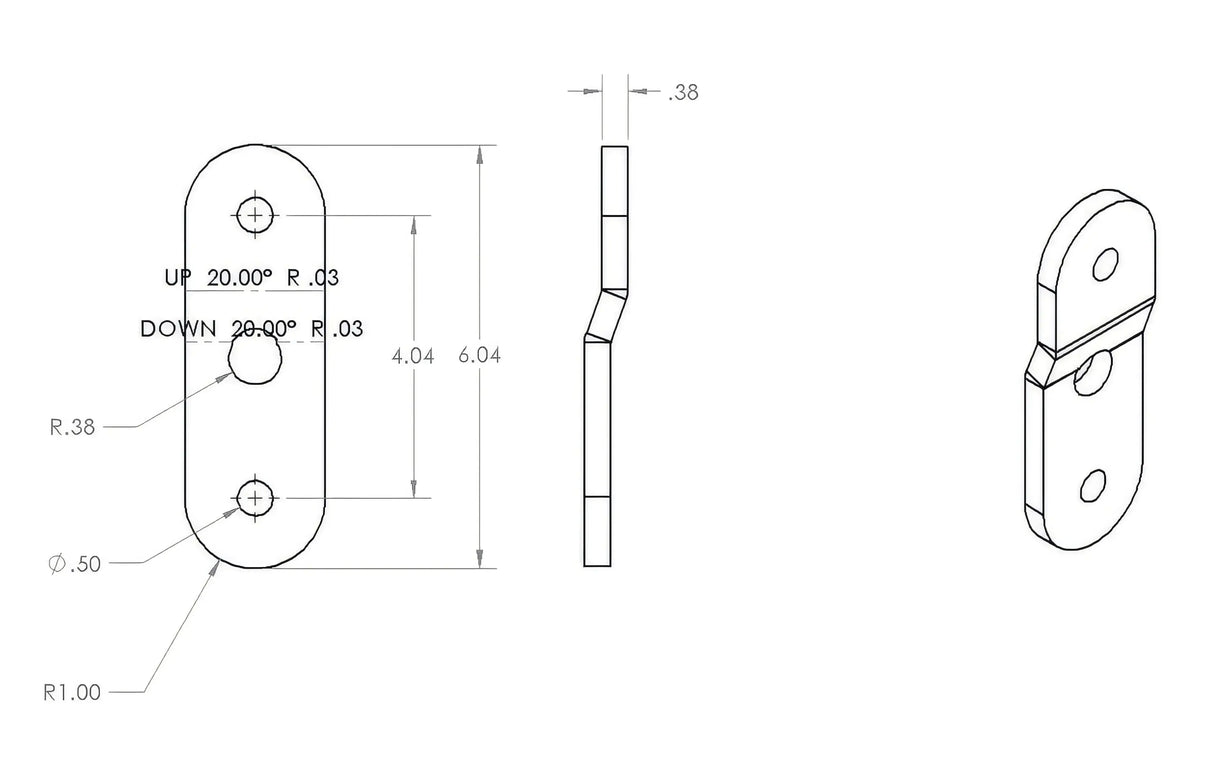

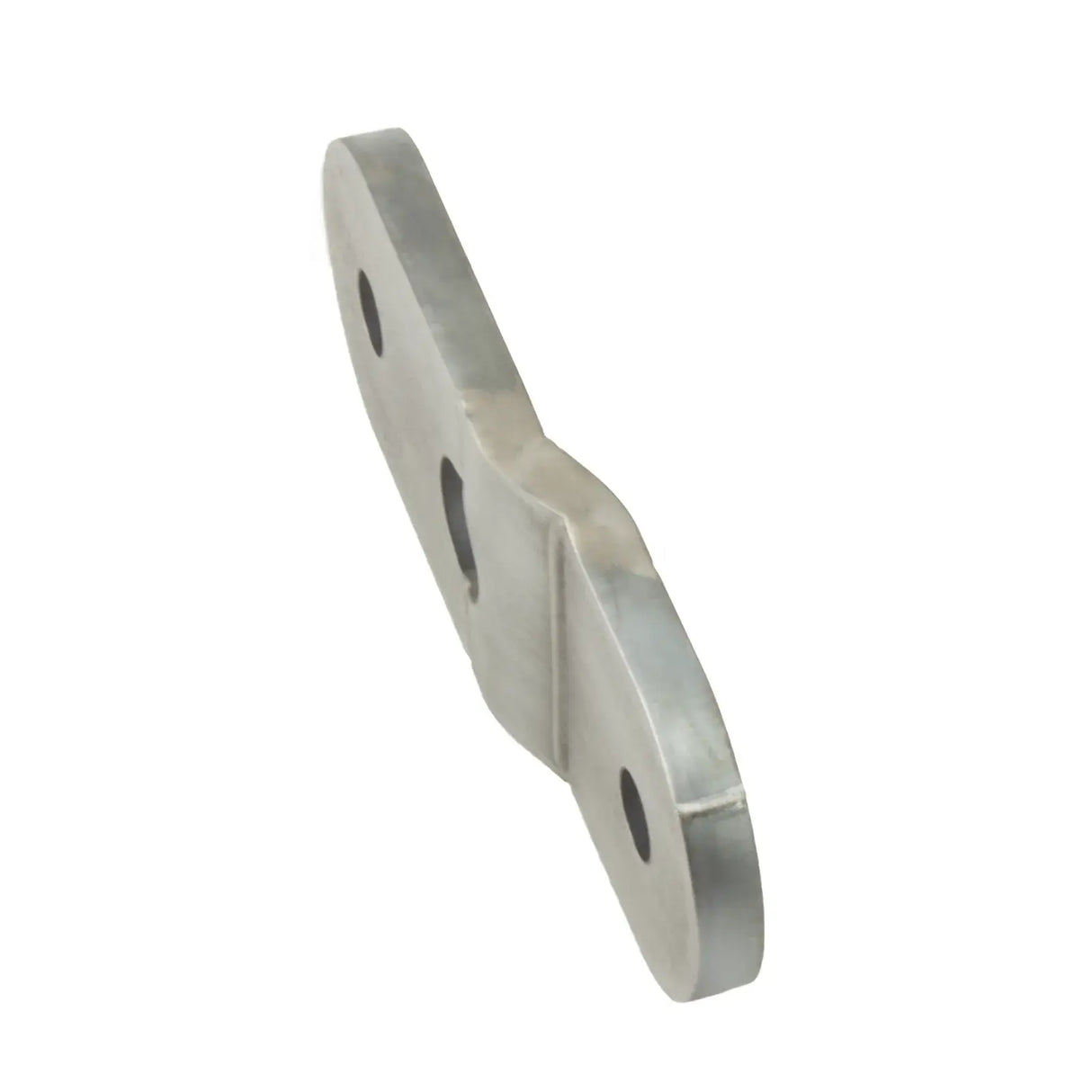

4" Shackle 1/4" Offset

Offset leaf spring shackle for easy width adjustments

This 4" leaf spring shackle features a built-in 1/4" offset, giving you a total of 1/2" offset when paired. That makes it perfect for running different width springs without modifying your hangers—like using 2.5" Wrangler springs on a CJ with 2.0" hangers. Laser cut from 3/8" A50 plate steel, it’s built for strength and durability, with a 0.75" center hole ready for an optional reinforcement sleeve. Simple, functional, and proven on the trail.

  • Part Number: R1048
  • 4" length
  • 1/4" offset per shackle — 1/2" offset when paired
  • Laser cut from 3/8" A50 plate steel
  • 0.75" center hole for optional reinforcement
  • Ideal for common spring swaps like CJ to YJ

Sold Individually

Prop 65 Warning Icon
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Bryan Sjolander
Super Tough

I bought these after asking many questions about my axle swap and once I saw them all my questions about durability were immediately gone. \r\nThese also allowed me to order standard shackle hanger and avoid the custom cut charge since I am running 2" springs.
