5" Shackle 1/8" Offset

5" Shackle 1/8" Offset

Subtle offset shackle for fine-tuning spring width fitment

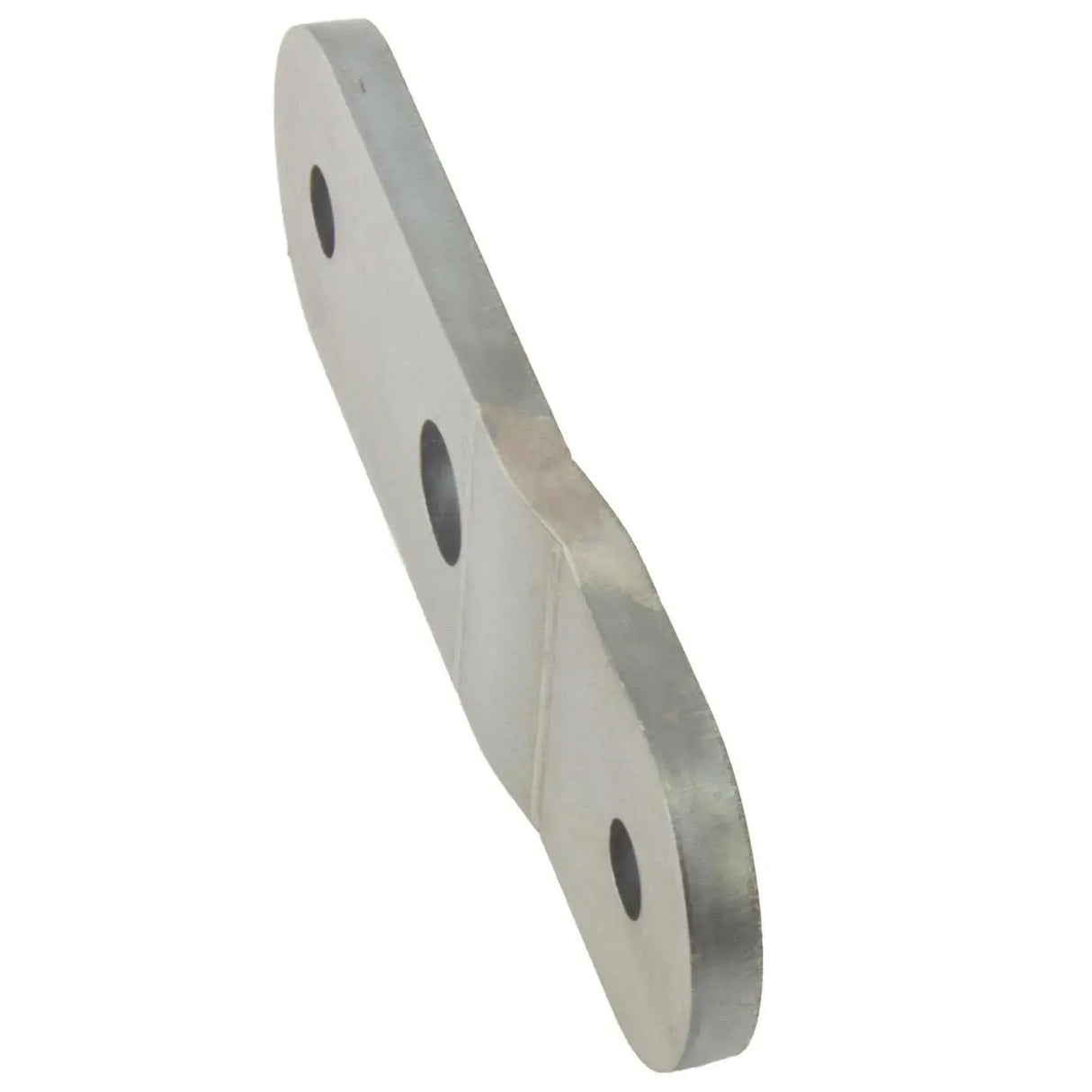

This 5" leaf spring shackle has a 0.125" (1/8") offset, giving you a total of 0.25" (1/4") offset when paired. It’s a simple solution for adapting different spring widths without replacing your shackle hangers—ideal for setups like running 2.5" Chevy springs on a Toyota with 2.75" hangers. Laser-cut from 3/8" A50 plate steel, it’s built for strength and precision, with a 0.75" center hole ready for an optional reinforcement sleeve. Designed for off-road durability and easy installation.

• Part Number: R1053
• Length: 5"
• Offset: 0.125" (1/8") per shackle
• Material: 3/8" thick A50 Plate Steel
• 0.75" hole for optional reinforcement sleeve
• Perfect for spring width swaps like Toyota to GM

Sold Individually
