Frame Mounting Platform, Small

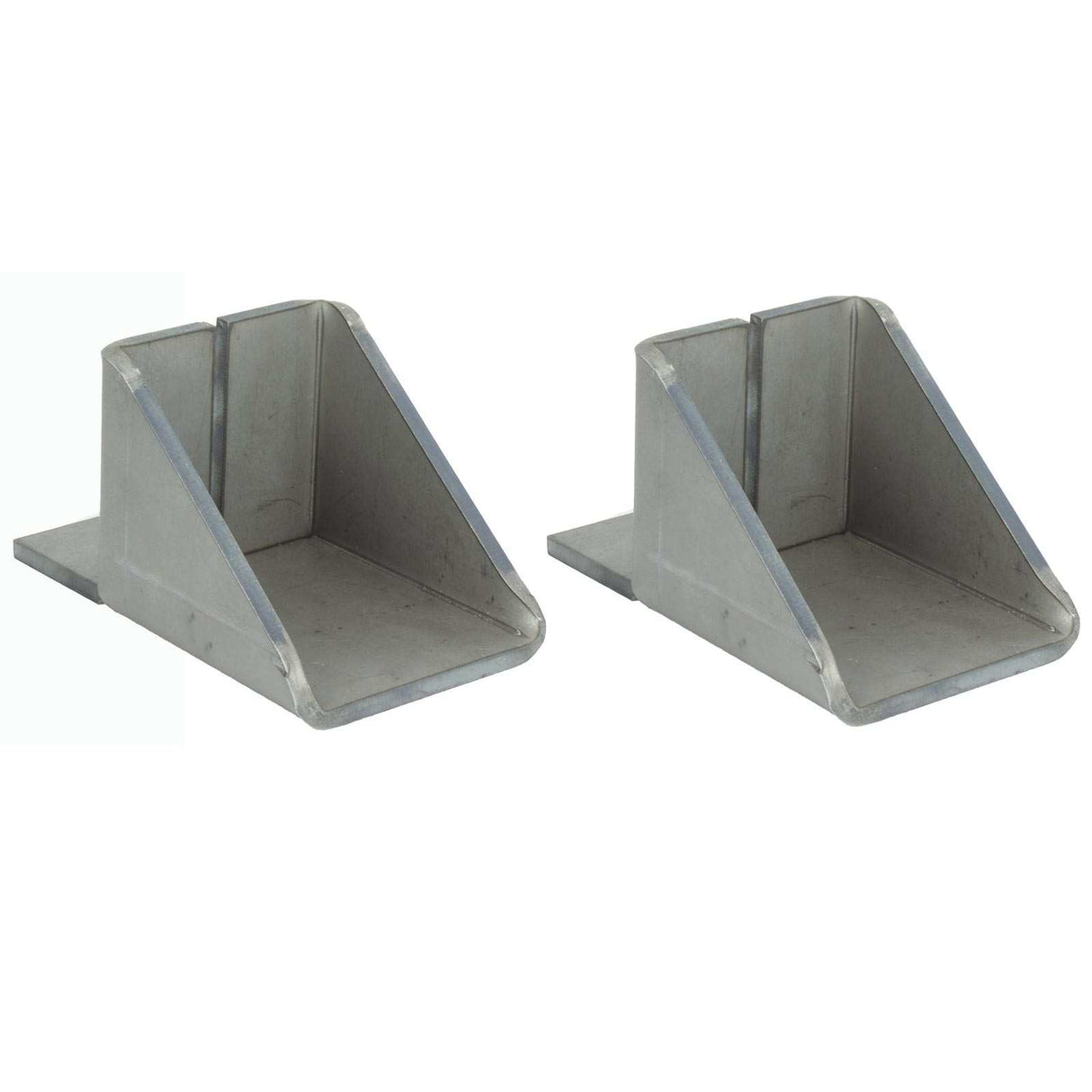

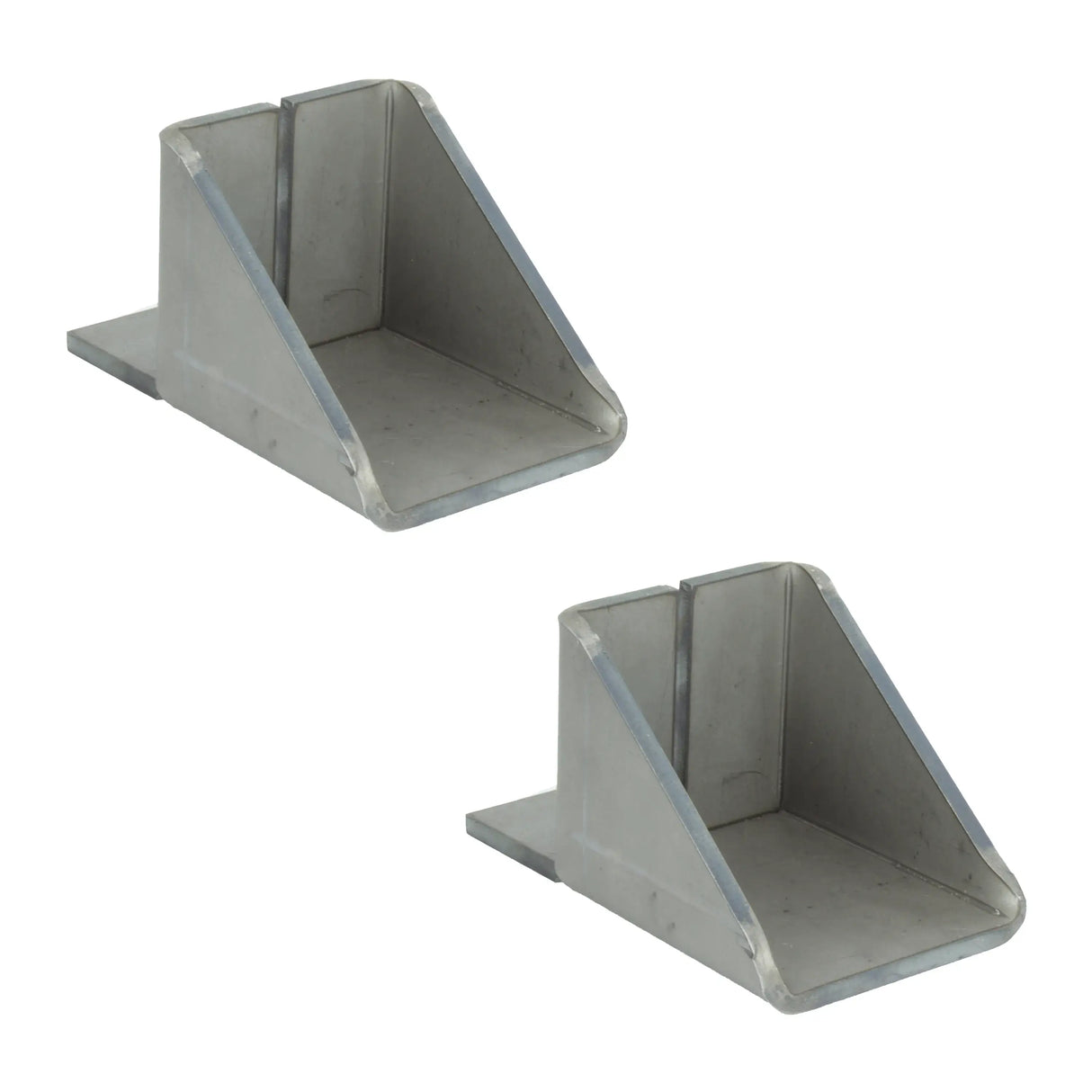

Small Frame Mounting Platforms (Pair)

Multi-use frame platforms for coil mounts, body mounts, cage tie-ins, and more.

Originally designed for our coil spring setups, these small frame mounting platforms have become one of those “use-it-everywhere” parts. Whether you’re tying in a cage, mounting shocks, building a crossmember, or even fabbing up motor mounts — these 4" x 4" weld-on platforms give you a clean, strong base to start from.

They're cut from 1/4" A50 plate and can be installed on top of the frame, underneath, or alongside. Weld them on two sides for maximum strength. The usable surface measures 4" x 4" on the outside edge or 3.5" x 4" on the inside. Simple, strong, and ready for whatever you come up with in the garage.

Key Features

• Part Number: R1151
• 4" x 4" overall usable area (3.5" x 4" inside section)
• 1/4" A50 steel plate
• Mounts on top, bottom, or side of frame rail
• Compatible with body mounts, cages, shocks, coils, motor mounts, and more
• Welding required

What's Included

• (2) Small frame mounting platforms
• Sold in pairs

Note

Welding required. These platforms are designed for versatile fabrication work and can be mounted on or under the frame with welds on two surfaces for added strength. Make sure to test fit and position based on your application before final welding.
