Dana 44 High Steer Arm Passenger Side

Dana 44 High Steer Arm – Passenger Side

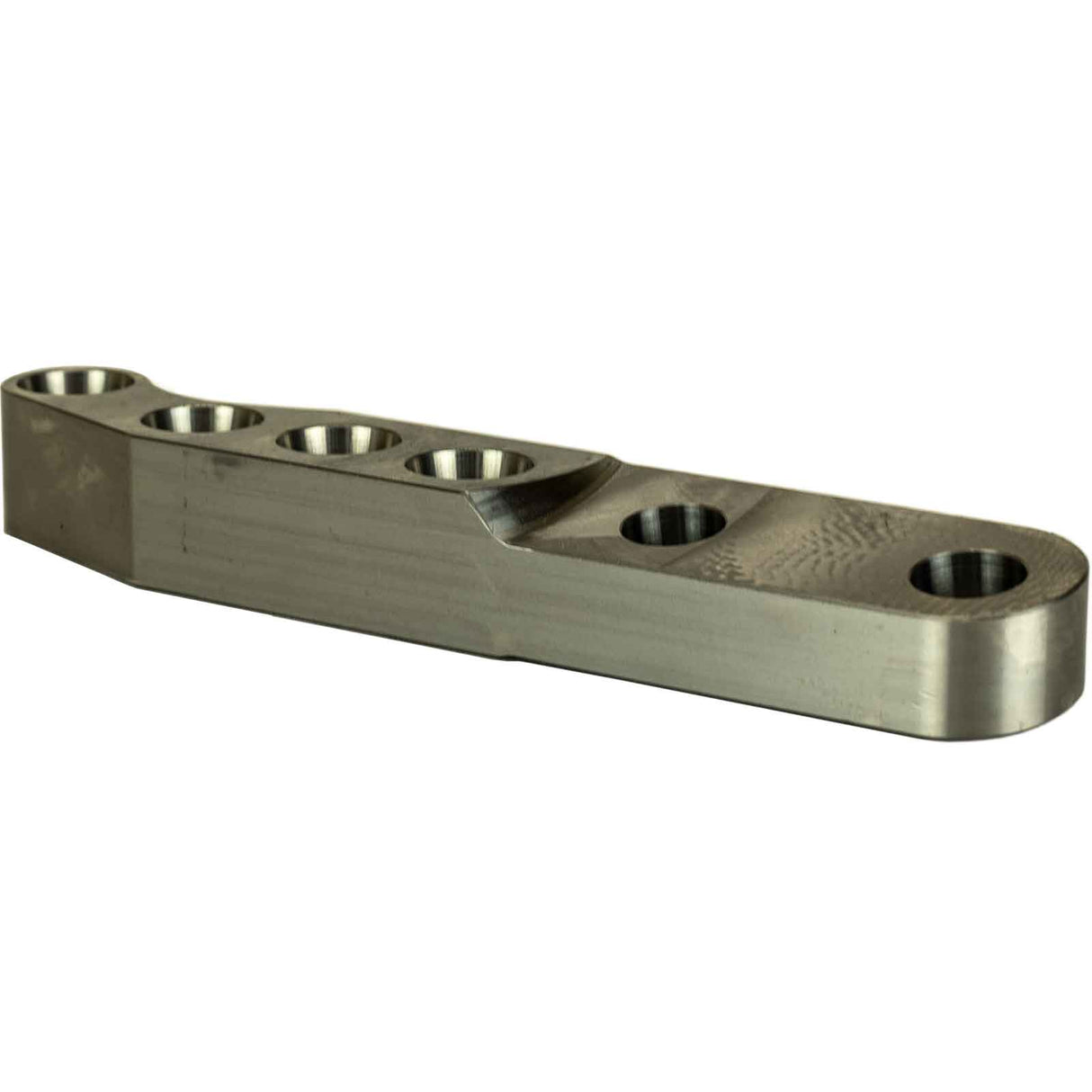

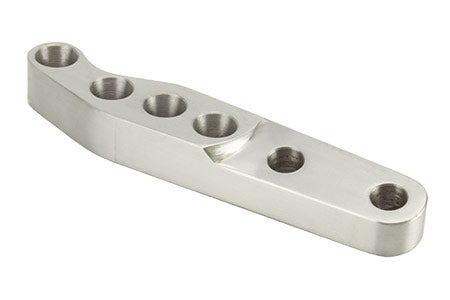

Passenger Side Billet High-Steer Arm for Dana 44 Knuckles

This billet high-steer arm is designed for the passenger side of Dana 44 axles. It's drilled and tapered to work with both stock 3-stud knuckles and aftermarket 4-stud knuckles. The tie rod hole is reamed for a standard GM 1-ton TRE, while the drag link hole is tapered deeper to fit a high-angle GM 1-ton TRE. Built to handle heavy-duty steering setups on and off the trail.

• Part Number: R1794
• Passenger side Dana 44 high-steer arm
• Compatible with 3-stud and 4-stud knuckles
• Tie rod hole: standard GM 1-ton TRE taper
• Drag link hole: deep taper for high-angle GM 1-ton TRE
• Sold individually
