Dana 60 High Steer Arm Driver Side

Dana 60 High Steer Arm – Driver Side

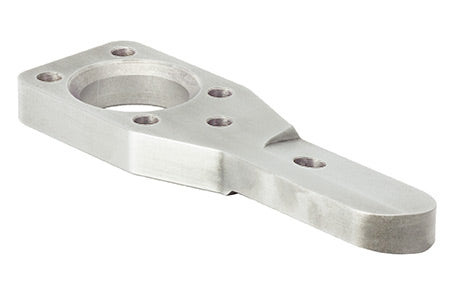

Driver Side Flat High Steer Arm for Dana 60 Kingpin Axles

This is the RuffStuff Dana 60 driver side high steer arm, built for off-road use on kingpin-style Dana 60 front axles. The arm is reamed for standard GM 1-ton tie rod ends and can be drilled out to 3/4" for use with heim joints. Machined for strength and clearance, it’s a solid choice for crossover or full high steer steering setups.

• Part Number: R1795
• Driver side high steer arm for Dana 60 kingpin axles
• Reamed for GM 1-ton TREs (standard taper)
• Can be drilled to 3/4" for heim joints
• Works with 3-stud or 4-stud knuckles (verify fitment)
• Machined from billet steel
• OFF ROAD USE ONLY

Note: The shoulder on some factory studs may be too large for these arms. Check stud diameter before installation.
