Dana 30 Differential Cover

Dana 30 3/8" Differential Cover

Heavy-Duty Diff Cover for Dana 30 Axles

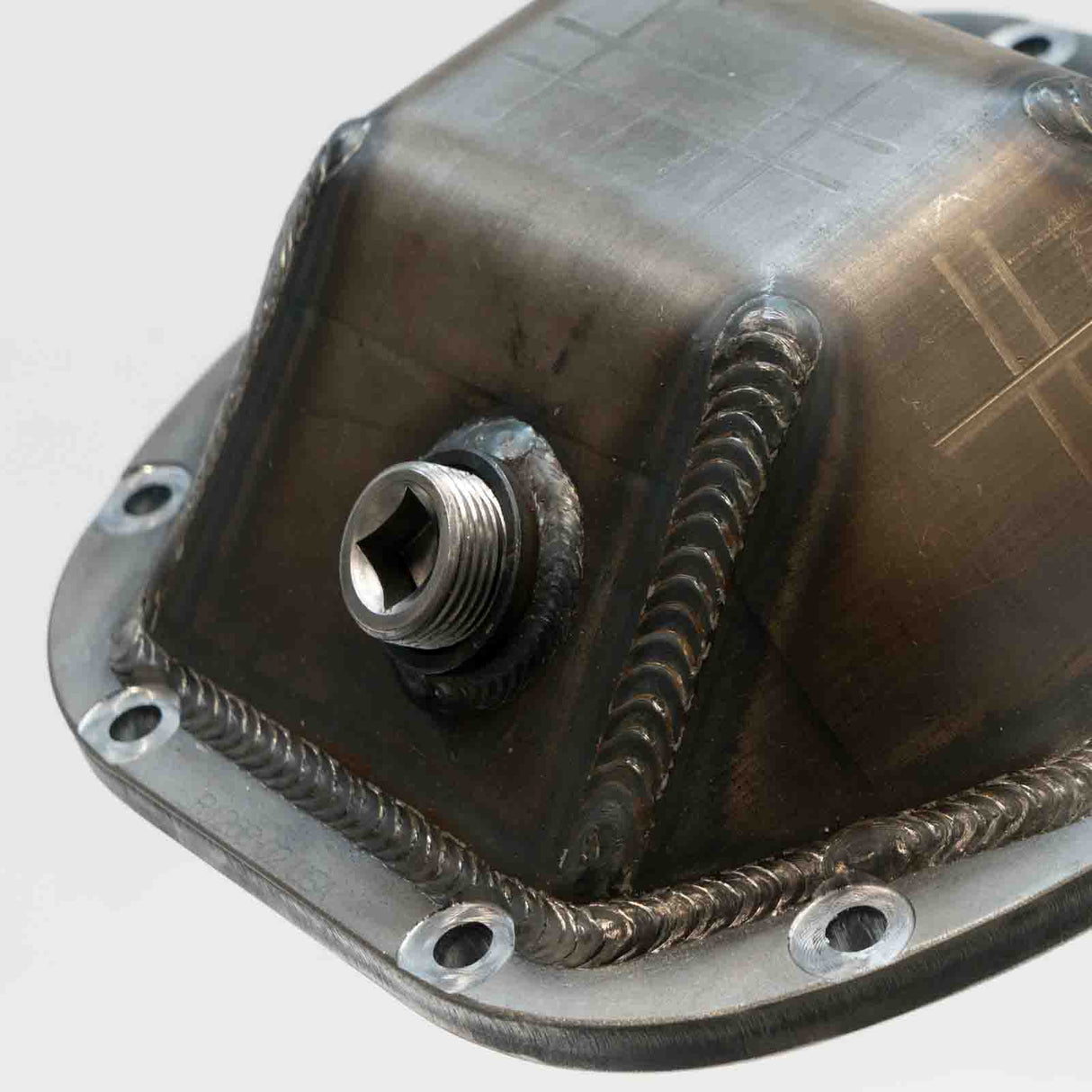

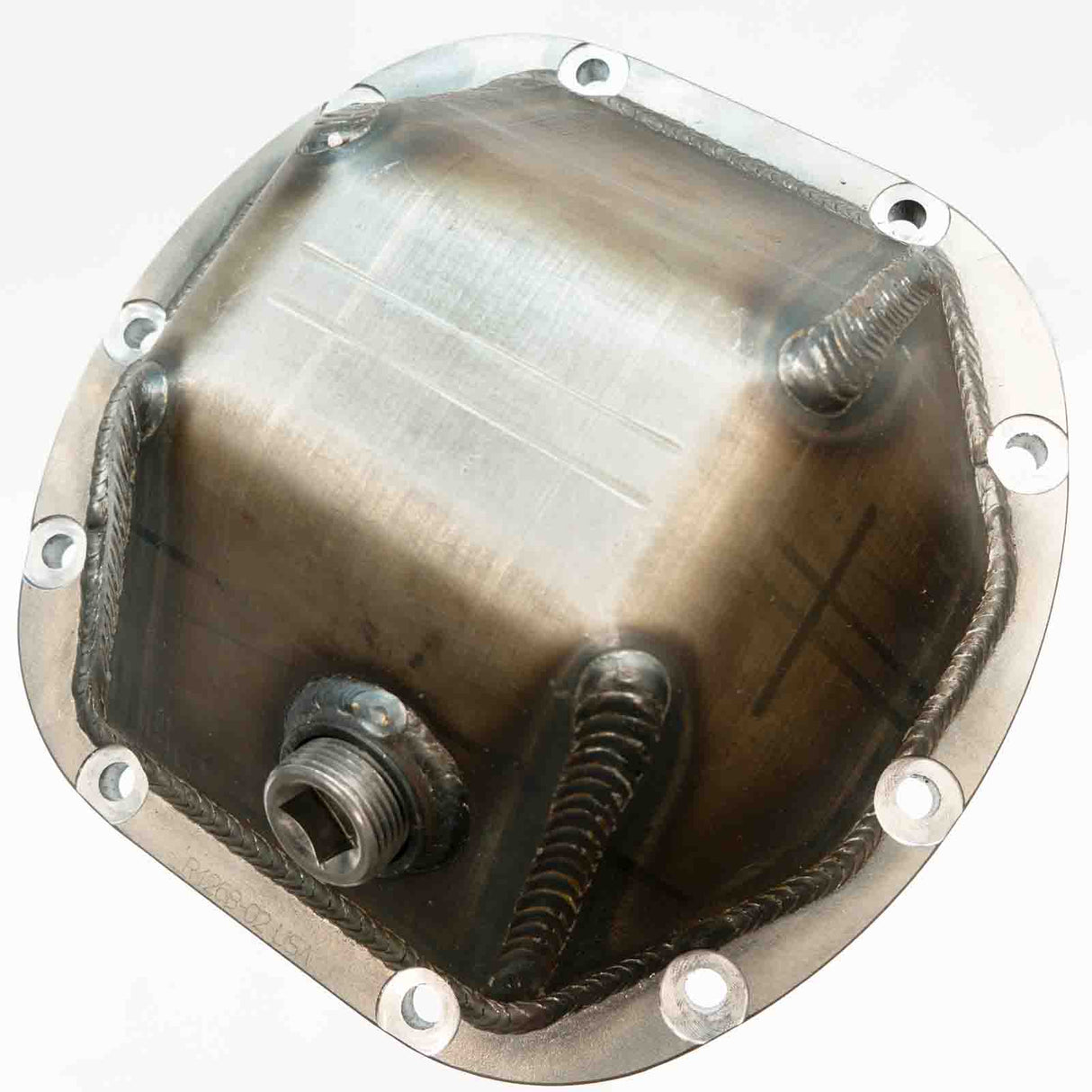

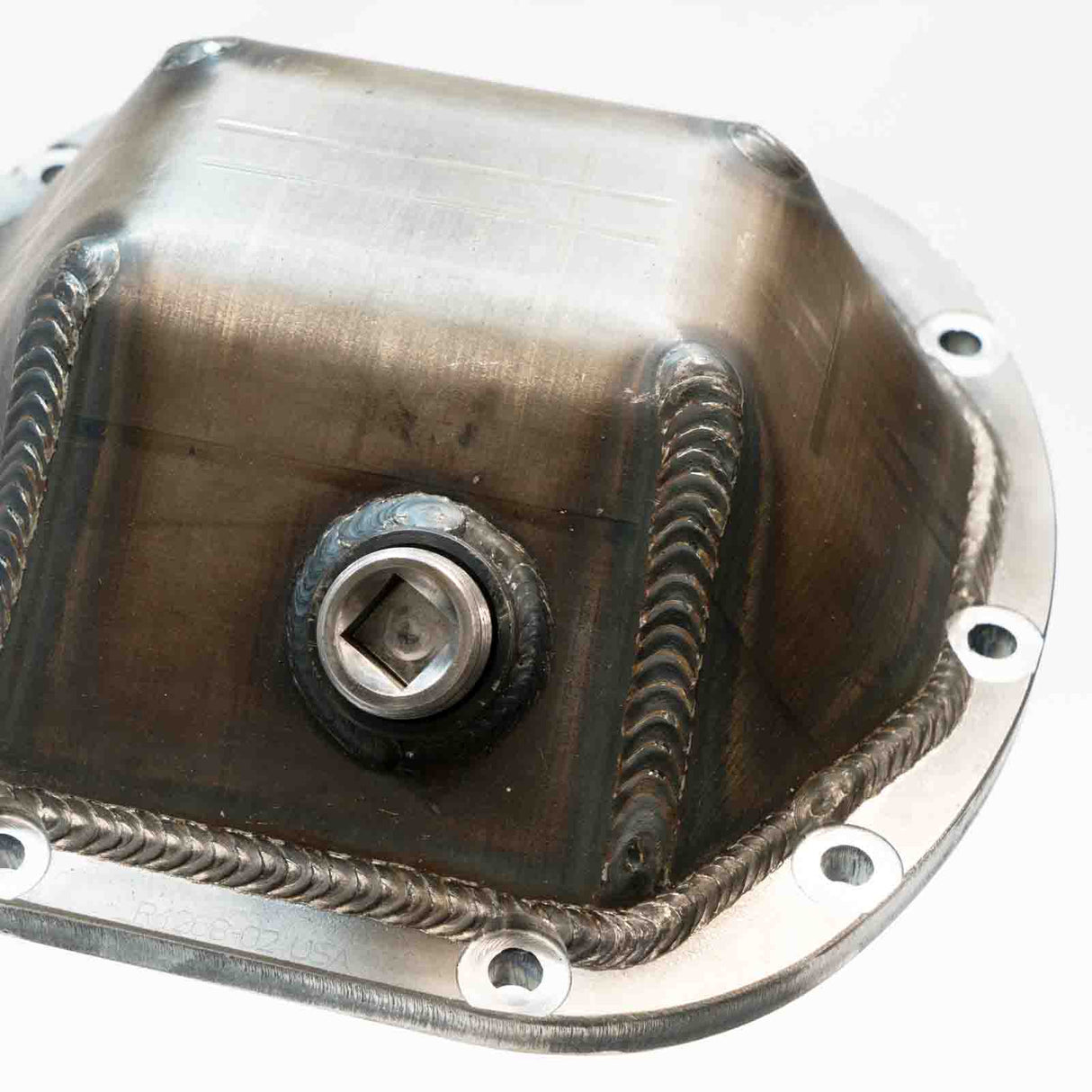

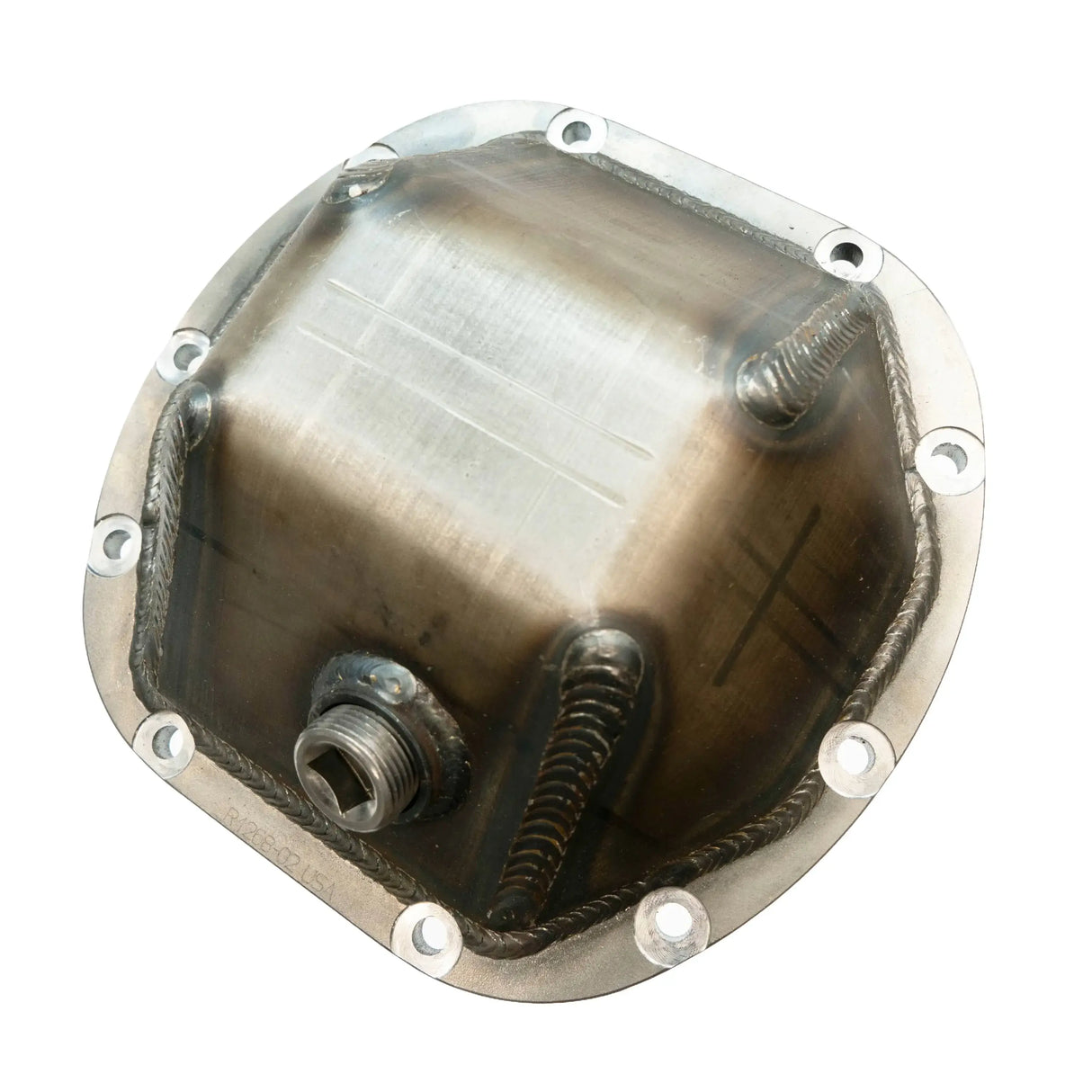

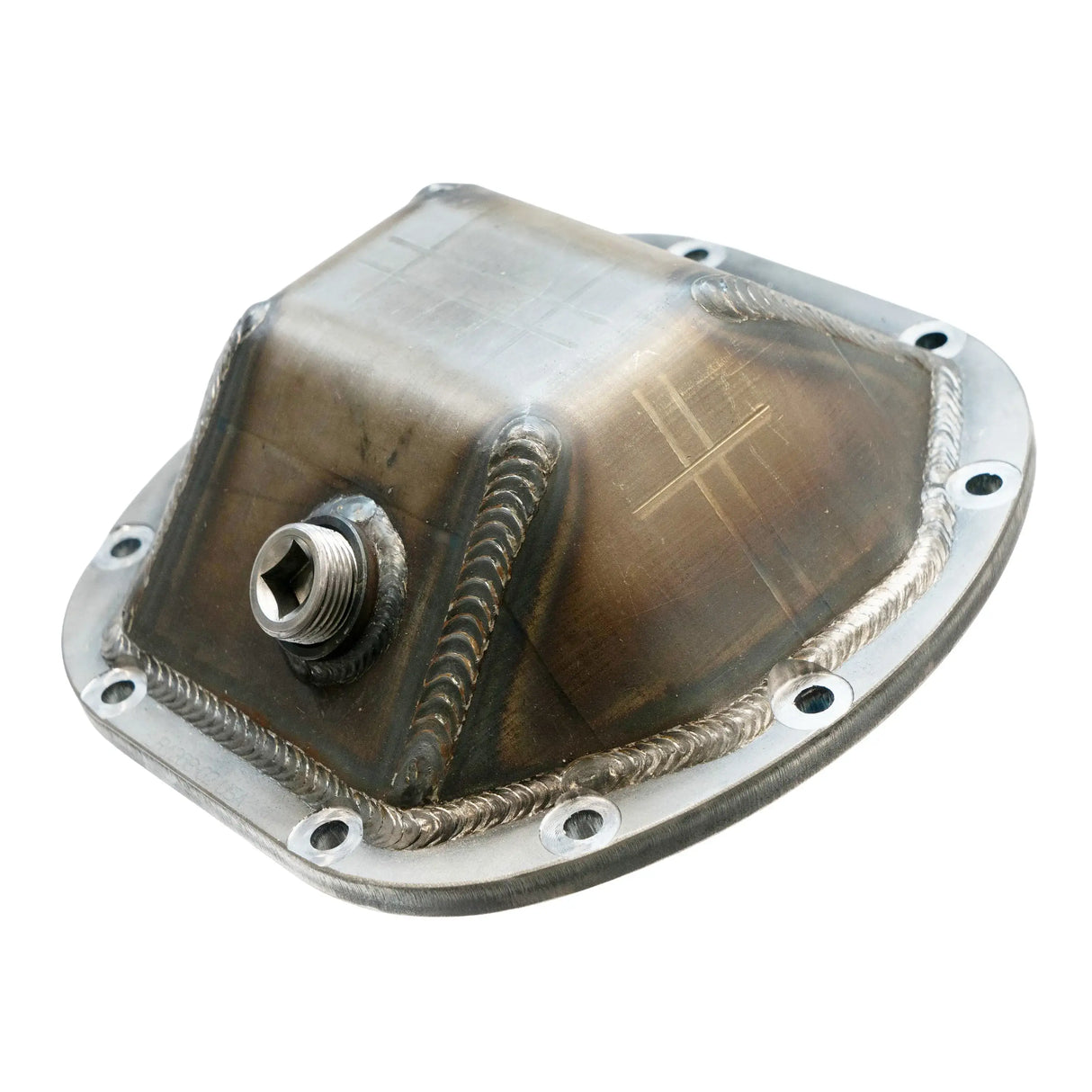

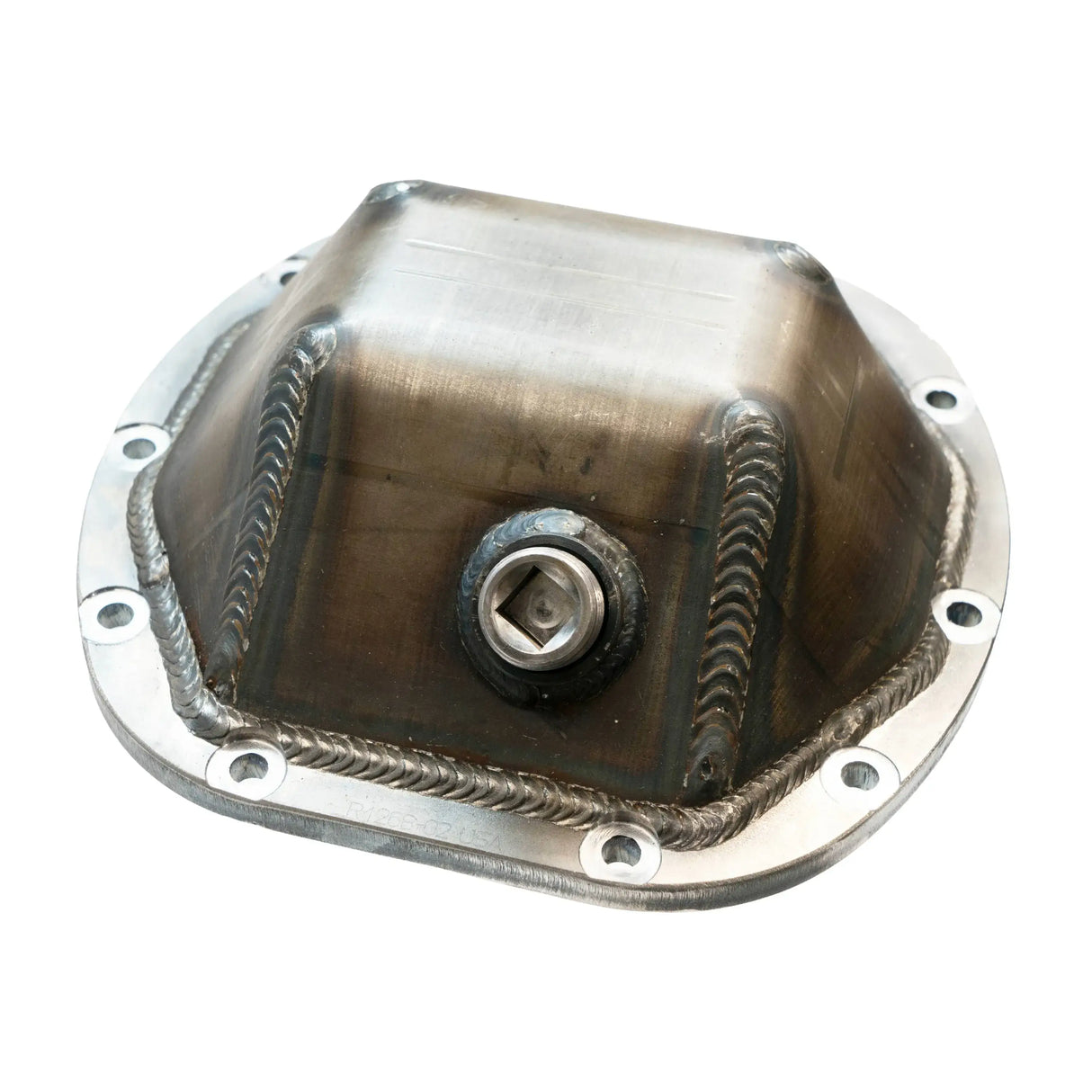

Designed to handle serious trail abuse, this Dana 30 cover fits everything from old Jeepsters to Wranglers, Cherokees, and early Broncos. Built from 3/8" A50 plate steel with a tensile strength of 50,000 PSI, the one-piece cap is bent 8 ways and fully welded to a 3/8" ring. Machined flat after welding for a perfect seal. Tie rod clearance is ~3/4" and clears all Dana 30 setups we've come across. Backed by a lifetime guarantee.

Key Features

• Part Number: R1268
• Fits Jeep Dana 30 axles (CJ, YJ, TJ, XJ, ZJ) and early Broncos
• 3/8" thick A50 plate steel cap and ring
• Cap bent 8 ways for added strength
• All seams fully welded inside and out
• Machined flat after welding for perfect sealing
• Includes 5/16" Allen head bolt kit with washers
• ~3/4" tie rod clearance
• Lifetime guarantee

Kit Includes

• (1) Dana 30 differential cover
• (1) 5/16" Allen head bolt kit with washers

Note: Welding required. Make sure installation is done with proper tools and technique.
