Spring Under U-Bolt Plate Pair

Part Number: R2198-Kit-1
Shipping Weight: 8.0 lb
$71.00
Shipping calculated at checkout.

Description

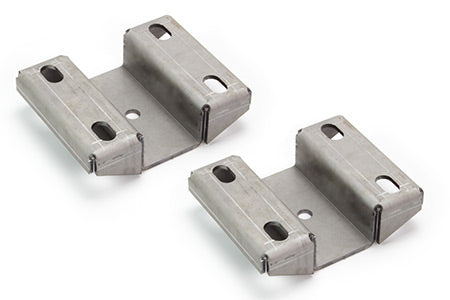

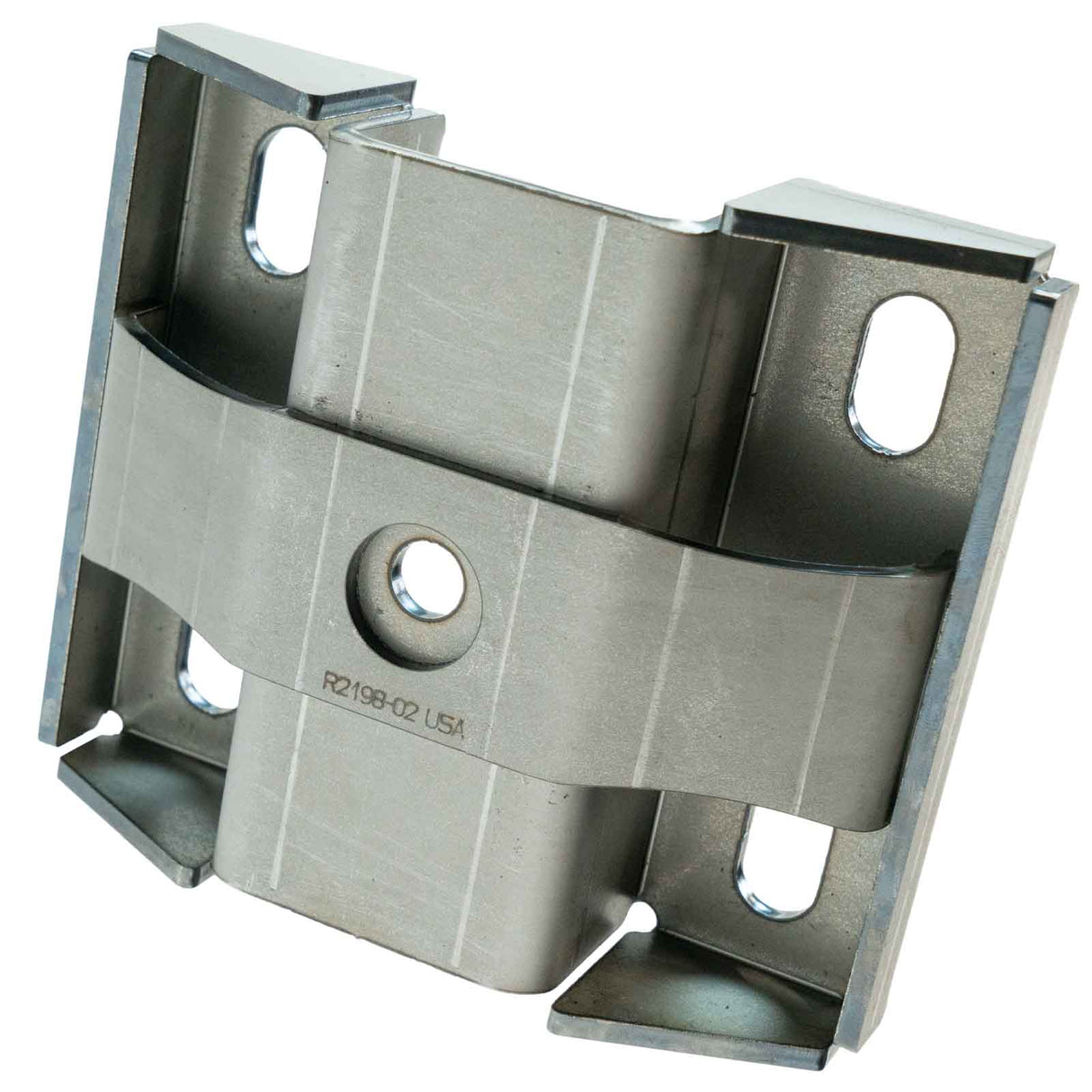

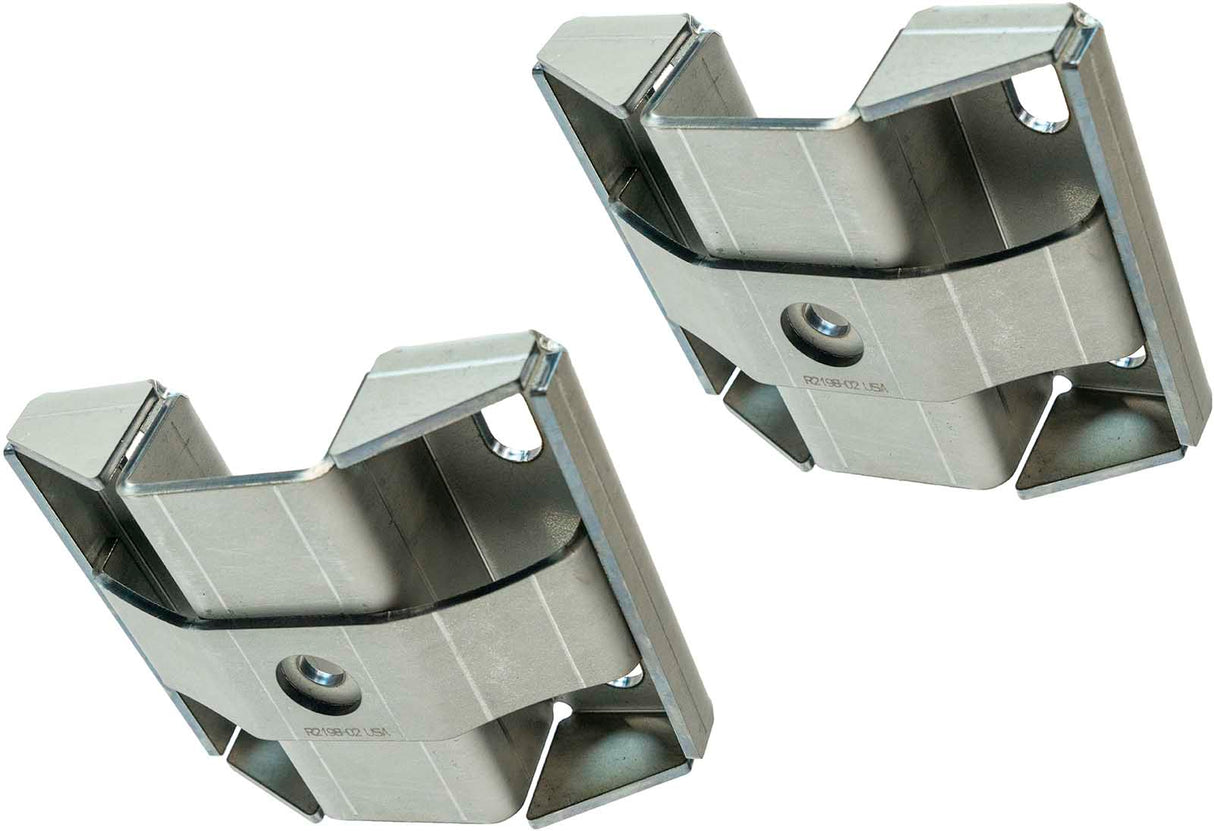

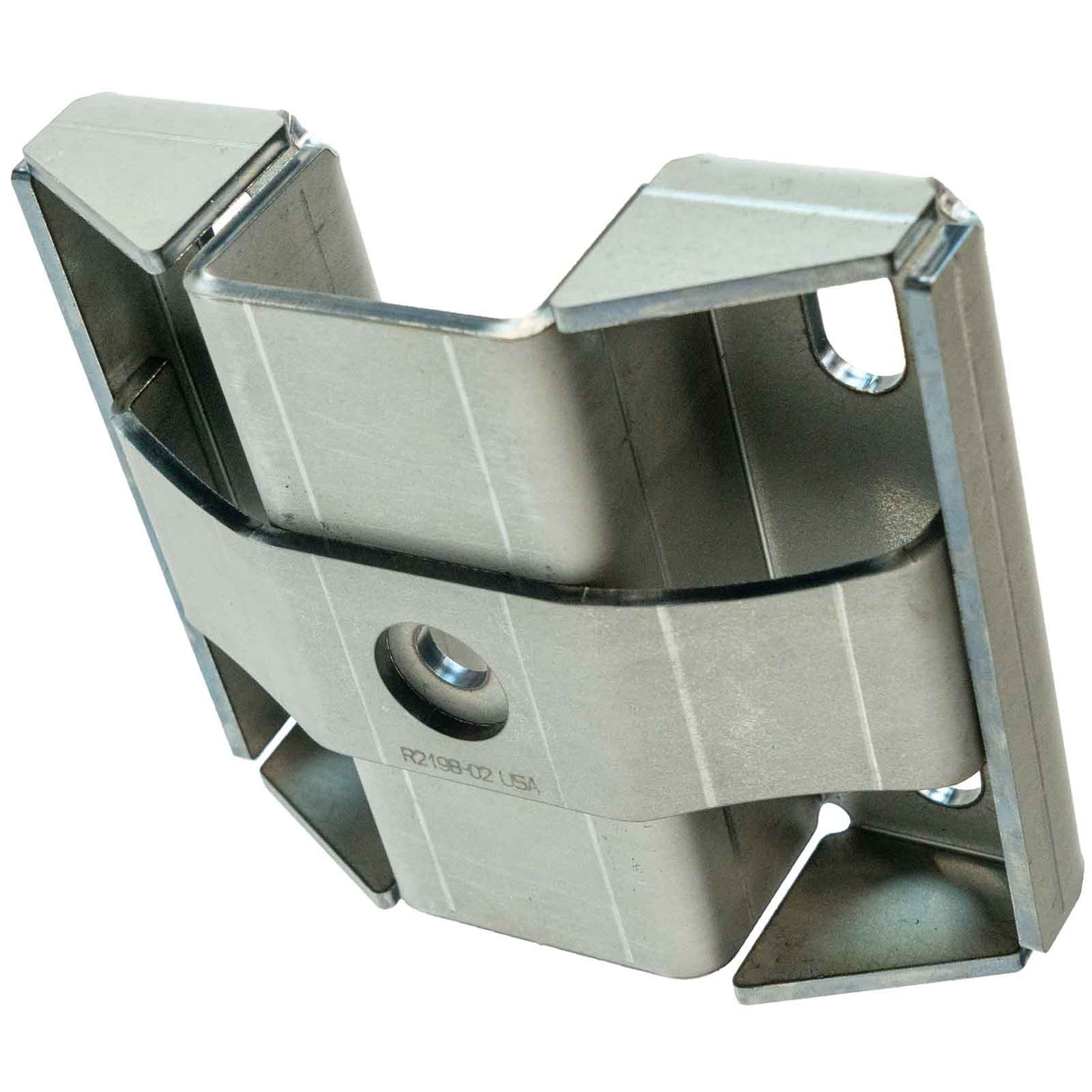

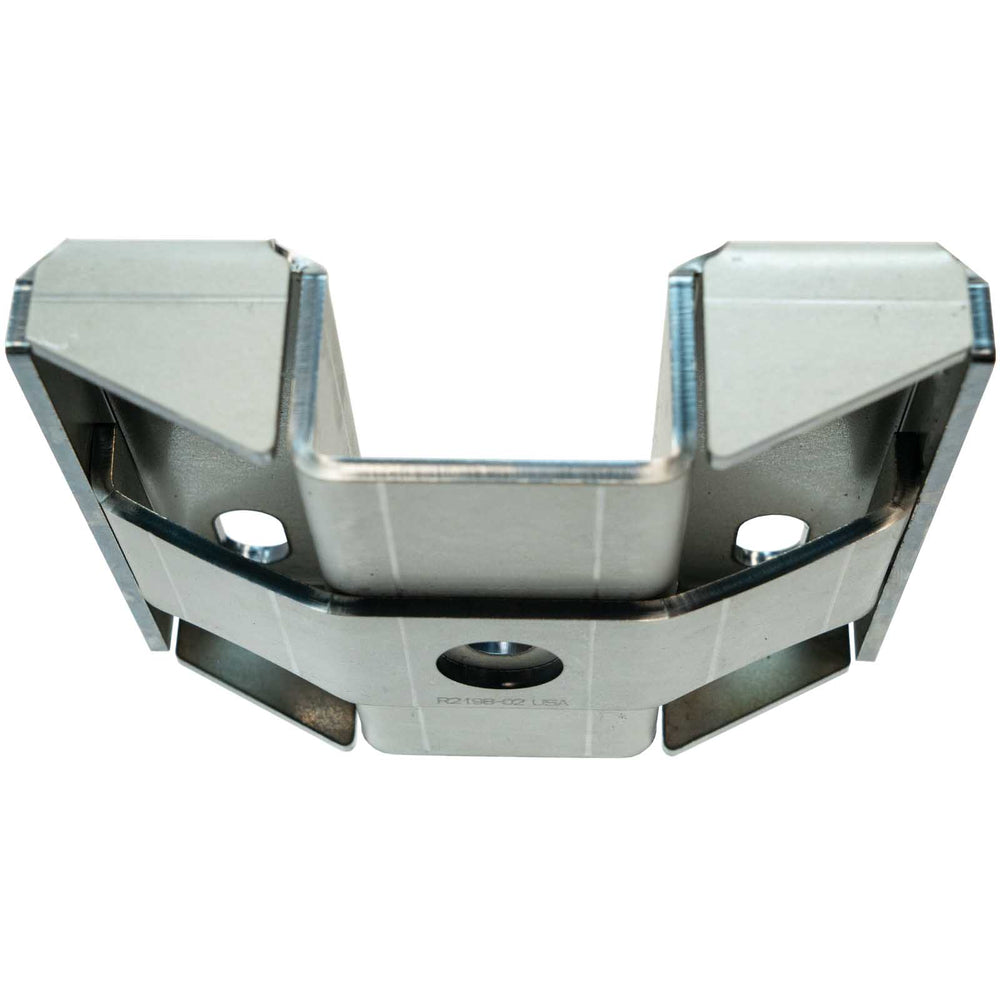

Spring Under U-Bolt Plate Pair

The bottom "Cradle" brackets are 1.75" deep and can protect the Ubolt threads from the dirt and rocks, just trim the ends after you install them.

They fit 2.5" wide springs, only enough to allow a snug fit so if you lose the center pin it won't fall apart on you.

Works with 2.75"-3.5" axle tubes

Finish welding of the seems and strap plate is required!

This is for the plates only, if you are looking for u-bolts you will want them in an 8" length and select the appropriate diameter here RuffStuff Specialties: U-Bolts

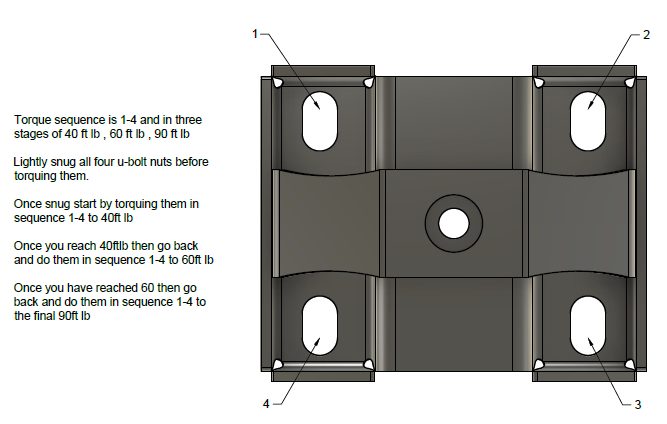

90ft lb max u bolt torque anything beyond this is at your discretion and you risk bending the plate. We do not warranty plates for over torquing

Prop 65 Warning Icon
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 7 reviews
86%
(6)
14%
(1)
0%
(0)
0%
(0)
0%
(0)
J
Josh
Not disappointed

Been running these since 2017. They work great, and I love the extra ground clearance. Just wish they were made out of 1/4"�� instead of 3/16.

s
stafan nemeth
Need shallow throat U bolts

This is a great product, like everything RS sells. I do however wish they had put in the description that they require U bolts with more threading. I know I should have realized this but I overlooked it and now I'm in a bind. Hopefully this will help someone else.

W
William Hall
More options

The spring plates arrived quickly and as described. They were easy to weld up. I wish they had a shock mount that attached to the plate, I made my own. Also, I wish they had an option to order without holes. Other than that, they work great !

K
KYLE CANTRELL
first time buyer

I was skeptical because alot of other manufacturers wanted alot more money. Got them in the mail. Didn't need any prep. Sprayed some splatter spray on and buzzes the seams. You can tell its quality steel because it doesn't just melt away when welding. 3/16" must be the magic number because I got 0 warp. I buzzed the insides and put a cap on the outside and dang do these things feel beefy. Thanks guys for a quality product. Will definitely be buying through you guys again!

P
Paul Vega
Awesome u-bolt plates

Got a set for my 8.8 a while back and they look and work gnarly, great clearance from the rocks. Got a second set for my D30 gonna make it fit with a few mods. Shipped out fast.
