Anti-Wrap Arms / Traction Bar Plates (Pair)

Part Number: R1082-Kit-1
Shipping Weight: 14.0 lb
$30.60 $36.00
Shipping calculated at checkout.

Description

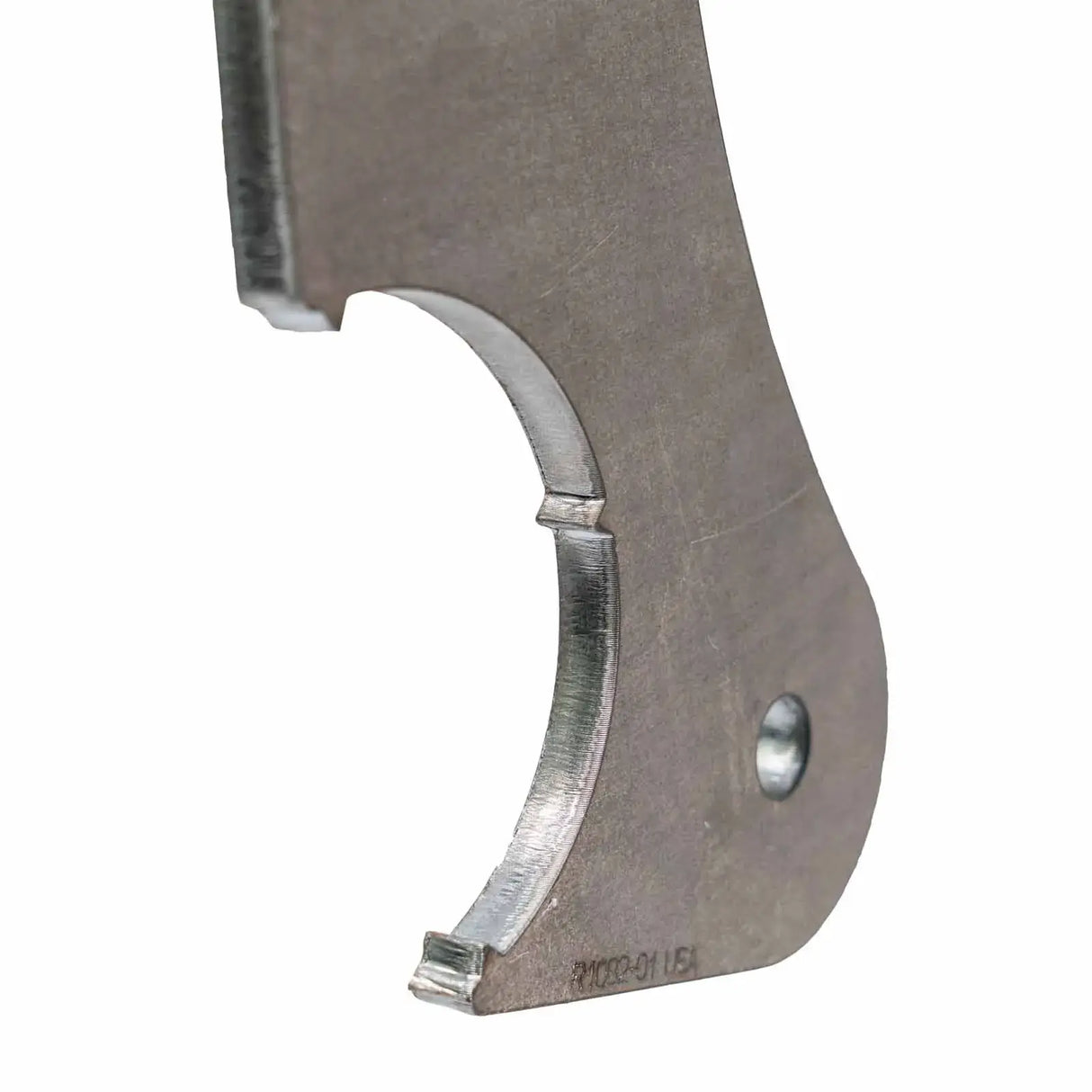

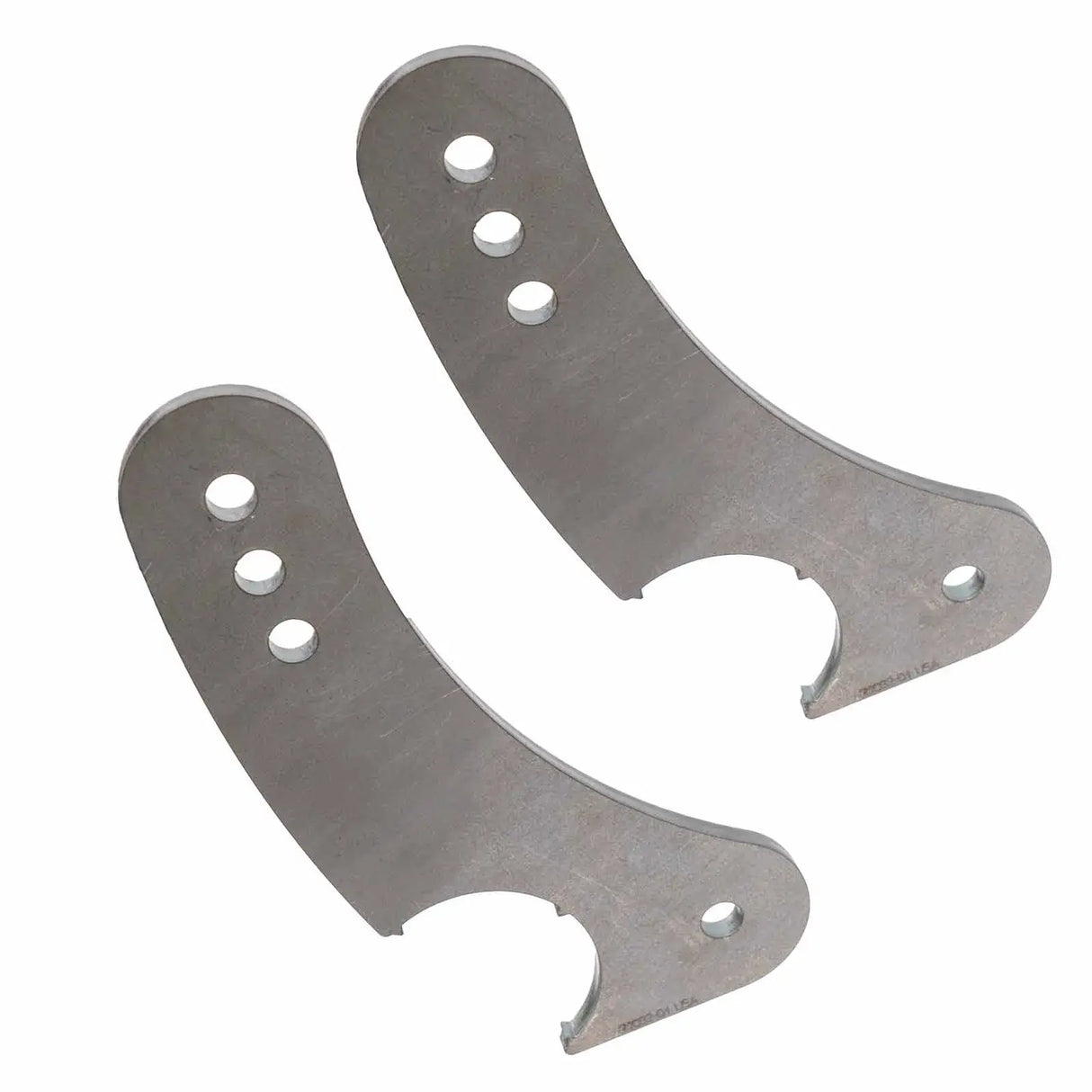

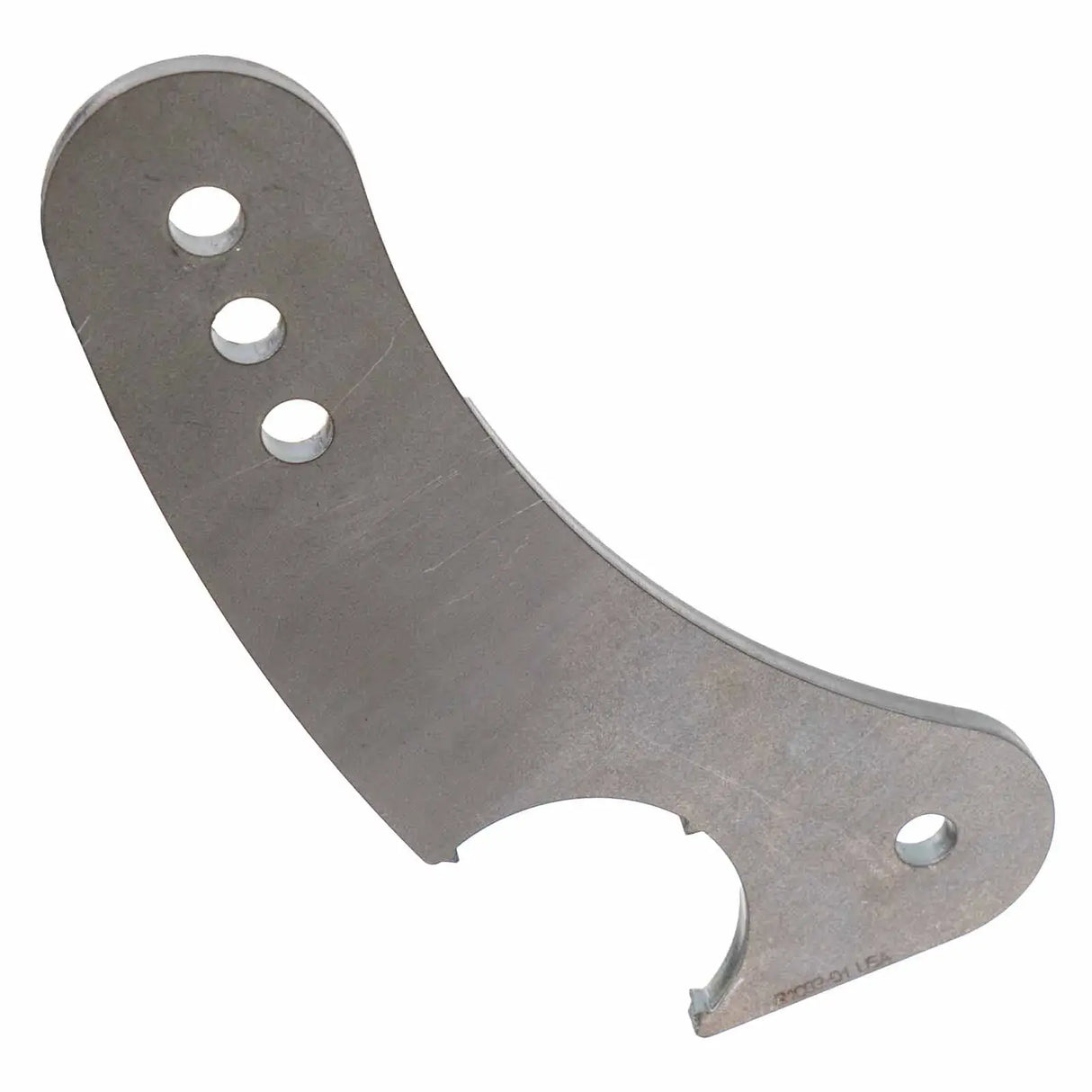

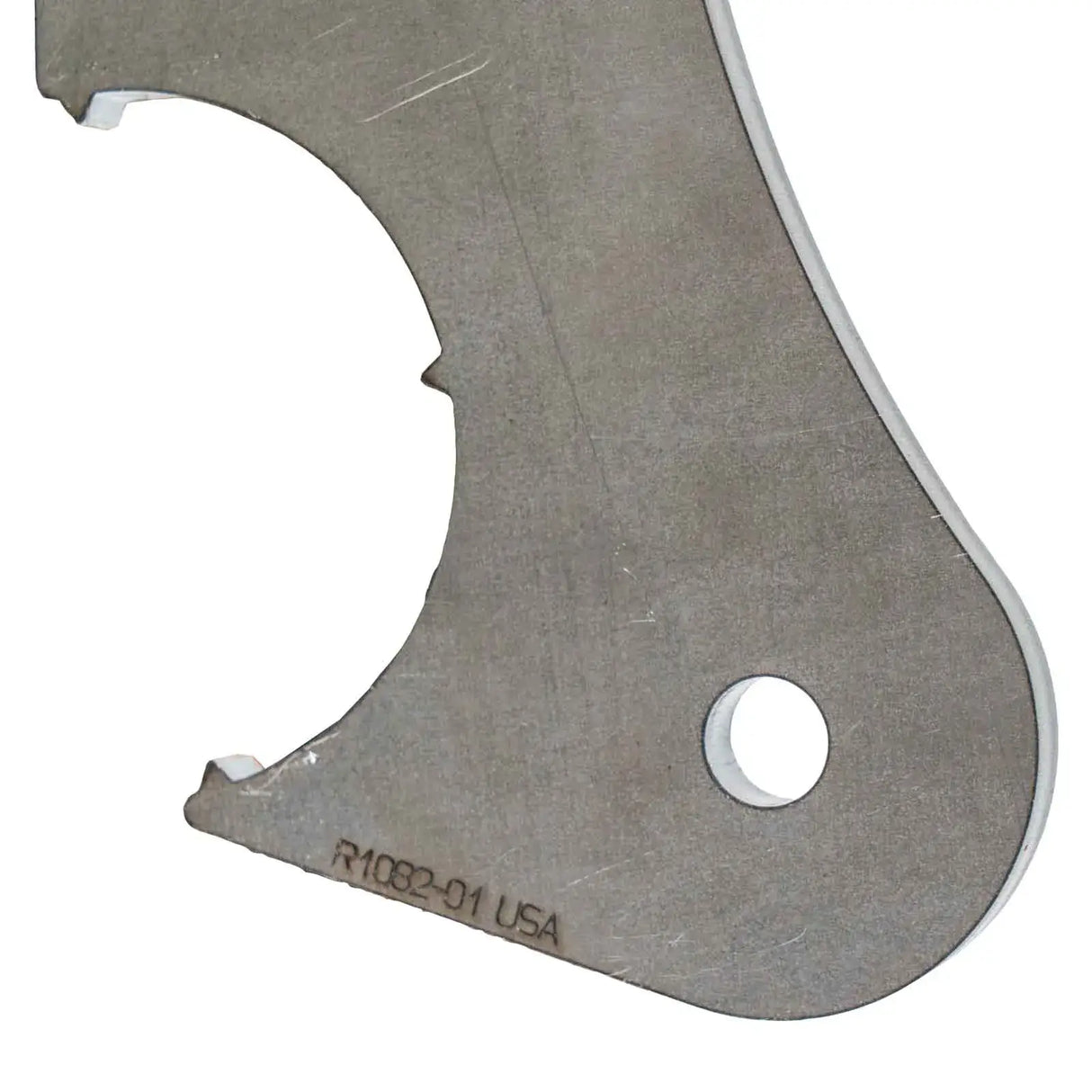

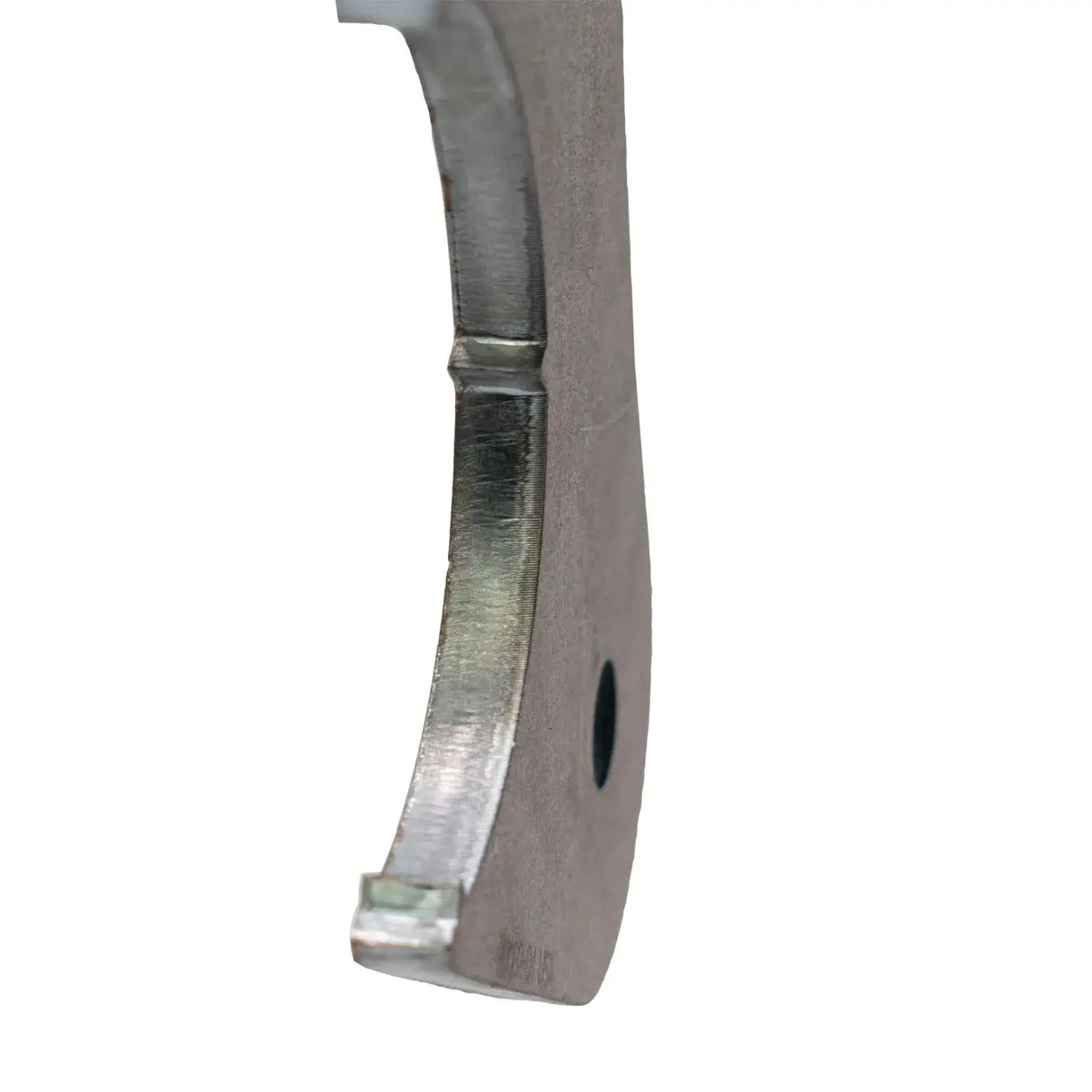

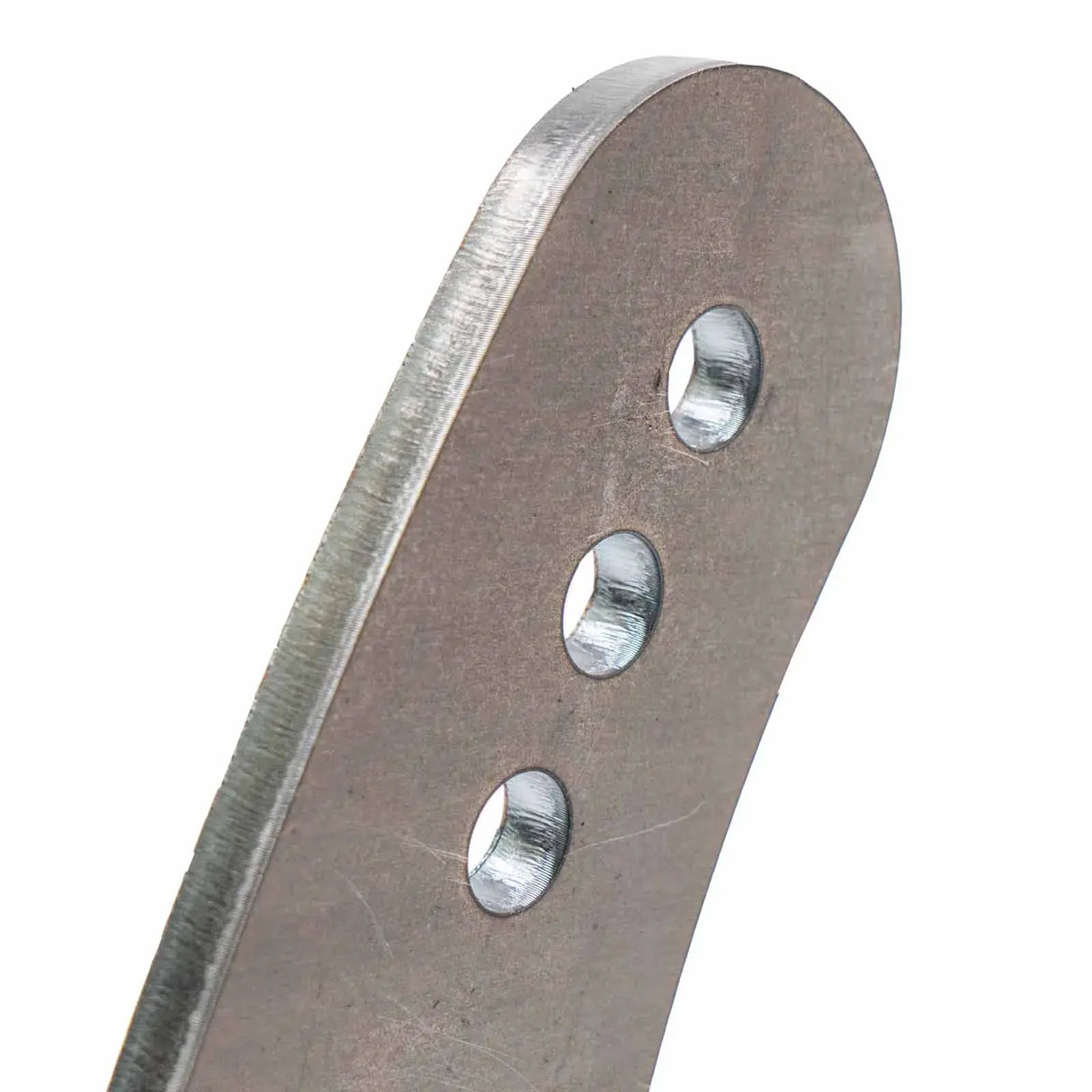

Anti-Wrap Arm Plates

Heavy-Duty Mounting Solution for Axle-Based Suspension Links

These main plates are designed to weld directly to the axle tube, creating a strong and adjustable mounting point for the upper and lower arms of anti-wrap bars, radius arms, or traction bar setups. Built from 3/8" thick plate steel, they feature three 9/16" bolt holes spaced at 6", 7", and 8" from the axle centerline, allowing you to fine-tune geometry for optimal performance. Pre-cut for 3" axle tubes but can be easily modified for larger diameters with minor grinding.

Key Features
  • Part Number: R1082
  • Material: 3/8" plate steel
  • Bolt hole size: 9/16"
  • Mounting positions: 6", 7", 8" from axle centerline
  • Fits: 3" axle tube (modifiable to larger sizes)
  • Sold in pairs
