Leaf Spring Hangers with 2.25" Inner Mounting Width (Scout 2.0" Springs)

Leaf Spring Hangers with 2.25" Inner Mounting Width (Scout 2.0" Springs)

Heavy-duty spring hangers built for Scout leaf spring applications.

These leaf spring hangers are designed specifically for Scout applications running 2.0" wide springs. With a 2.25" inner mounting width, they provide proper fitment for springs with narrow bushings while keeping everything square and tight. Built from 1/4" HR P&O steel plate, they’re CNC laser cut and brake-formed for consistent accuracy and strength.

Each hanger comes drilled for the factory Scout 7/16" spring bolt but can easily be drilled larger if needed. Sold in pairs, ready for weld-in installation.

Key Features:

• Part Number: R1166
• Sold in pairs

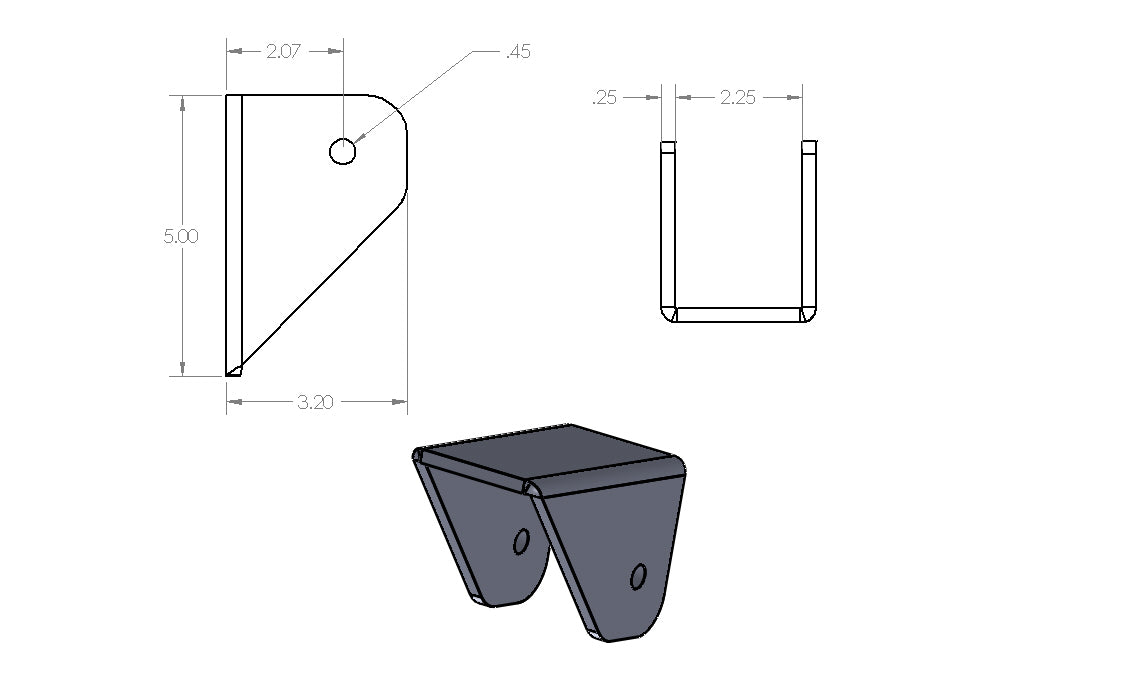

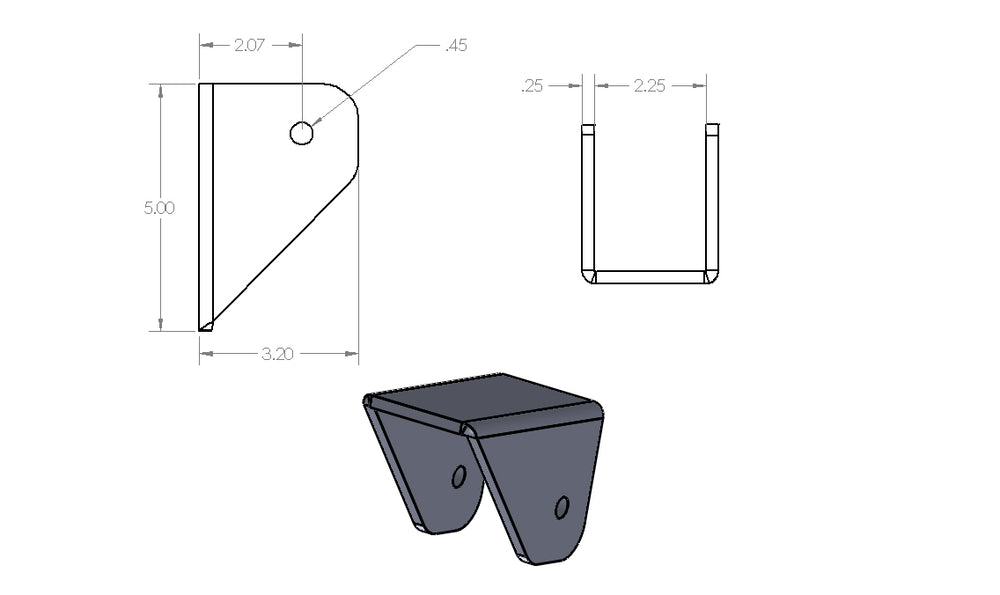

• 2.25" inner mounting width
• Designed for 2.0" wide Scout leaf springs
• Made from 1/4" HR P&O steel plate
• CNC laser cut and brake bent for precision
• Drilled for 7/16" Scout spring bolt (can be drilled larger)

What's Included:

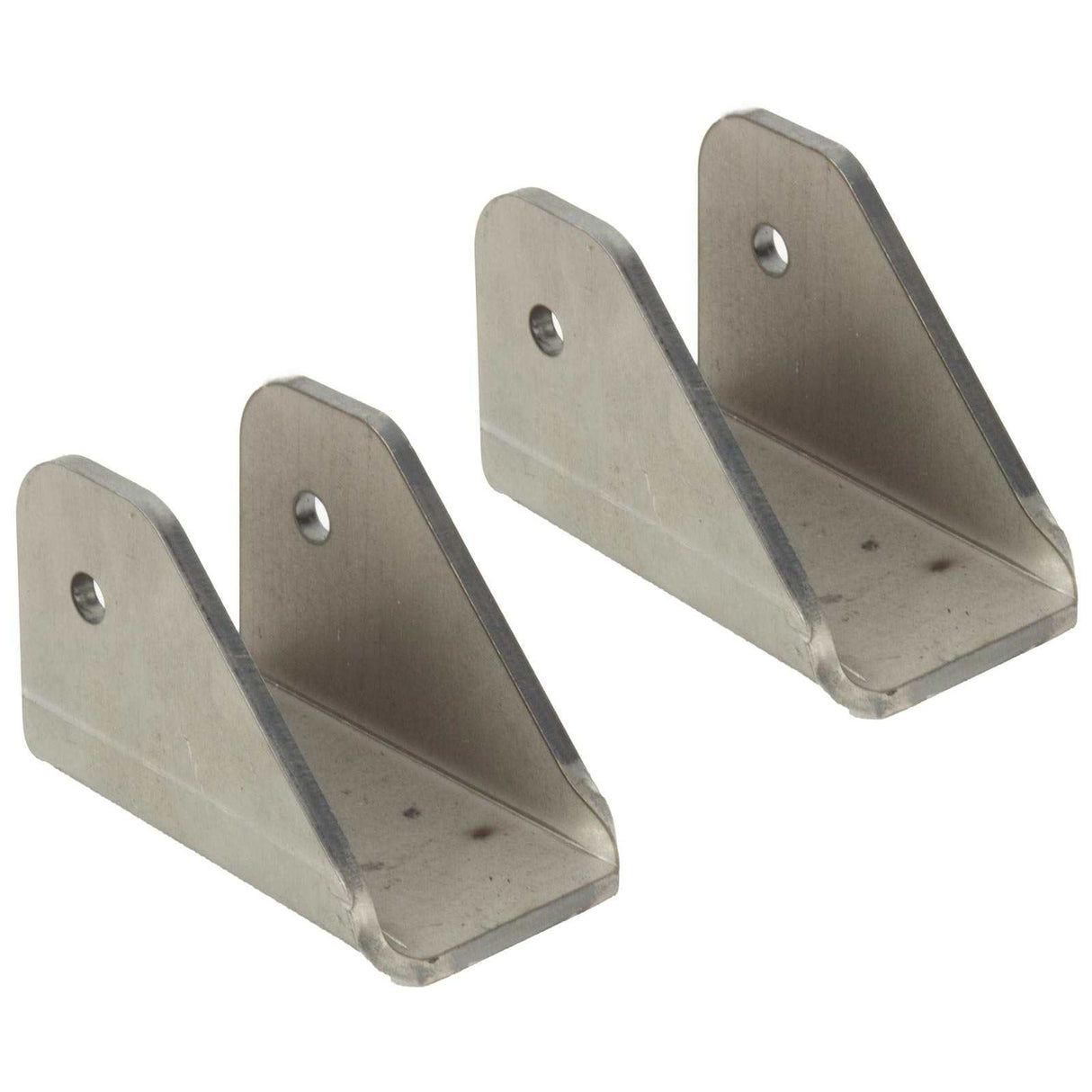

• (2) Leaf spring hangers – 2.25" inner width

Note:

Ships raw steel. Requires welding. Prep and coat after install to prevent corrosion.
