TJ Rear Coil Buckets – Weld-On (Pair)

Part Number: R1988-1-Kit-1
Shipping Weight: 10.0 lb
$73.00
Shipping calculated at checkout.

TJ Rear Coil Buckets – Weld-On (Pair)

Description

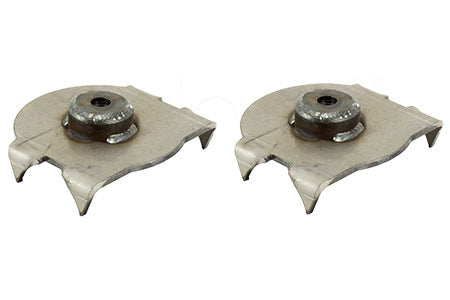

Jeep Wrangler TJ Coil Buckets

Replacement Coil Buckets for TJ with 3" or Larger Axle Tubes

These coil buckets are a direct replacement for Jeep TJ rear axles when running 3" or larger diameter tubes. Built from 1/4" thick steel on both the mounting plate and locator tube, they’re a solid option for axle swaps or replacing rotted-out factory brackets. The 6-5/8" pad surface and 2-1/2" locator diameter are sized specifically for TJ springs but will also work with other coils in the same range.

Key Features
  • Part Number: R1988
  • Fits Jeep Wrangler TJ using 3" or larger diameter axle tubes
  • Made from 1/4" thick steel plate and tube
  • Pad surface diameter: 6-5/8"
  • Locator O.D.: 2-1/2"
  • Works with stock or lift springs of matching size
  • Sold in pairs

Kit Includes

  • (2) Jeep Wrangler TJ coil buckets

Note: Welding required. Make sure installation is done with proper tools and technique.

Prop 65 Warning Icon
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 5 reviews
80%
(4)
0%
(0)
20%
(1)
0%
(0)
0%
(0)
S
Shannon Neal
Well built but required fabbing.

Was very pleased with the build quality and price of these compared to other brands which were more thin and more costly. However, on my 97 Jeep Tj SE 2.5l it did require that we cut a more of a square out of the ears that fit around frame. Without cutting them more to a square shape, there was at least a "�" gap between frame and coil plate. Not a big deal though. They've got to be welded on so obviously if you can weld you're competent to do a little extra work. Would be nice to see this fixed from factory though. It almost like the ones shown in the picture are meant to fit a round tube frame instead of a square.

M
MASTERTECH
EXACTLY WHAT WE NEEDED

These coil spring bucket replacements were exactly what we needed to fix a customers rusty Wrangler.

j
jessica lemay
Great Product

I had a busted coil spring bucket and these parts made it too easy to fix. I simply cut the old one out and welded this one in, fit like a glove.

T
Tyler McCoy
Heavy duty

Great product, well built, clean welds, heavy duty material. Would recommend.

A
Austin Courtright
Solid product

Nice heavy duty replacement part
