Dana 30 Upper Control Arm Gusset – Jeep TJ/LJ/XJ/ZJ/MJ

Part Number: R2417
Shipping Weight: 0.5 lb
$15.00
Shipping calculated at checkout.

Description

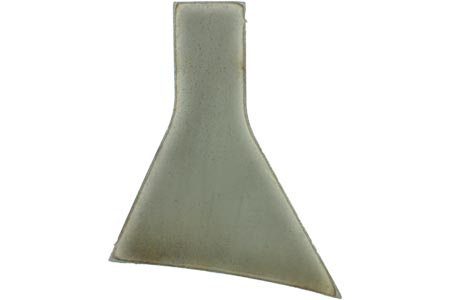

Dana 30 Upper Control Arm Gusset – Jeep TJ/LJ/XJ/ZJ/MJ

Reinforcement Gusset for Passenger Side Upper Control Arm Bracket

This 1/4" thick gusset is designed to strengthen the weak open-side factory upper control arm bracket found on Dana 30 axles. Larger tires and lower gears put more stress on the bracket, often leading to failure. This gusset closes the open side and significantly improves durability without the need to replace the entire bracket.

  • Part Number: R2417
  • Made from 1/4" thick steel
  • Designed for Dana 30 front axle passenger-side upper control arm bracket
  • Closes open side of factory bracket to prevent flex and cracking
  • Welding required
  • Sold individually

Fits:

  • 1997–2006 Jeep TJ Wrangler, Rubicon, and Unlimited
  • 1984–2001 Jeep XJ Cherokee
  • Also fits MJ, LJ, and ZJ with Dana 30 front axles
Prop 65 Warning Icon
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Tyler
Perfect fit!

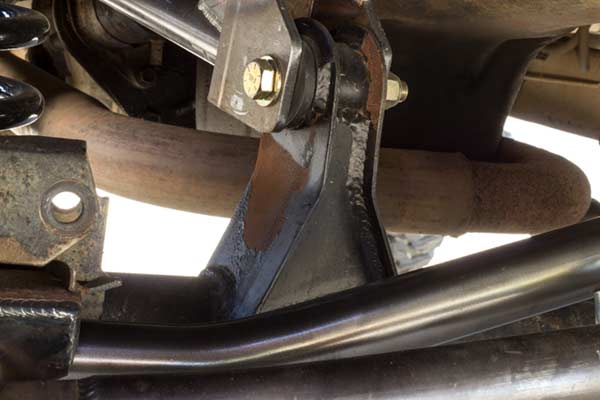

The XJ upper control arm bracket came in a timely manner, was packaged very well, and was a perfect fit on my weak factory passenger side upper control arm bracket on my Dana 30. Welded it in place and now I'm definitely not worried, well designed piece and very cheap insurance for that part of your Dana 30. Highly recommend anyone who leaves the pavement do this cheap easy upgrade!!! Thanks ruffstuff!
