Dana 30 Differential Cover With Steering Stabilizer Bracket For XJ/TJ/LJ/MJ

Part Number: R2436-A-Kit-1
Shipping Weight: 12.63 lb
$223.00
Shipping calculated at checkout.
Steering Stabilizer



Description

Dana 30 Differential Cover With Steering Stabilizer Bracket For XJ/TJ/LJ/MJ

Heavy-Duty Dana 30 Cover with Built-In Steering Stabilizer Mount

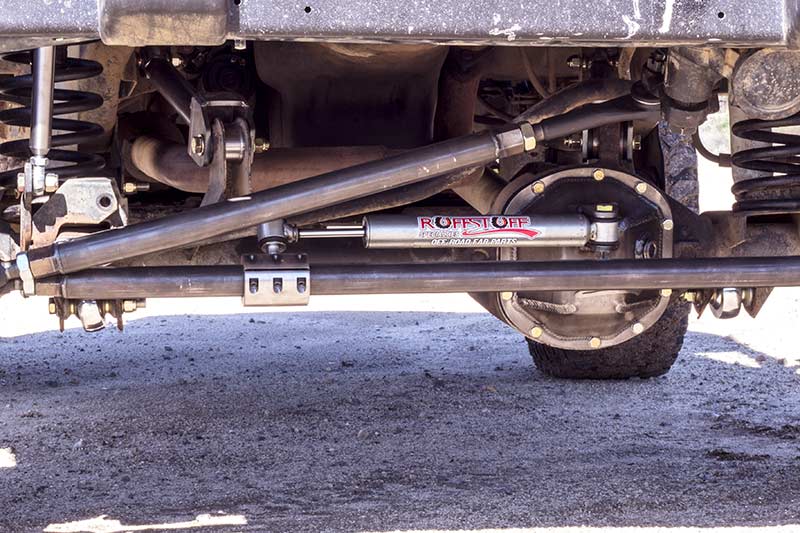

This Dana 30 differential cover is made to pair with our Y-Link 1 Ton Steering Kit for Jeep TJ, LJ, XJ, ZJ, and MJ. The built-in 1/4" thick mounting tabs (with 1/2" holes) allow direct mounting of a steering stabilizer. A CNC-machined 1.5" OD clamp from 1020 DOM is included, featuring a 1/2" threaded hole for easy installation. By relocating the stabilizer away from the drag link and track bar, you get improved steering feel and cleaner geometry.

Made from 3/8" A50 plate steel with a 50,000 PSI tensile strength, this cover has a one-piece cap bent 8 ways and welded to a 3/8" ring. After welding, the surface is machined flat to ensure a clean, leak-free fit. Built for serious trail use, from the Rubicon to Johnson Valley. Includes a lifetime guarantee.

Key Features

  • Part Number: R2436
  • Fits Jeep TJ, LJ, XJ, ZJ, MJ with Dana 30 front axles
  • Integrated steering stabilizer mount with 1/4" tabs
  • 3/8" thick A50 plate steel ring and cap
  • Cap bent 8 ways for added strength
  • Machined flat after welding for a perfect fit
  • Clamp is CNC machined from 1020 DOM (1.5" ID / 2.5" OD)
  • 1/2" threaded hole on clamp for stabilizer mounting
  • Includes 1/2" Allen head hardware
  • Lifetime guarantee

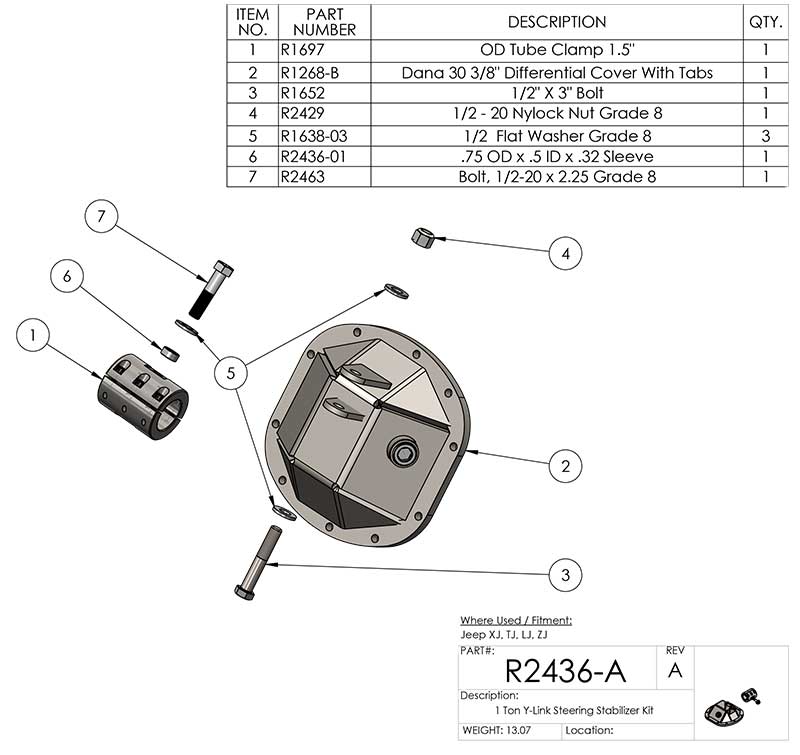

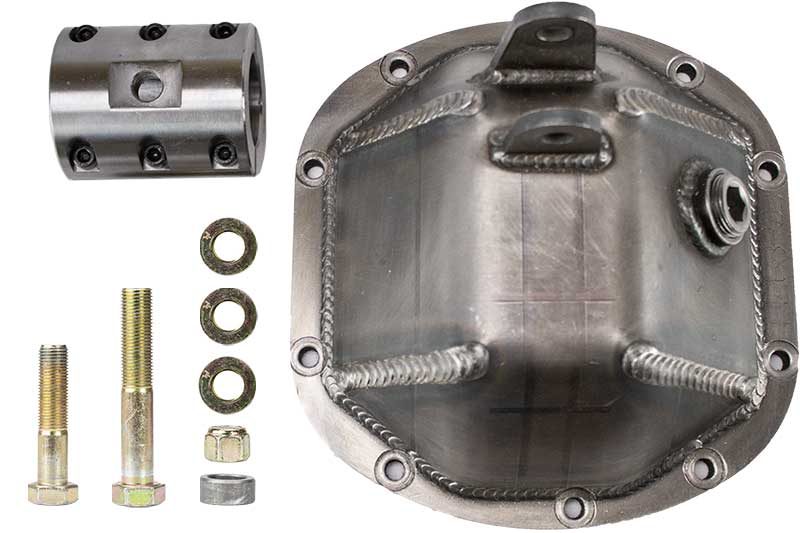

Kit Includes

  • (1) Dana 30 differential cover with stabilizer mounting tabs
  • (1) 1.5" OD steering stabilizer tube clamp
  • (1) 1/2" Allen head bolt and mounting hardware

Available Kit Options

Steering Stabilizer
  • No Steering Stabilizer

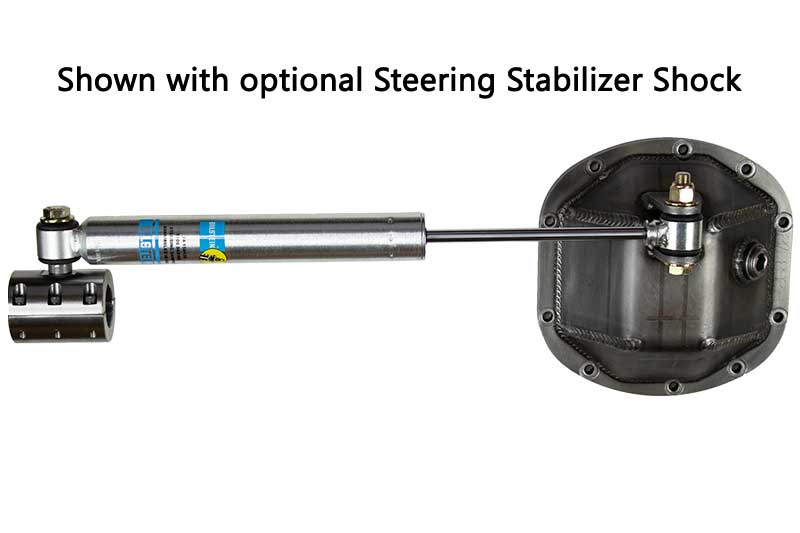

  • Bilstein Steering Stabilizer

Note: Welding required. Make sure installation is done with proper tools and technique.

Prop 65 Warning Icon
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 5 reviews
80%
(4)
20%
(1)
0%
(0)
0%
(0)
0%
(0)
L
Larry Davis
O.D. means (outside) diameter...

Can't install diff cover without modification to track bar or tracbar mount on the axle due to the fact that the tabs will interfere with the trackbar. You can't run the clamp unless you're running 1.5" O.D. tierod because the clamp is 1.5" I.D. and 2.5" O.D. Might be nice to mention those things in the description. Looks like somebody's getting a good deal when I post this on eBay.

J
Joshua Hickman
BEEFY!

Got this to add the stabilizer back to my XJ and damn, this thing is beef. Not to mention the welds look great, so quality and definitely not some chineesium crap of flea-bay special.

J
Joshua
Very well built product

Product itself is amazing the shock mount in the diff cover needs to be an inch higher to clear the tie rod.

G
George Stranski
98 xj heim steering stabilizer

This set up works great, only draw back is you won't be able to run OTK steering. You'll have to run the tierod under the knuckle. Highly recommend getting the Bilstein shock, it fits best and works well. Would upload a photo if I could. Only took about 30 minutes to install. Just make sure to turn your wheel full lock to passenger side before tightening down the clamp that goes on the tierod. Will update the review after a little more use, but has helped with some bump steer issues.

T
Timothy
Good product but could use some changes

Great product but stabilizer mount needs to be placed about an inch higher to clear one ton cross over steering
