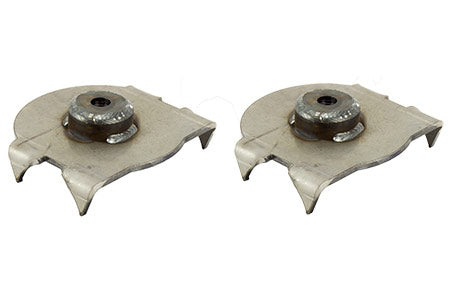

TJ Coil Spring Mounts – Weld-On for Stock Axle (Pair)

Jeep Wrangler TJ Coil Buckets

Heavy-Duty Replacement Coil Buckets for Dana 35 & Dana 44

These coil buckets are a direct replacement for the Jeep Wrangler TJ when running the factory Dana 35 or Dana 44 rear axle. Built entirely from 1/4" thick steel (both the plate and the tube), they’re ideal for rust belt repairs or when swapping in a new axle and wanting to keep the stock coil diameter—or run lift coils of the same size. The 6-5/8" diameter pad surface and 2-1/2" O.D. locator make them a perfect fit for TJ coils, while also working with many other spring types of similar dimensions.

Key Features

• Part Number: R2494
• Fits Jeep Wrangler TJ with Dana 35 or Dana 44 axles
• Made from 1/4" thick steel plate and tube
• Pad surface diameter: 6-5/8"
• Locator O.D.: 2-1/2"
• Works with stock or lift springs of matching size
• Sold in pairs

Kit Includes

• (2) Jeep Wrangler TJ coil buckets

Note: Welding required. Make sure installation is done with proper tools and technique.
