Dana 44HD Spring Perches, 2.5" wide
Part Number:
R1110-B-Kit-1
Shipping Weight: 8.0 lb
$30.60
$36.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Dana 44HD Spring Perches, 2.5" wide
Couldn't load pickup availability
Description
Description

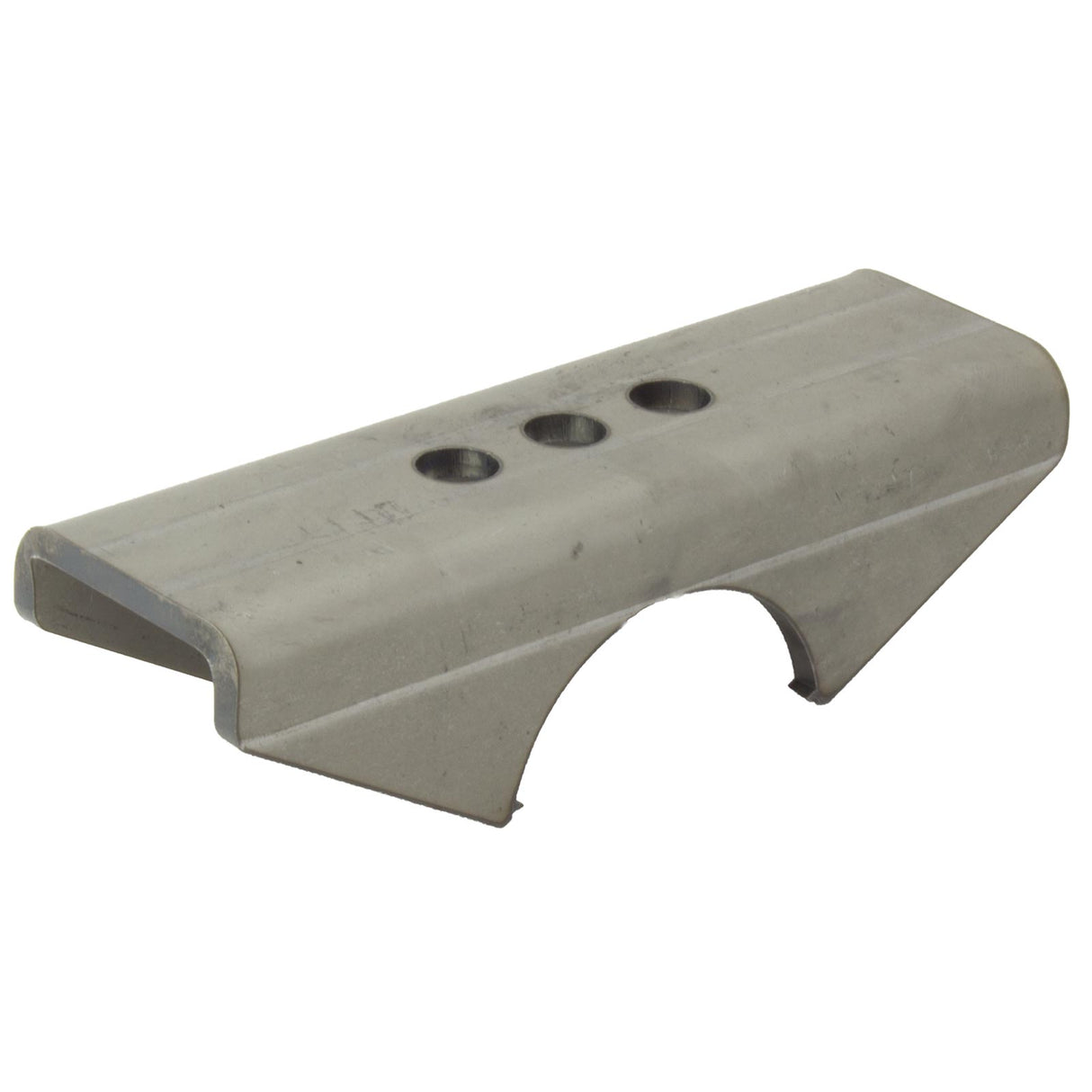

Dana 44HD Spring Perches, 2.5" Wide

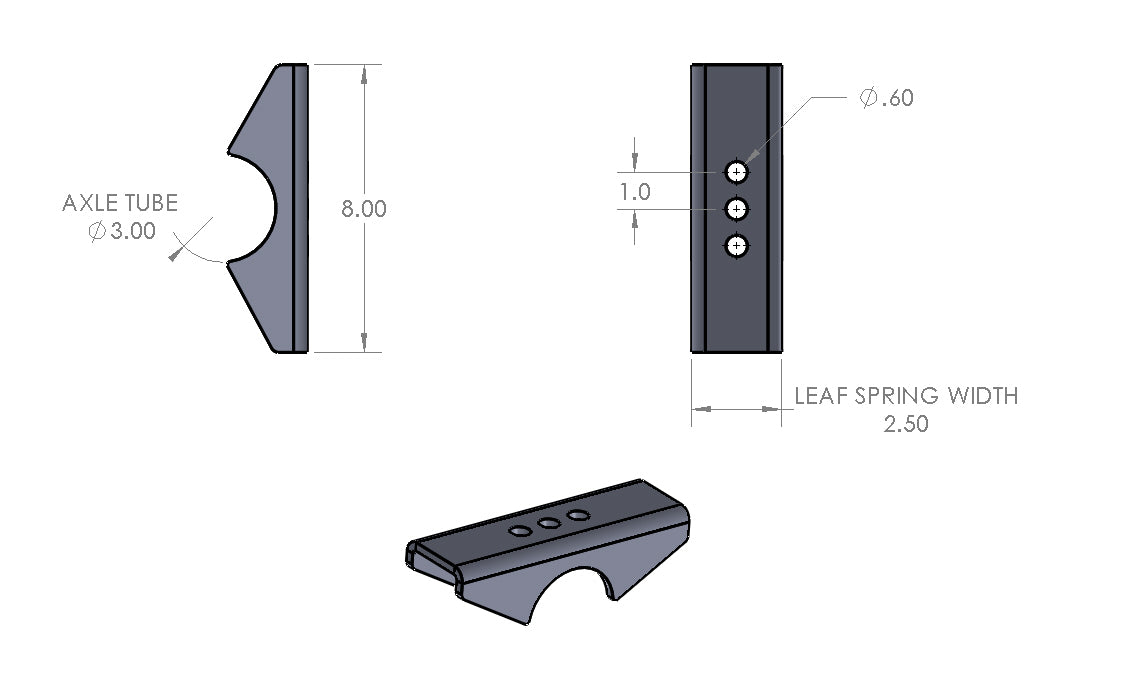

Weld-On Leaf Spring Perches for 3.0" Axle Tubes – Spring Over
These spring perches are designed for spring-over applications using Dana 44HD axles with 3.0" diameter tubes. Made from 1/4" HR P&O steel, they’re CNC laser cut and brake-formed for precision. At 8" long, they help reduce axle wrap, and the 2.5" width provides a stable base for leaf springs. The triple spring pin options allow for wheelbase adjustment during installation. Easily modified with a grinder to fit slightly larger or smaller axle tubes.
Key Features
- Part Number: R1110
- Fits 3.0" axle tubes (Dana 44HD)
- 2.5" wide spring mounting surface

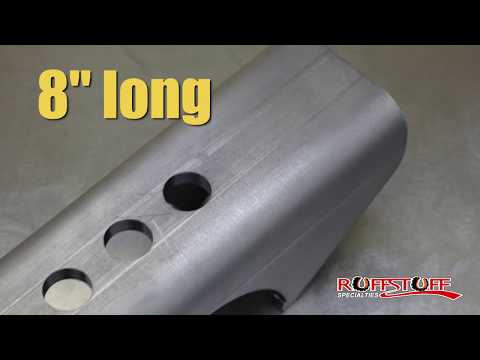

- 8.0" long for added anti-wrap support
- Made from 1/4" HR P&O steel
- Three spring pin mounting positions for wheelbase adjustment
- Sold in pairs
Kit Includes
- (2) Spring perches – 2.5" wide, cut for 3.0" axle tubes
Note: Welding required. Make sure installation is done with proper tools and technique.
