Jeep XJ 3-Link Crossmember Kit

Part Number: R2288-Kit-1
Shipping Weight: 138.0 lb
$1,275.00 $1,500.00
Shipping calculated at checkout.
Add Links?

Description

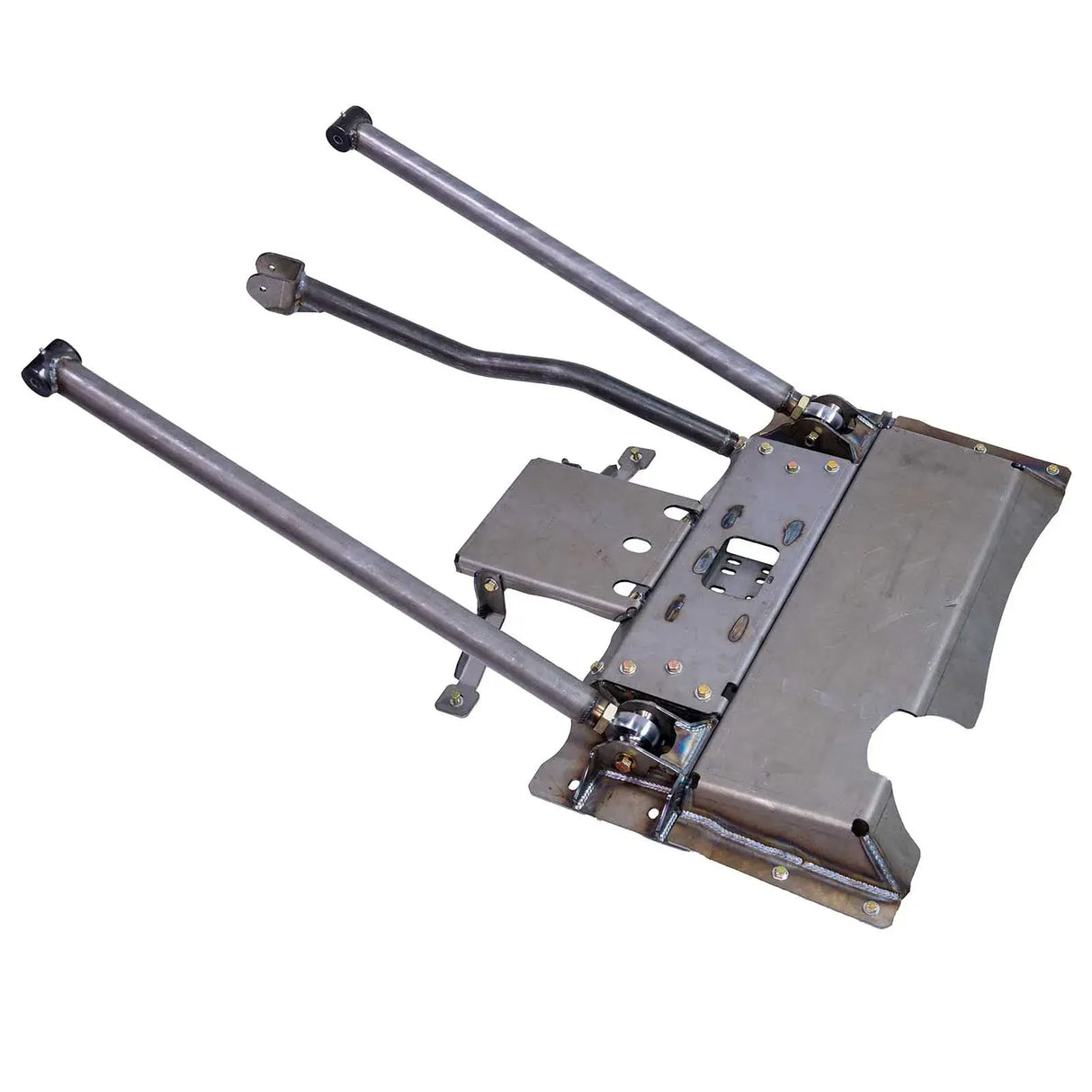

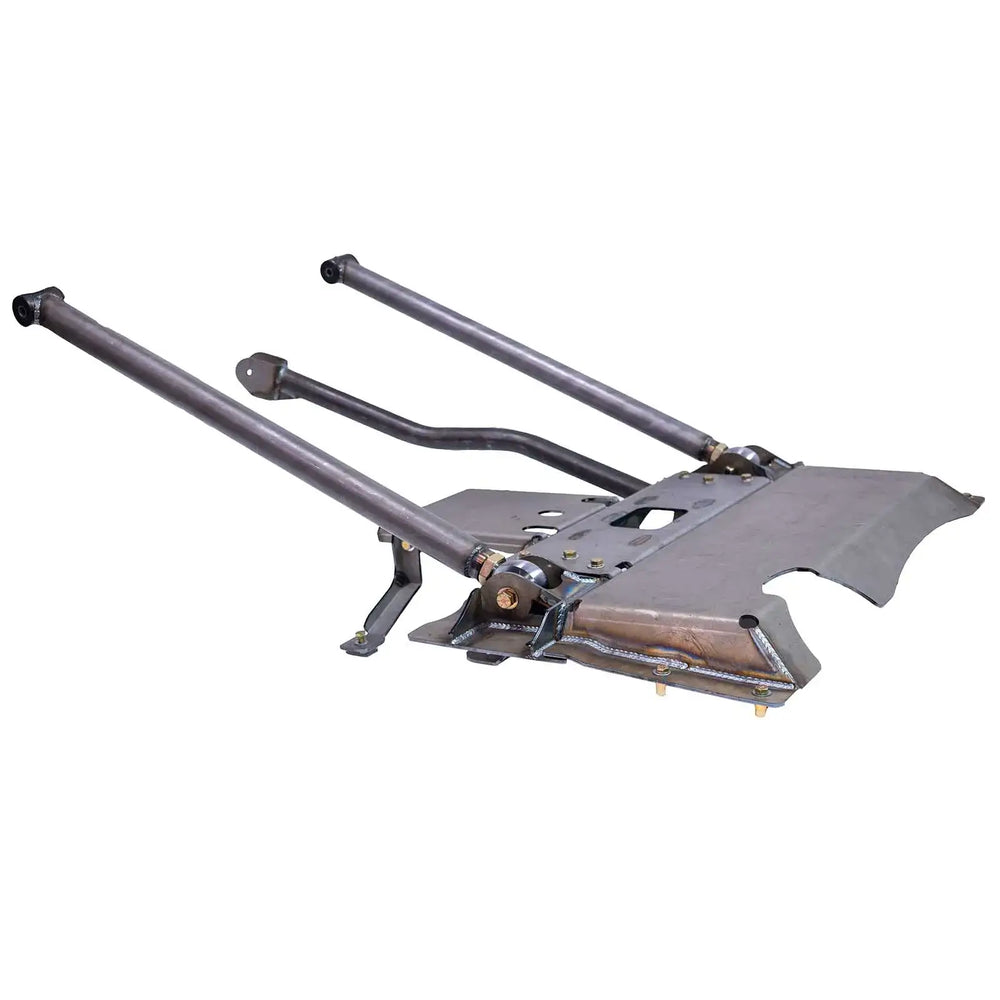

Jeep XJ 3-Link Crossmember Kit

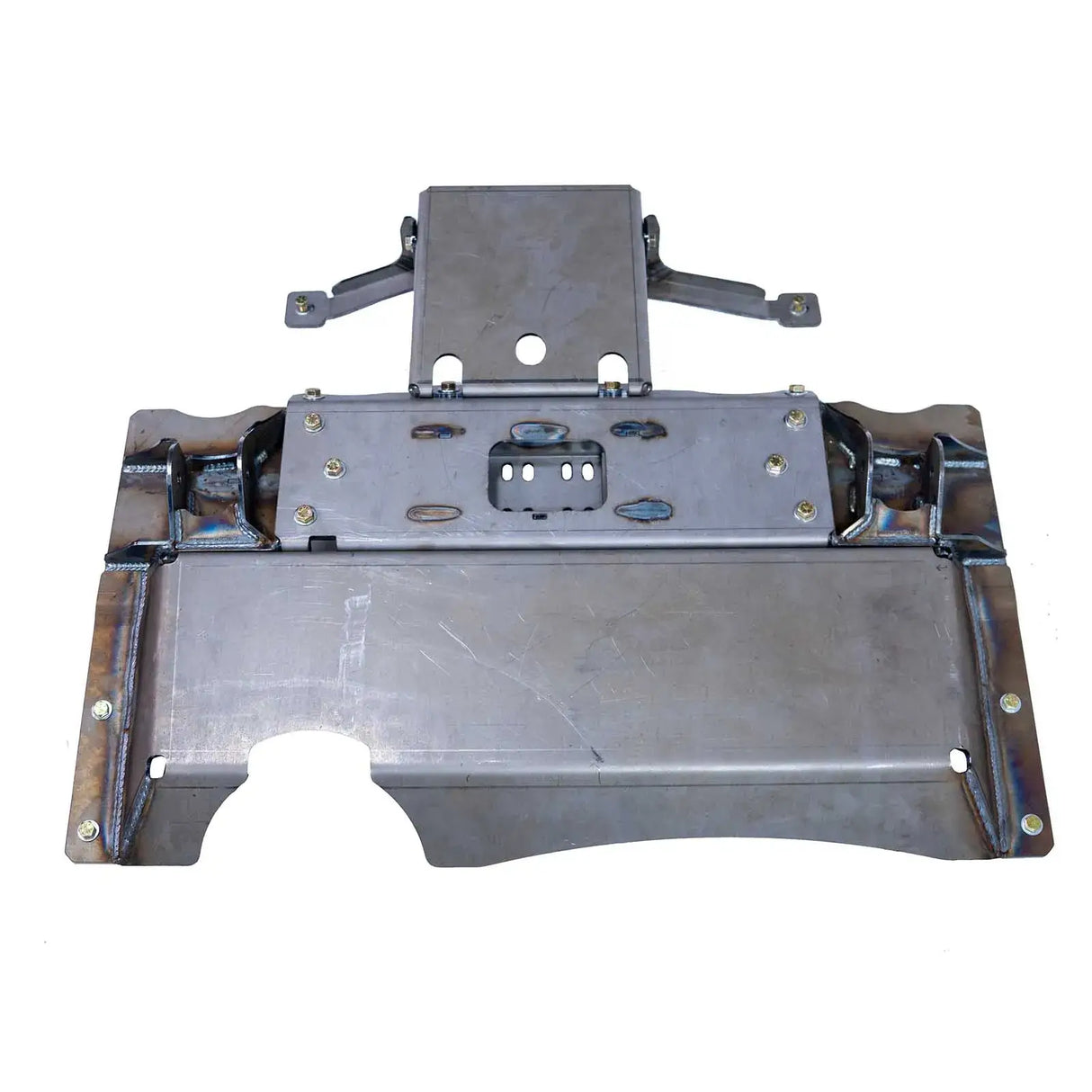

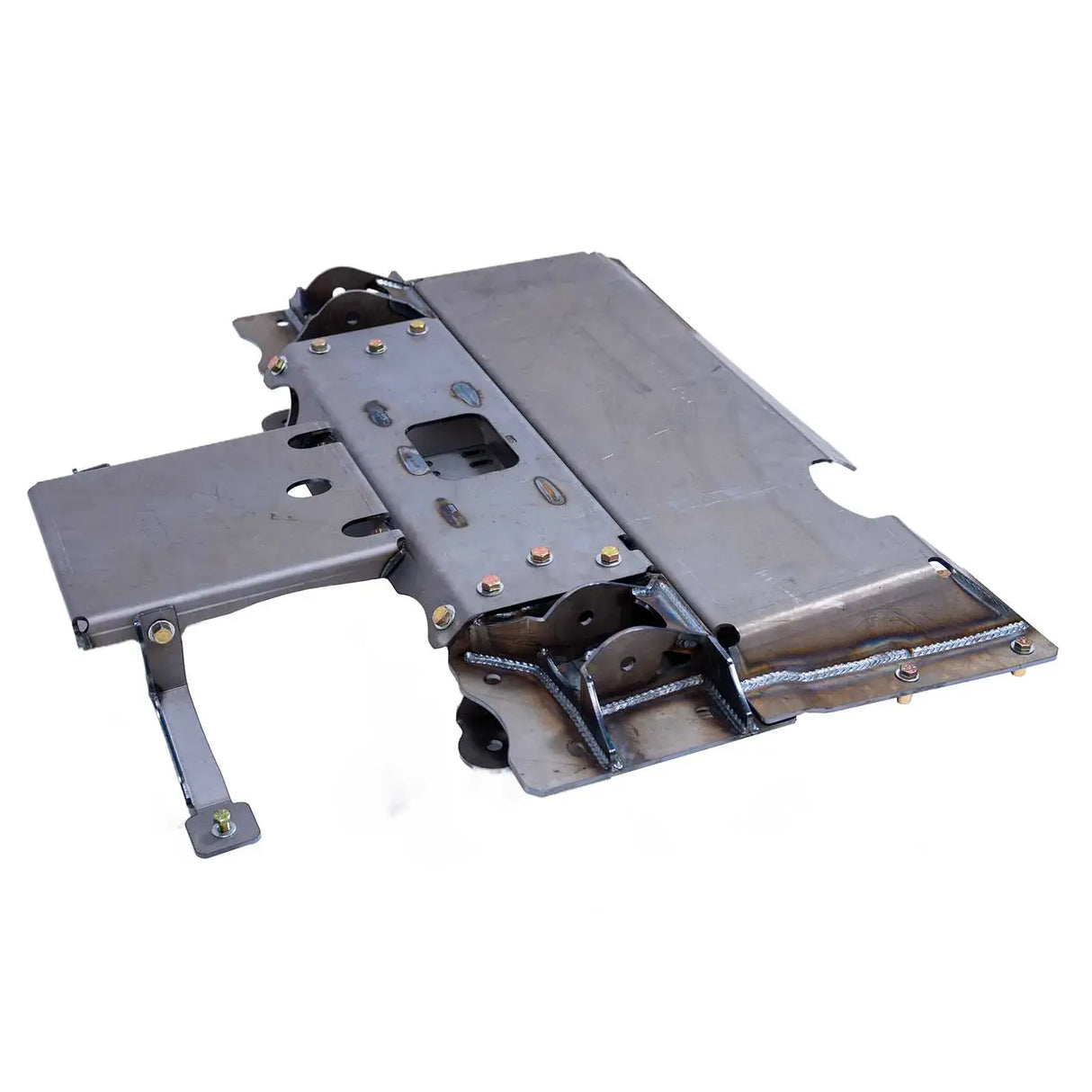

Integrated crossmember, skid system, and 3-link mount for Jeep Cherokee XJ.

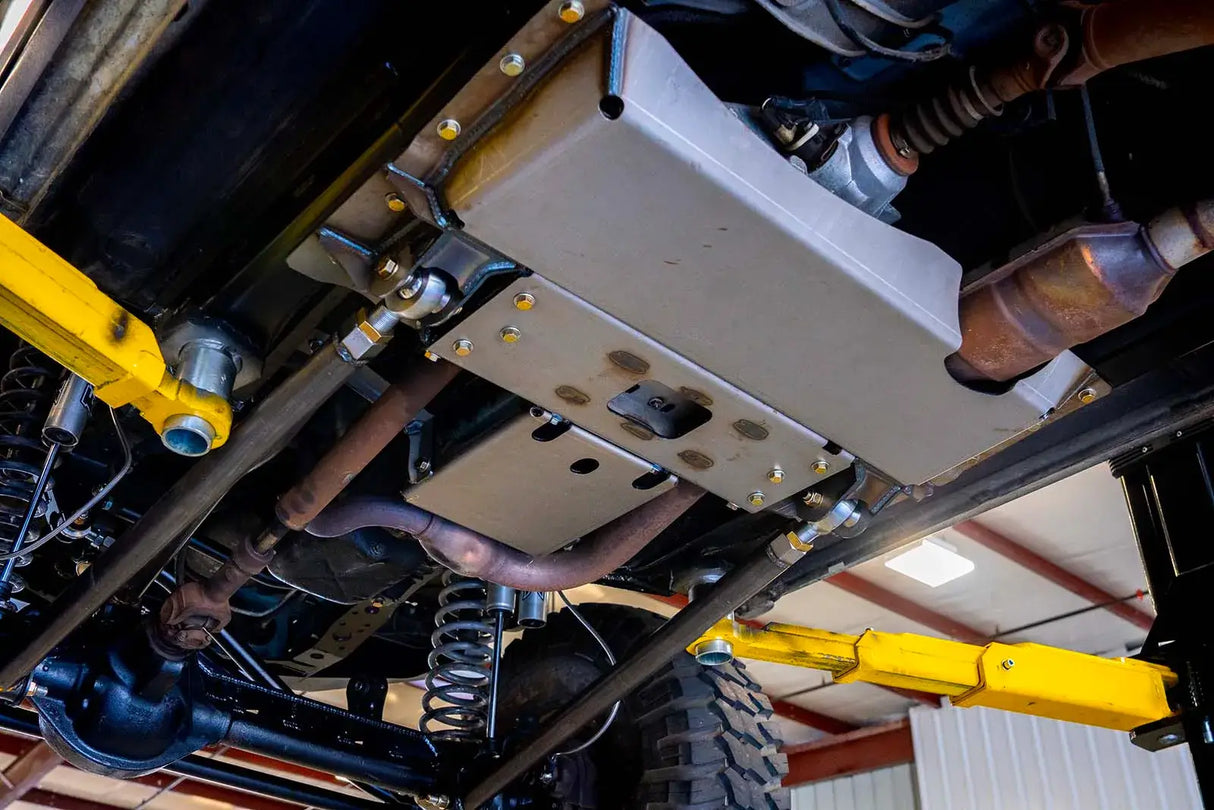

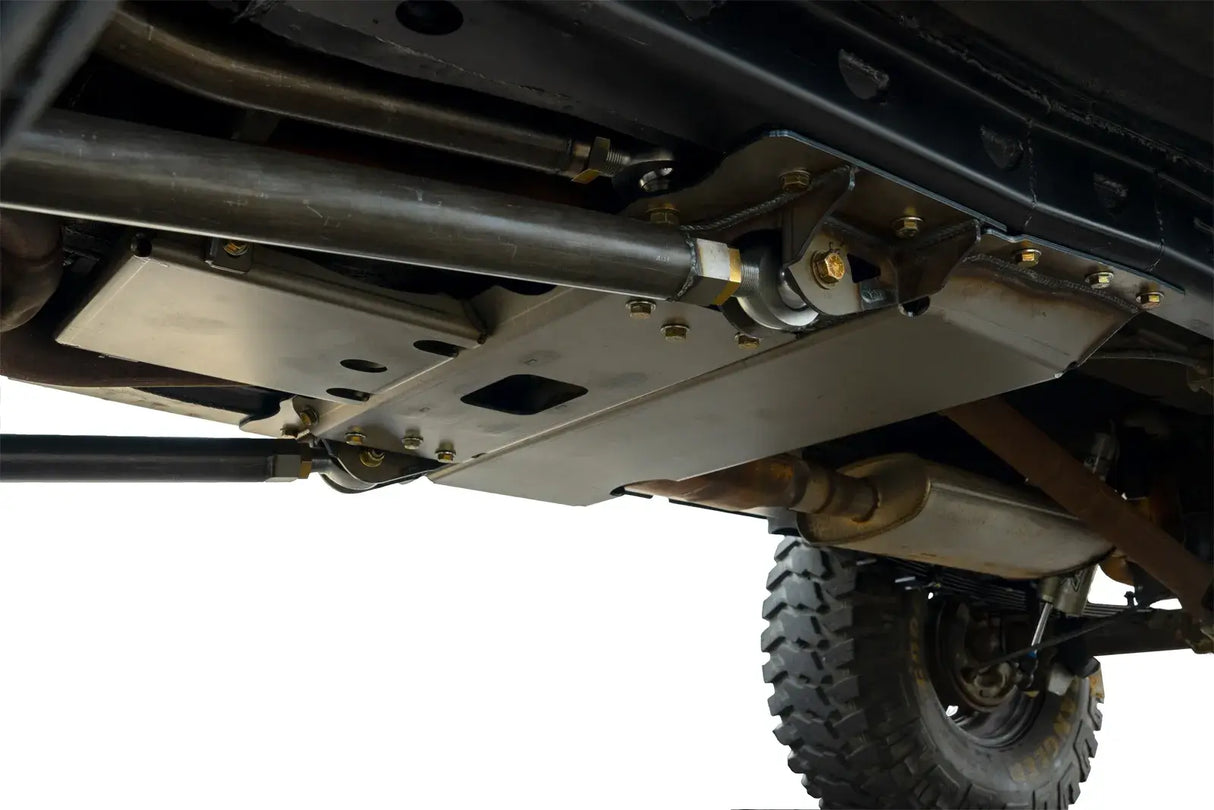

This kit replaces the factory crossmember with a full-width bolt-on system that doubles as a transmission skid and transfer case skid while also providing a mount for a front 3-link suspension. Built from 3/16" raw steel, it uses a 3-piece design for easier transmission access and can be installed as a bolt-on or welded to the frame brackets for extra reinforcement. The transmission skid support brackets mount through the floor for maximum rigidity. An optional link kit with 1.25" heims and DOM tubing is available for a complete setup.

Designed specifically for the Jeep XJ, this kit provides full drivetrain protection and a solid foundation for a 3-link suspension. All hardware and brackets are included, making it a comprehensive package for builders looking to strengthen their XJ’s undercarriage while upgrading suspension geometry at the same time.

Key Features

  • Part Number: R2288
  • Fits Jeep Cherokee XJ
  • Functions as crossmember, transmission skid, and transfer case skid
  • 3-piece design allows easier transmission service
  • 3/16" raw steel construction
  • Fully bolt-on; side brackets can be welded for strength
  • Transmission skid support brackets mount through floor

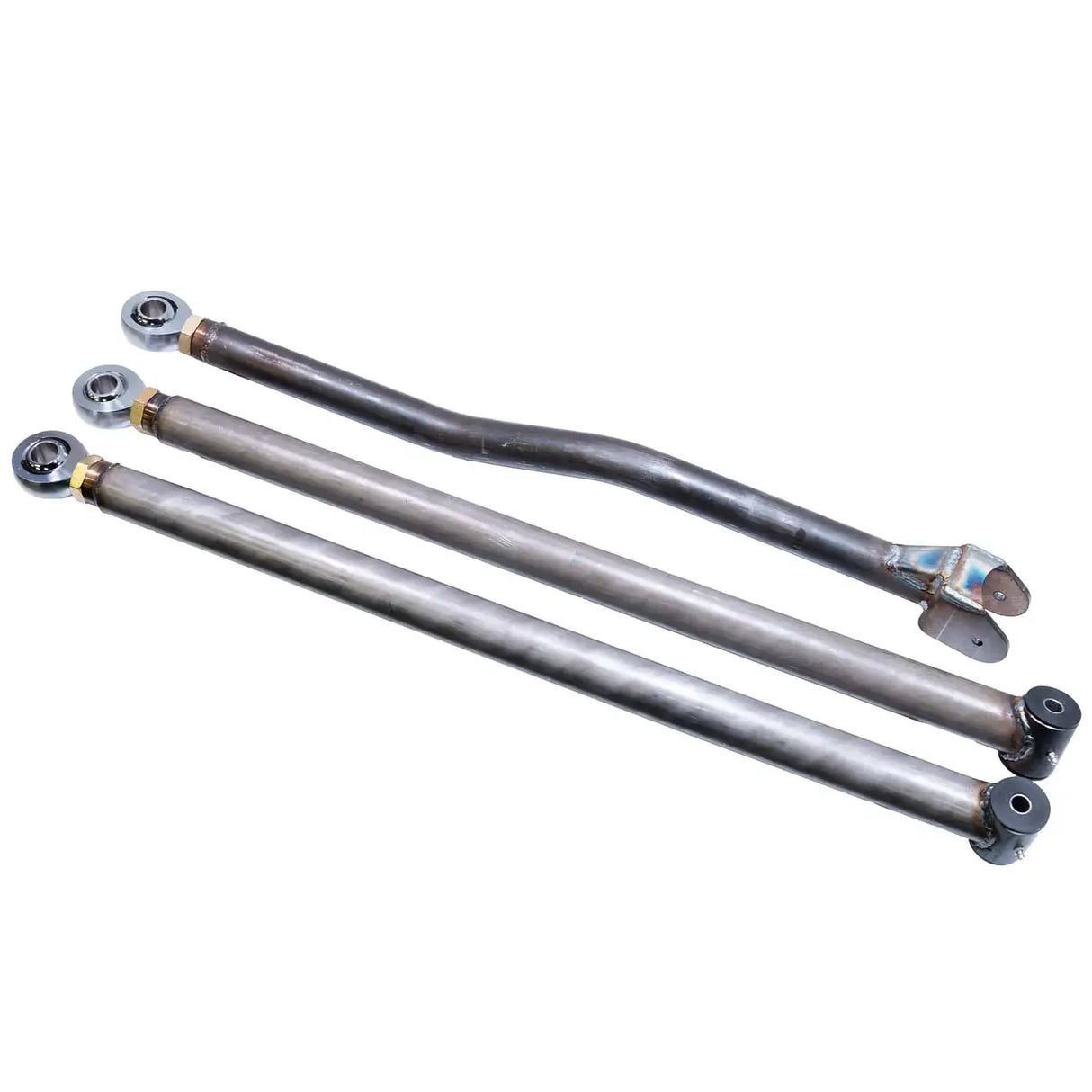

  • Optional 1.25" heim joint link kit with DOM tubing

Kit Includes

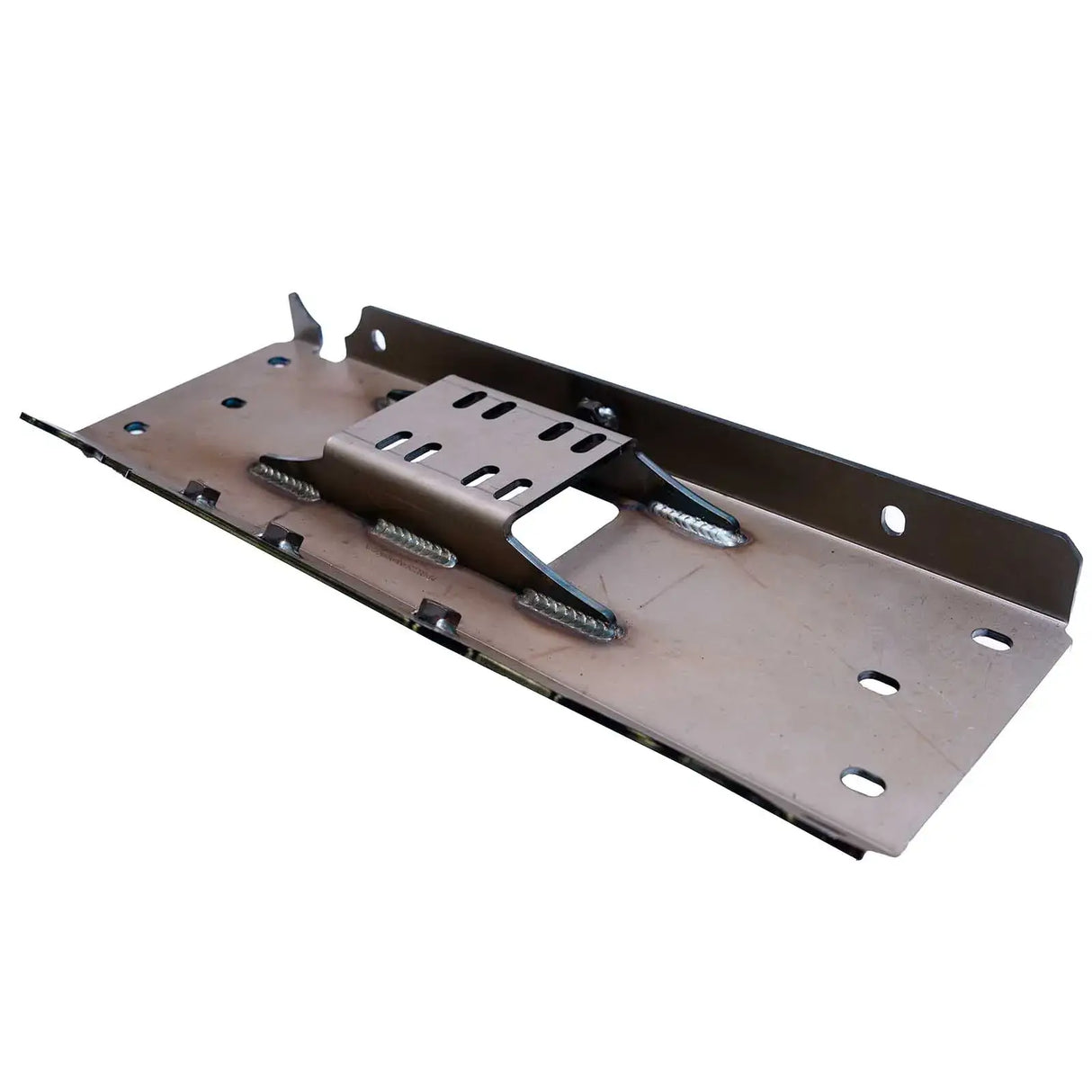

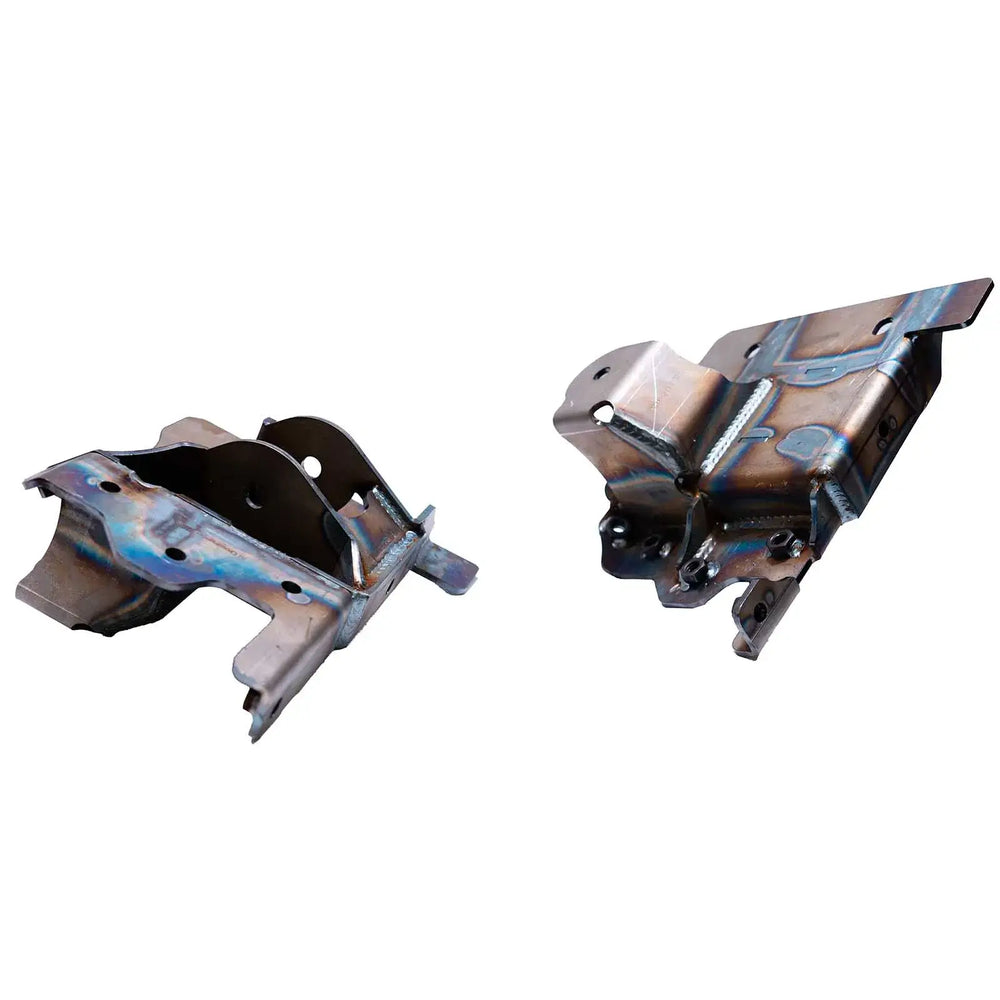

  • Crossmember and mounting brackets

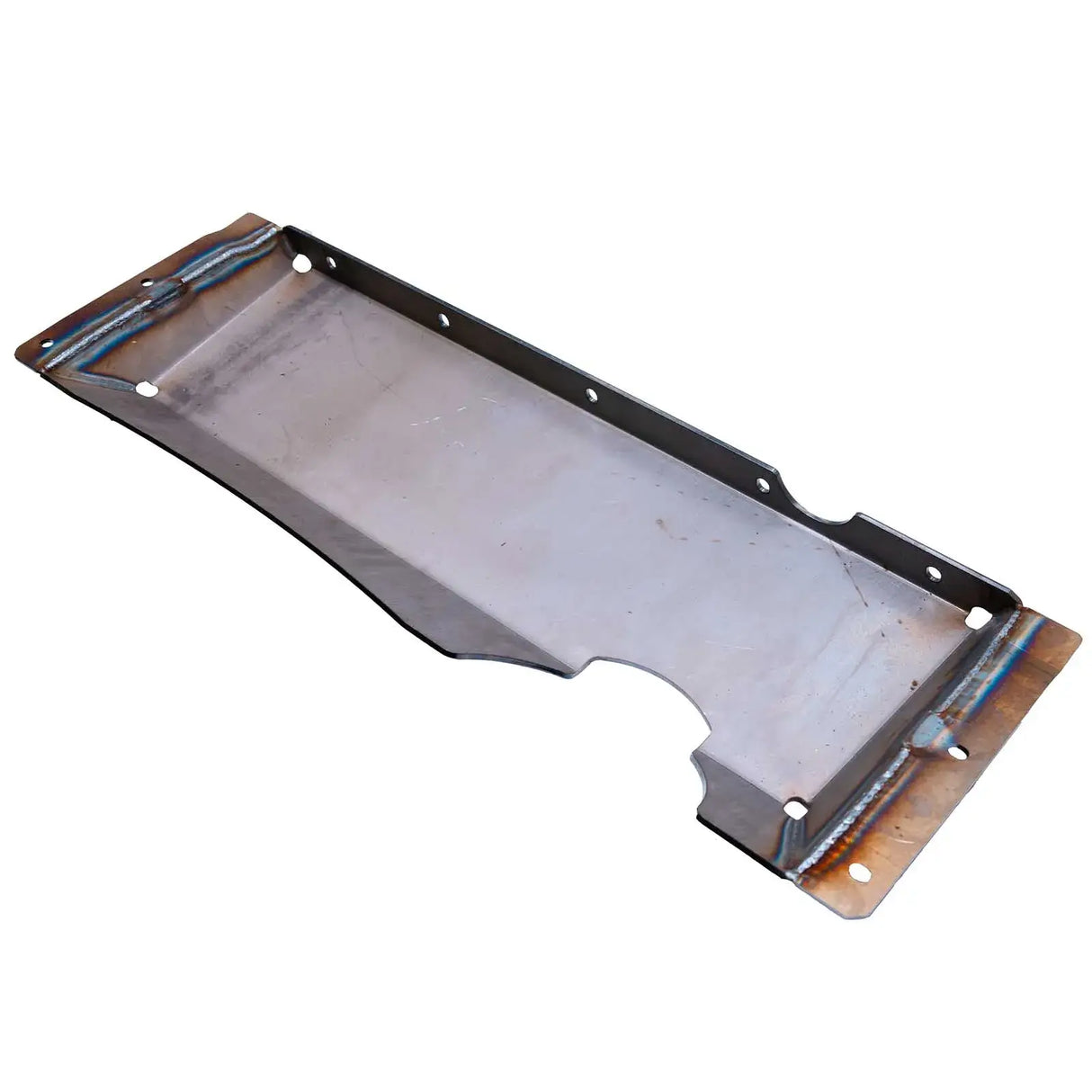

  • Transmission skid plate
  • Transmission skid support brackets

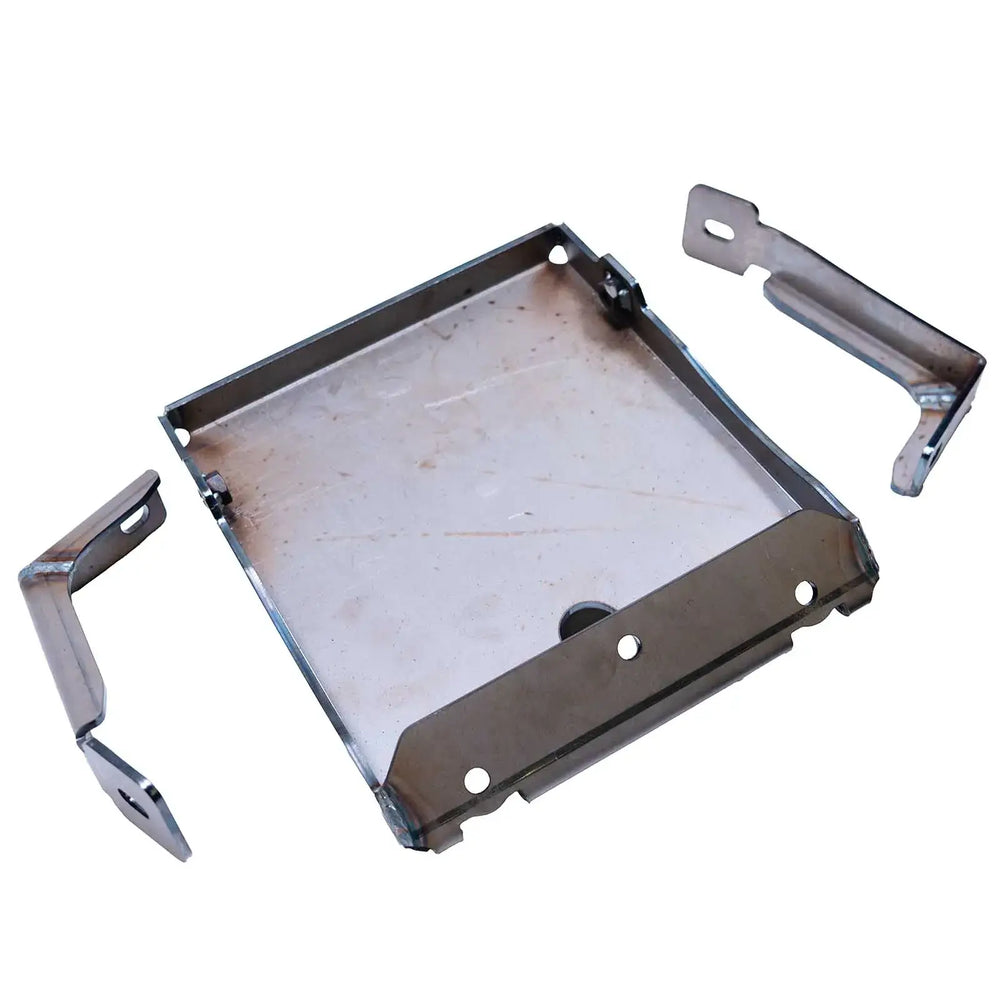

  • Transfer case skid plate
  • All mounting hardware
Available Kit Options

Add Links?



Note

Welding required for final installation. Ensure proper tools and technique are used.

Prop 65 Warning Icon
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
C
Cory
Good kit for the money (bought on sale), Additional link fabrication needed

Been putting off long arms as I've been torn between different pros and cons across different manufacturers.
Once I saw that RS was making one I took great consideration and eventually pulled the trigger during a summer sale.

Pro's:
competitive cost
Design
Included trans/T-case skid plates
Supporting a local Business (for me)

Cons:
Primarily the add-on links.

The Kit appears to be designed on a Cherokee with a 6.5-8in+ lift based on my observation as the links where minimum 3+ inches to long for my XJ.

Running a 4.5in lift and the axle centered in the stock wheel well position, I had to have the heims fully threaded in and still push the axle 3-4 inches forward causing compression/flex clearance interference with the track bar and top of the differential and my front bumper (so far), Which is going to require removing, cutting and re-bung and weld the links.

Not a huge fan of the front poly bushing setup and would like to see a flex joint such as Johnny joint's, etc. Possibly on the rears too but this is just personal preference.

In closing, I would recommend considering the kit. But would highly recommend saving some money and build your own links instead.

Additional notes: had some QC issues. But RS addressed that promptly and free of charge 👍

T
Tommy
Xj 3 link

I Seen the add as I was surfing for a 3 piece crossmember style long arm systems. I liked what I seen after comparing to several other brands. Decided to make the purchase and so far absolutely no regrets! Only took 2 weeks to get my order in which was far ahead of the other lead times. So far quality it's 110% there. Welds are fantastic, Cnc work is perfect, and overall design I'm very happy with. Several of my friends have already said that will be their next kit. Look forward to bashing on this kit in the woods for a very long time.
I highly recommend this kit.
