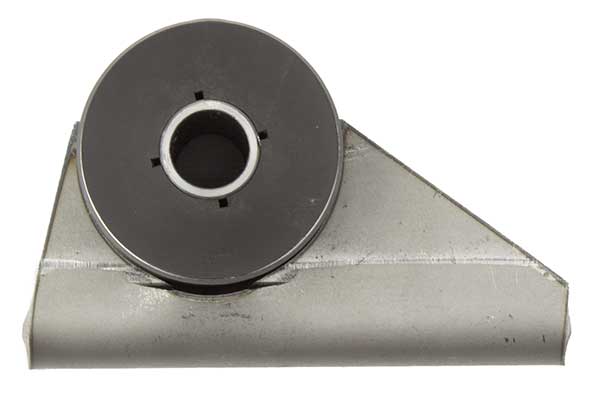

Shackle Hanger Pair

Description

Shackle Hanger Pair:

- Offset Mount with DOM Sleeve and Poly Bushings

- Heavy-Duty Weld-On Hangers for Leaf Spring Setups

- Adjustable Frame Placement

- Comes Unwelded

These shackle hangers are built for flexibility and strength. Designed with an offset profile, they let you position your shackle mount exactly where you need it — pulled back for longer wheelbase or pushed forward for tighter setups. Whether you’re dialing in departure angle or just working with frame constraints, these hangers give you the wiggle room to make it work.

The brackets are made from ¼” thick steel plate and includes a 2” x 1/4" wall D.O.M. outer bushing sleeve to ensure a lifelong mount for your leaf springs. Kit includes polyurethane bushings and D.O.M. sleeves (1/2" or 9/16") — everything you need to finish the job clean.

Note: Parts are shipped individually & will need to be welded together prior to install.

Fitment Tips:

• Measure your springs with bushings installed to confirm the size you need before welding

• Use silicone or lithium-based grease for proper bushing life

• Do not use petroleum-based grease or spray lubricants — they degrade poly and will void the warranty

Key Features:

• Material: ¼” thick steel plate with 2.0” x .25 wall DOM tubing

• Design: Offset profile allows for forward or rearward adjustment

• Includes: (2) D.O.M. inner & (2) outer sleeves, (4) polyurethane bushings, & (2) shackle hanger brackets. "Unwelded"

• Use Case: Leaf spring suspension setups – custom frame or axle swaps

• Made in the USA

• Sold as a pair
