Limit Strap/Seat Belt Bracket

Limit Strap/Seat Belt Bracket

Double shear bracket for seat belts or limit straps.

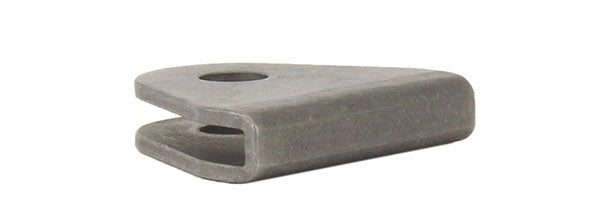

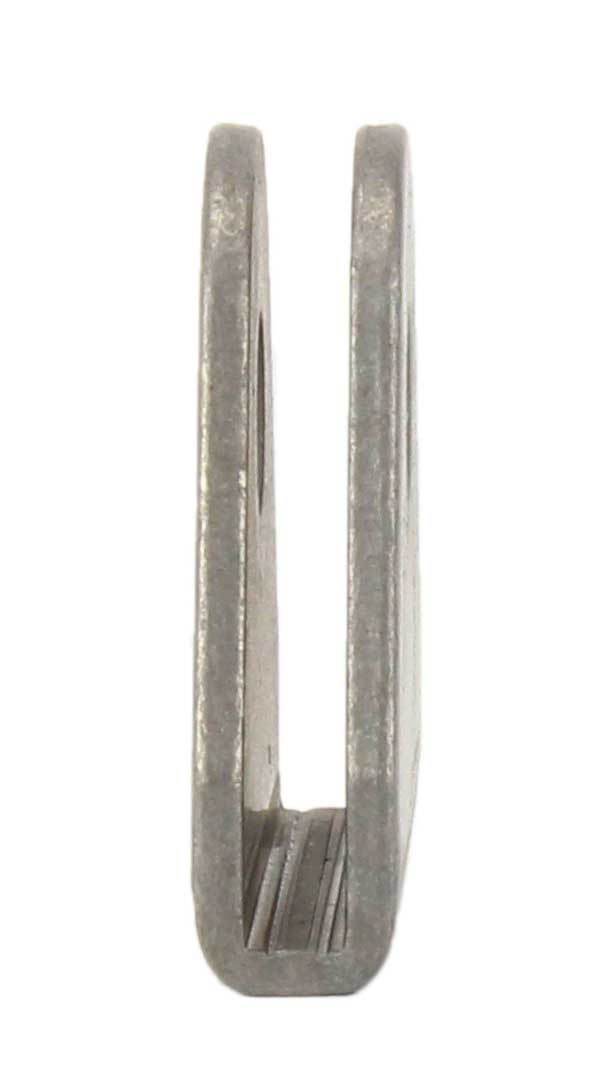

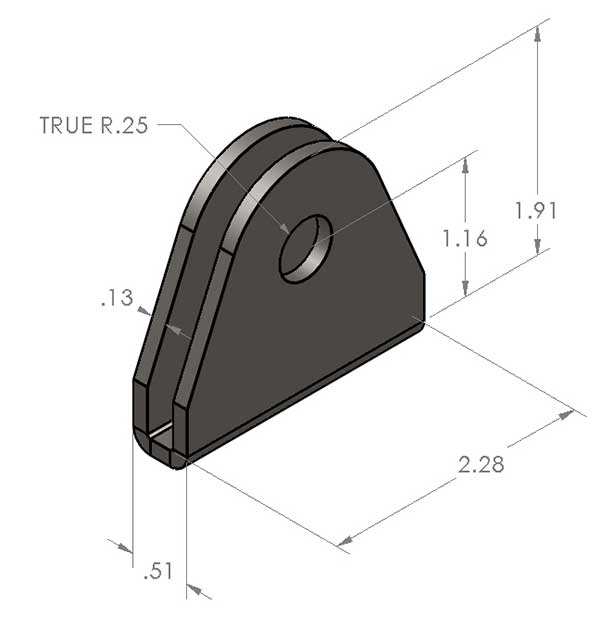

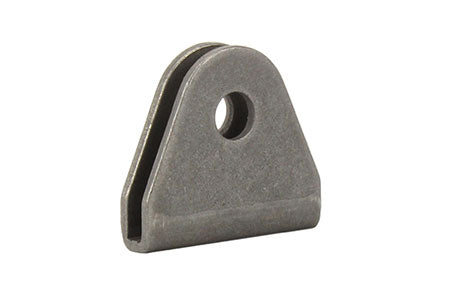

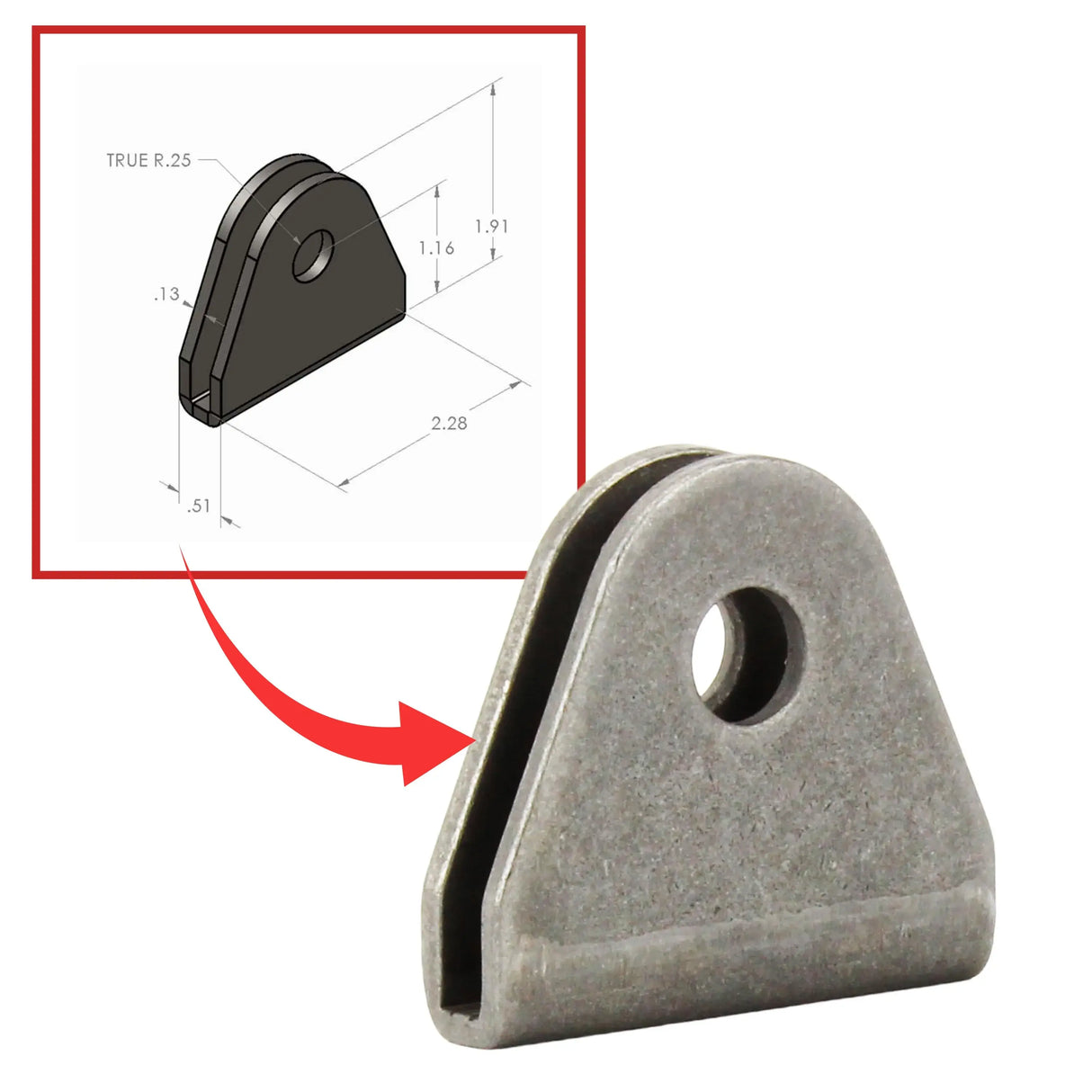

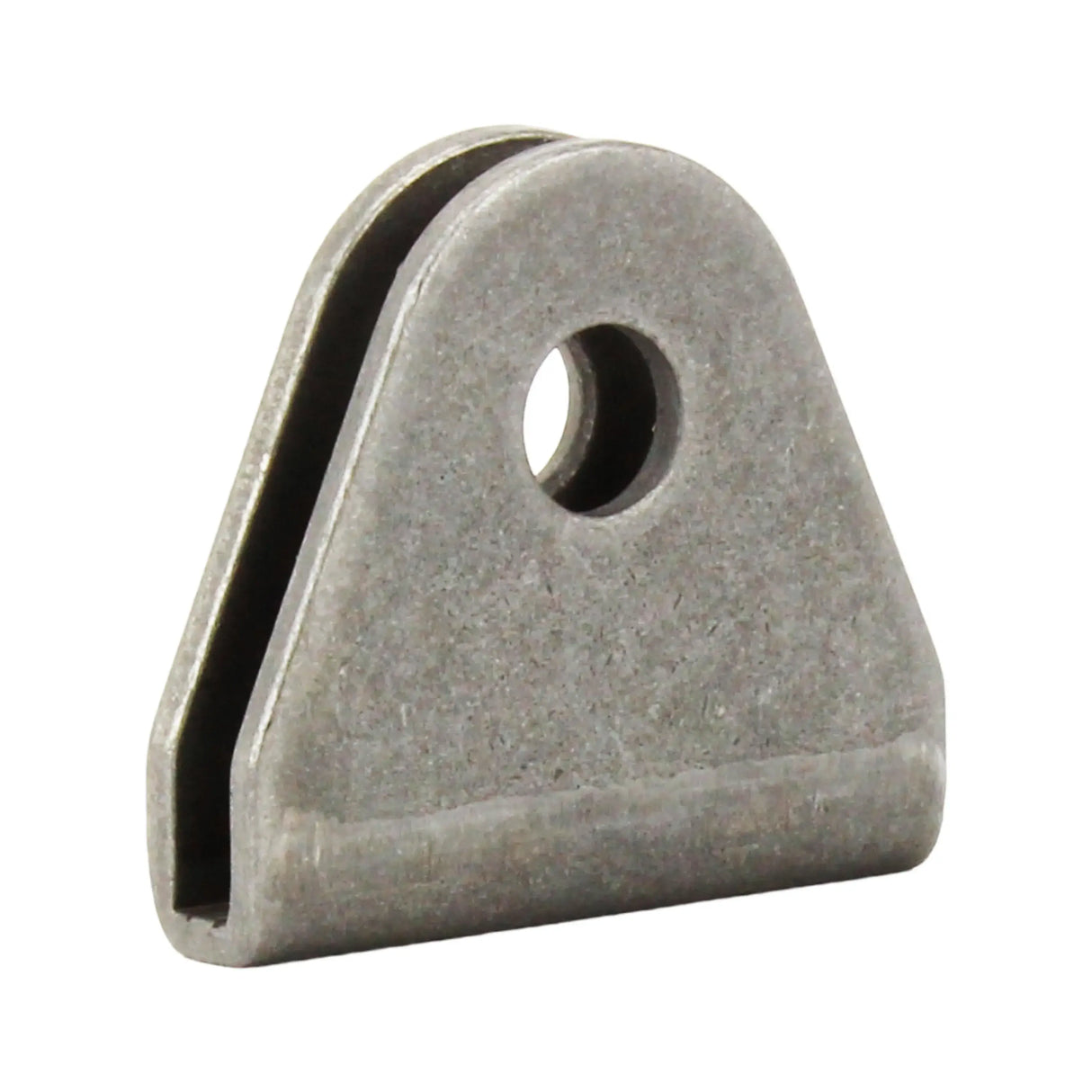

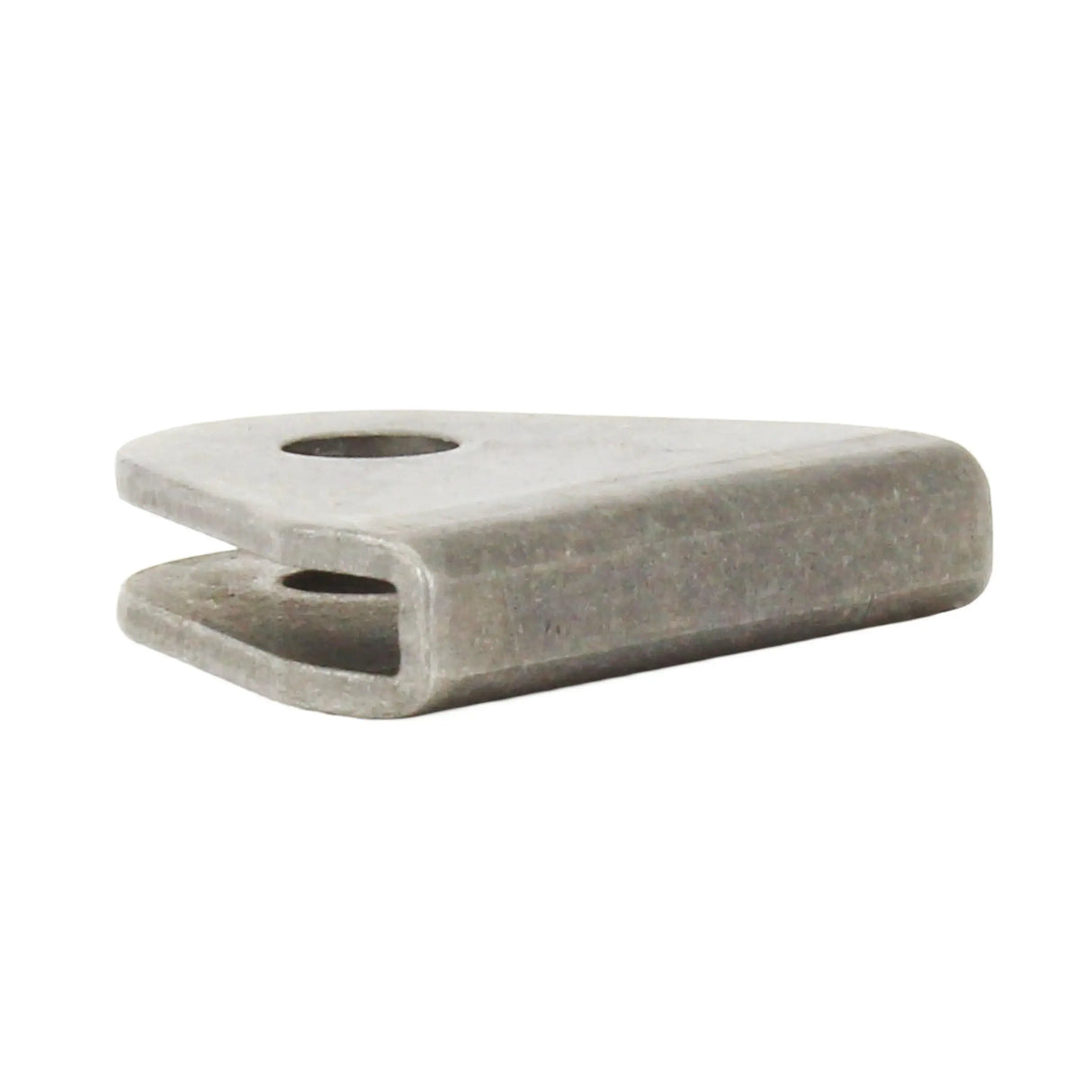

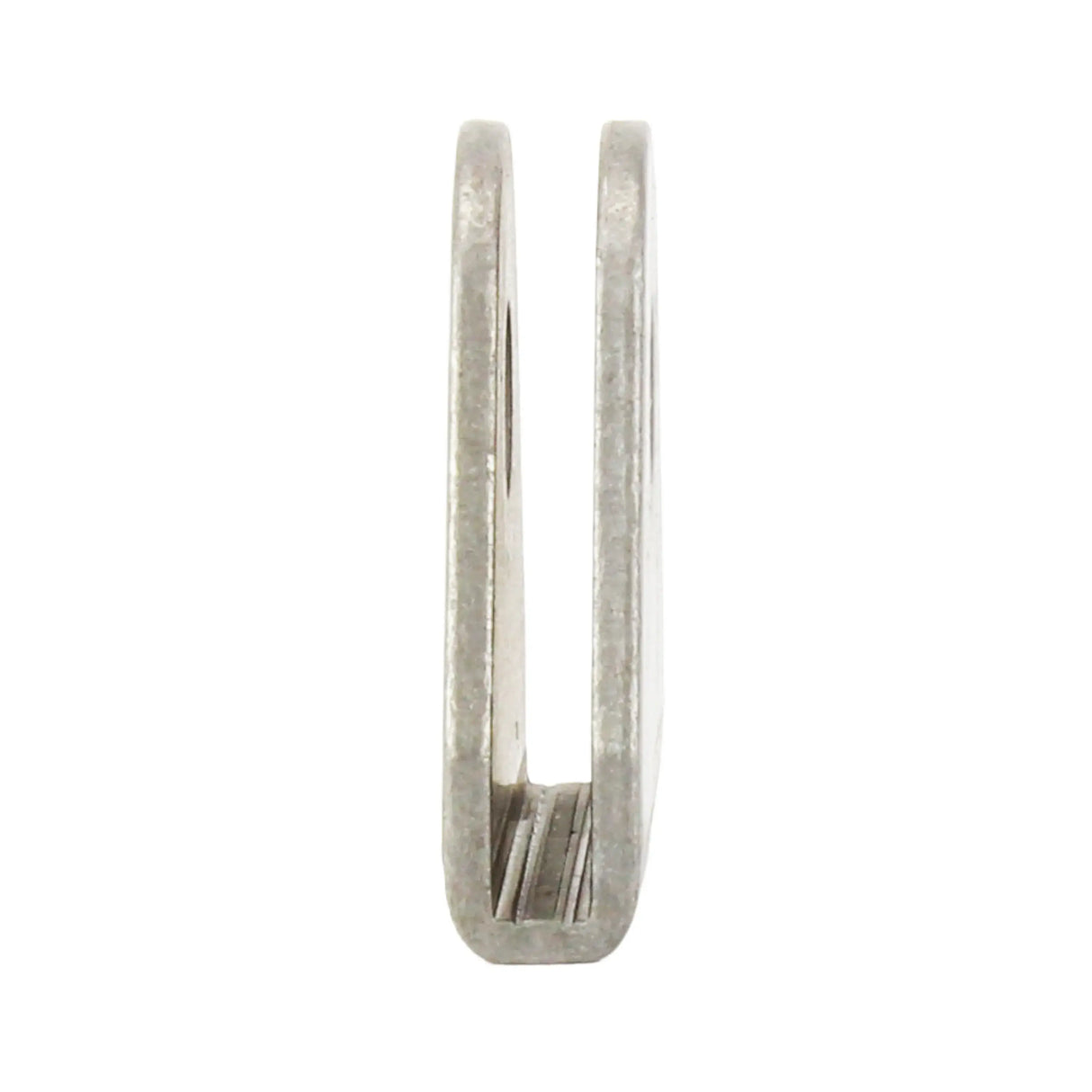

This bracket is designed for secure mounting of seat belts or limit straps in a double shear configuration. Made from 1/8" steel, it features a 1/2" bolt hole and a 5/16" gap, making it compatible with most seat belts and all Ruffstuff limit straps. The design provides extra strength and security by supporting both sides of the mounting point.

From the center of the hole to the welding surface measures 1.25", making them easy to position and weld onto your cage, frame, or chassis. Sold individually so you can order exactly what you need.

Key Features:

• Part Number: R1320
• Sold individually
• Made from 1/8" steel
• 5/16" inside gap for seat belts or limit straps
• 1/2" bolt hole
• 1.25" center-to-mount distance
• Double shear design for added strength

Available Kit Options:

Add Limit Strap Hardware?

What's Included:

• (1) Limit strap/seat belt bracket

Note:

Ships raw steel. Welding required. Clean and coat after installation to prevent corrosion.
