3.0" Axle Mount 0 Degree Link Brackets

3.0" Axle Mount 0 Degree Link Brackets

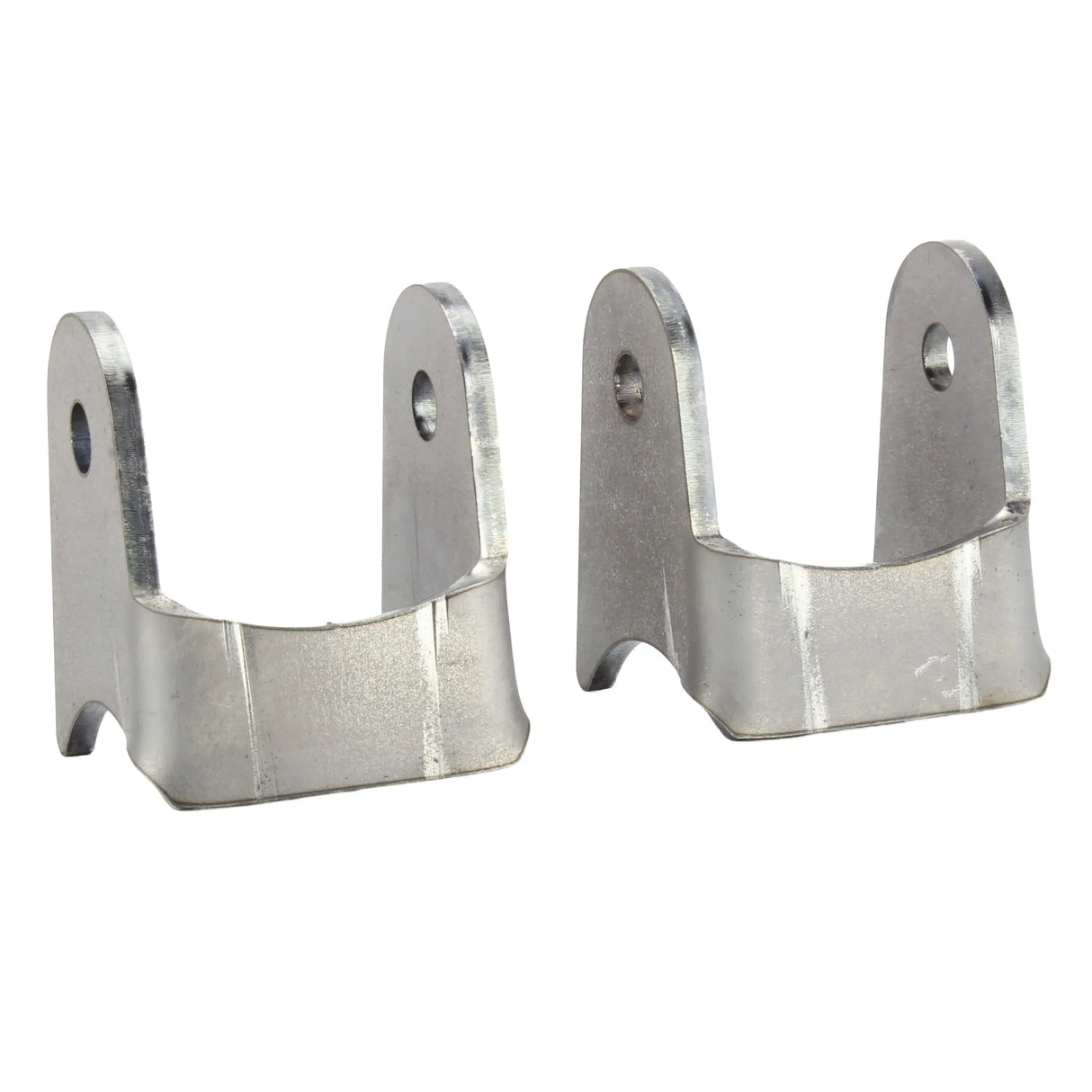

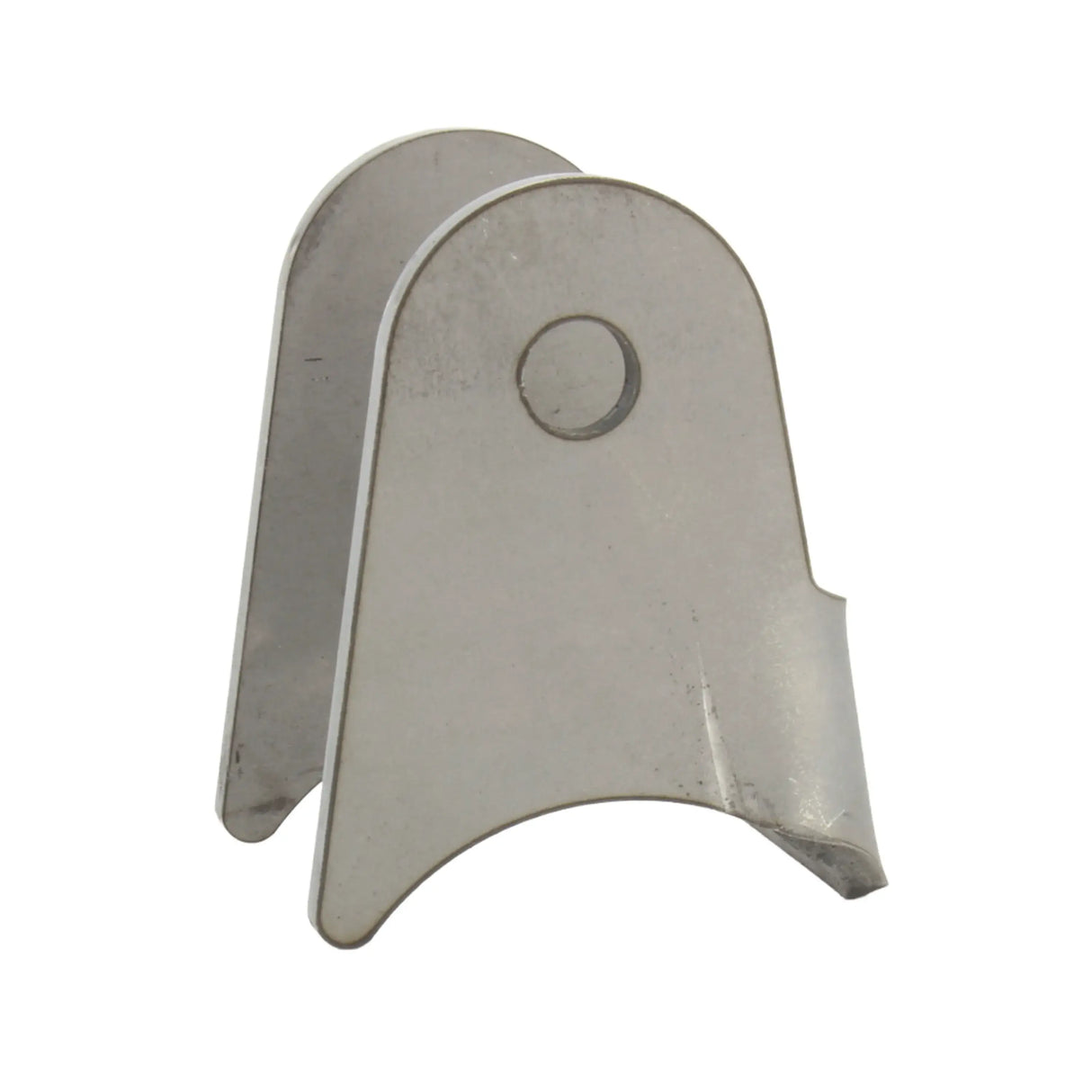

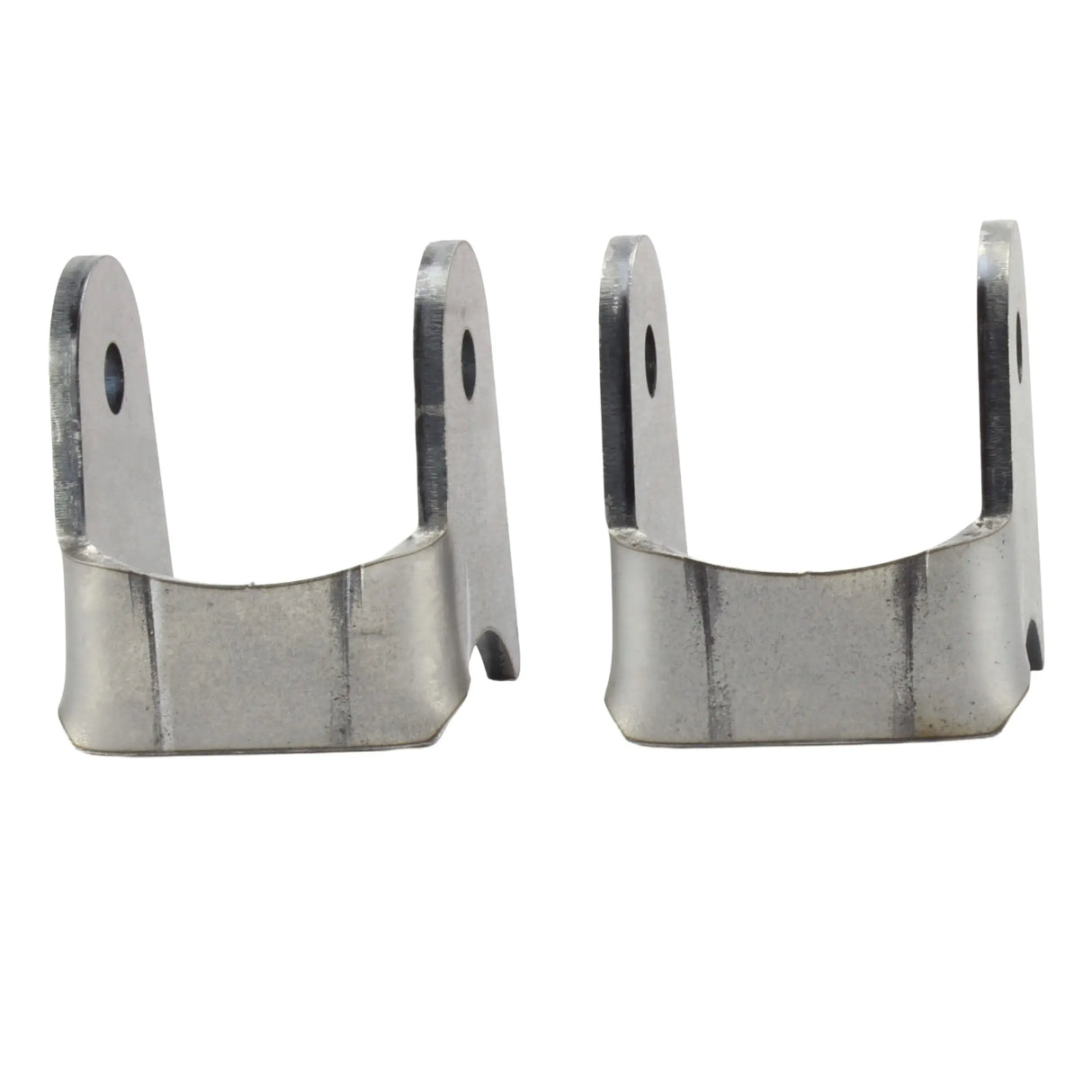

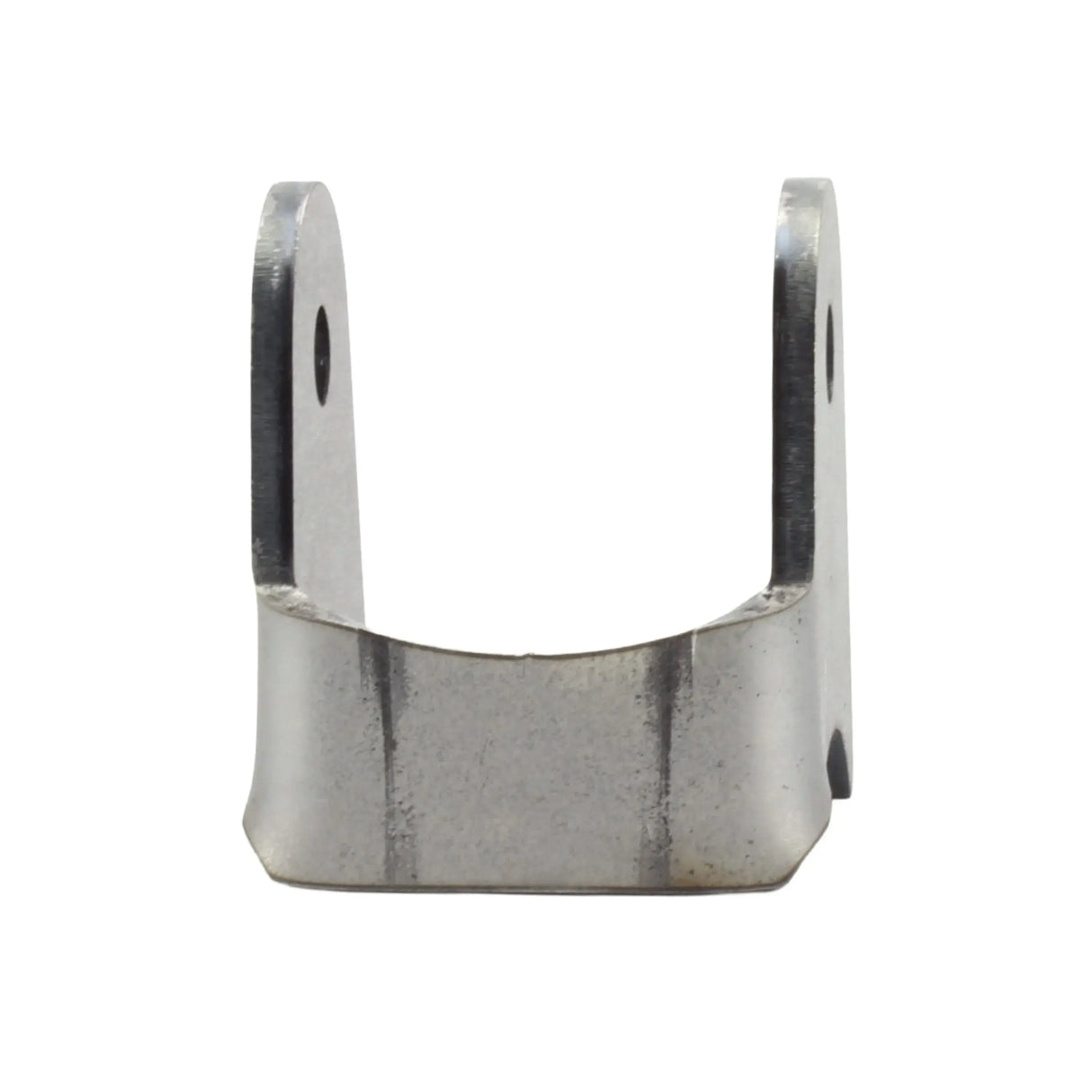

Flat-mount lower link brackets for 3.0" axle tubes

These axle link brackets are a solid solution for mounting the lower links on any 3-link or 4-link suspension system. Designed to fit a 3.0" axle tube, they’re easy to modify for other tube sizes with just a little grinder work. Built from .25" HR P&O steel, they feature an integral bridge bent directly into the bracket—eliminating weld-related stress points and adding serious strength where it counts. The brackets offer a standard 2.625" inside width and come drilled for 9/16" bolts, which is common in off-road link setups. If you need to run a larger bolt, no problem—they’re easy to drill out.

Key Features

• Part Number: R1038
• Axle Tube Fitment: Cut for 3.0" tubes (easily modified for other sizes)
• Mounting Angle: 0° for straight axle mount setups
• Material: 1/4" HR P&O steel plate with integrated bridge
• Bracket Width: 2.625" inside width – works with standard joints
• Bolt Hole: Drilled for 9/16" (.5625") bolts – easily drilled for larger sizes
• Application: Lower link mounts for 3-link or 4-link suspension

Sold as a pair
