Adjustable Axle Mount Link Tower (Driver FRONT)

Adjustable Axle Mount Link Tower (Driver Front)

Heavy-Duty Adjustable Tower for Precise Link Geometry

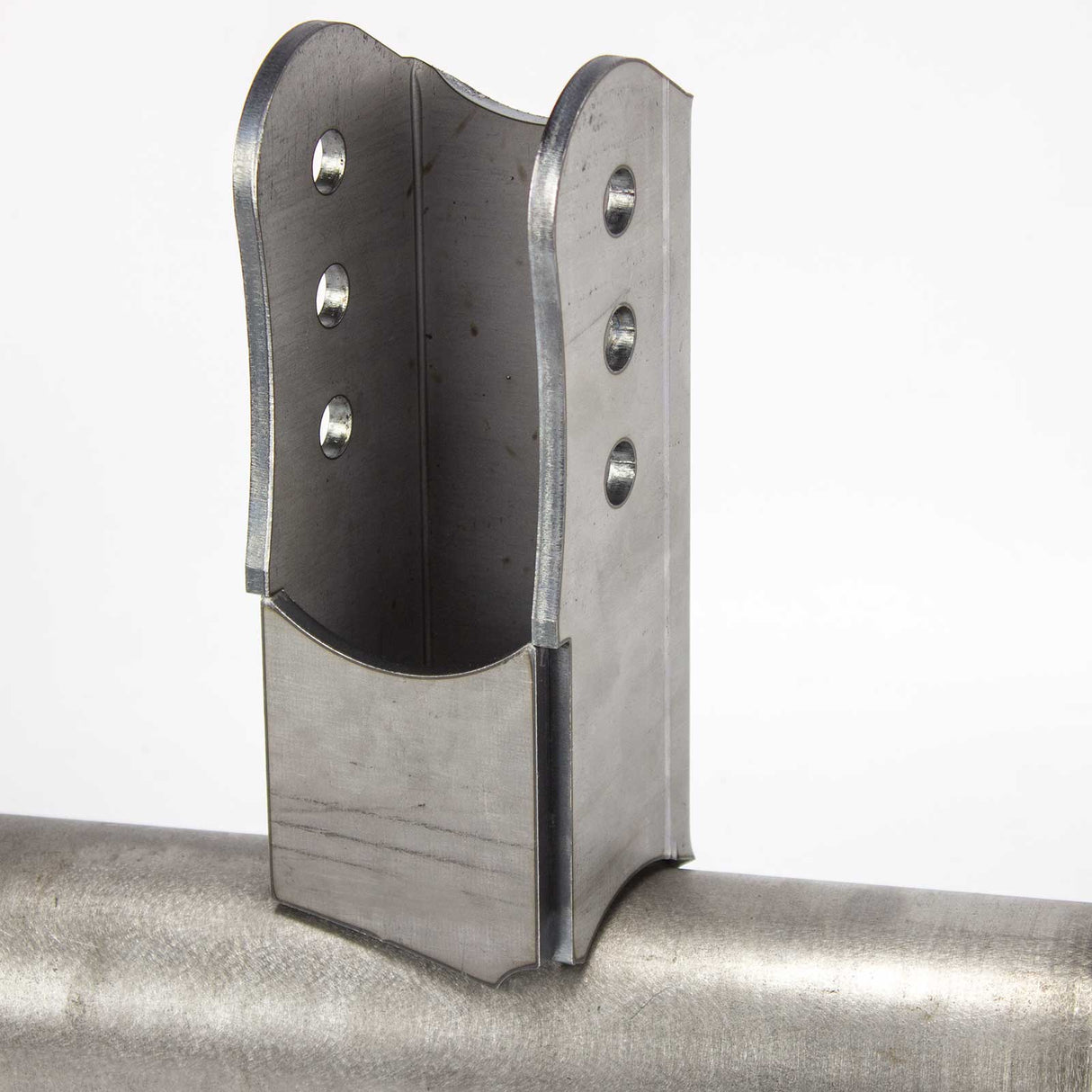

The Adjustable Axle Mount Link Tower is built for front axle applications in 3- or 4-link suspension systems. Made from 1/4" A36 steel, it mounts over the axle tube center for maximum weld contact and strength. Its bent-leg design (set at 10°) improves clearance, while three 9/16" holes spaced 1" apart let you fine-tune link separation and squat. The keyed boxing plate ensures easy setup and a fully boxed, rigid structure. Designed with a 2 5/8" inside mounting width. Sold individually.

Key Features

• Part Number: R1076
• Made from 1/4" thick A36 plate steel
• Designed for front axle driver-side application
• Bent-leg design with 10° angle
• Three 9/16" holes spaced 1" apart for adjustability
• 2 5/8" inside mounting width
• Keyed boxing plate for easy alignment
• Mounts over axle tube center for maximum weld area
• Sold individually

Note: Left and right (driver and passenger) are based on a front-end application. For rear use, order the opposite side.
