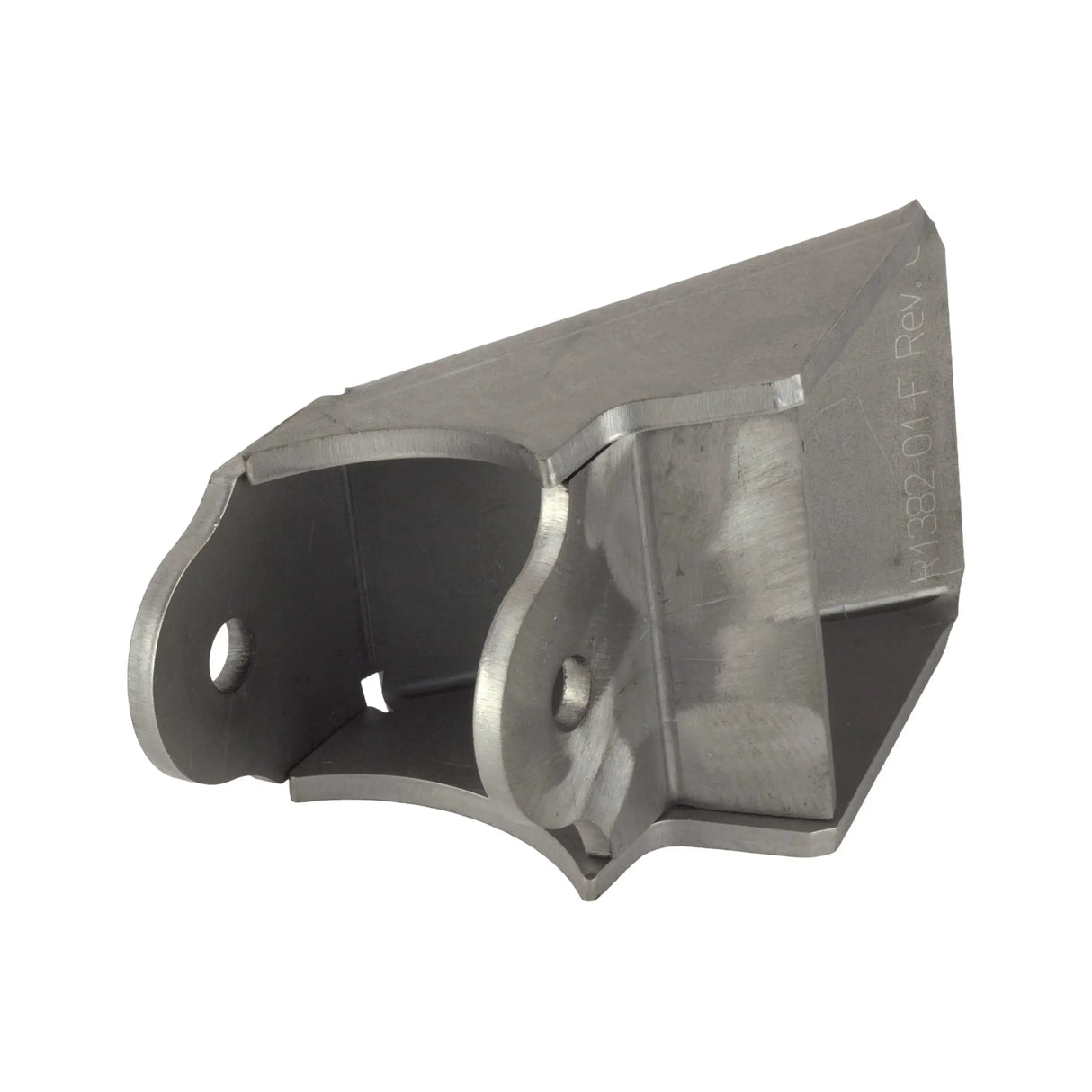

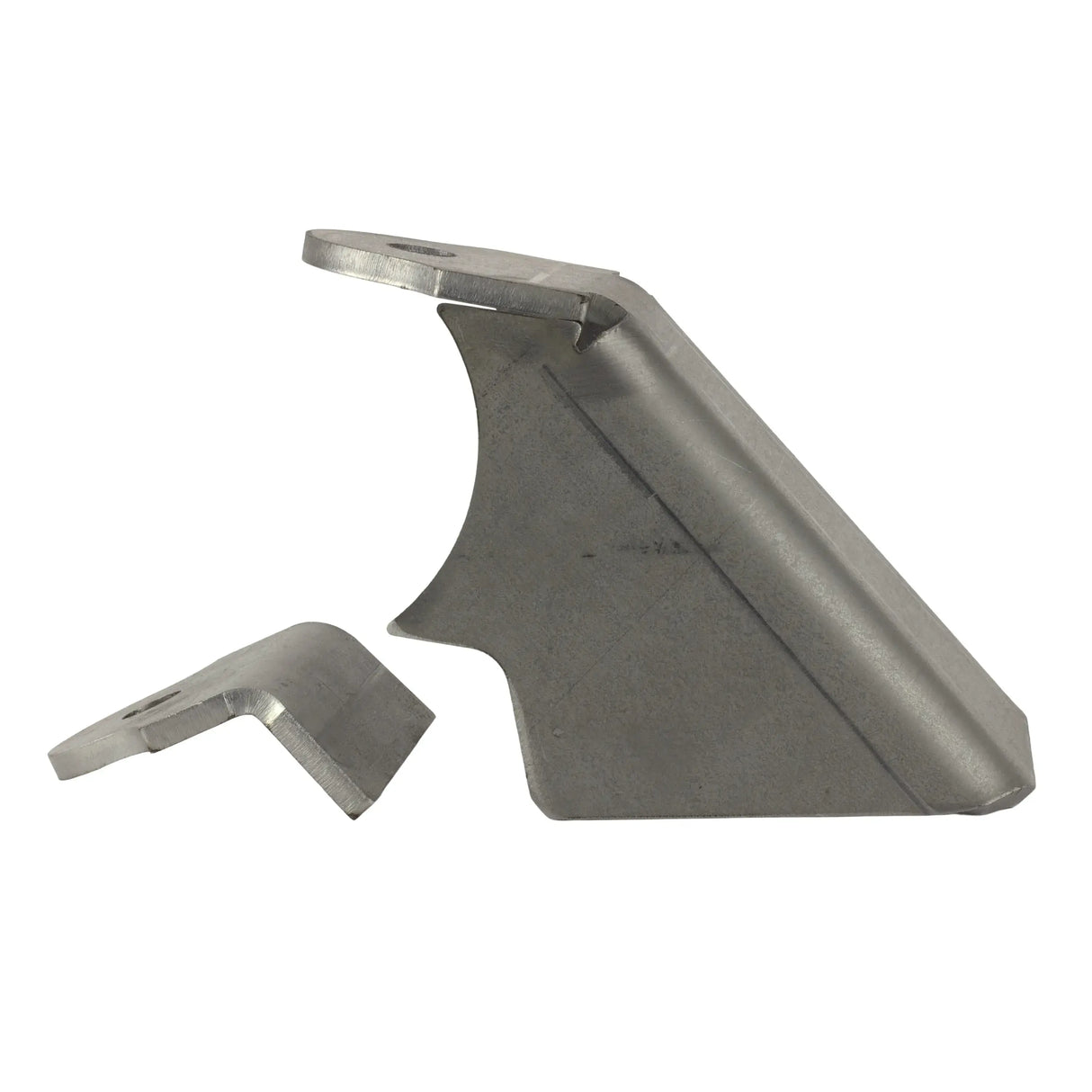

3 Legged Link Bracket, 10 Degree

3 Legged Link Bracket, 10 Degree

Compact, angled bracket for tight-space 3-link or 4-link setups.

The updated 3 Legged Link Bracket is a more compact and lighter version of our original RuffStuff design, made to fit into tighter spaces without sacrificing the strength needed for demanding off-road suspension setups. Perfect for custom 3-link or 4-link systems, this bracket is built from a combination of 1/4" outer plates and a 3/8" thick center tab to provide a solid backbone where it counts.

The 10-degree built-in angle makes it ideal for upper triangulated link setups. Sold individually and shipped unwelded, this bracket allows you to customize your suspension geometry during mock-up. Whether you're dialing in a rock crawler or fabricating a race-ready rig, this bracket provides the adaptability and strength you need to get it right.

Key Features

• Part Number: R1382
• Material: 1/4" outer plates with a 3/8" center tab for added rigidity
• Bolt Hole: 9/16" (can be drilled out for larger bolts)
• Angle: 10-degree for triangulated upper link applications
• Application: Designed for custom 3-link or 4-link suspension systems
• Sold individually
• Ships unwelded for easy fitment and welding flexibility
• Made in the USA
