Offset Axle Panhard Bracket

Part Number: R1173-Kit-1
Shipping Weight: 6.0 lb
$40.00
Shipping calculated at checkout.

Description

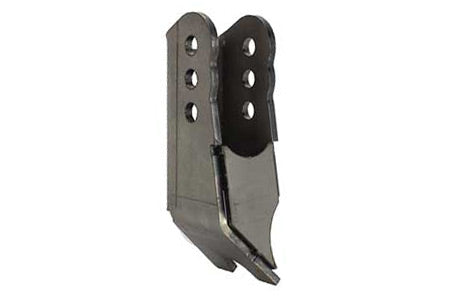

Offset Axle Panhard Bracket

Heavy-duty offset panhard bracket with multiple mounting options.

This offset panhard/track bar bracket provides three mounting positions at 4", 5", and 6" from axle center, giving flexibility for fine-tuning suspension geometry. Designed to fit a 3" axle tube, it can also be modified to work with other axle tube sizes as needed. Built from 1/4" steel plate, it includes a reinforcement plate for added strength once welded in place.

The bracket has a 2" inside width and comes drilled for 9/16" bolts, making it compatible with standard suspension hardware. Sold individually, it’s built for durability and customization in demanding suspension setups.

Key Features

  • Part Number: R1173
  • Offset design with 3 mounting positions (4", 5", 6" from axle center)
  • Cut for 3" axle tubes (modifiable for other tube sizes)
  • 2" inside width, drilled for 9/16" bolts
  • Made from 1/4" steel plate
  • Reinforcement plate included for welding
  • Sold individually

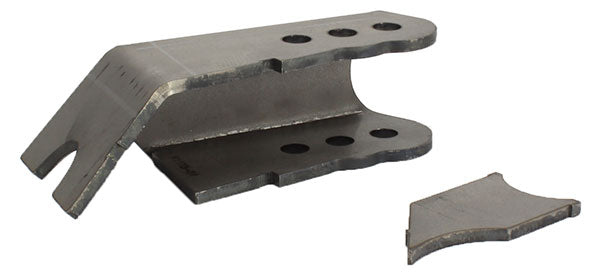

What's Included

  • (1) Offset Axle Panhard Bracket
  • (1) Reinforcement Plate

Notes

  • Welding required for installation.
  • Designed for 3" axle tubes—modification may be needed for other diameters.
Prop 65 Warning Icon
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 9 reviews
100%
(9)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Billy Bryan
Great products!

My default go to for any parts I need for myself or customer rigs. Great customer service, and you just can't beat the strength of RuffStuff!!

T
Tallon
Serious Beef and Great Customer Service

Aside from the product itself being extremely well made, the customer service is awesome. After ordering it, I was emailed that the product was backordered so I called for an ETA. Liam was able to find one that was unbent and see if they could get it out to me. I called on Friday at lunchtime and they had the bracket bent and shipped that afternoon. These guys are awesome and that definitely sets them apart from anyone else.

J
Jeff Vande Guchte
Steering upgrade

Built a 3/4 HD Dana 44 front axle and originally used the stock track bar location, that was a big mistake. This bracket was the perfect size, angle and shape to install after the fact. I had to clearance my truss slightly and this slid right into place. I welded it on with no other modifications and it works perfect. Glad I bought this versus any other option. I will definitely buy RuffStuff again.

L
Lee Scoggins
DO NOT 2nd GUESS - BUY IT NOW!!!

I'm the type to build my own stuff. I went searching for trackbar/panhard mounts to get an idea of something to build. I'm glad to find this site. Not only is it cost effective, but this mount is BUILT to stand its ground. I'm one happy customer to weld this to my axle housing and support your business. You know its great when you get stickers with the product.

I
Ismael Rosales
Company Name Says It All

The bracket is super strong and pictures do not emphasis its strength and rigidity. Many of my ZJ and WJ customers ask for the part "BY NAME" Ruff Stuff says it all. great products AAAmazing customer service
