XJ Leaf Spring Relocation Bundle

Complete Leaf Spring Relocation Kit For Jeep XJ

Ultimate strength, adjustability, and performance for your XJ's rear suspension.

This complete bundle combines three essential components for the most versatile and durable leaf spring setup on the market. Upgrade your worn-out factory rear suspension with heavy-duty adjustable hangers, dual-height lift shackles, and relocatable shackle mounts—all designed to handle years of hard trail abuse whether you're tackling rocky trails or running high-speed desert lines. Made from 3/16" laser-cut A36 steel, brake-formed and welded in-house, this kit delivers unmatched adjustability for tuning wheelbase, shackle angle, spring response, and ride height to match your specific setup and driving conditions.

Say goodbye to weak factory shackles and sketchy lift blocks. This complete system is serviceable, rebuildable, and engineered to last longer than your rig.

Key Features

• Part Number: R2612-B-Kit-1
• Fitment: Jeep Cherokee XJ rear leaf spring and shackle applications
• Material: 3/16" laser-cut A36 steel construction, formed and welded in-house
• Adjustable Leaf Hangers: (R2671) Five mounting positions allow tuning of wheelbase, shackle angle, and spring behavior (center hole matches OEM geometry)
• Adjustable Lift Shackles: (R2612) Dual mounting holes provide choice of 1.5" or 2.0" lift for precise ride height tuning
• Shackle Relocation Kit: (R2614) Four mounting holes for fine-tuning shackle angle to optimize suspension geometry
• Design: Heavy-duty weld-on installation with full clearance in factory shackle pocket for unrestricted articulation without binding

• Serviceable and rebuildable design for long-term use
• Compatible components work together for ultimate versatility

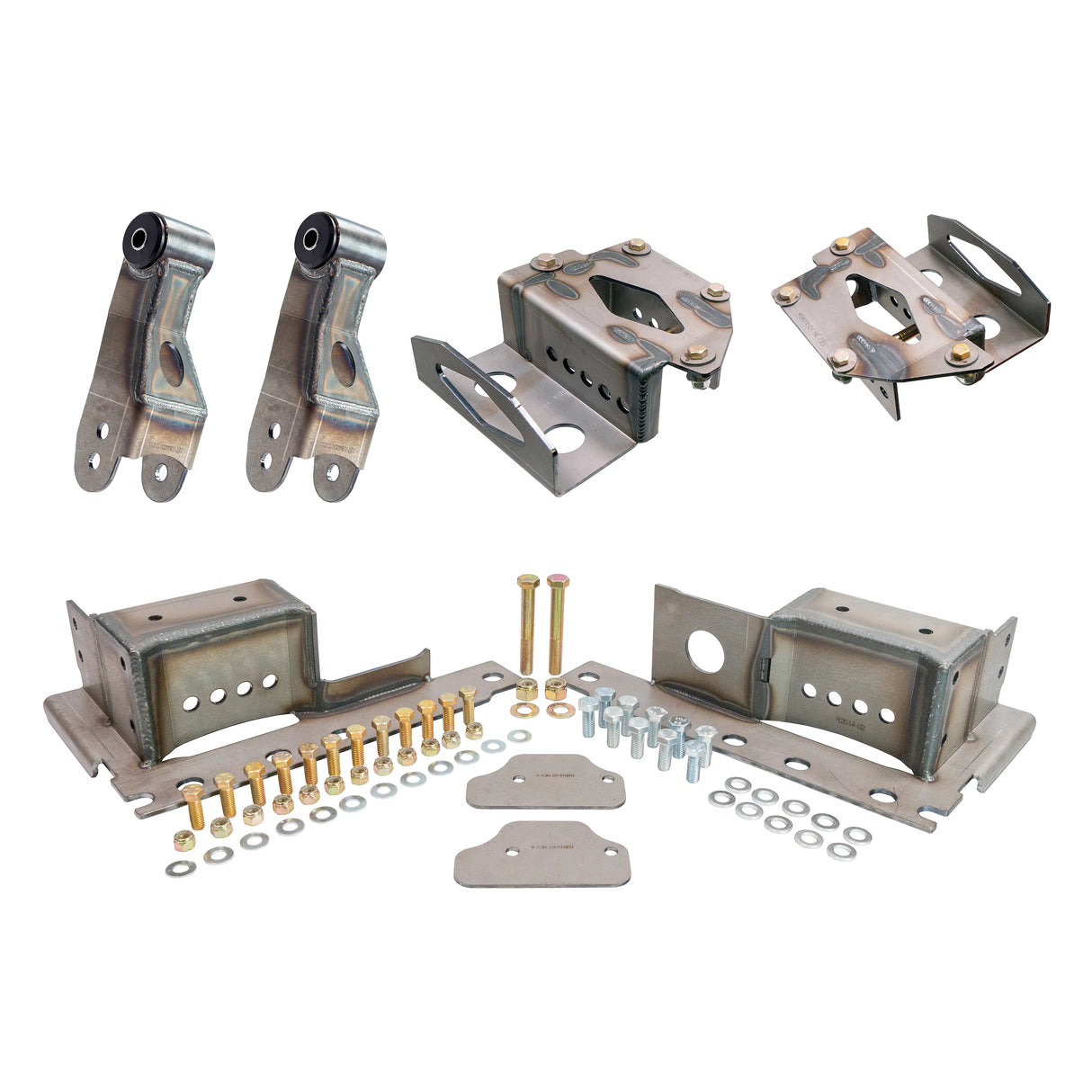

What's Included

• (2) Adjustable leaf spring hangers with five mounting positions (R2671)
• (2) Adjustable lift shackles with dual mounting holes (R2612)
• (2) Shackle relocation brackets with four mounting positions (R2614)
• (4) Poly bushings
• (2) Bolt sleeves
• All required installation hardware


Fitment Checklist

• Designed for Jeep XJ Cherokee rear leaf spring and shackle applications
• Center hanger hole matches OEM geometry
• Full clearance in factory shackle pocket for unrestricted articulation
• Compatible with factory and aftermarket leaf springs
• Works with various lift heights and suspension setups

Installation Requirements

• Professional welding required for hanger and relocation kit installation
• Optional bolt-through-floor reinforcement available for maximum strength
• Proper alignment critical for optimal performance and safety

Note

Use silicone or lithium-based grease for polyurethane bushings. Petroleum-based lubricants will degrade bushings and void the warranty.
