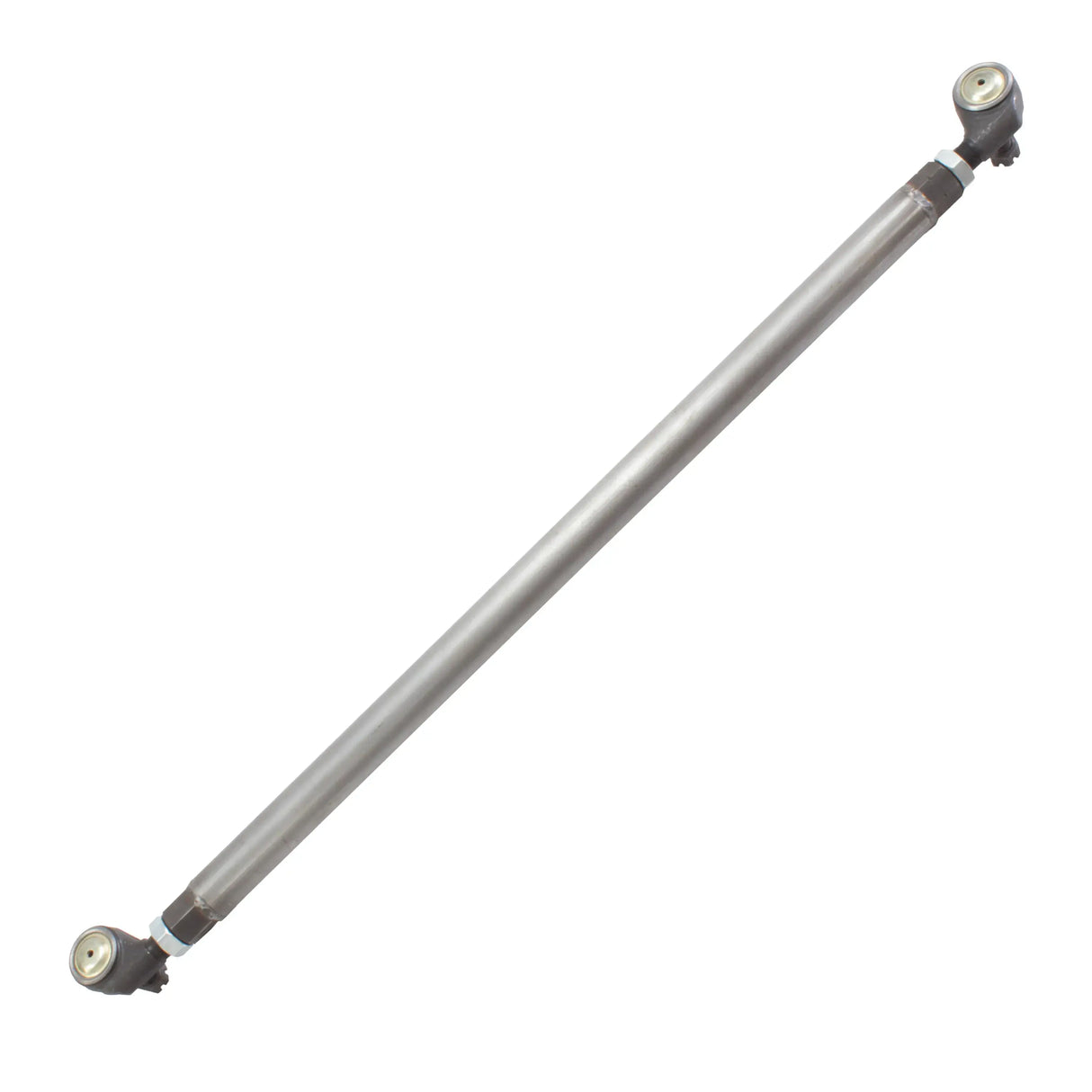

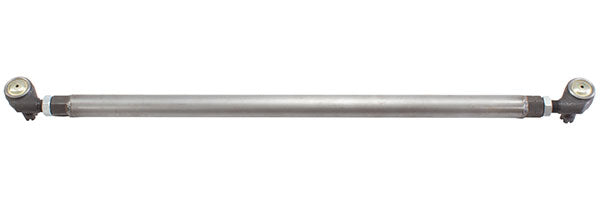

Offset Tie Rod Kit

Offset Tie Rod Kit

Heavy-duty offset tie rod kit designed for clearance and strength.

This kit is designed to work with larger-diameter tie rods and aftermarket differential covers, providing the clearance needed for proper steering function. It uses GM 1-ton tie rod ends, which may require reaming your knuckle’s taper depending on application. These have become the go-to choice for Jeep JK owners, as they are the only 1-ton tie rod option that works with factory knuckles.

We supply extra DOM tubing to ensure you can cut to the exact length needed—better to have more and trim it down than come up short. The result is a strong, customizable tie rod setup that’s built to last.

Key Features

• Part Number: R1327
• Offset design for aftermarket diff cover clearance
• Uses GM 1-ton tie rod ends (may require knuckle reaming)
• Standard choice for Jeep JK with factory knuckles
• 1.5" x .25" wall DOM tubing included (extra length supplied)

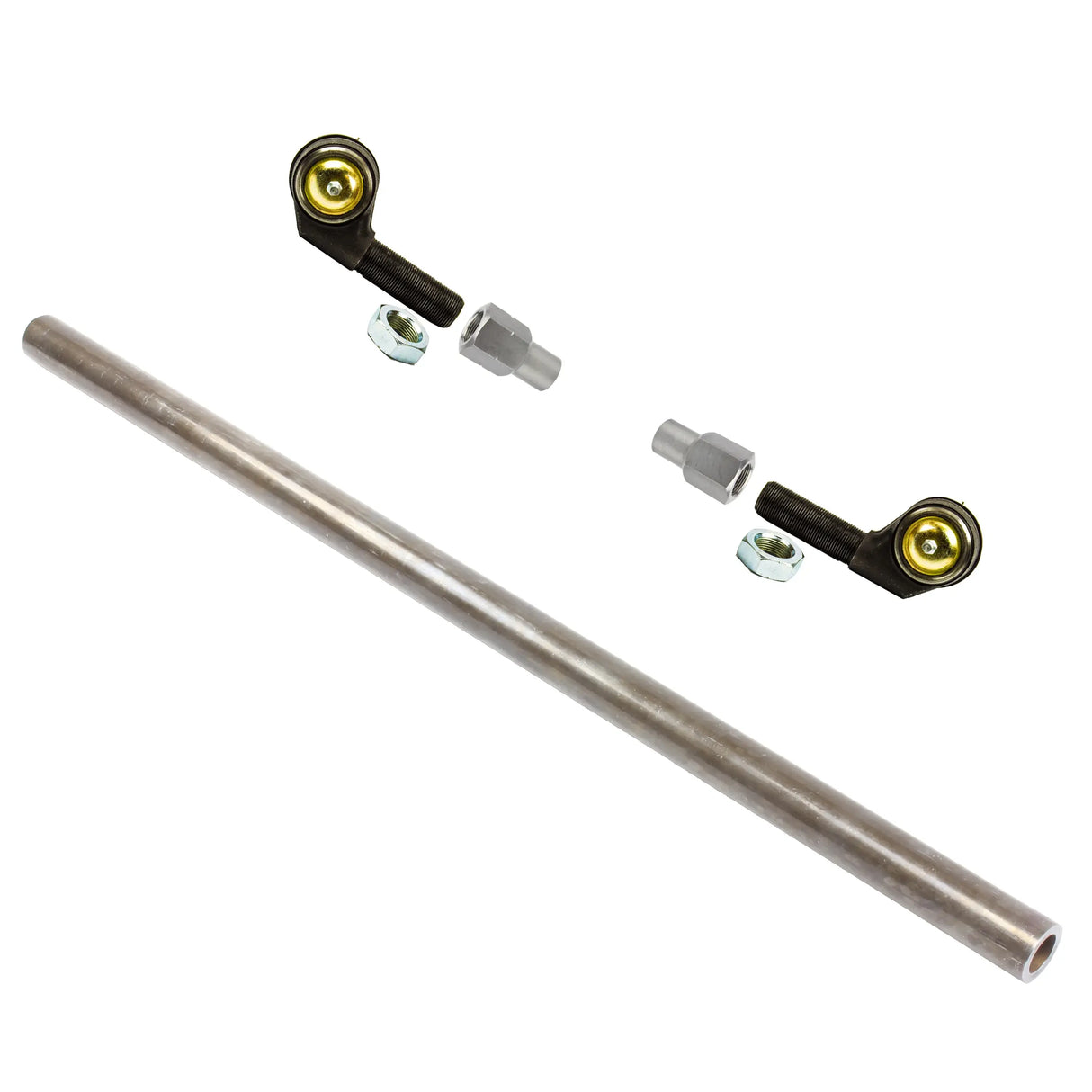

What's Included

• (1) 54" section of 1.5" x .25" wall DOM Tubing
• (2) Offset Tie Rod Ends with Castle Nuts
• (1) RH 7/8"-18 Hex Head Weld Bung
• (1) LH 7/8"-18 Hex Head Weld Bung
• (1) RH 7/8"-18 Jam Nut
• (1) LH 7/8"-18 Jam Nut

Notes

• Tubing will need to be cut down for Jeep JK applications.
• May require reaming knuckles to accept GM 1-ton tie rod ends.
• Additional parts sold separately:
  • Tapered Knuckle Inserts (GM taper)
  • 90° Steering Stabilizer Bracket
  • Flat Mount Steering Stabilizer Bracket
