14 Bolt Full Float Axle Spindles

14 Bolt Full Float Axle Spindles

Custom-width strength for 14 Bolt builds done right.

Build your custom-width 14 Bolt axle the right way with these heavy-duty RuffStuff full float axle spindles. Whether you're narrowing a 14 Bolt for a trail rig or stretching it for unique suspension geometry, these spindles provide a strong, weld-on solution compatible with 1998 and earlier GM full-float 14 Bolt hubs.

Each spindle is machined to a 2.875" outer diameter for use with standard thinner-wall tubing, but they can be machined down to 2.75" to fit heavier-duty tubing like our 3.5" x .375" wall DOM tubing upon request.

Key Features

• Part Number: R1019
• Outer Diameter: 2.875" (can be turned down to 2.75")
• Axle Compatibility: 1998 & earlier GM 14 Bolt full-float hubs
• Bearing Fitment: 2" ID outer bearing / 2.25" ID inner bearing
• Material: Heavy-duty steel construction
• Made in the USA

What's Included in This Kit

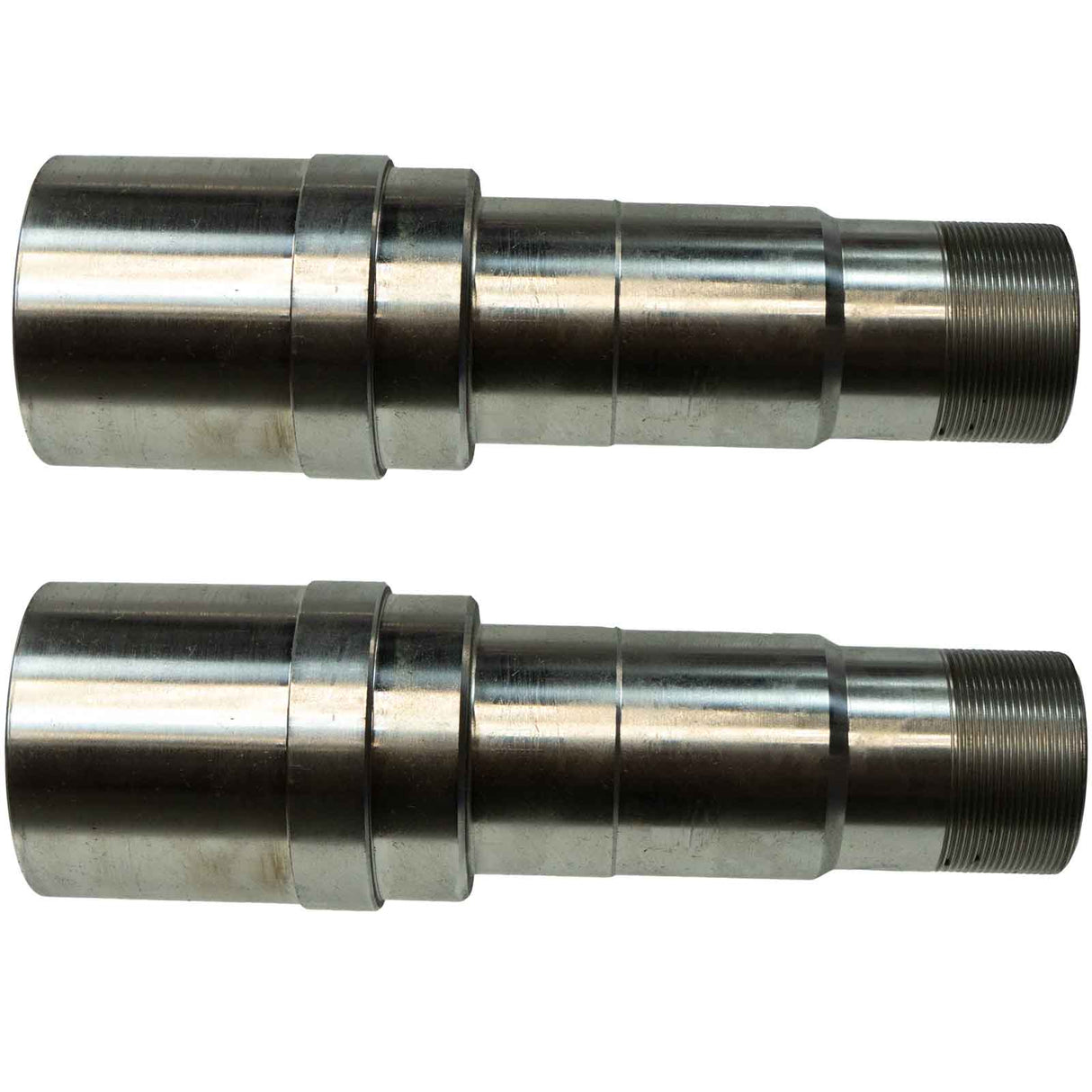

• 2 - Weld-on Full Float Spindles

Seal Compatibility

• Factory seals will not work (smaller seal surface)
• Recommended: RuffStuff Hub Seal – Part Number R1921
• Alternate Seals:
• Chicago Rawhide: CR27526
• National Seal: 476574N

Compatible Bearings (Timken)

• Inner: 387AS (bearing) / 382A (race)
• Outer: LM104949 (bearing) / LM104911 (race)

Recommended Add-Ons for Custom Builds

• 14 Bolt Axle Truss – For high-horsepower and hardcore off-road use
• 14 Bolt Pinion Guard – Shields your yoke and U-joint from trail damage

Sold as a pair
