Frame Outside Panhard Bracket

Frame Outside Panhard / Track Bar Bracket

Frame-mounted track bar bracket for wide axle setups and custom suspension geometry.

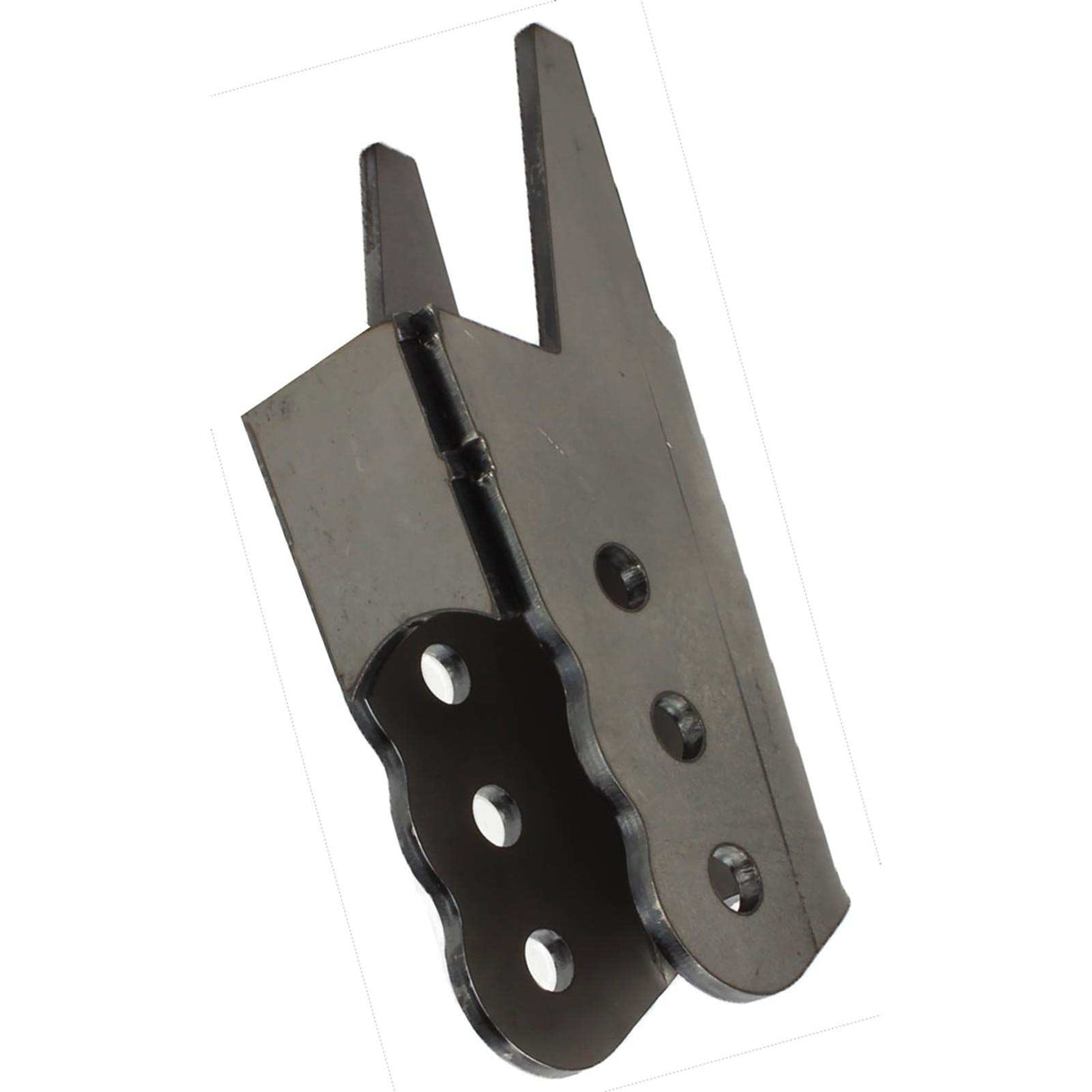

This outside-the-frame panhard bracket is designed for custom suspension setups running wider-than-stock axles. It mounts directly to the outside face of the frame rail, making it ideal for full-width axle swaps or high-clearance builds where you need the bar pushed outboard for proper alignment.

Made from 1/4" steel, the bracket features a 2" inside diameter and includes a weld-on reinforcement plate for added strength. It offers 3 mounting heights — 2", 3.25", and 4.5" from the bottom of the frame — to help fine-tune your panhard angle and ride geometry. Clean, compact, and easy to weld into any serious build.

Key Features

• Part Number: R1154
• Mounts to outside of frame rail
• 2" inside diameter
• 1/4" steel construction
• 3 mounting positions: 2", 3.25", and 4.5" from bottom of frame
• Includes reinforcement plate for added strength
• Welding required

What's Included

• (1) Frame-side track bar bracket
• (1) Weld-on reinforcement plate
• Sold individually

Note

Welding required. Designed to mount on the outside of the frame and ideal for use with wide axle setups. Always mock up and verify panhard clearance and bar angle before final welding.
